Clutch Housing Disassemble

WARNING: This page is about a different variant/trim than selected.

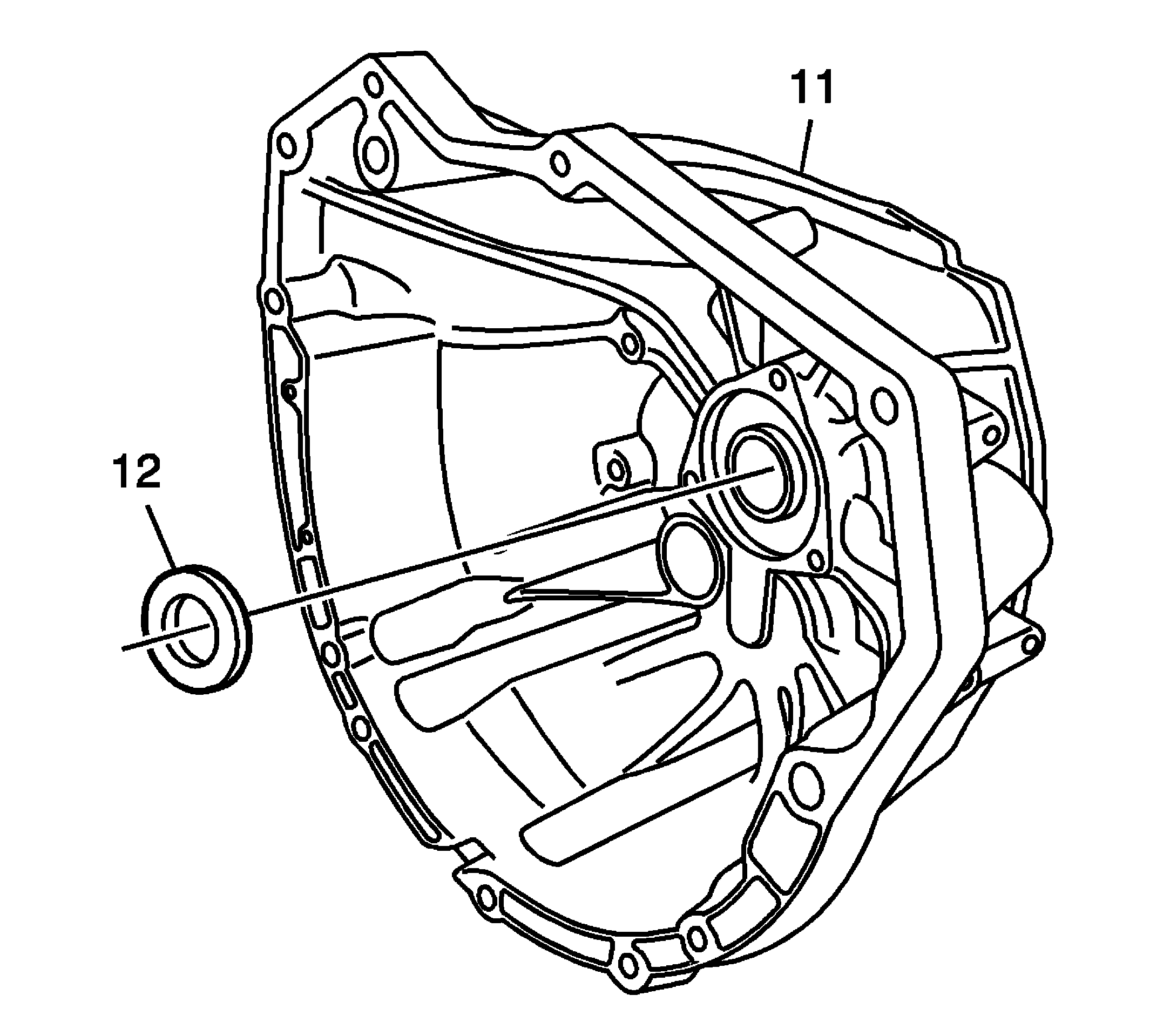

    Fig 1: Front Case Input Shaft Seal
    GM1505877Courtesy of GENERAL MOTORS CORP.
  1. Remove and discard the input shaft seal (12) from the front case (11).

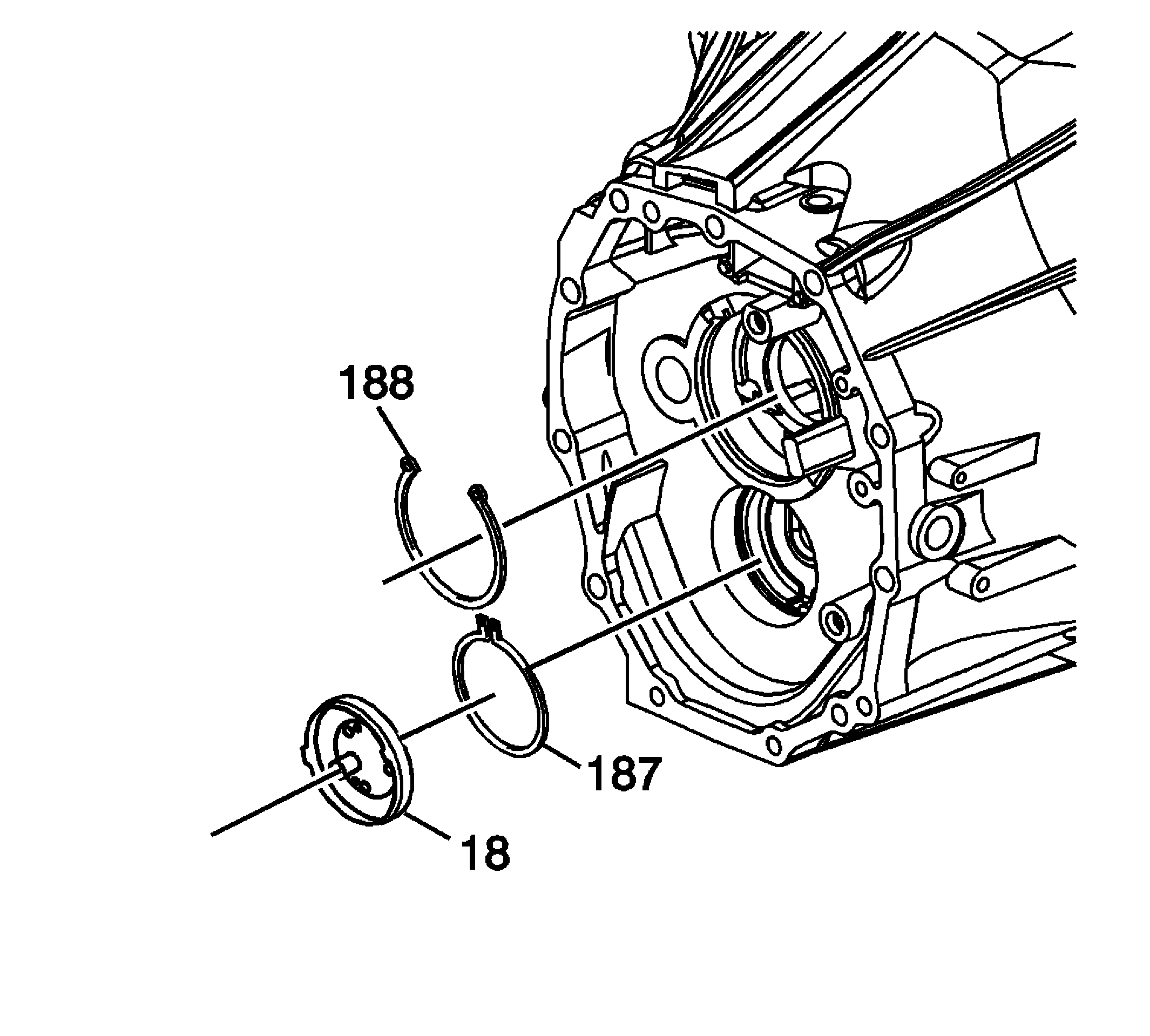

    2. Fig 2: Front Input Shaft Oil Slinger & Retainers
    GM1998291Courtesy of GENERAL MOTORS CORP.
  2. Pry the front input shaft oil slinger (18) from the transmission front case using a suitable tool.
  3. Remove the front input shaft oil slinger (18).
  4. Remove the input shaft bearing front retainer (188).
  5. Remove the counter shaft bearing front retainer (187).
