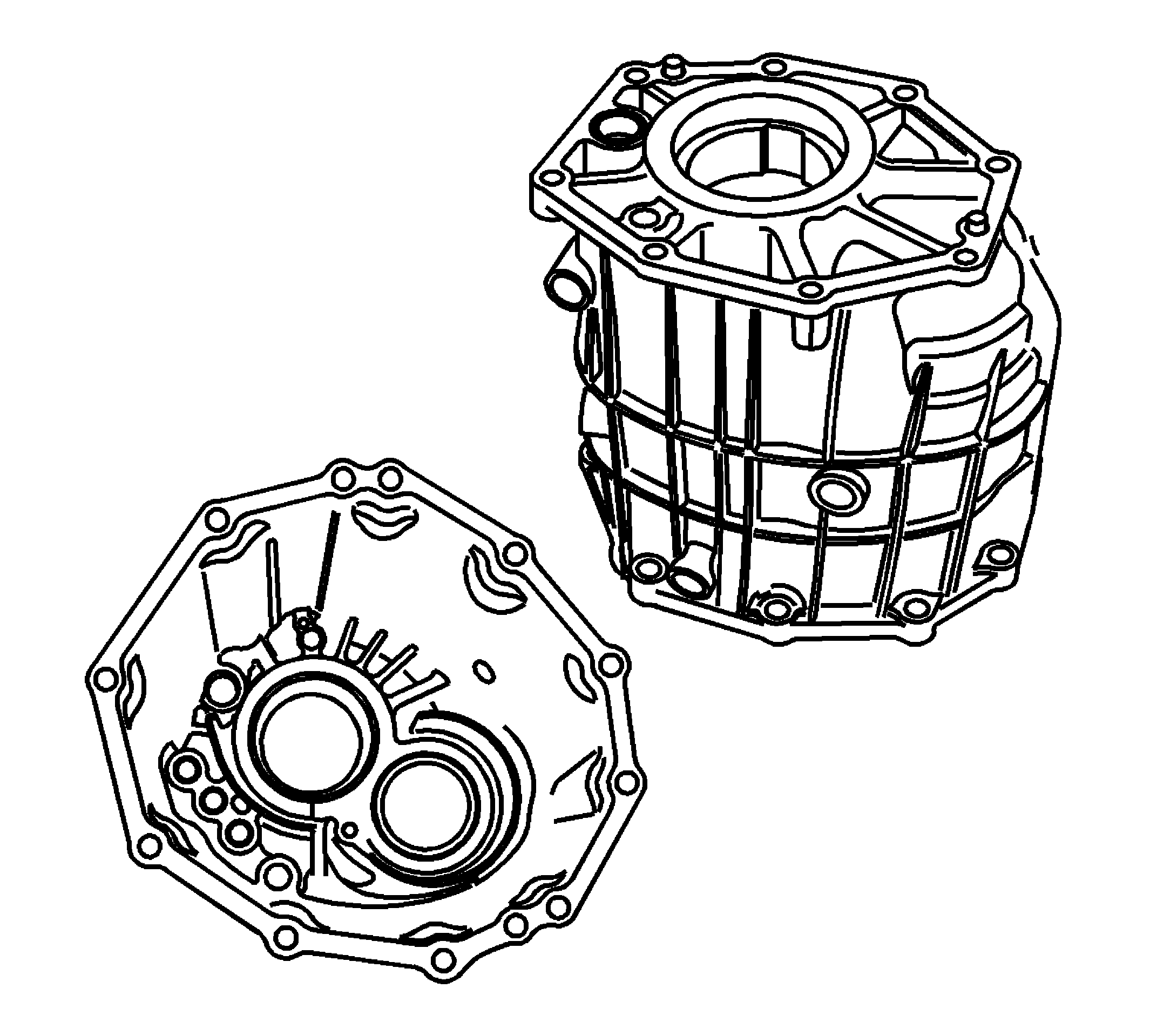

Rear Case
WARNING: This page is about a different variant/trim than selected.
- Clean the rear case in a suitable cleaning solvent and air dry.
- Remove the sealer from the case sealing surfaces.
- Inspect the sealing surfaces for damage.
- Inspect the case threaded bolt holes for damage.
- Repair any damaged threads.
- Inspect the location pins for being loose or missing.
- Repair or replace any damaged location pins.
- Inspect the shift shaft bushings for excessive wear.
- Inspect the bearing bore.
- Replace the case assembly if the shift shaft bushings are faulty.
CAUTION:
Refer to Machined Surface Damage Caution
.
