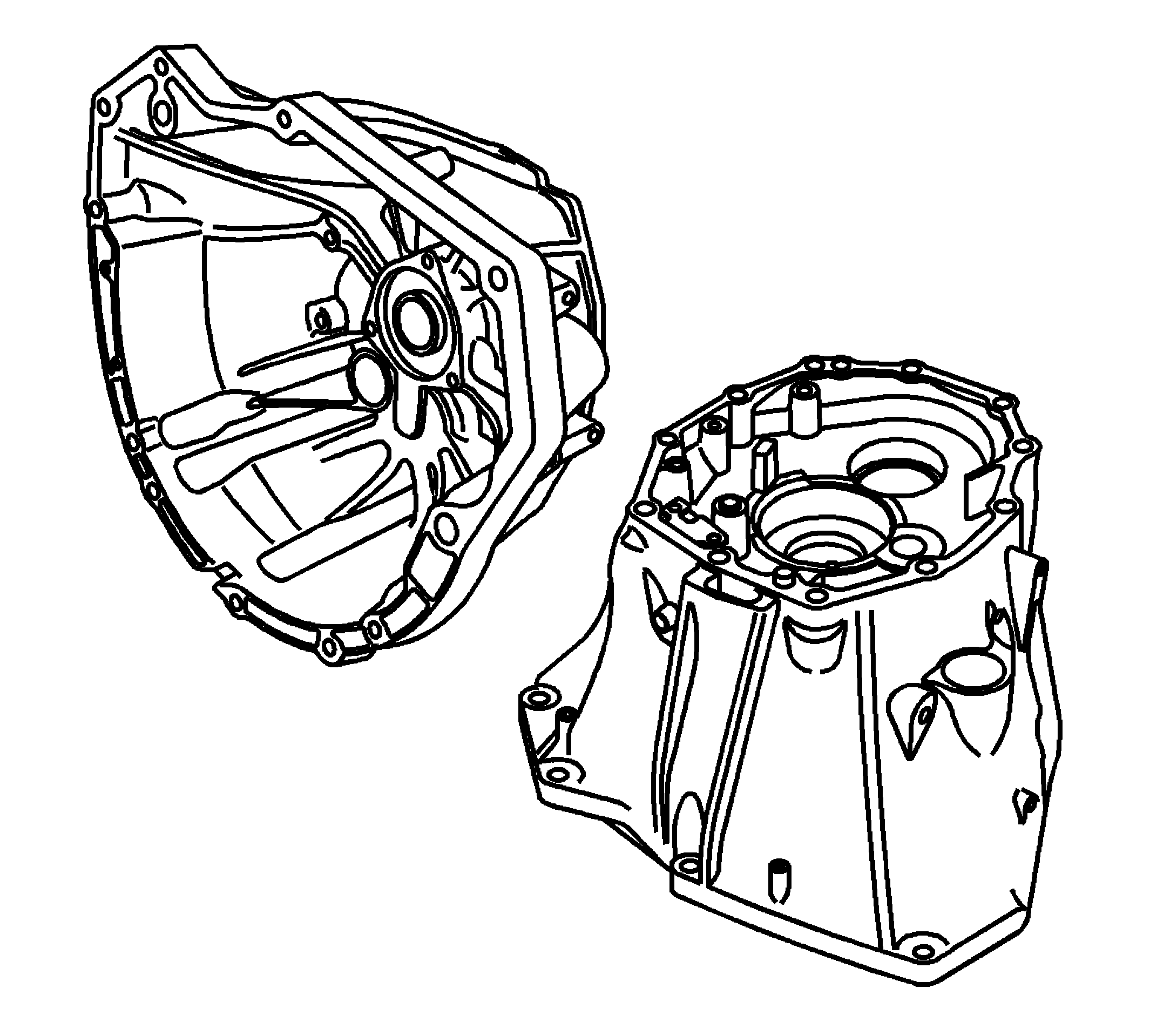

Clutch Housing
WARNING: This page is about a different variant/trim than selected.
- Clean the clutch housing in a suitable cleaning solvent and air dry.
- Inspect the clutch housing for the following conditions:
- Cracks
- Damaged mounting flanges
- Damaged bolt holes
- Remove the sealer from the case sealing surfaces.
- Inspect the case for being broken or cracked.
- Inspect the bearing bore for the following conditions:
- A spun bearing
- Cracks
- Replace the case assembly if any of the above conditions are found.
- Inspect the sealing surfaces for damage.
- Repair small scratches or nicks with a soft stone.
- Inspect the case threaded bolt holes for damage.
- Repair any damaged threads.
- Inspect the location pins for being loose or missing.
- Repair or replace any damaged location pins.
CAUTION:
Refer to Machined Surface Damage Caution
.
