Shift Shaft and Shift Forks Assemble

WARNING: This page is about a different variant/trim than selected.

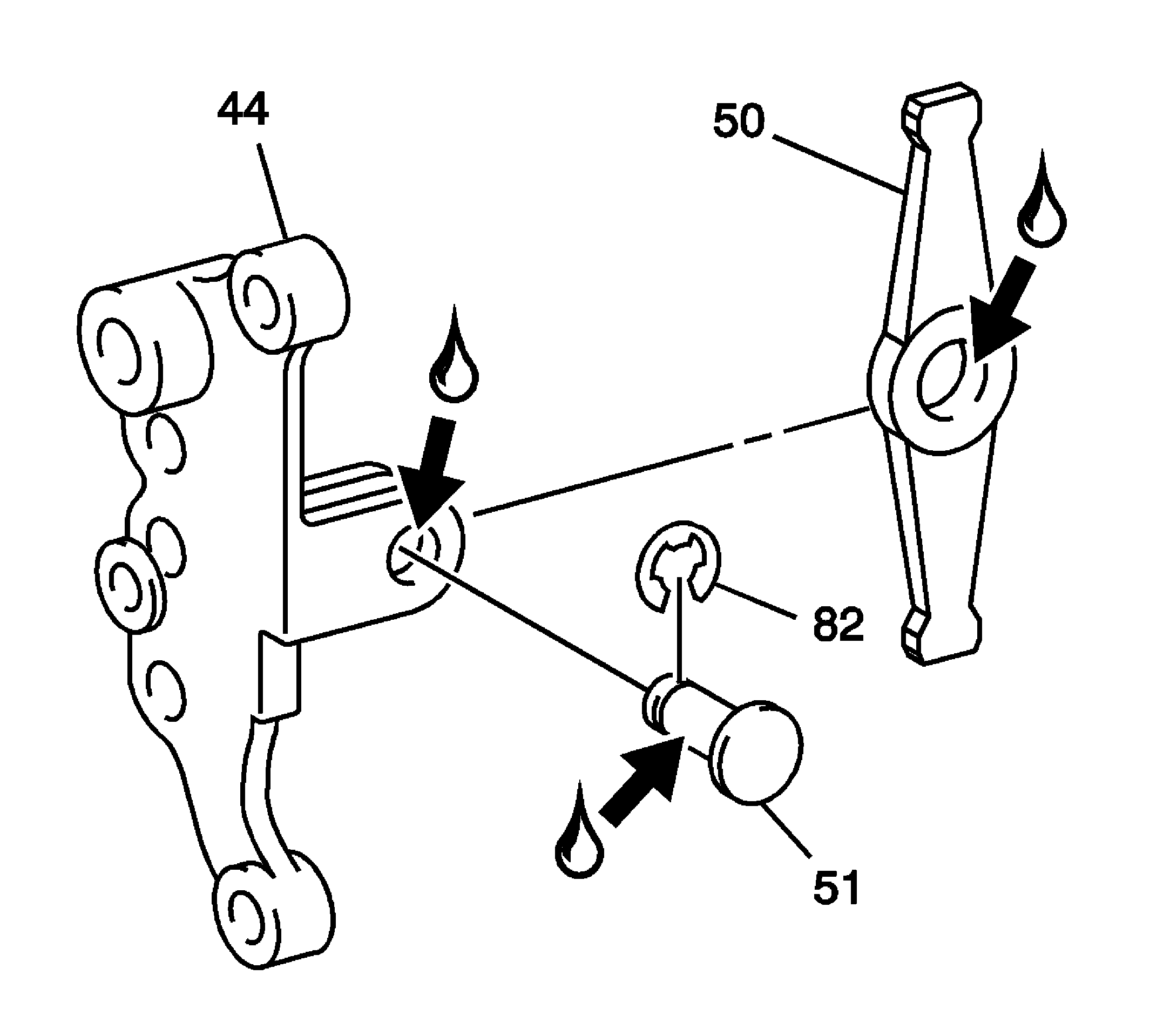

    Fig 1: View Of Control Select Arm, Shift Control Lever Bracket, Control Select Arm Pin & E-Ring
    GM1539128Courtesy of GENERAL MOTORS CORP.
  1. Apply lubricant and install the control select arm (50) into the shift control lever bracket (44). Refer to Adhesives, Fluids, Lubricants, and Sealers .
  2. Apply lubricant and install the control select arm pin (51).
  3. Install the selector control lever pin retainer (82).

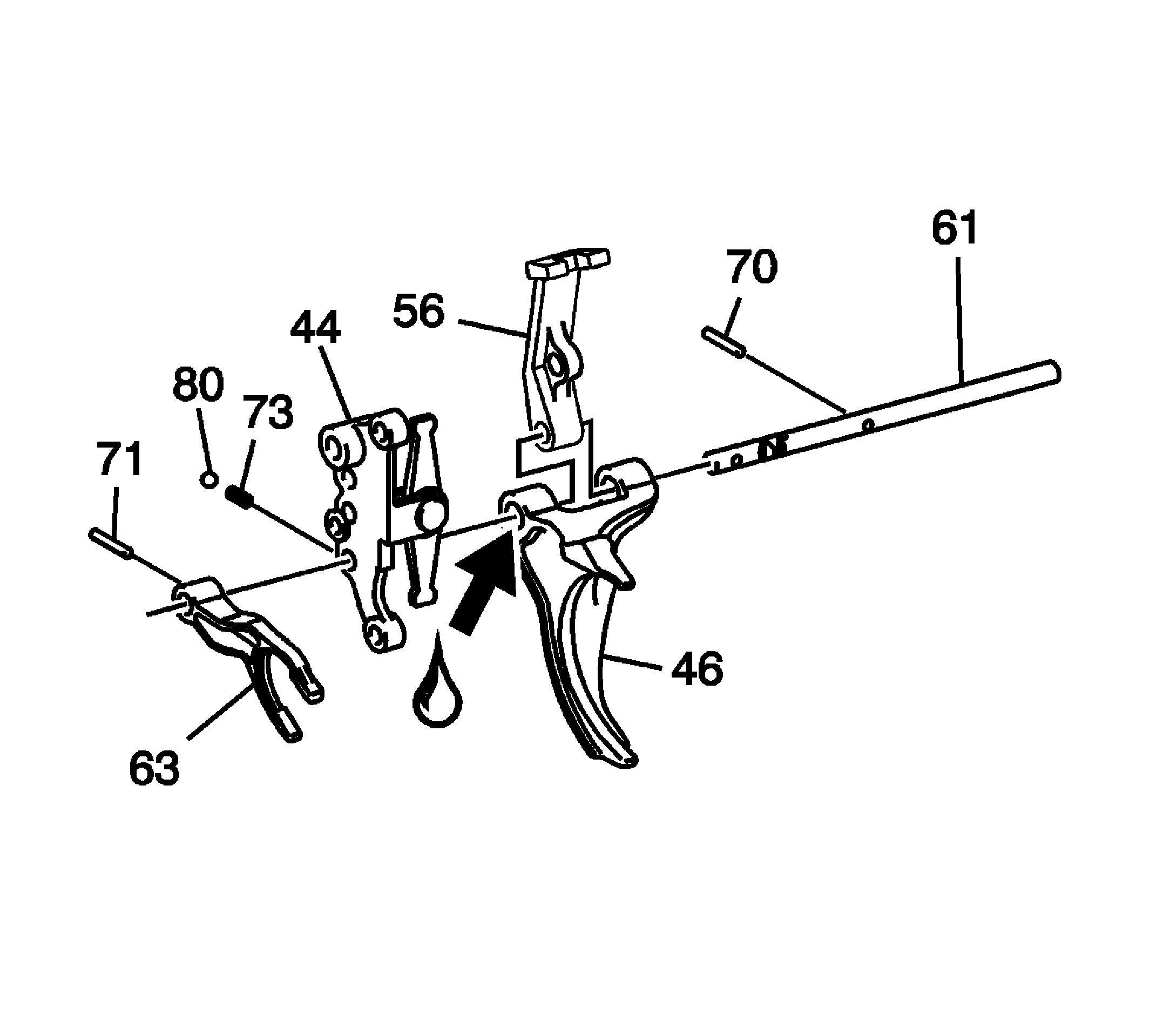

    4. Fig 2: View Of Reverse Shift Shaft Components
    GM1539130Courtesy of GENERAL MOTORS CORP.
  4. Apply lubricant and slide the internal shift control lever (56) and 1st/2nd shift fork assembly (46) onto the reverse shift shaft (61). Refer to Adhesives, Fluids, Lubricants, and Sealers . Install the slotted pin (70) into the lever (56).
  5. Install the shift control lever bracket (44) onto the reverse shift shaft (61).
  6. Slide the reverse shift fork (63) onto the reverse shift shaft (61). Install the long, slotted pin (71) into the reverse shift fork (63).
  7. Install the spring (73) and shift detent ball (80) into the bracket (44).

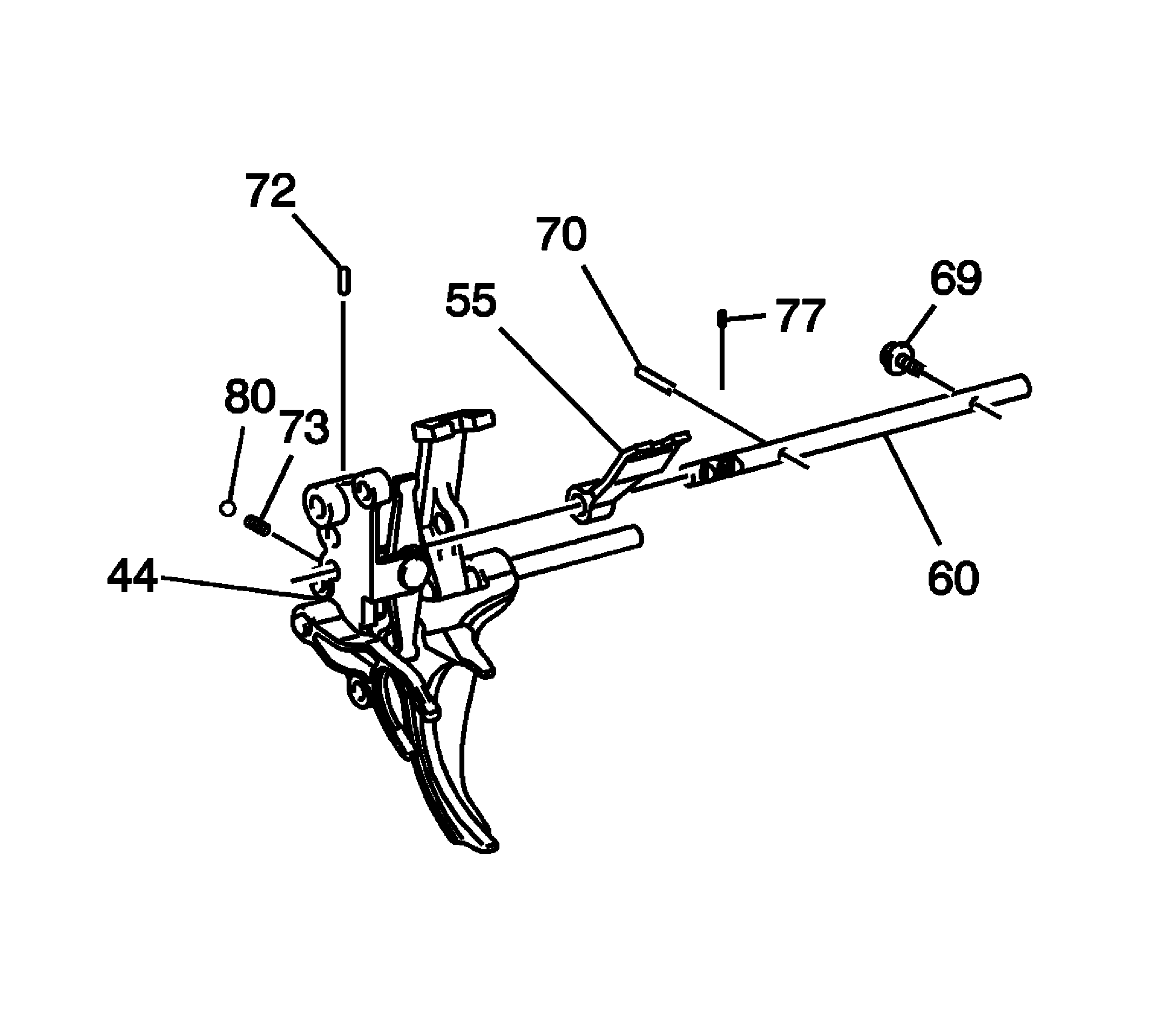

    8. Fig 3: View Of 5th/6th Shift Shaft Components
    GM1527385Courtesy of GENERAL MOTORS CORP.
  8. Install the pin (72) into the shift control lever bracket (44).
  9. Install the pin (77) into the 5th/6th shift shaft (60).
  10. Install the 5th/6th shaft (60) into the hole in the shift lever assembly (55).
    11. CAUTION: Refer to Fastener Caution .
  11. Install a new bolt (69) into the shift lever assembly (55). Tighten the bolt to 19.5 N.m (14 lb ft).
  12. Install the 5th/6th shift shaft (60) into the shift control lever bracket (44).

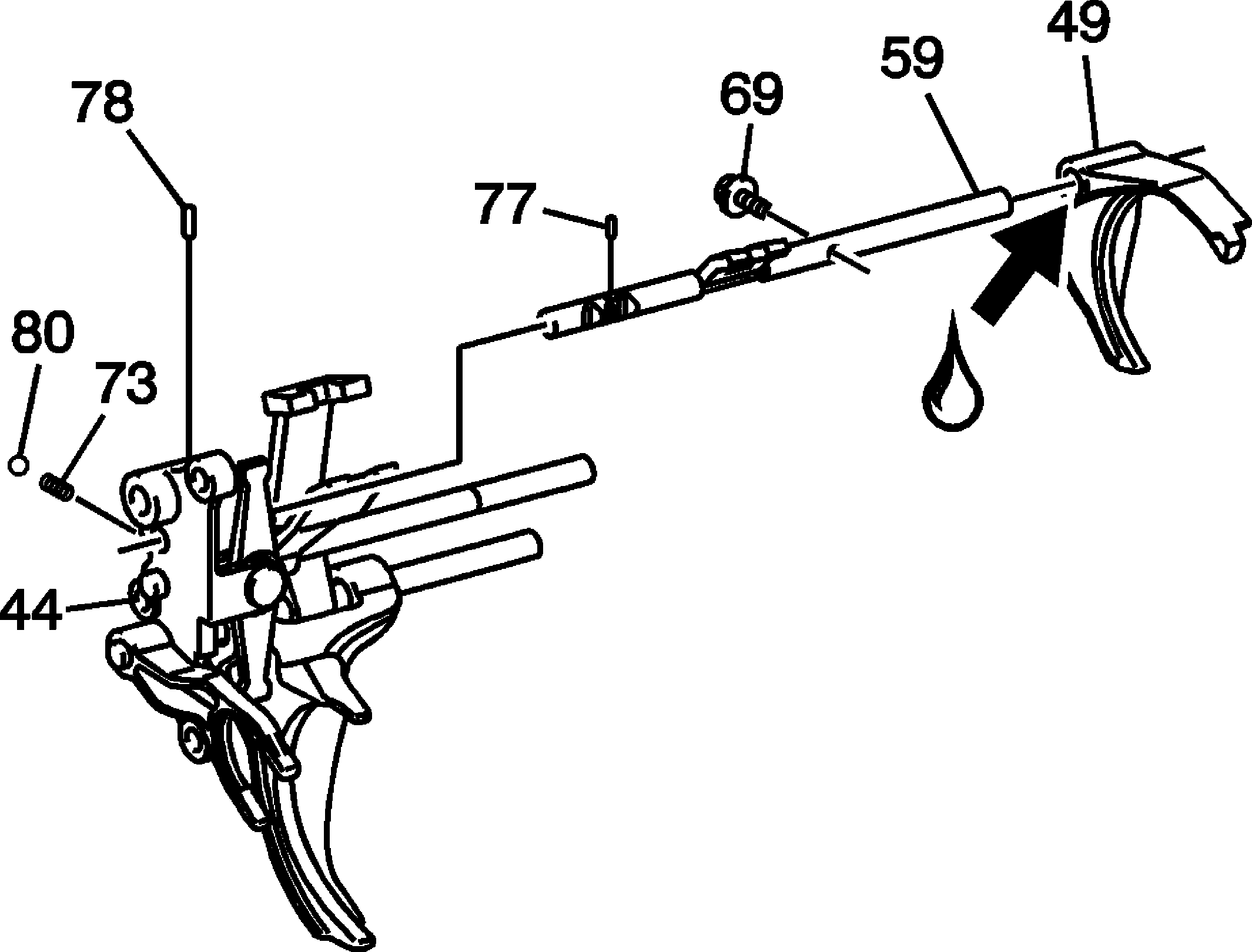

    13. Fig 4: View Of 3rd/4th Shift Shaft Components
    GM1541670Courtesy of GENERAL MOTORS CORP.
  13. Apply lubricant and slide the 3rd/4th shift fork (49) onto the 3rd/4th shift shaft (59). Install a new bolt (69) into the 3rd/4th shift fork (49). Tighten the bolt to 19.5 N.m (14 lb ft).
  14. Insert the spring (73) and the shift detent ball (80) into the shift control lever bracket (44).
  15. Install the pin (77) into the 3rd/4th shift shaft (59).
  16. Install pin (78) into the shift control lever bracket (44).
  17. Install the 3rd/4th shift shaft (59) into the shift control lever (44).

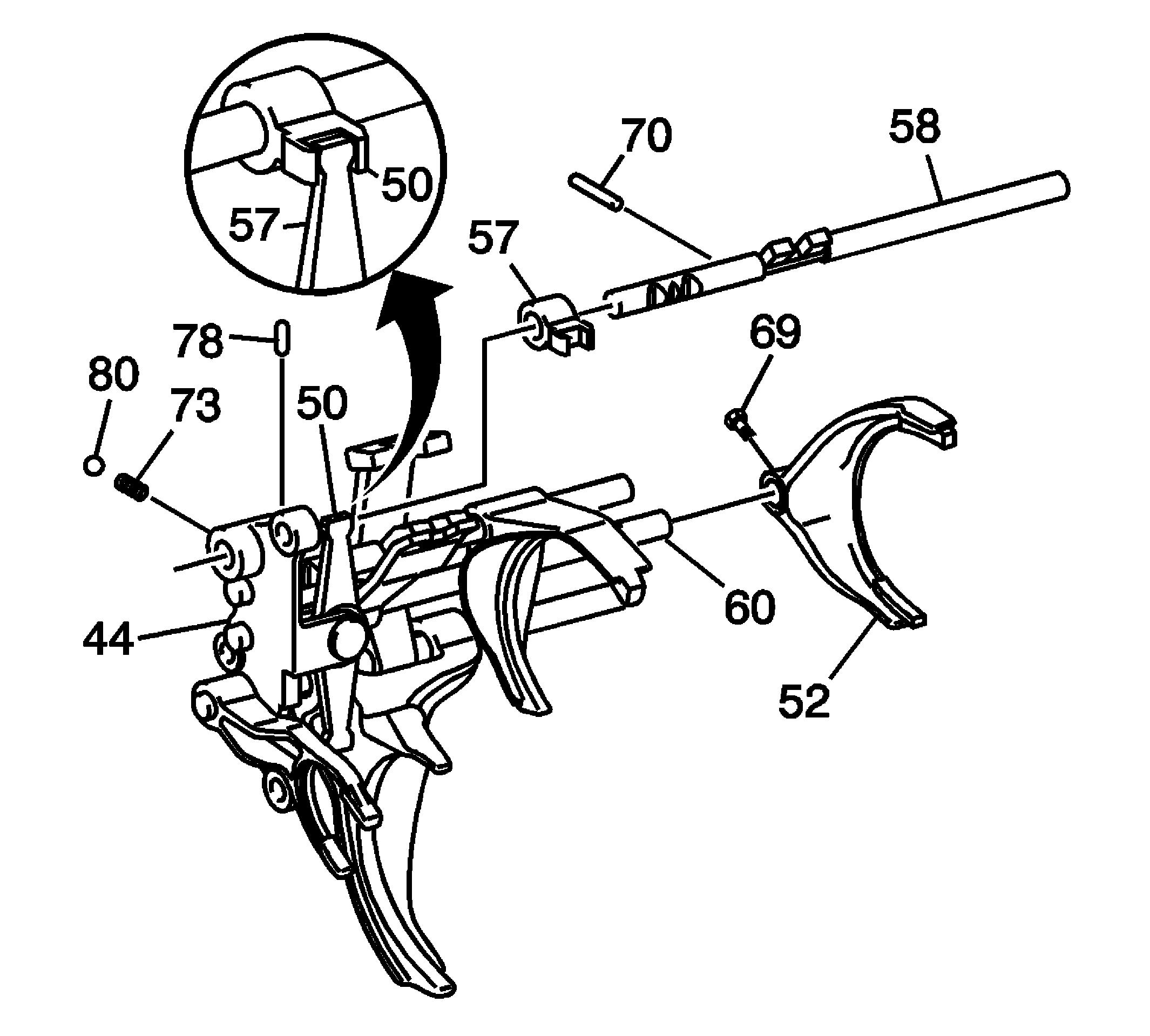

    18. Fig 5: View Of 1st/2nd Shift Shaft Components
    GM1527531Courtesy of GENERAL MOTORS CORP.
  18. Install the spring (73) and detent ball (80) into the shift control lever bracket (44).
  19. Install the pin (78) into the shift control lever bracket (44).
  20. Install the groove of select control lever assembly (57) into the projection of the control select arm (50).
  21. Slide the 1st/2nd shift shaft (58) into the shift control lever (57), and the shift control lever bracket (44).
  22. Install pin (70) into the 1st/2nd shift shaft (58).
  23. Install the 5th/6th shift fork (52) onto the 5th/6th shift shaft (60) and retain with a new bolt (69). Tighten the bolt to 19.5 N.m (14 lb ft).

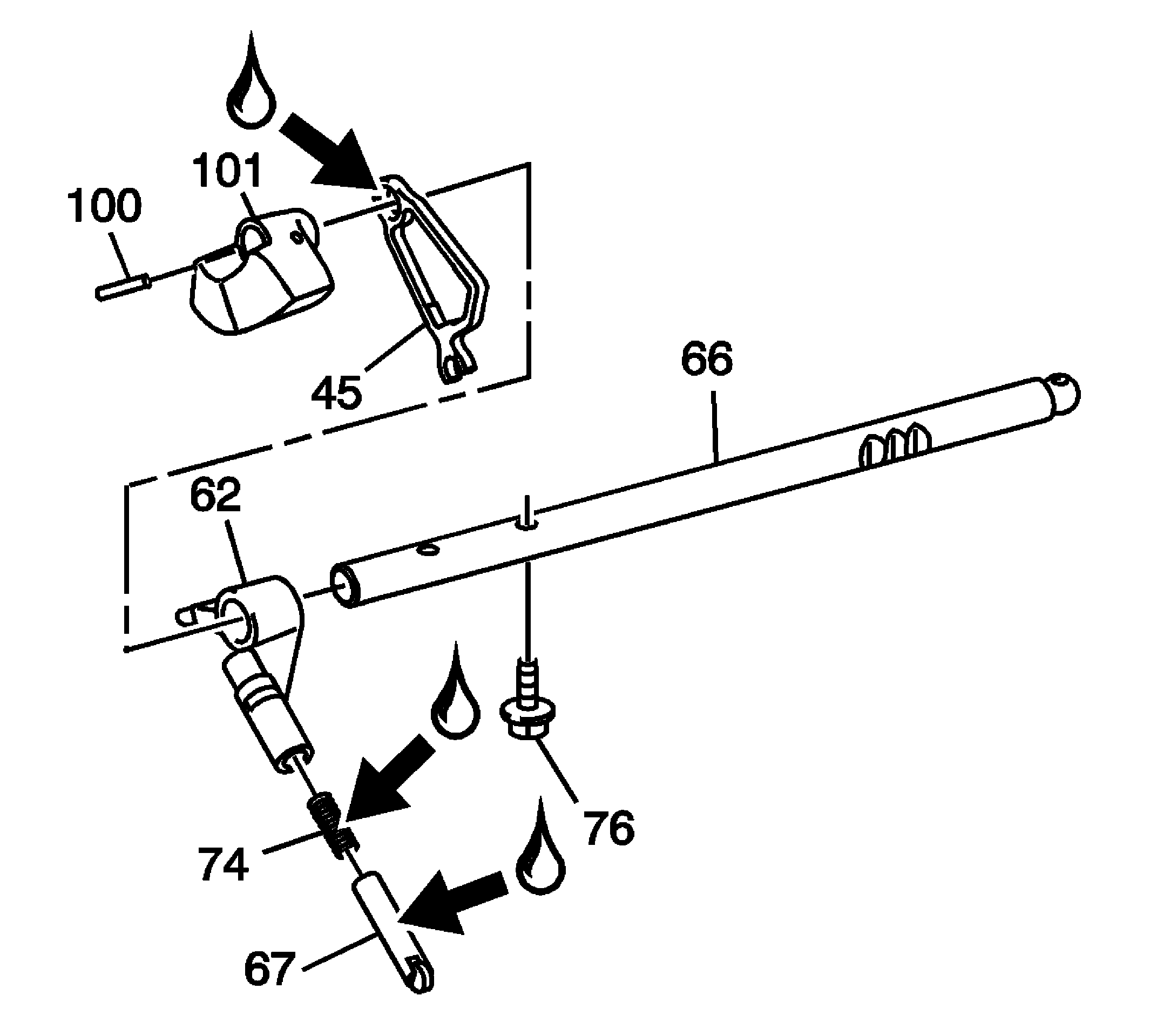

    24. Fig 6: View Of Shift Shaft Detent Lever & Shift Control Shaft Components
    GM1539133Courtesy of GENERAL MOTORS CORP.
  24. Slide the shift shaft detent lever (62) onto the shift control shaft (66).
  25. Install a new bolt (76) into the shift shaft detent lever (62). Tighten the bolt to 38 N.m (28 lb ft).
  26. Apply lubricant and insert the shift shaft detent spring (74) and the shift shaft detent (67) into the lever (62).
  27. Apply lubricant and slide the shift shaft detent cam (45) onto the shift control shaft (66).
  28. Insert the assembled shift shaft detent lever (62, 74, 67) into the opening in the shift shaft detent cam (45).
  29. Install the dynamic damper weight (101) onto the shift control shaft (66).
  30. Insert the pin (100) into the dynamic damper weight (101).
  31. Check the function of assembled components. The shift shaft detent (67) should slide on the shift shaft detent cam (45).
