Output Shaft
WARNING: This page is about a different variant/trim than selected.
- Clean the output shaft in a suitable solvent and air dry all the parts.

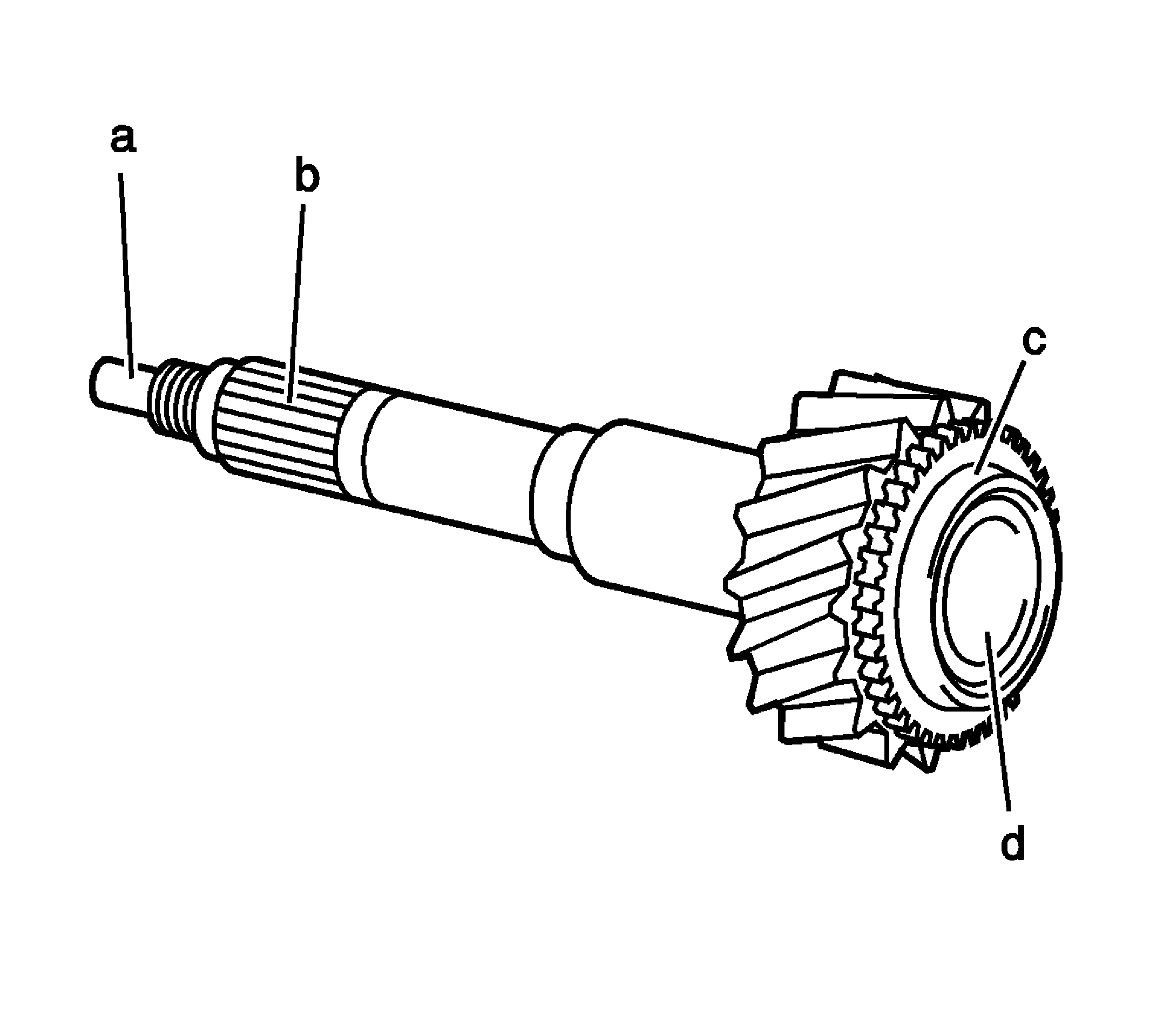

- Inspect the pilot bearing journal (a) for wear or scoring.
- Inspect the clutch disc splines (b) for wear. Steps in the splines may cause concerns with clutch operation.
- Inspect the synchronizer blocking ring surface (c) for the following conditions:
- Grooves
- Excessive wear
- Heat marks
- Scoring
- Inspect the input shaft front support bearing journal (d) for the following conditions:
- Brinelling
- Pitting
- Excessive wear
- Inspect the gear teeth and selector teeth for being faulty following the gear inspections steps.
- Replace the output shaft if any of the above conditions are found.
