Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Install the clutch hydraulic hose to the vehicle.

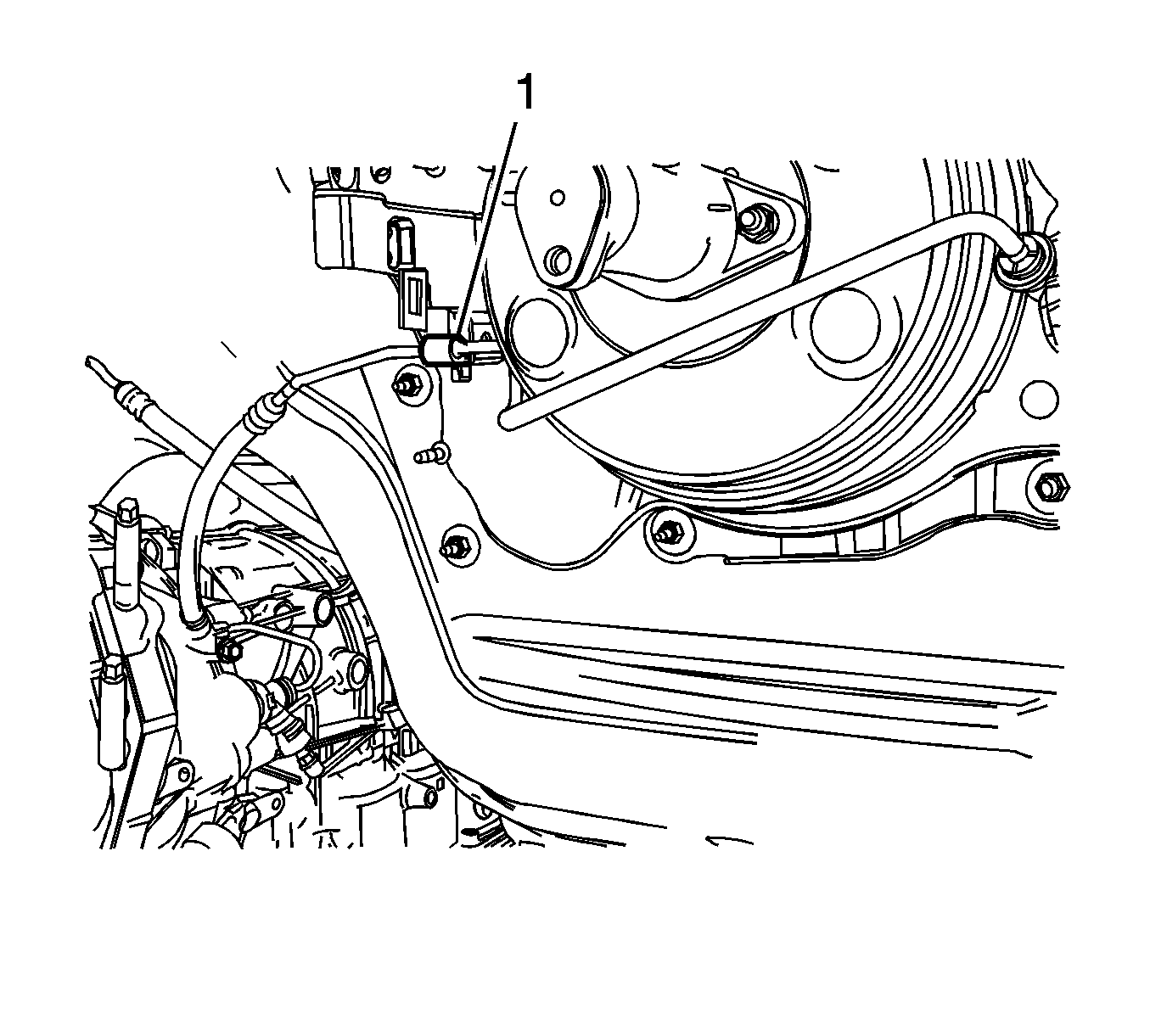

- Install the clutch hydraulic retainer clip to the cowl (1).
- Install the clutch hydraulic hose retaining clip to the clutch slave cylinder.
- Align the clutch hydraulic hose locating tab with the notch in the slave cylinder hose fitting.
- Push the clutch hydraulic hose into the clutch slave cylinder until a "click" is heard.
- Install the hose retainer to the transmission and tighten to 20 N.m (15 lb ft).
- Tug gently on the clutch hydraulic hose to ensure proper retention to the clutch slave cylinder.
- Lower the vehicle.
- Install the clutch hydraulic hose retaining clip to the clutch master cylinder.
- Connect the clutch hydraulic hose to the clutch master cylinder.
- Push the clutch hydraulic hose into the clutch master cylinder until a "click" is heard.
- Tug gently on the clutch hydraulic hose to ensure proper retention to the clutch master cylinder.
- Bleed the clutch hydraulic system. Refer to Hydraulic Clutch System Bleeding .
NOTE:
Ensure the clutch hydraulic hose is routed in an upward direction above the clutch slave cylinder with no sharp bends, kinks, or downward loops. Ensure the clutch hydraulic hose does not come in contact with any sharp or potentially hot surfaces.
