Installation Procedure

WARNING: This page is about a different variant/trim than selected.

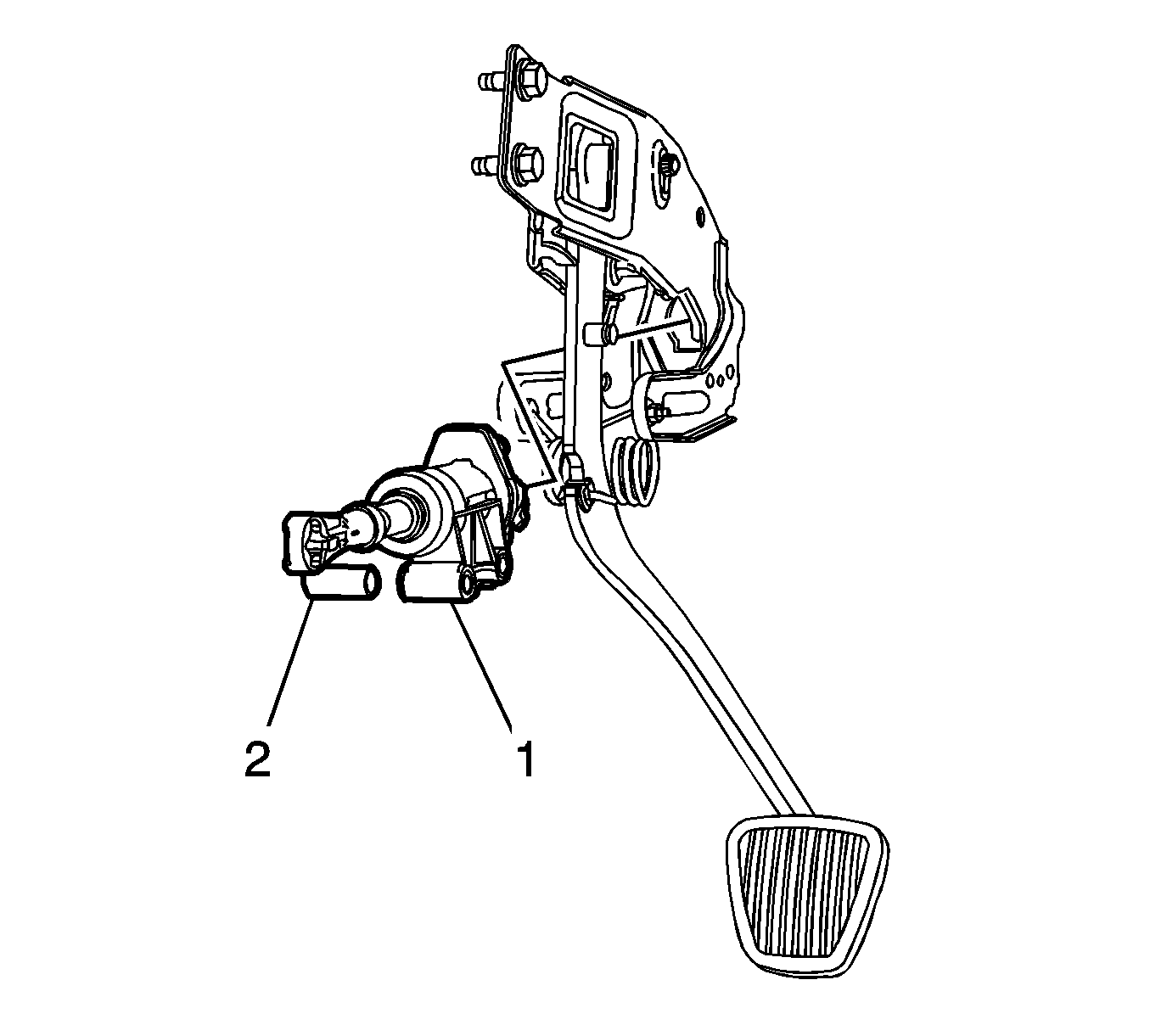

    Fig 1: Clutch Master Cylinder & Spacer
    GM2195883Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch master cylinder (1) and the spacer (2) to the clutch pedal assembly.

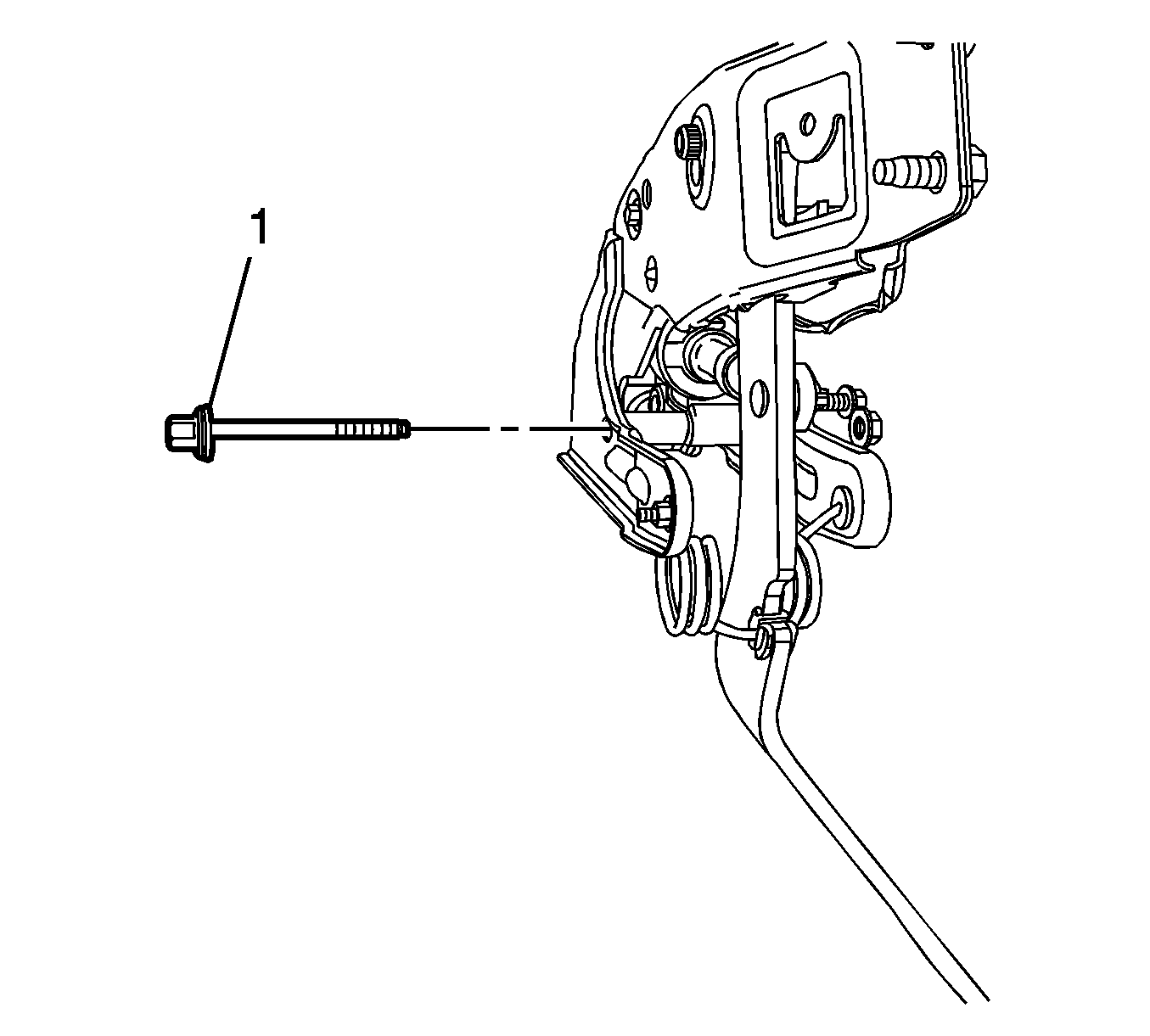

    2. Fig 2: Clutch Master Cylinder Fasteners (Left Side)
    GM2195881Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the two clutch master cylinder fastener (1) to the left side of the clutch pedal assembly and tighten to 20 N.m (15 lb ft).

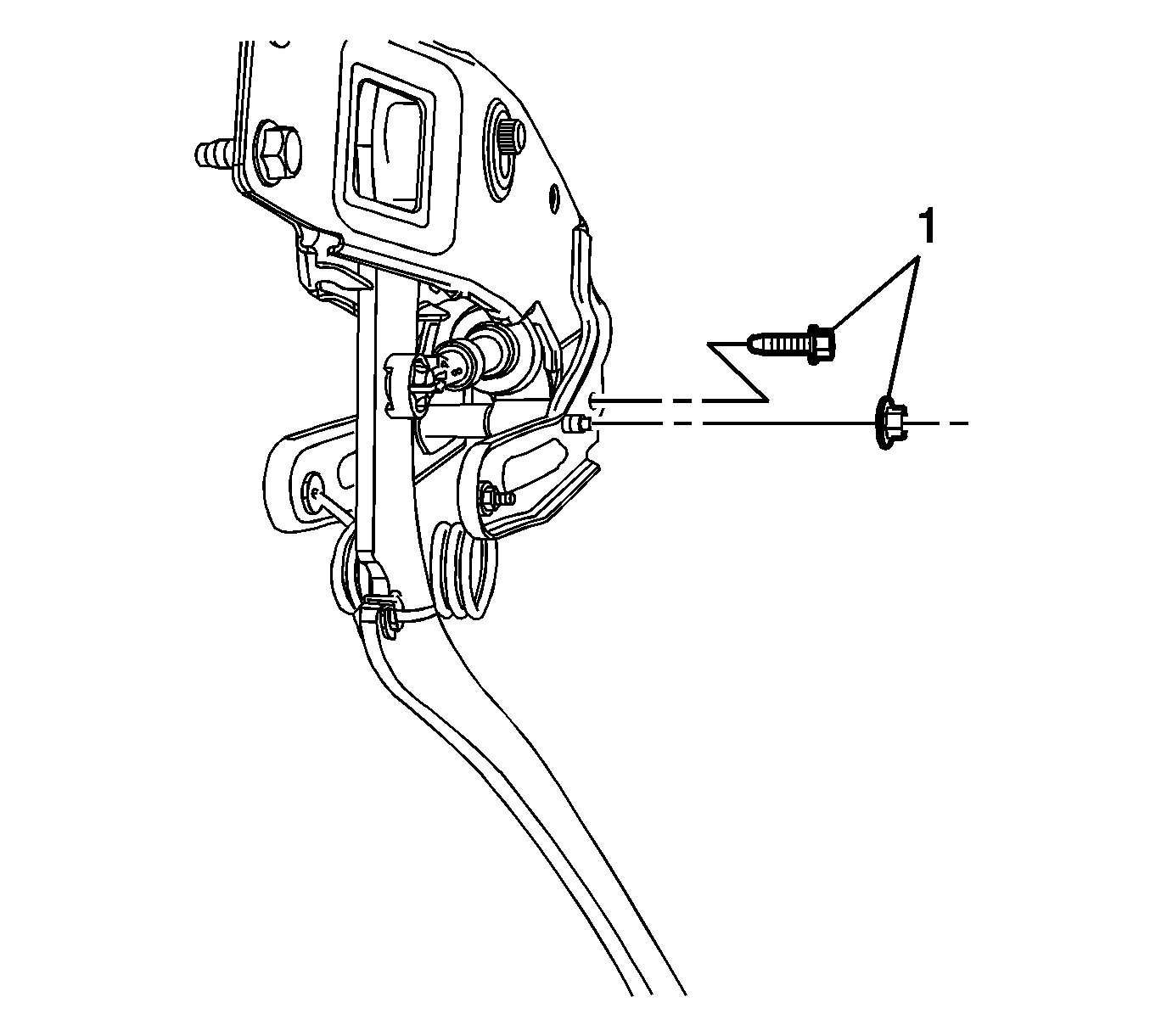

    3. Fig 3: Clutch Master Cylinder Fasteners (Right Side)
    GM2195880Courtesy of GENERAL MOTORS CORP.
  3. Install the two clutch master cylinder fasteners (1) to the right side of the clutch pedal assembly and tighten to 20 N.m (15 lb ft).

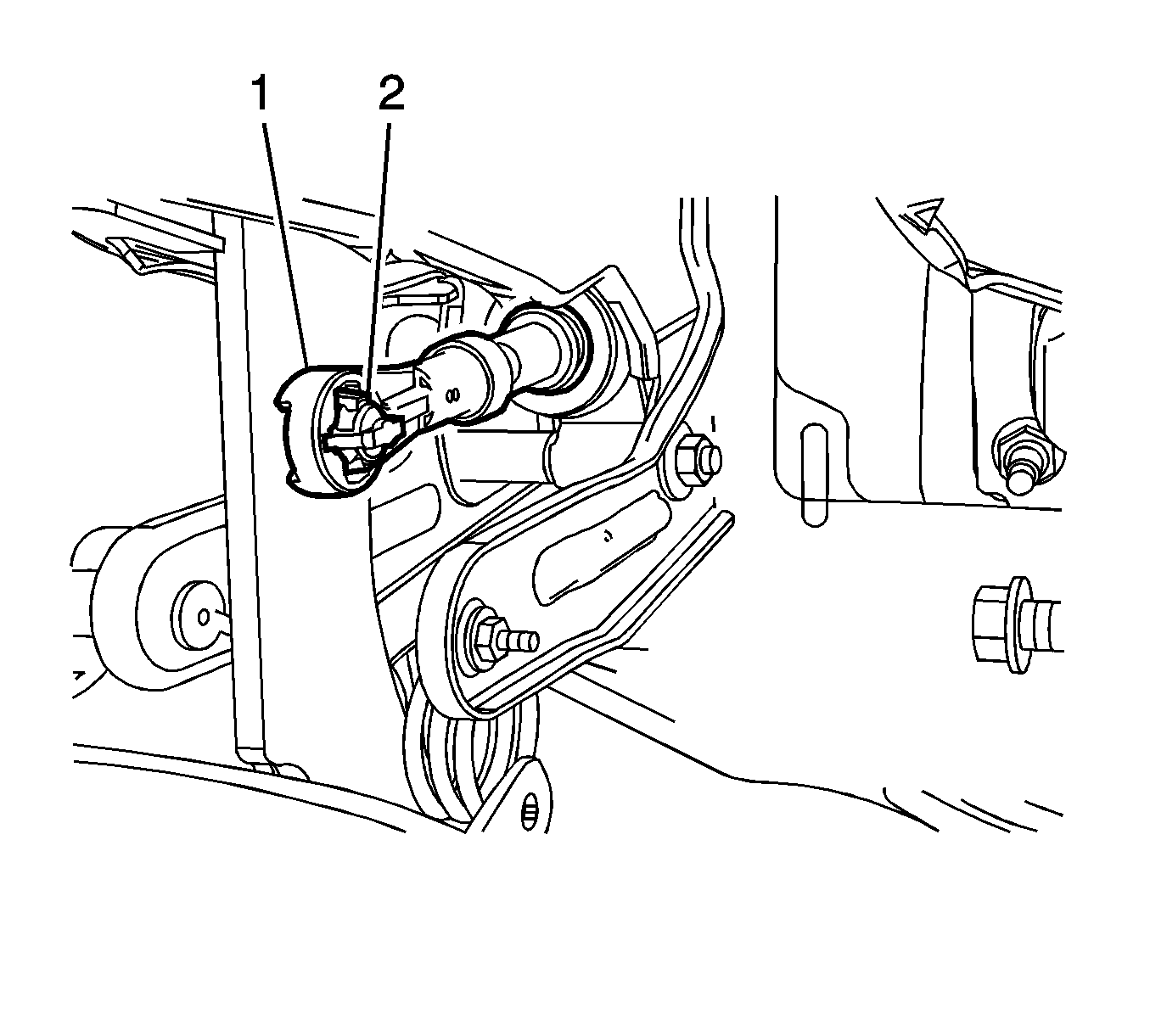

    4. Fig 4: Clutch Master Cylinder Push Rod & Clutch Pedal Pin
    GM2195809Courtesy of GENERAL MOTORS CORP.
  4. Connect the clutch master cylinder push rod (1) to the clutch pedal pin (2).

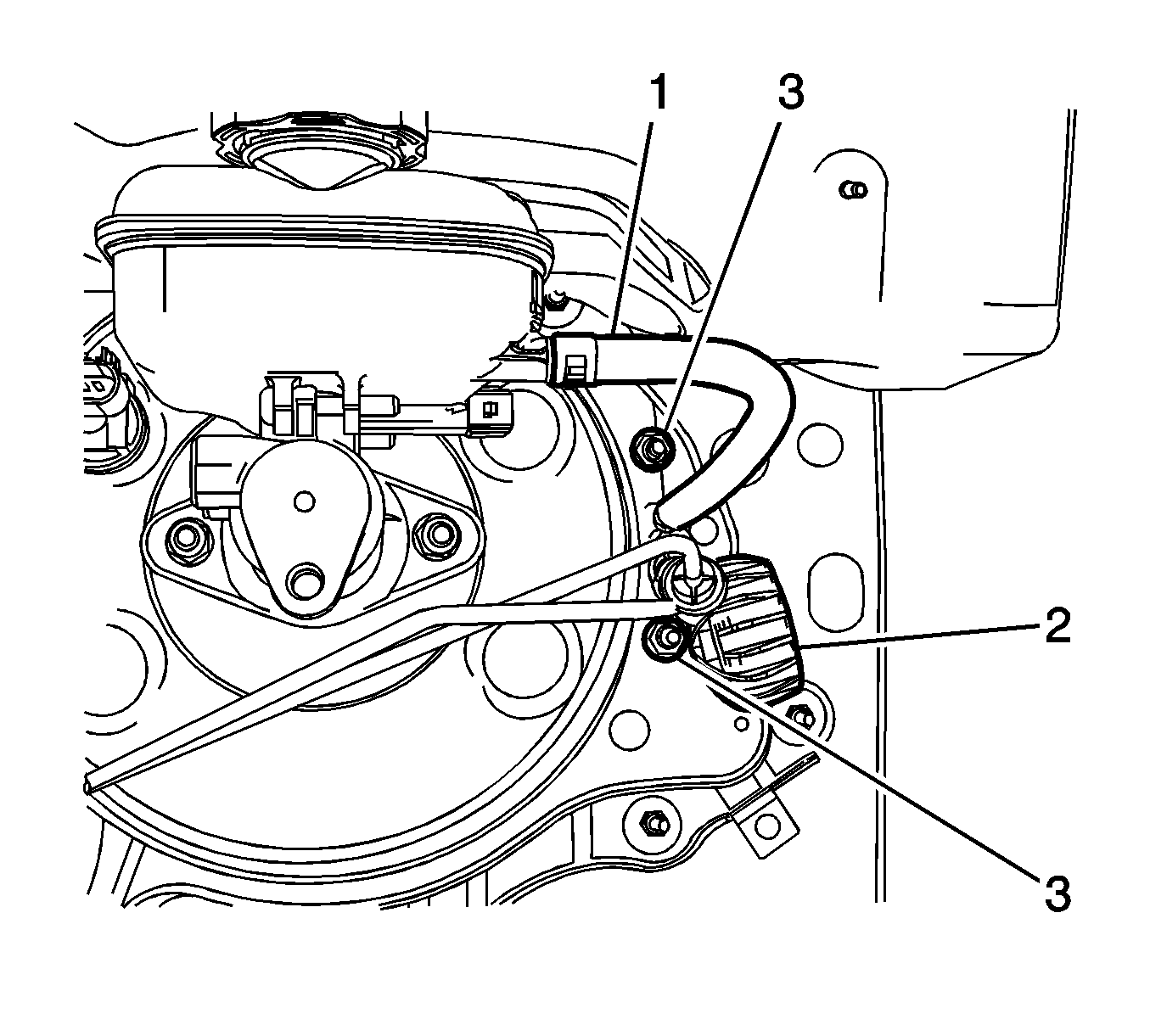

    5. Fig 5: Clutch Fluid Reservoir, Actuator Pipe Assembly & Pedal Fasteners
    GM2195812Courtesy of GENERAL MOTORS CORP.
  5. Connect the clutch actuator pipe assembly (2) to the clutch pedal assembly.
  6. Connect the clutch fluid reservoir hose (1) to the clutch pedal assembly.
  7. Check for proper clutch pedal movement and operation.
  8. Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding .
