Engine Controls Schematics

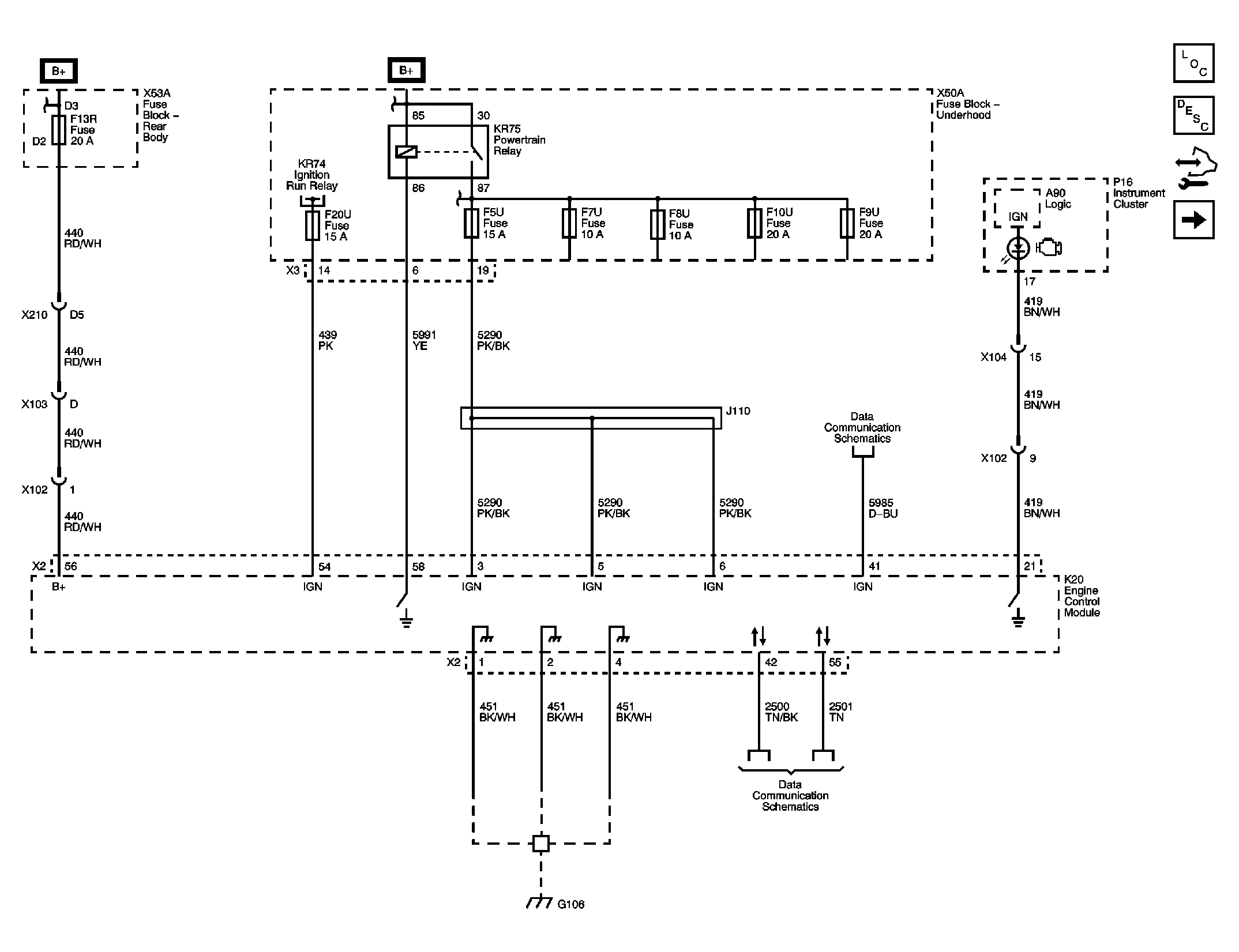

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

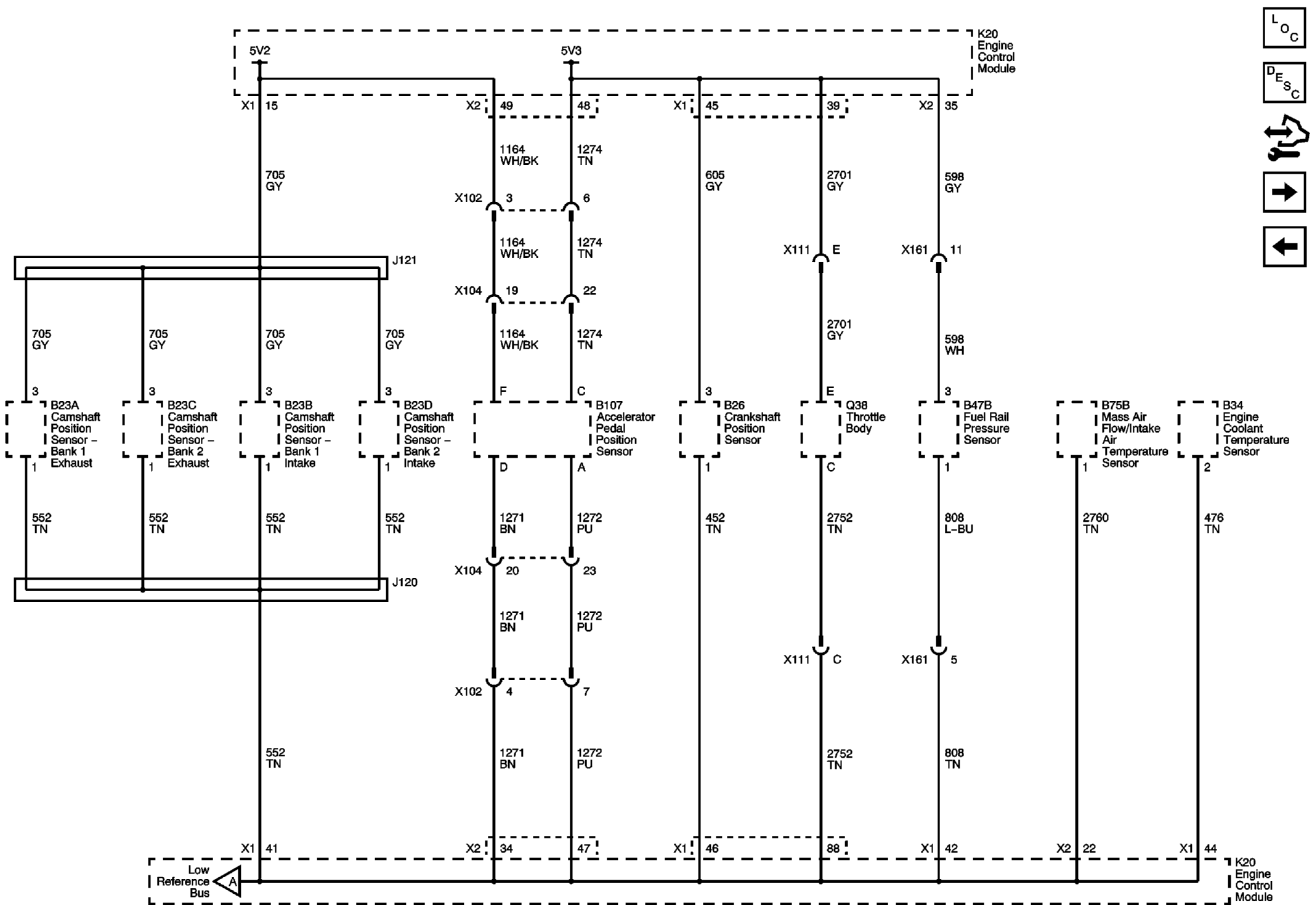

Fig 2: 5-Volt and Low Reference - 1 of 2

Courtesy of GENERAL MOTORS CORP.

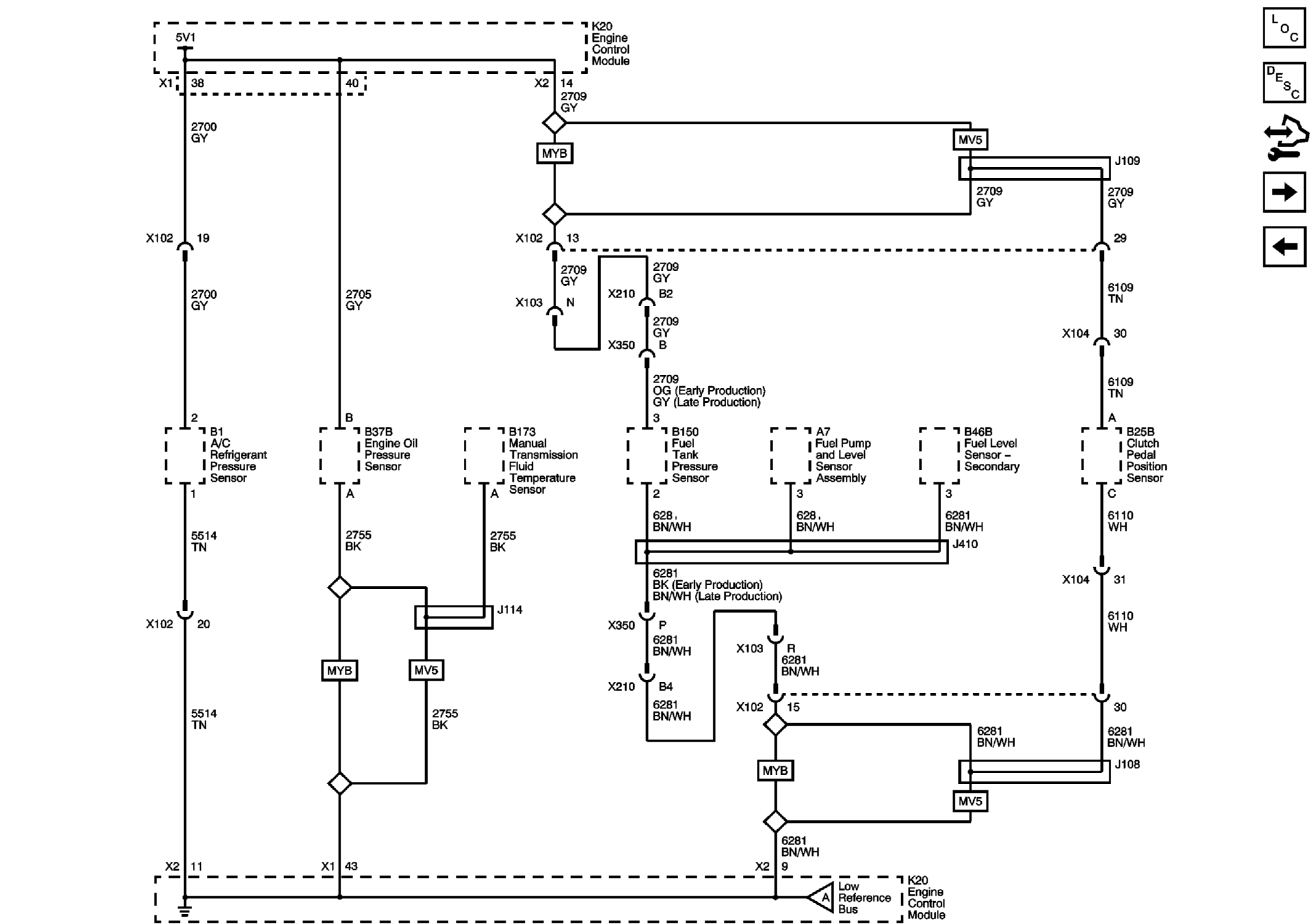

Fig 3: 5-Volt and Low Reference - 2 of 2

Courtesy of GENERAL MOTORS CORP.

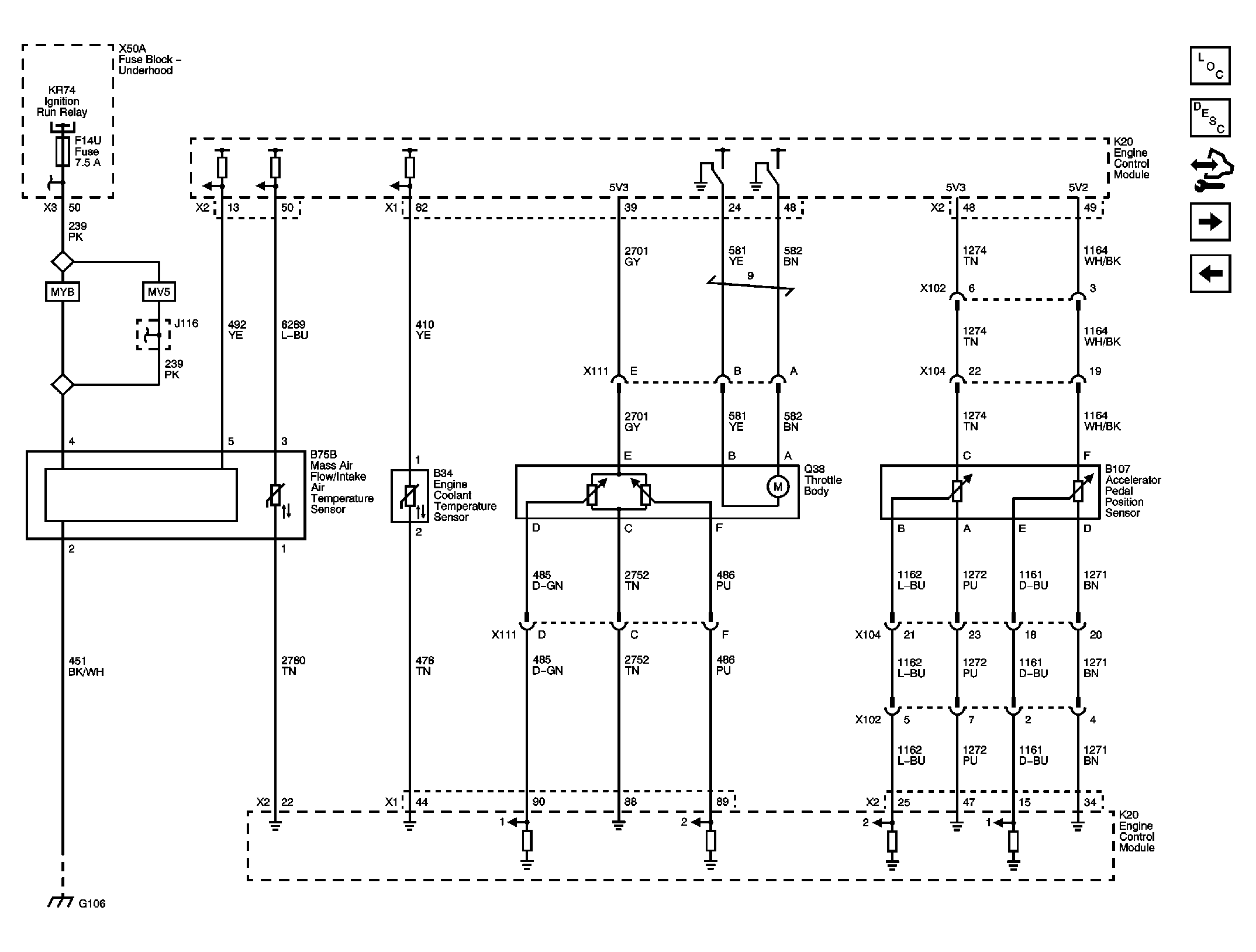

Fig 4: Engine Data Sensors - Pressure, Temperature, and Throttle Controls

Courtesy of GENERAL MOTORS CORP.

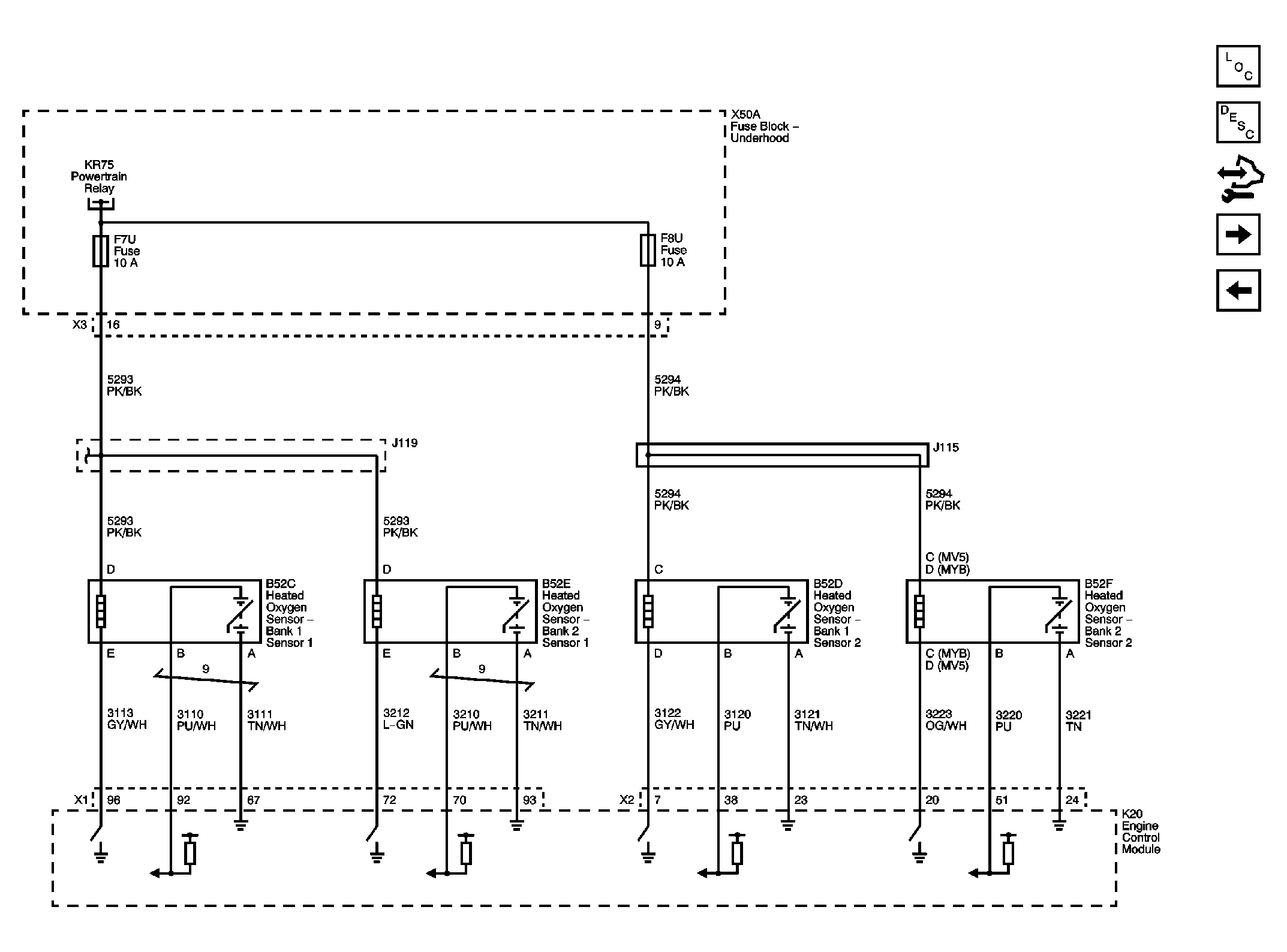

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

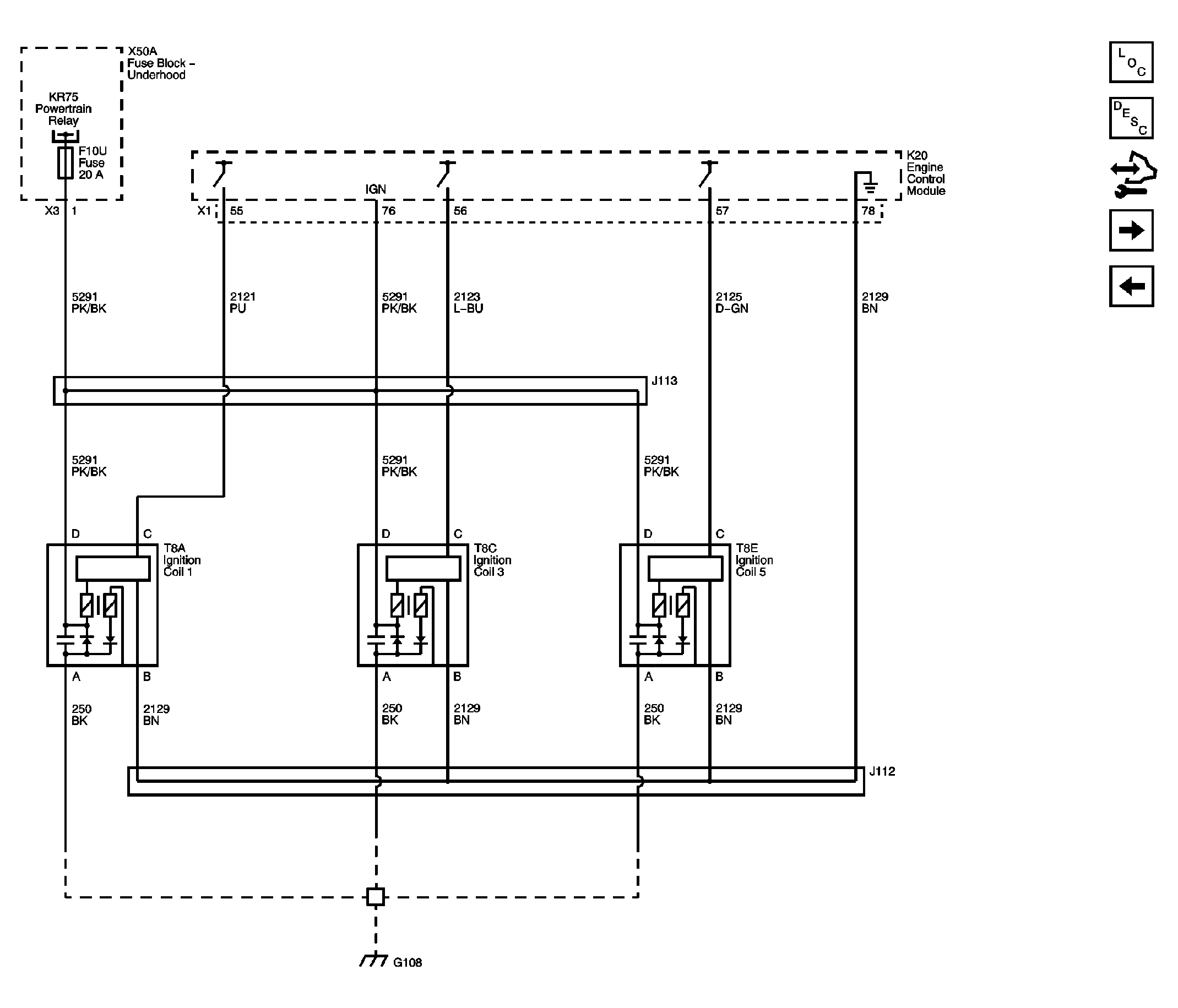

Fig 6: Ignition Controls - Bank 1 Ignition System

Courtesy of GENERAL MOTORS CORP.

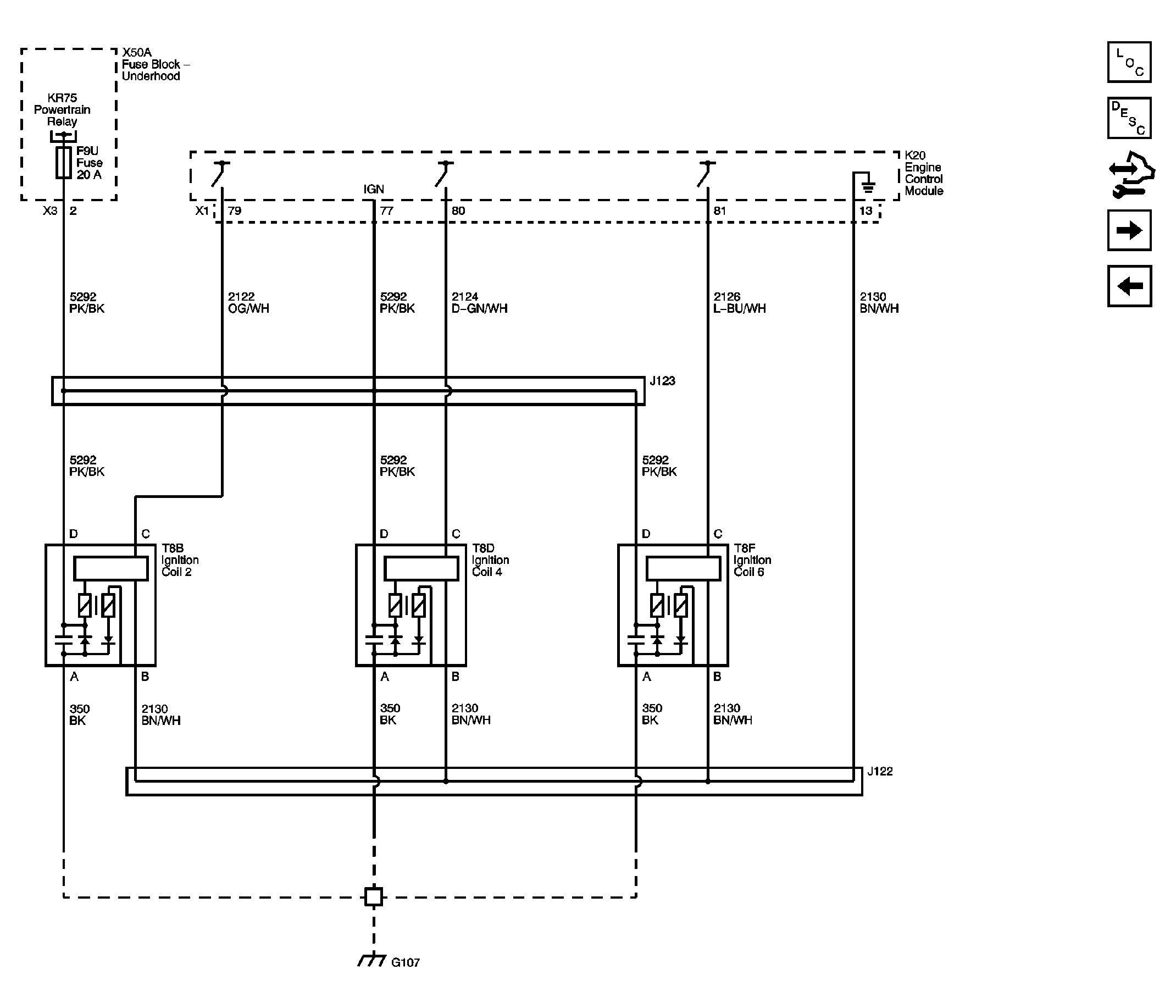

Fig 7: Ignition Controls - Bank 2 Ignition System

Courtesy of GENERAL MOTORS CORP.

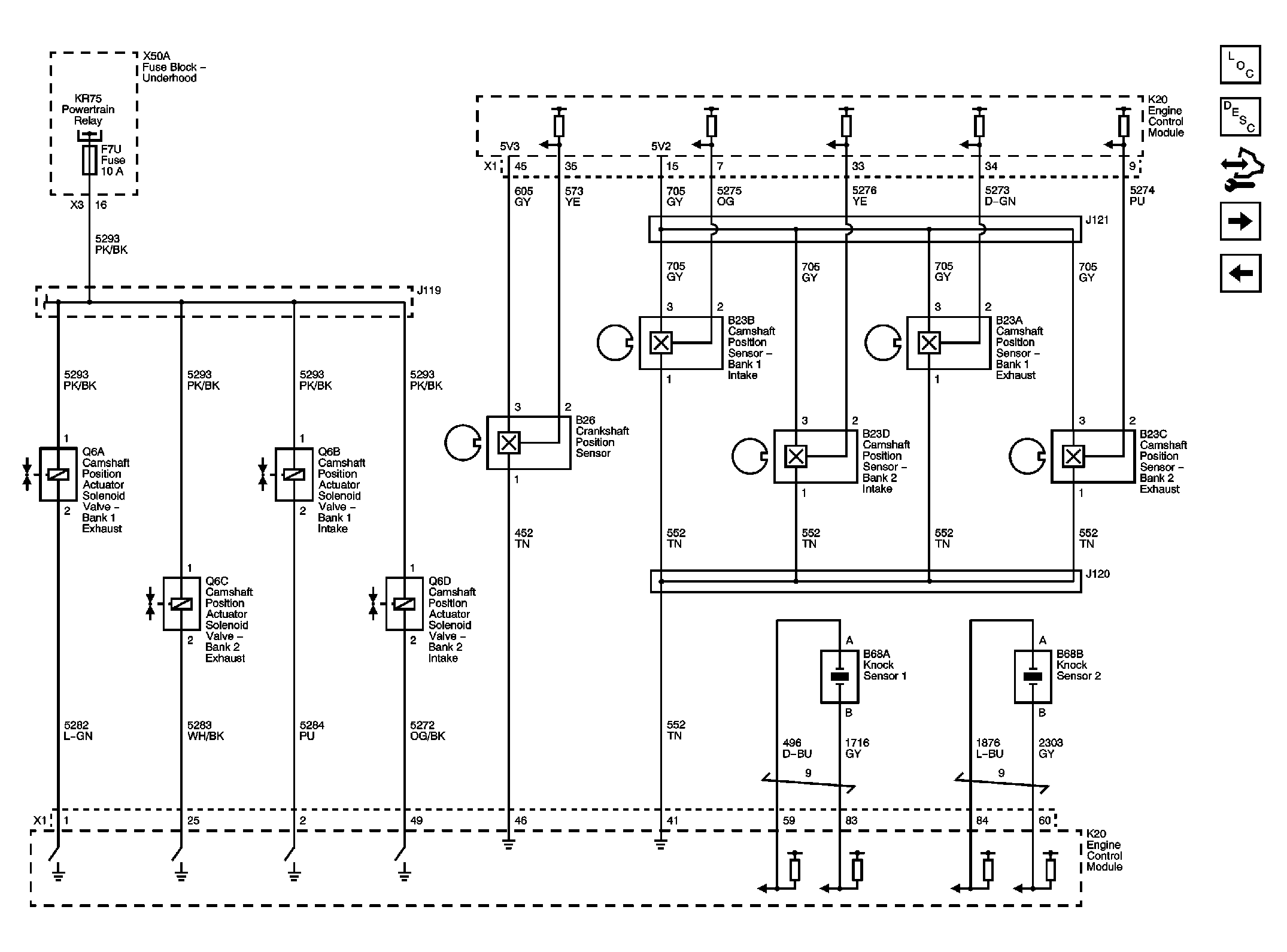

Fig 8: Ignition Controls - CKP/CMP/KS Sensors and CMP Actuator Solenoids

Courtesy of GENERAL MOTORS CORP.

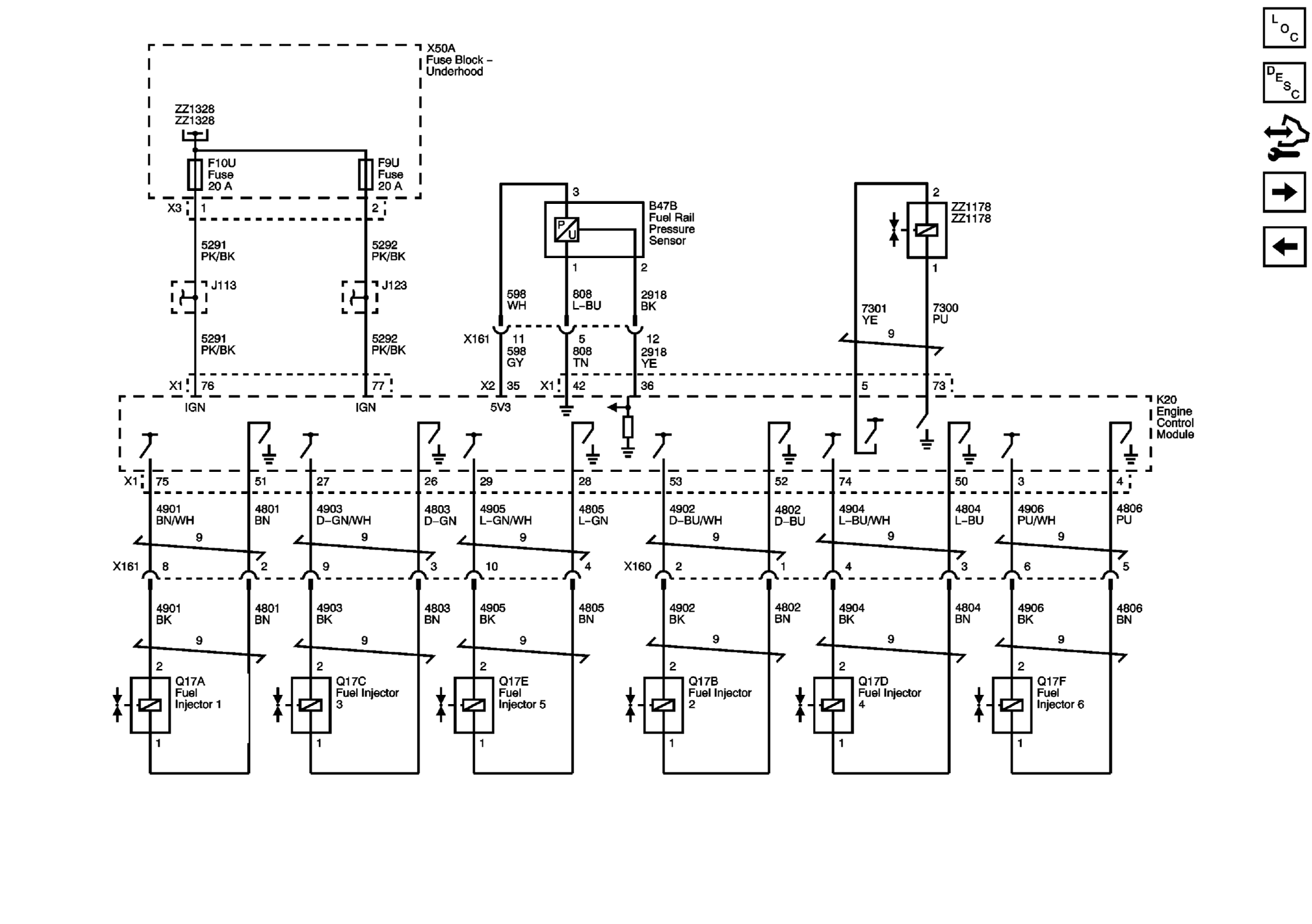

Fig 9: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

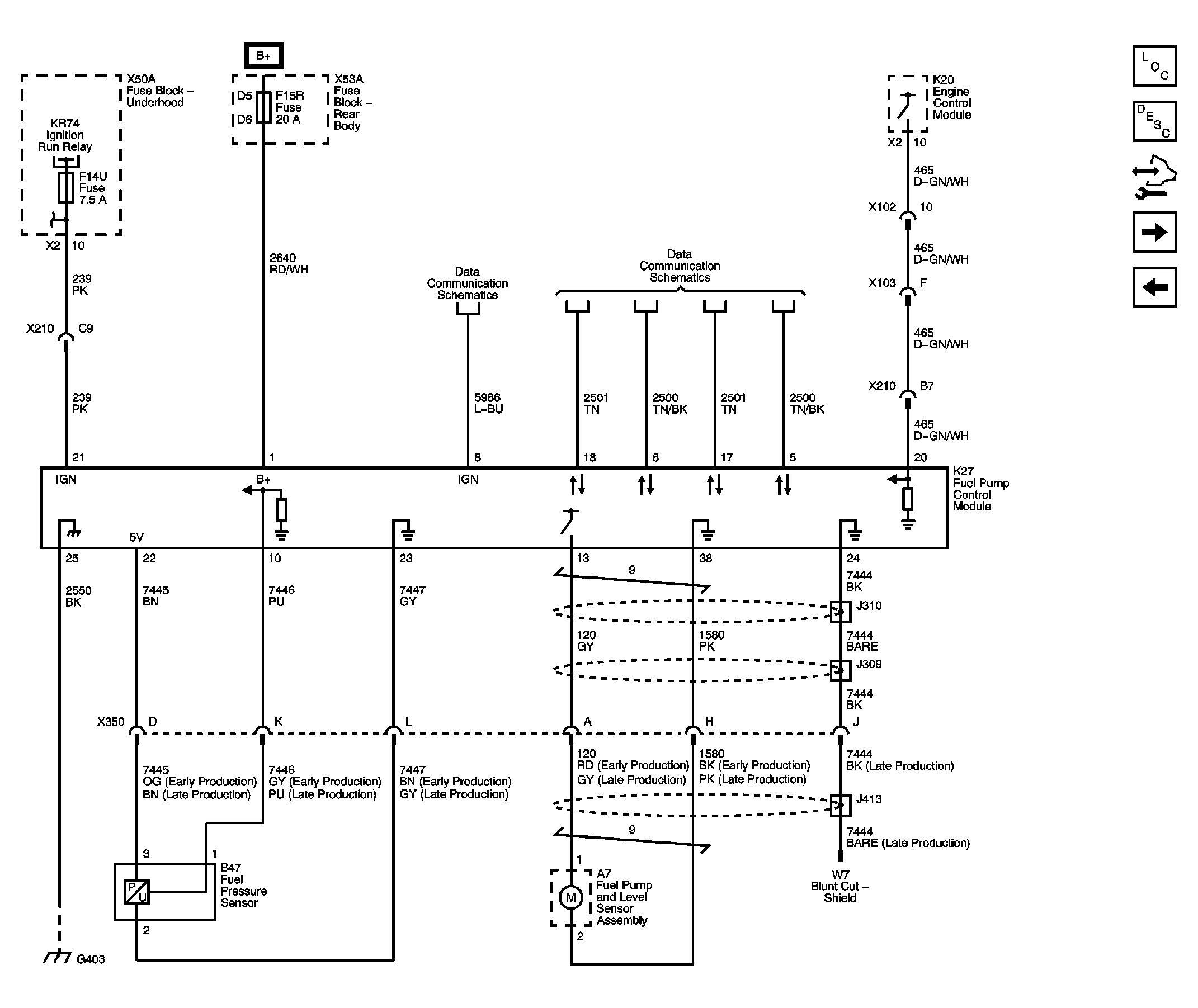

Fig 10: Fuel Controls - Fuel Pump Flow Control

Courtesy of GENERAL MOTORS CORP.

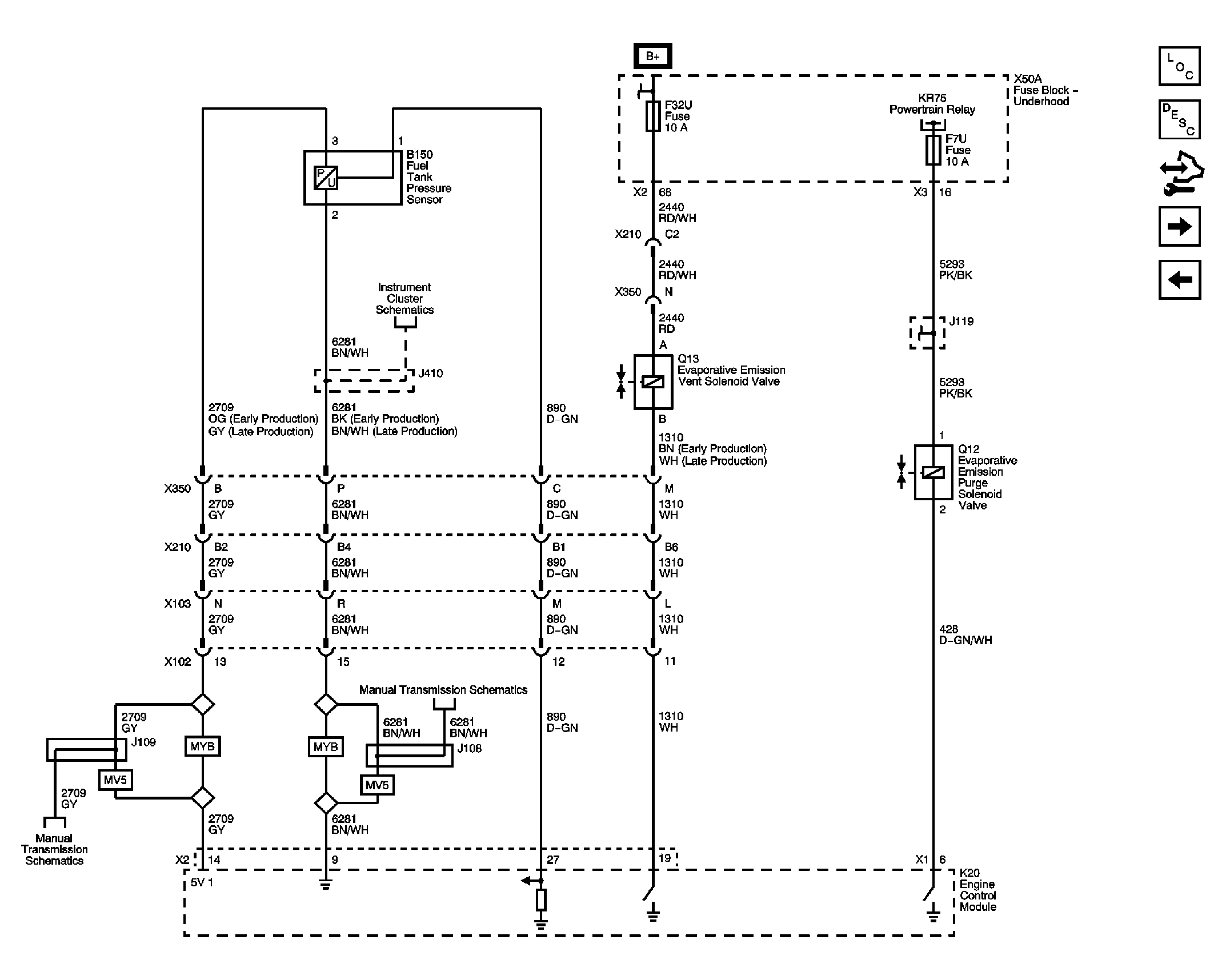

Fig 11: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

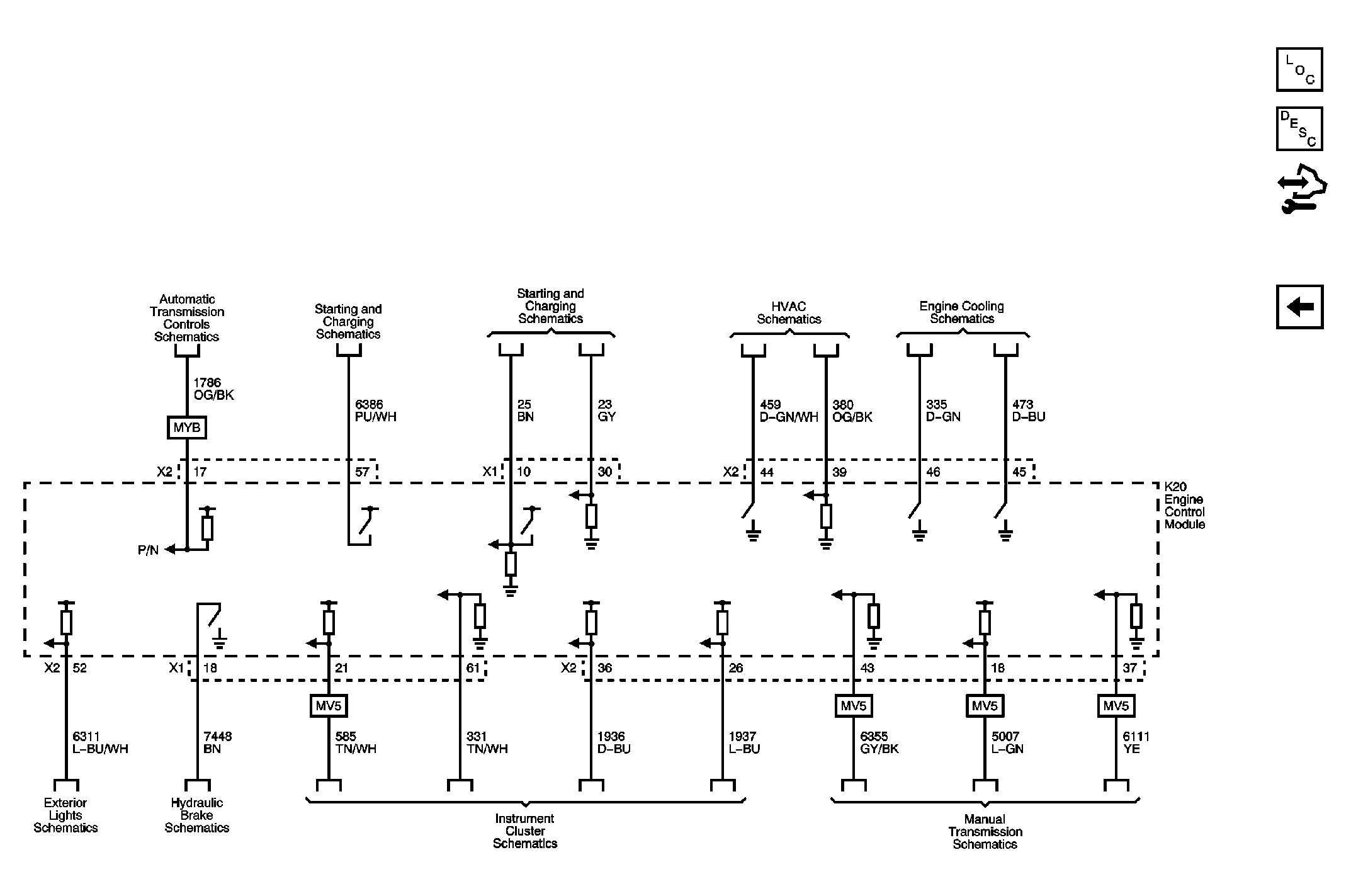

Fig 12: Subsystem References

Courtesy of GENERAL MOTORS CORP.
