Starter Shield Replacement (LLT)

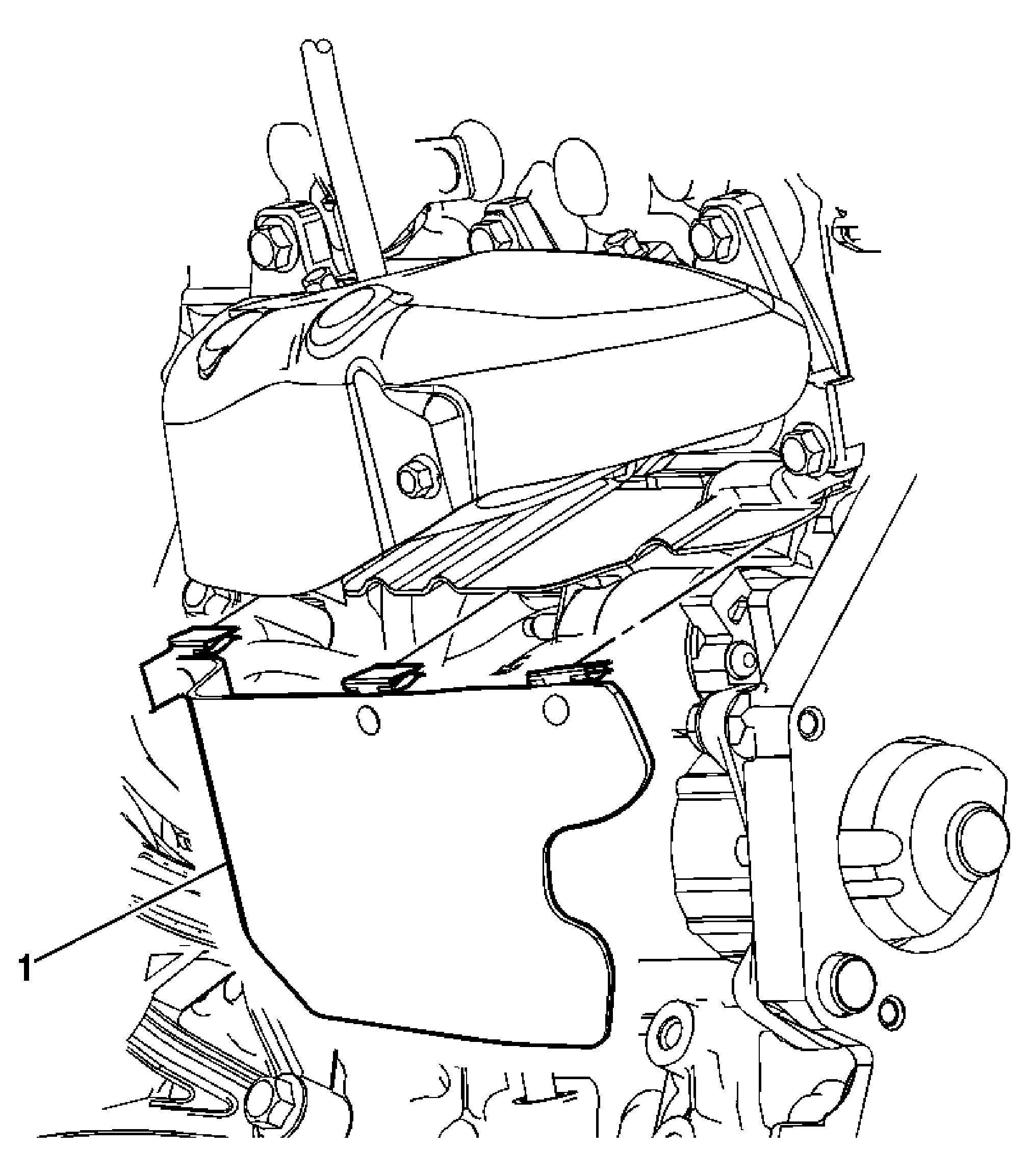

Fig 1: Starter Shield (LLT)
GM2182929Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Shield
Tip:  The shield is held to the exhaust manifold gasket with three retainers.
