Exhaust Muffler Replacement - Right Side

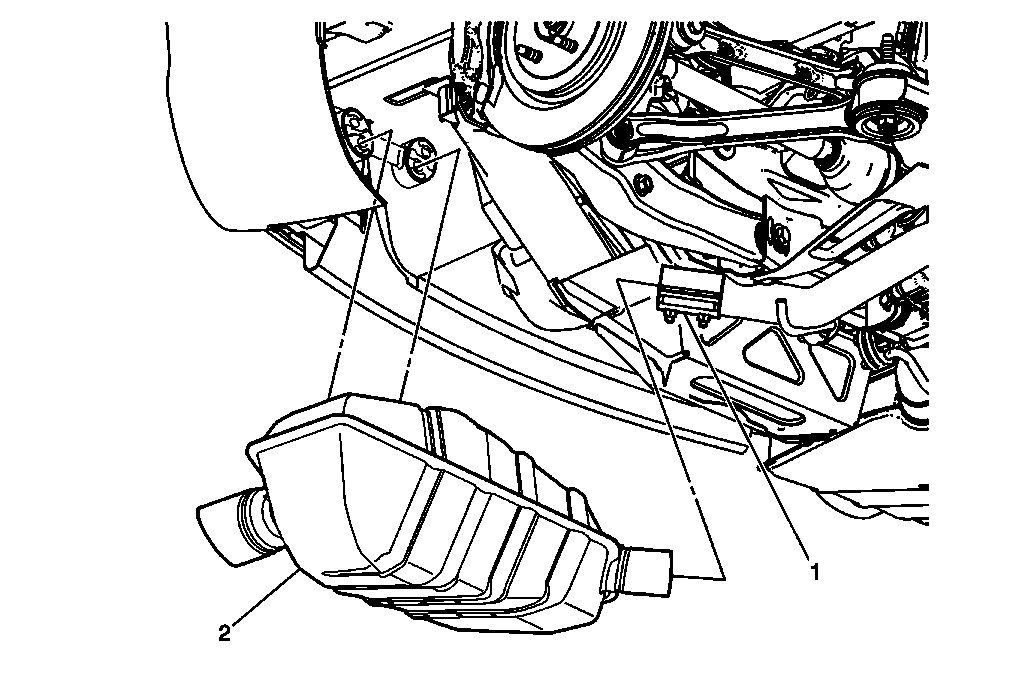

Fig 1: Exhaust Muffler - Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Clamp CAUTION: Refer to Fastener Caution . Tighten: 48 N.m (35 lb ft)
2	Muffler Procedure Cut off the original muffler. Remove the rear muffler hangers. Tip: Cut 66 mm (2.5 in) forward of the muffler.

Callout

Component Name

Preliminary Procedure:
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Clamp

CAUTION: Refer to Fastener Caution .

Tighten: 48 N.m (35 lb ft)

Muffler

Procedure

Tip: Cut 66 mm (2.5 in) forward of the muffler.
