Exhaust Manifold Replacement - Right Side (LLT)

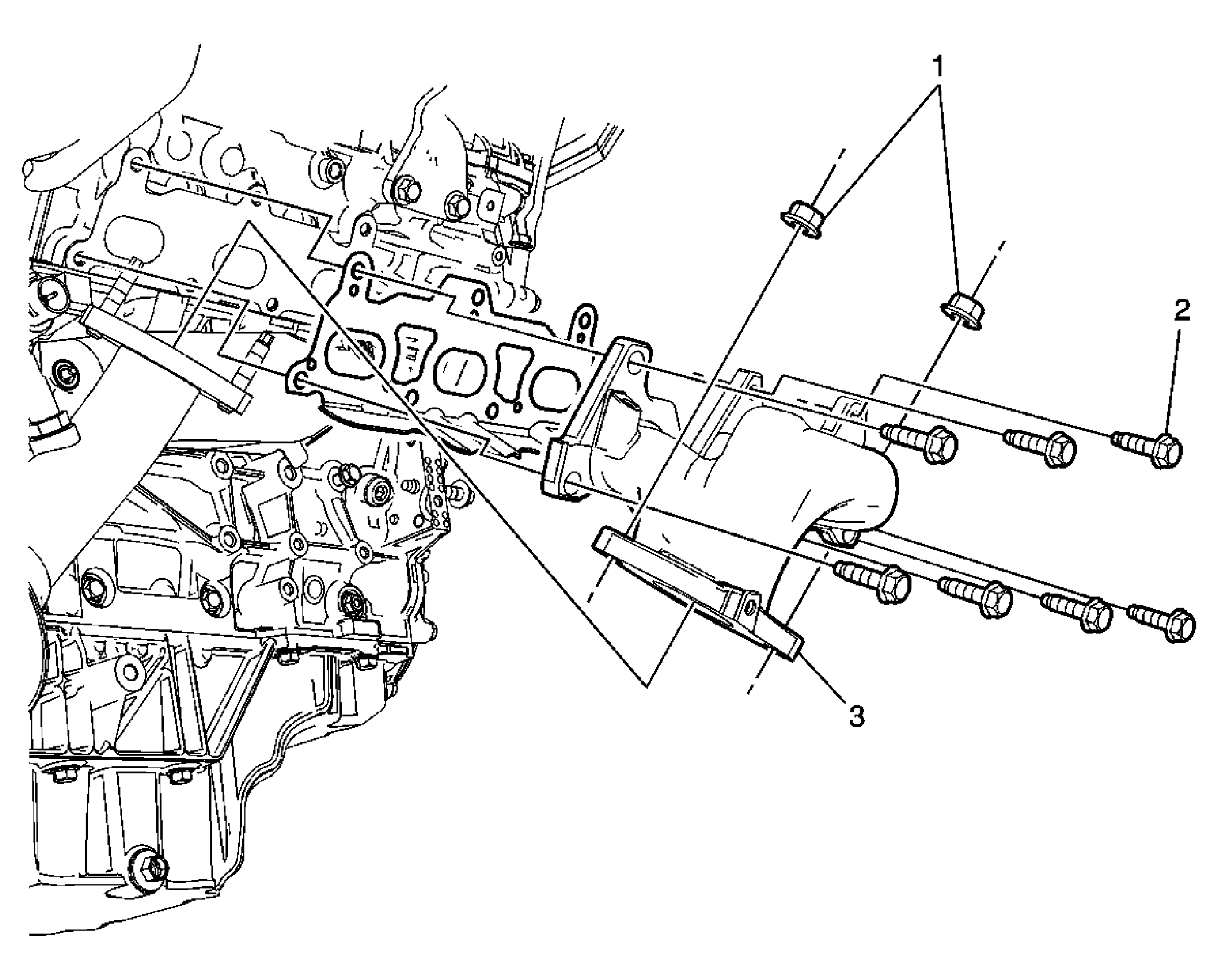

Fig 1: Exhaust Manifold - Right Side (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the right exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Right Side (LLT) or Exhaust Manifold Heat Shield Replacement - Right Side (L99/LS3) .
1	Nut (Qty: 2) WARNING: Refer to Hot Exhaust System Warning . CAUTION: Refer to Fastener Caution . Tip: Replace the gasket. Clean the cylinder head surface. Clean the exhaust manifold surface. Tighten: 48 N.m.(35 lb ft)
2	Bolt (Qty: 7) Tighten: 20 N.m.(15 lb ft)
3	Exhaust Manifold
