Exhaust Manifold Heat Shield Replacement - Left Side (LLT)

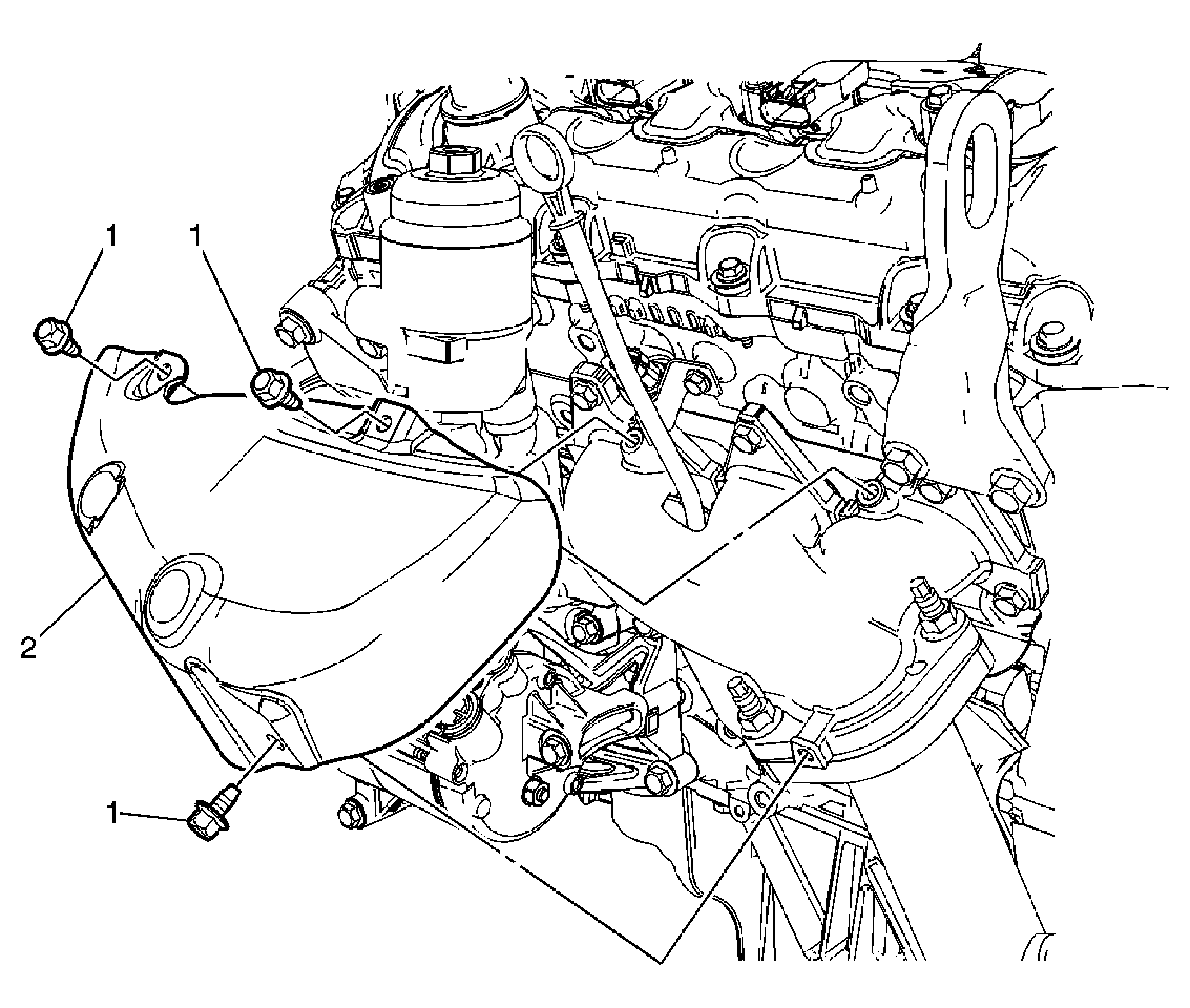

Fig 1: Exhaust Manifold Heat Shield - Left Side (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Exhaust Manifold Shield
