Engine Coolant Fan Motor Replacement

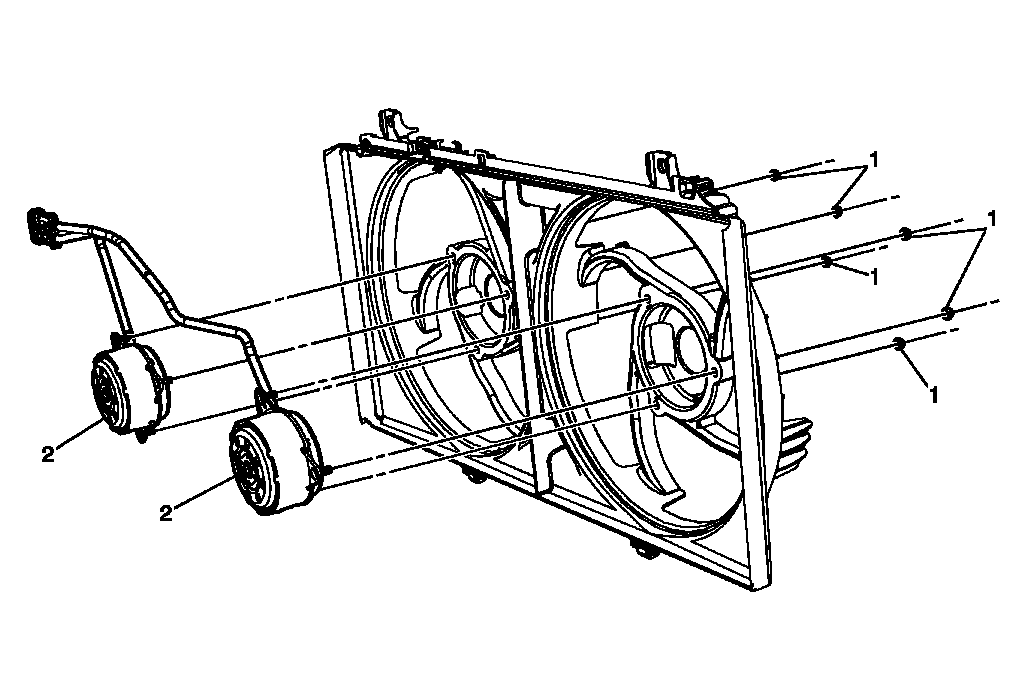

Fig 1: Engine Coolant Fan Motor
GM2203830Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove engine coolant fan. Refer to Engine Coolant Fan Replacement
1 Engine Coolant Fan Motor Nuts (Qty 6)
CAUTION: Refer to Fastener Caution .

Tighten:  6 N.m (53 lb in)
2 Engine Coolant Fan Motor
