Engine Coolant Air Bleed Hose Replacement (LLT)

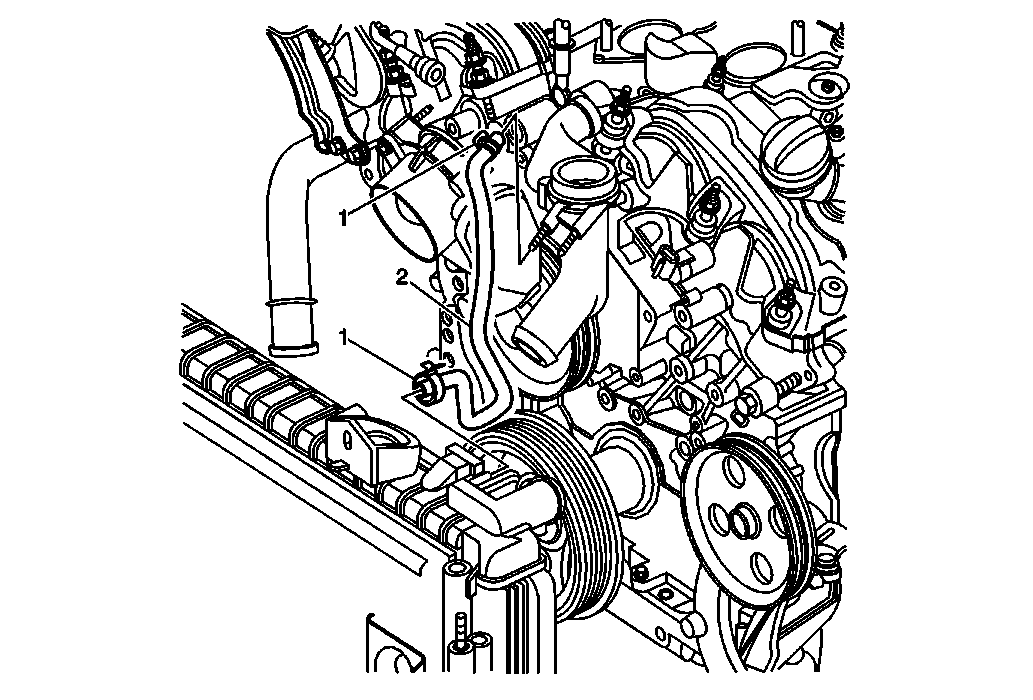

Fig 1: Engine Coolant Air Bleed Hose (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling (LLT Static Fill) or Cooling System Draining and Filling (GE 47716) Remove front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front Remove air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
1	Engine Coolant Air Bleed Hose Clamps Procedure: Reposition engine coolant air bleed hose clamp using J 38185: Hose Clamp Pliers. Special Tools: J 38185: Hose Clamp Pliers
2	Engine Coolant Air Bleed Hose

Callout

Component Name

Preliminary Procedures

Drain the coolant. Refer to Cooling System Draining and Filling (LLT Static Fill) or Cooling System Draining and Filling (GE 47716)
Remove front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front
Remove air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement

Engine Coolant Air Bleed Hose Clamps
Procedure:
Reposition engine coolant air bleed hose clamp using J 38185: Hose Clamp Pliers.
Special Tools:
J 38185: Hose Clamp Pliers

Engine Coolant Air Bleed Hose
