Power Distribution Schematics

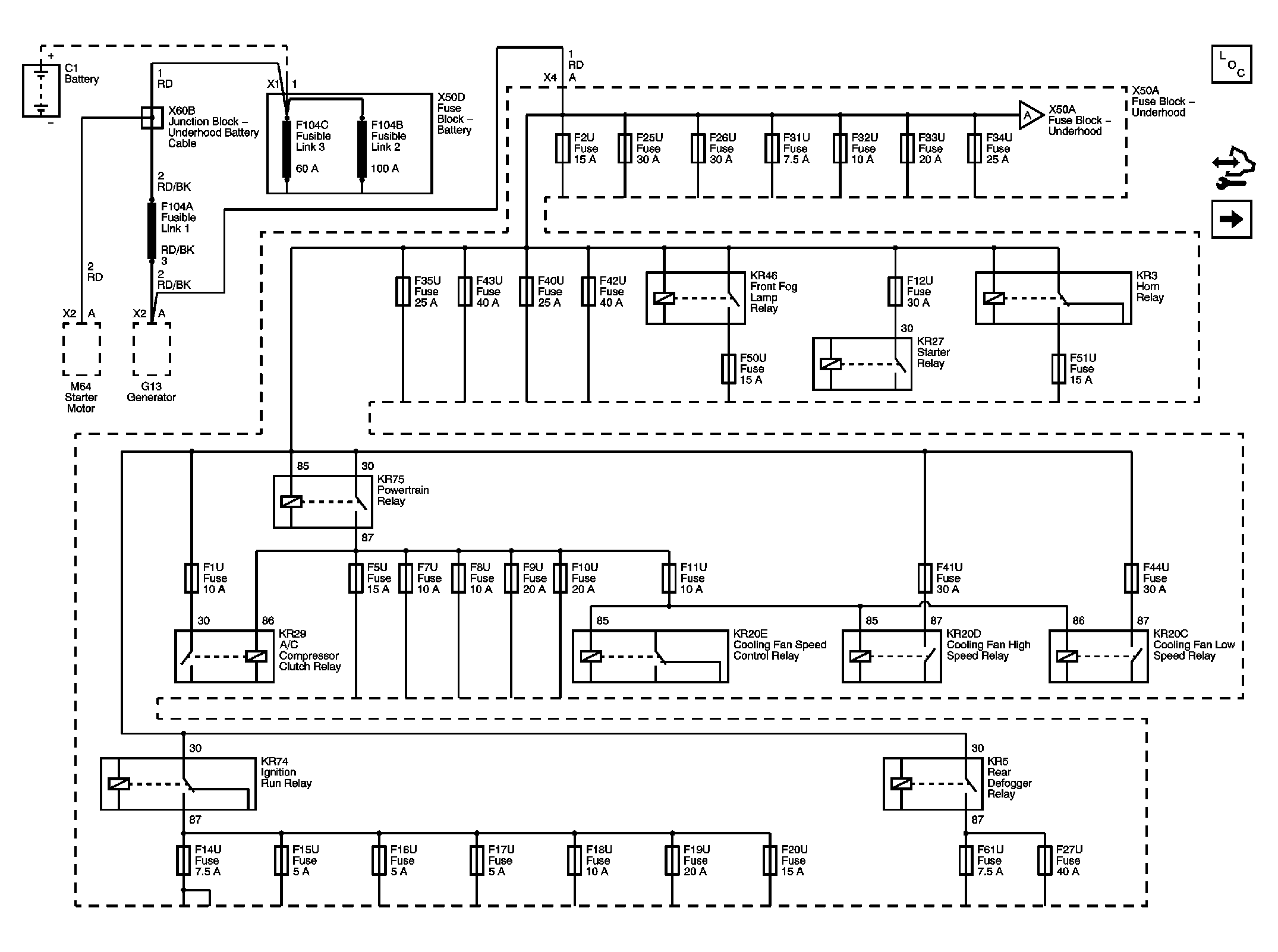

Fig 1: Fuse Block - Underhood Bussing (1 of 2)
GM2207573Courtesy of GENERAL MOTORS CORP.
Fig 2: Fuse Block - Underhood Bussing (2 of 2)
GM2207574Courtesy of GENERAL MOTORS CORP.

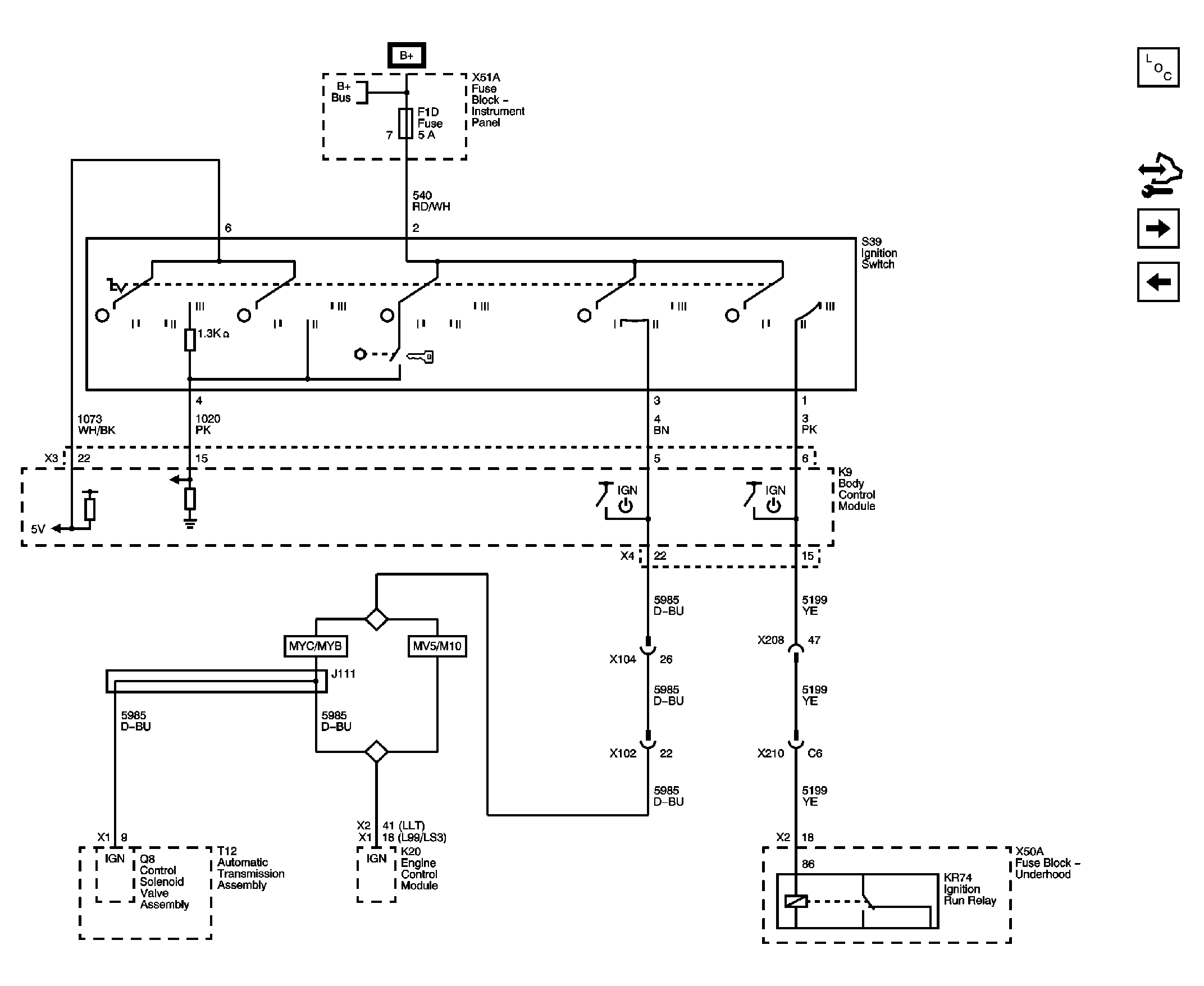

Fig 3: Ignition Switch
GM2207575Courtesy of GENERAL MOTORS CORP.

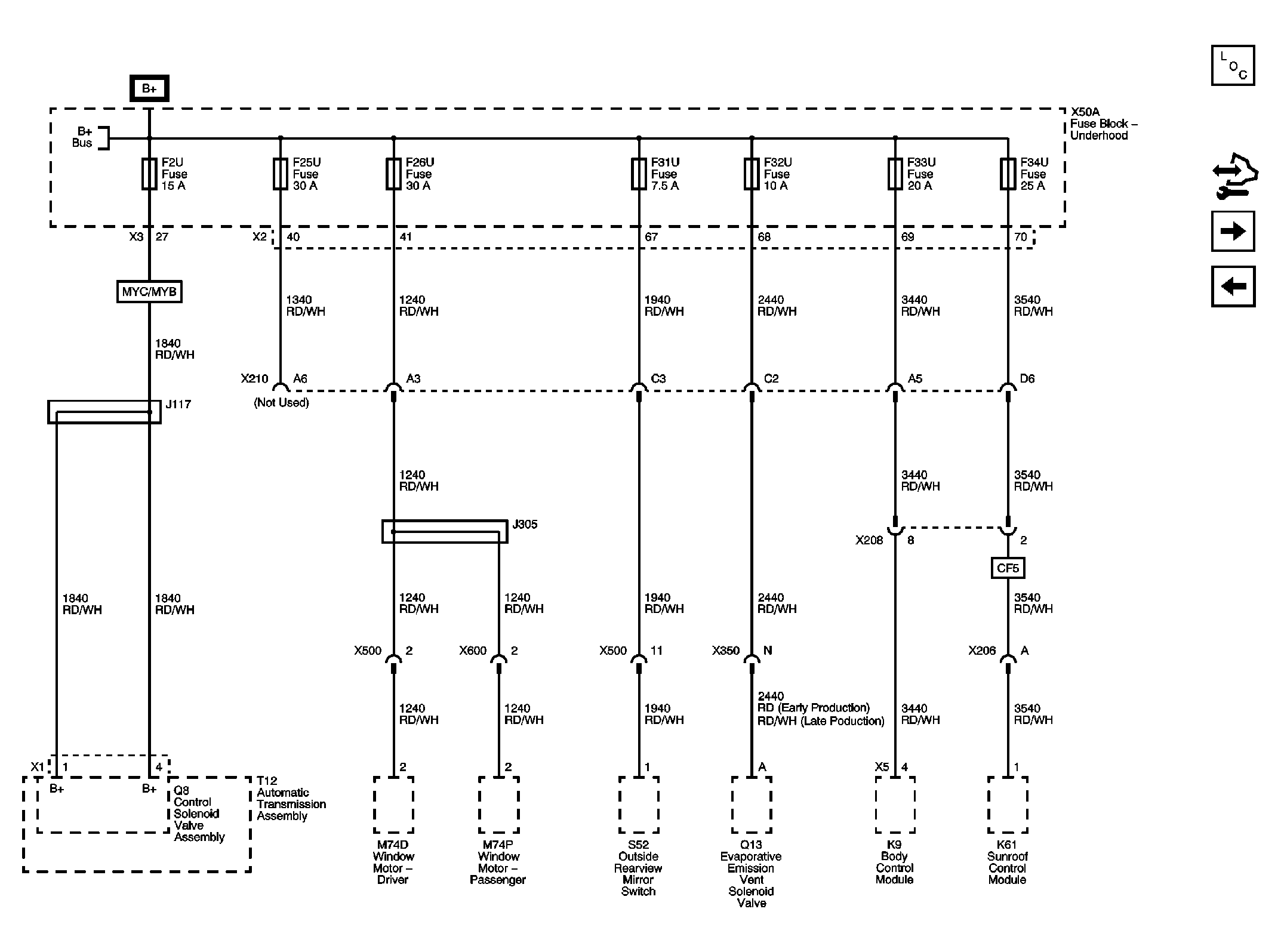

Fig 4: Fuse Block - Underhood - TCM BATT Fuse 2, POWER WINDOW REAR Fuse 25, POWER WINDOW FRONT Fuse 26, MIR EWL FR Fuse 31, CANNISTER VENT Fuse 32, BCM_6 Fuse 33, and SUNROOF Fuse 34
GM2207576Courtesy of GENERAL MOTORS CORP.

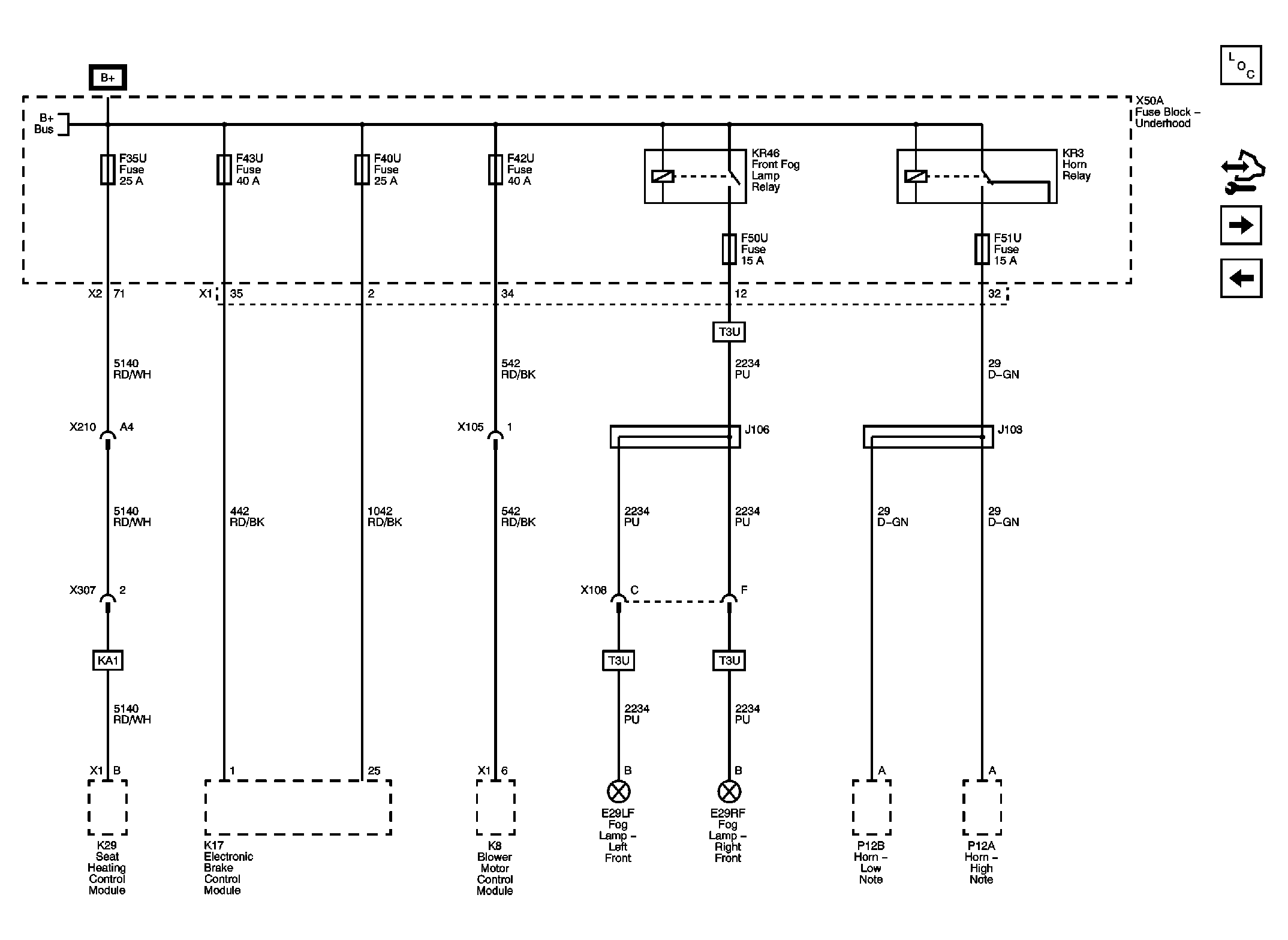

Fig 5: Fuse Block - Underhood - SEAT HEAT FRT Fuse 35, ABS PUMP Fuse 43, ABS VALVE Fuse 40, HTD_WASH Fuse 42, FRONT FOG LAMP Fuse 50, and HORN Fuse 51
GM2207580Courtesy of GENERAL MOTORS CORP.

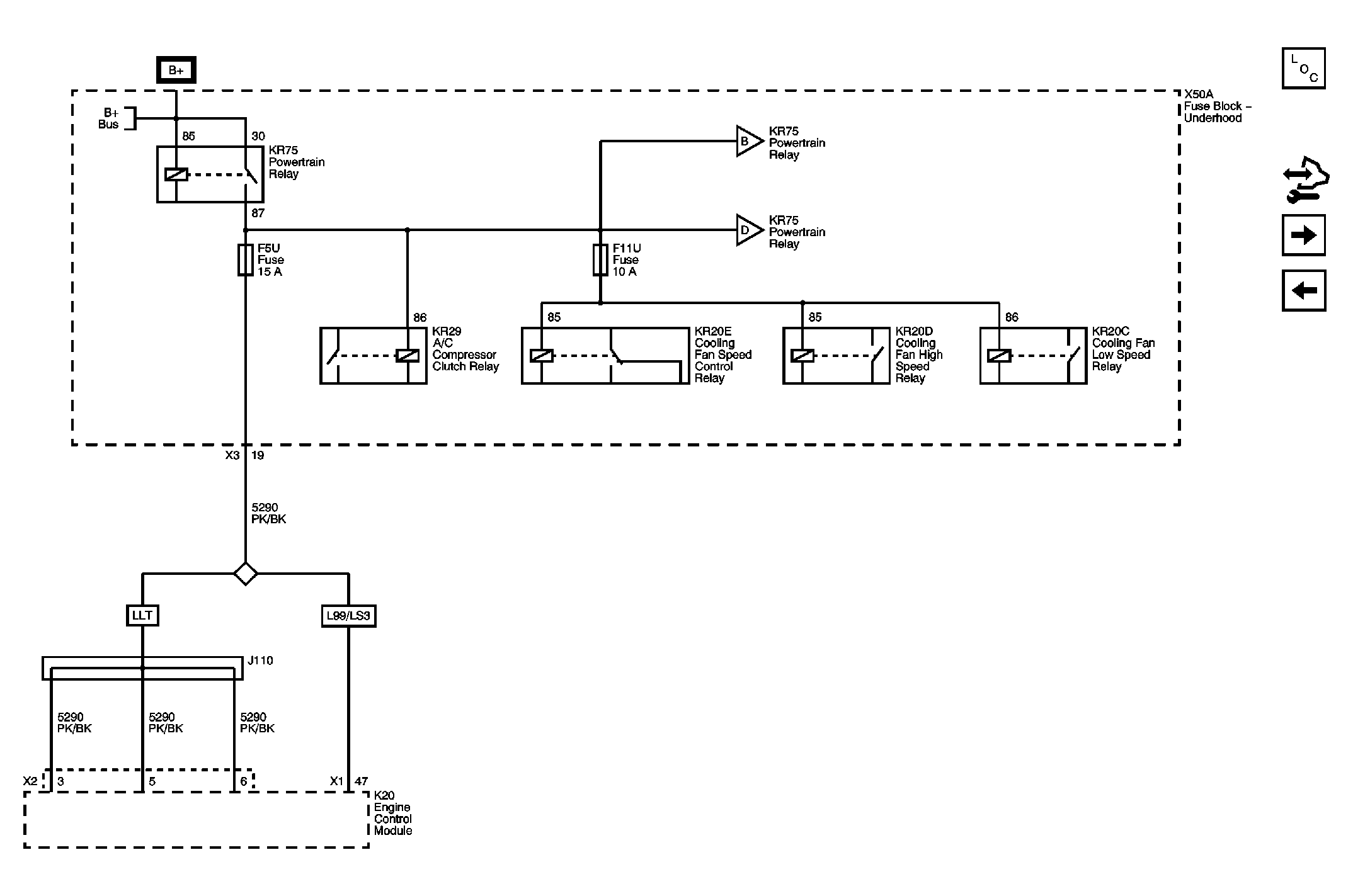

Fig 6: Fuse Block - Underhood - PWR/TRN Relay K26, ECM Fuse 5, and COOL FAN RLY Fuse 11
GM2208193Courtesy of GENERAL MOTORS CORP.

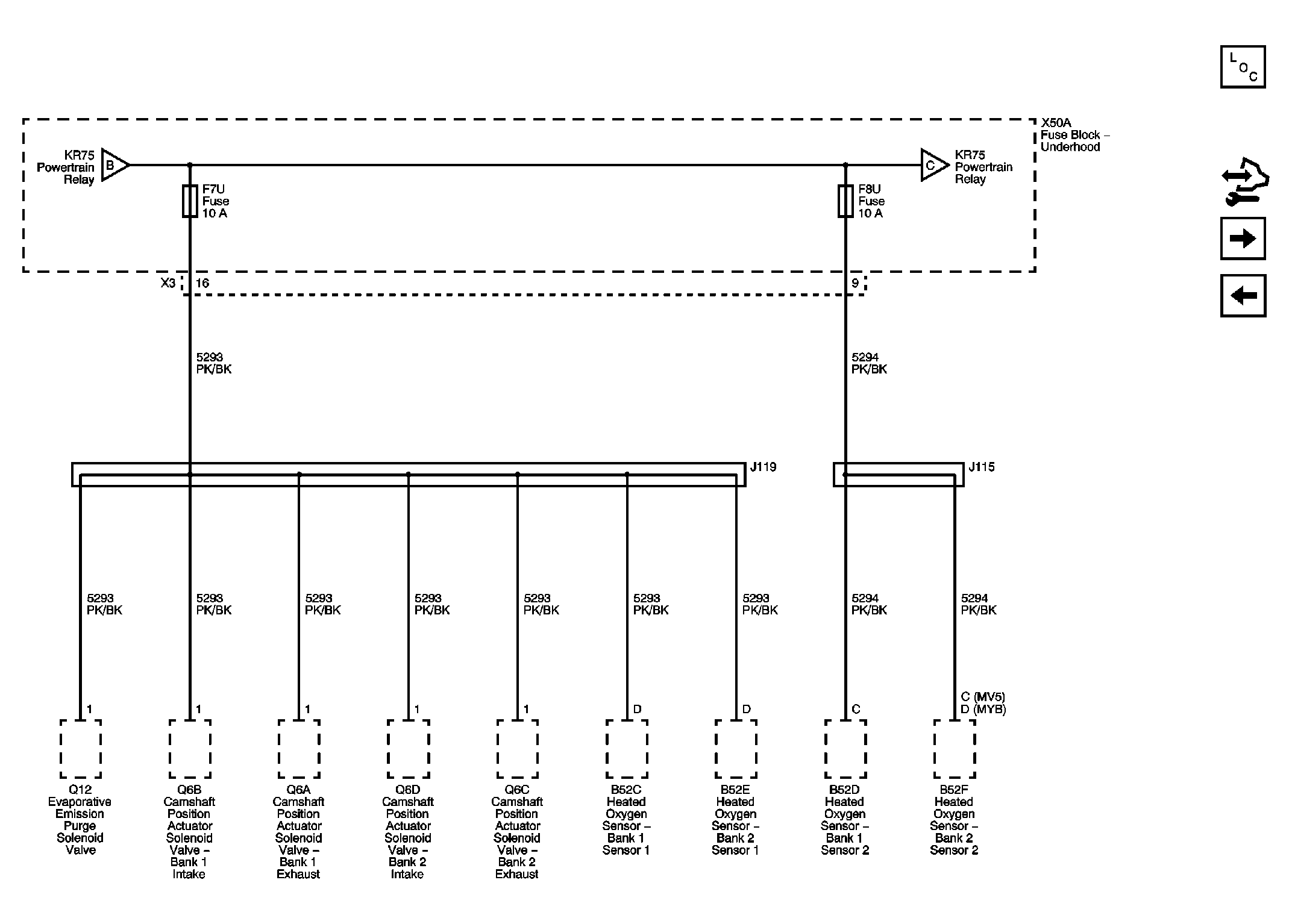

Fig 7: Fuse Block - Underhood - 02 PRE Fuse 7, and 02 POST Fuse 8 (LLT)
GM2208197Courtesy of GENERAL MOTORS CORP.
Fig 8: Fuse Block - Underhood - INJ ODD Fuse 10, and INJ EVEN Fuse 9 (LLT)
GM2208199Courtesy of GENERAL MOTORS CORP.

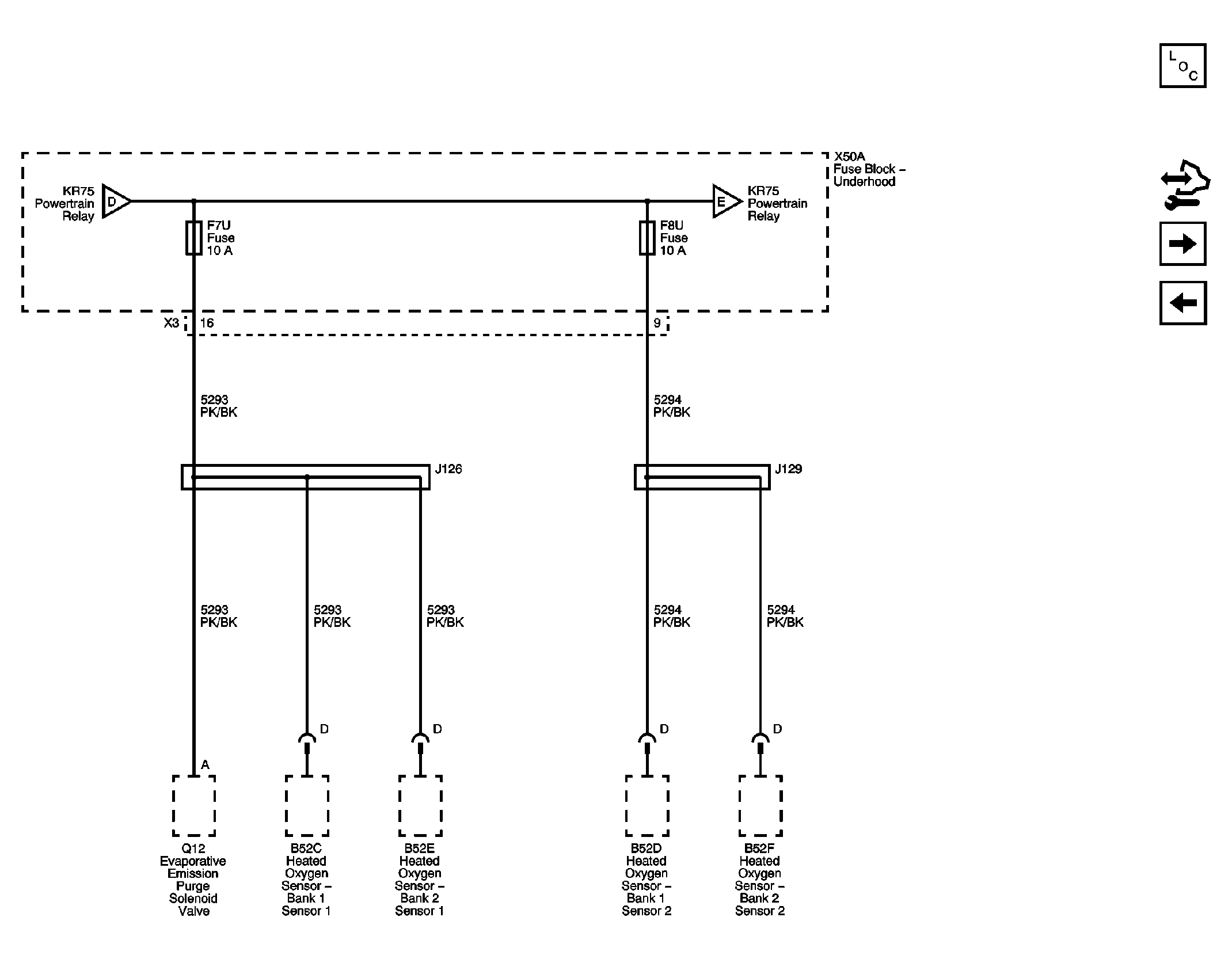

Fig 9: Fuse Block - Underhood - 02 PRE Fuse 7, and 02 POST Fuse 8 (L99/LS3)
GM2208200Courtesy of GENERAL MOTORS CORP.

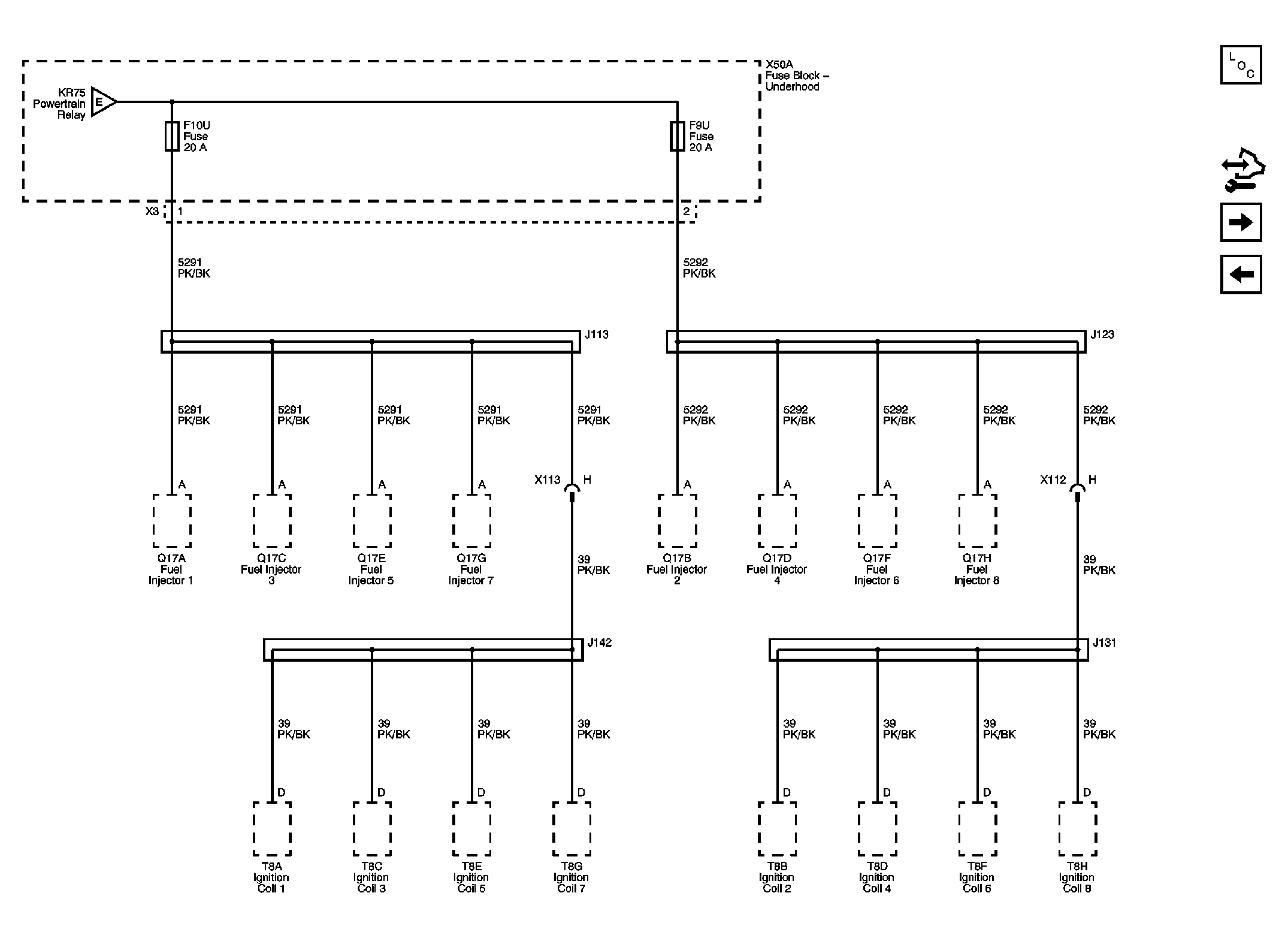

Fig 10: Fuse Block - Underhood - INJ ODD Fuse 10, and INJ EVEN Fuse 9 (L99/LS3)
GM2208201Courtesy of GENERAL MOTORS CORP.

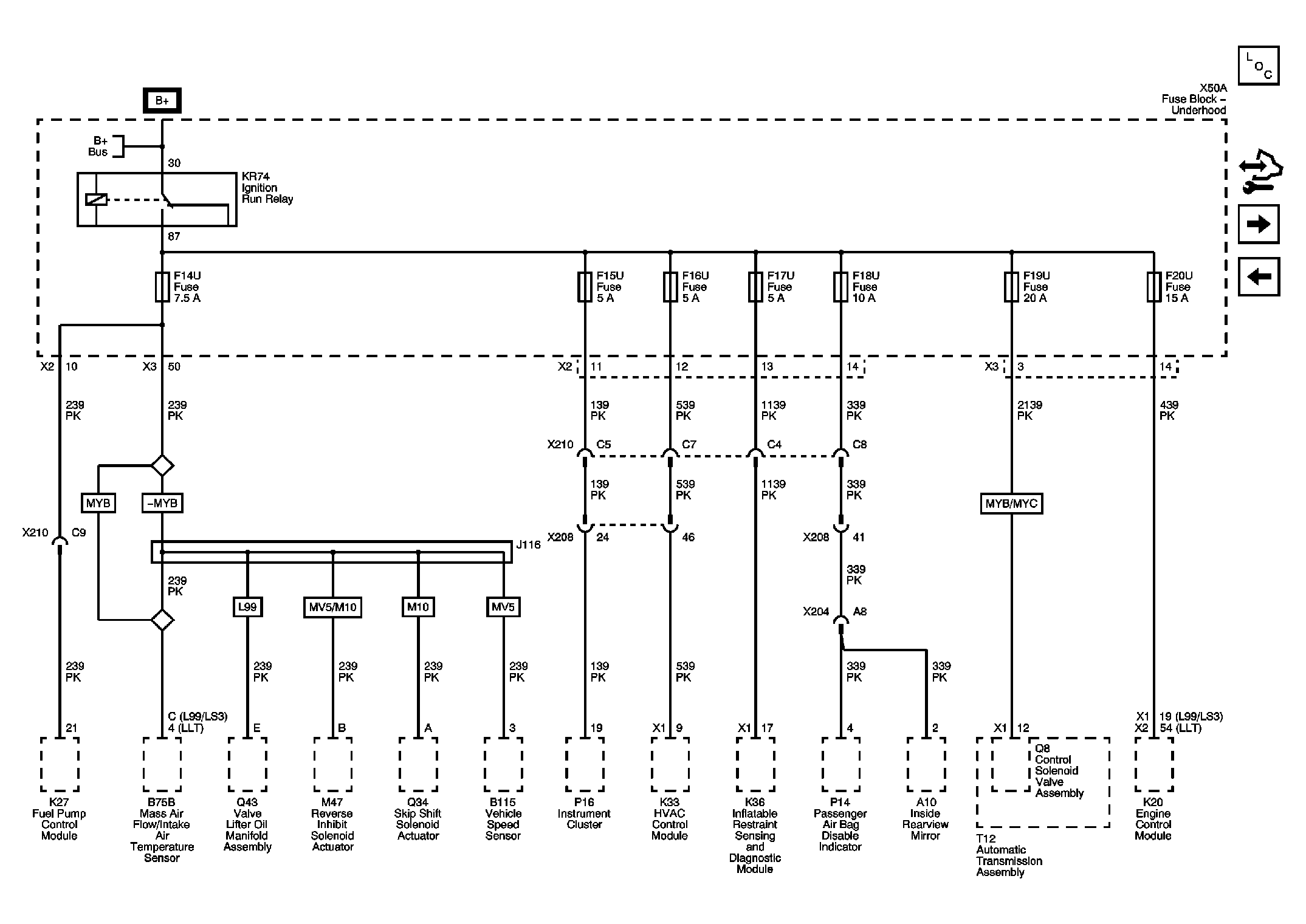

Fig 11: Fuse Block - Underhood - RUN/CRNK Relay K50, MAF/CCC Fuse 13, IGN Fuse 15, RUN/CRNK IP Fuse 16, SDM/IGN Fuse 17, RUN/CRNK BODY Fuse 18, and TCM/IGN Fuse 20
GM2208202Courtesy of GENERAL MOTORS CORP.

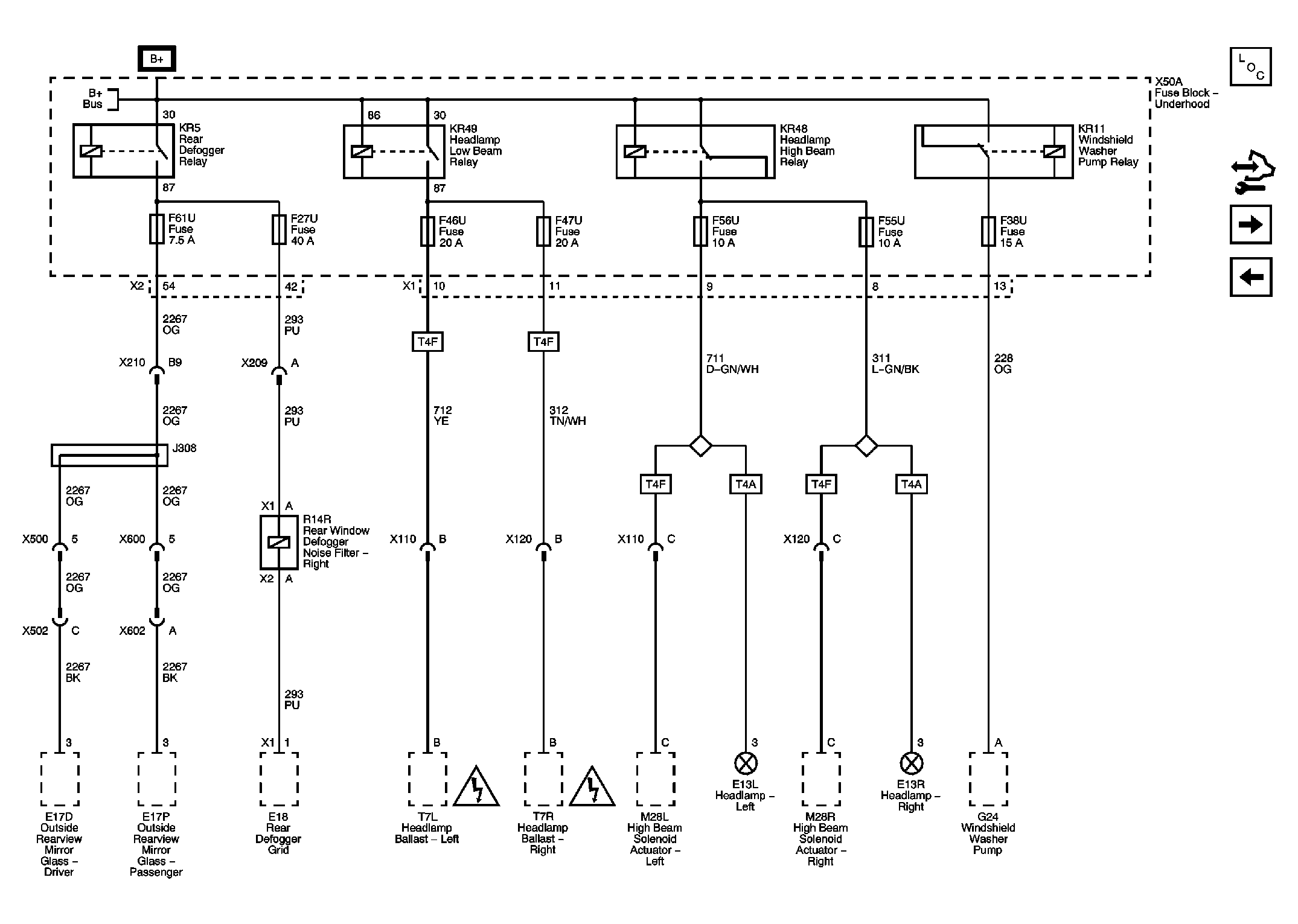

Fig 12: Fuse Block - Underhood - BCM (RVC) Fuse 61, REAR DEFOG Fuse 27, LO BEAM - LT Fuse 46, LO BEAM - RT Fuse 47, HI BEAM - LT Fuse 56, HI BEAM - RT Fuse 55, and WSW PUMP FRT Fuse 38
GM2207581Courtesy of GENERAL MOTORS CORP.

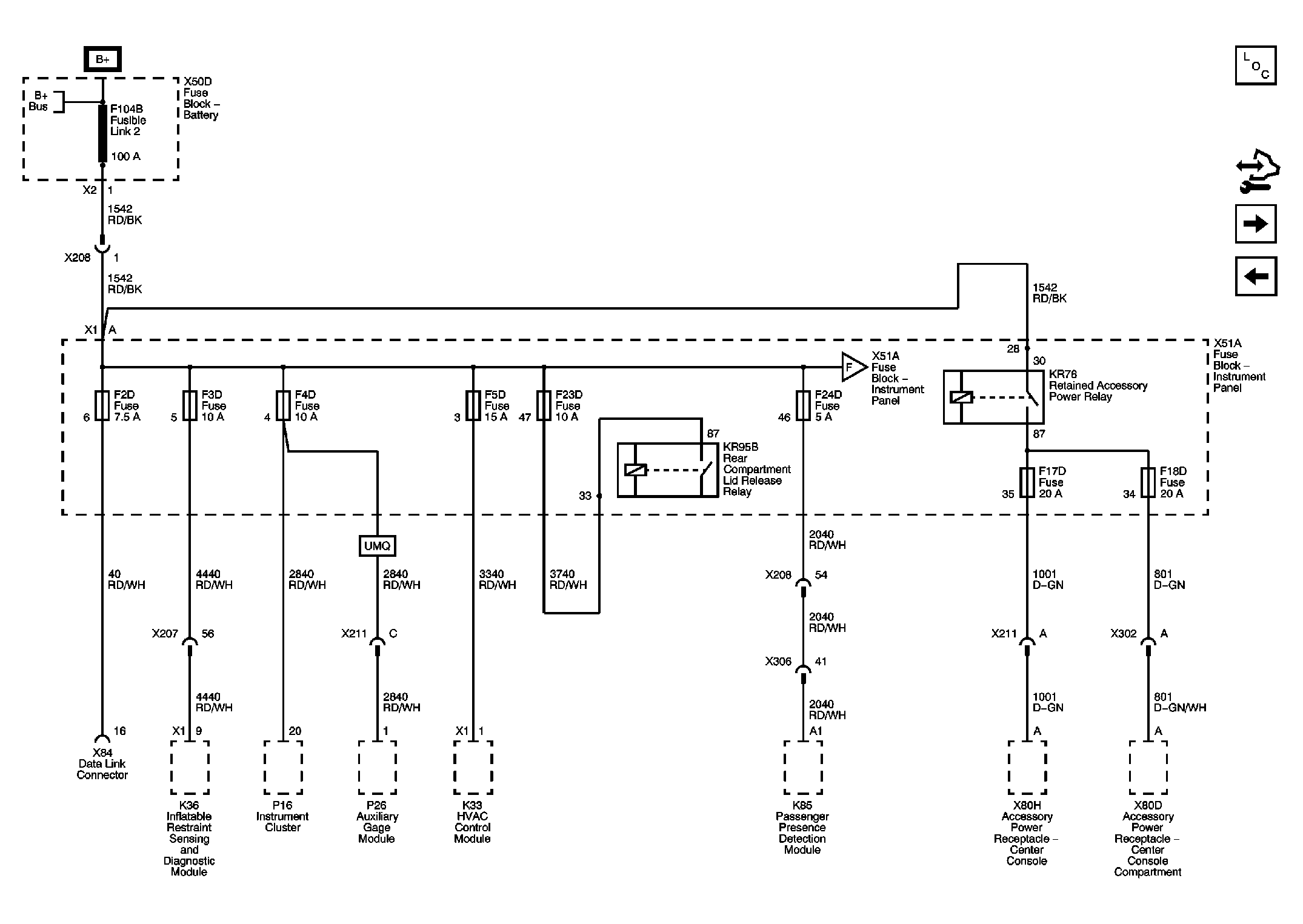

Fig 13: Fuse Block - I/P - DLC Fuse 2, AIR BAG Fuse 3, CLUSTER Fuse 4, HVAC CNTRL Fuse 5, TRUNK Fuse 23, AOS Fuse 24, APO_1 Fuse 17, and APO_2 Fuse 18
GM2207584Courtesy of GENERAL MOTORS CORP.

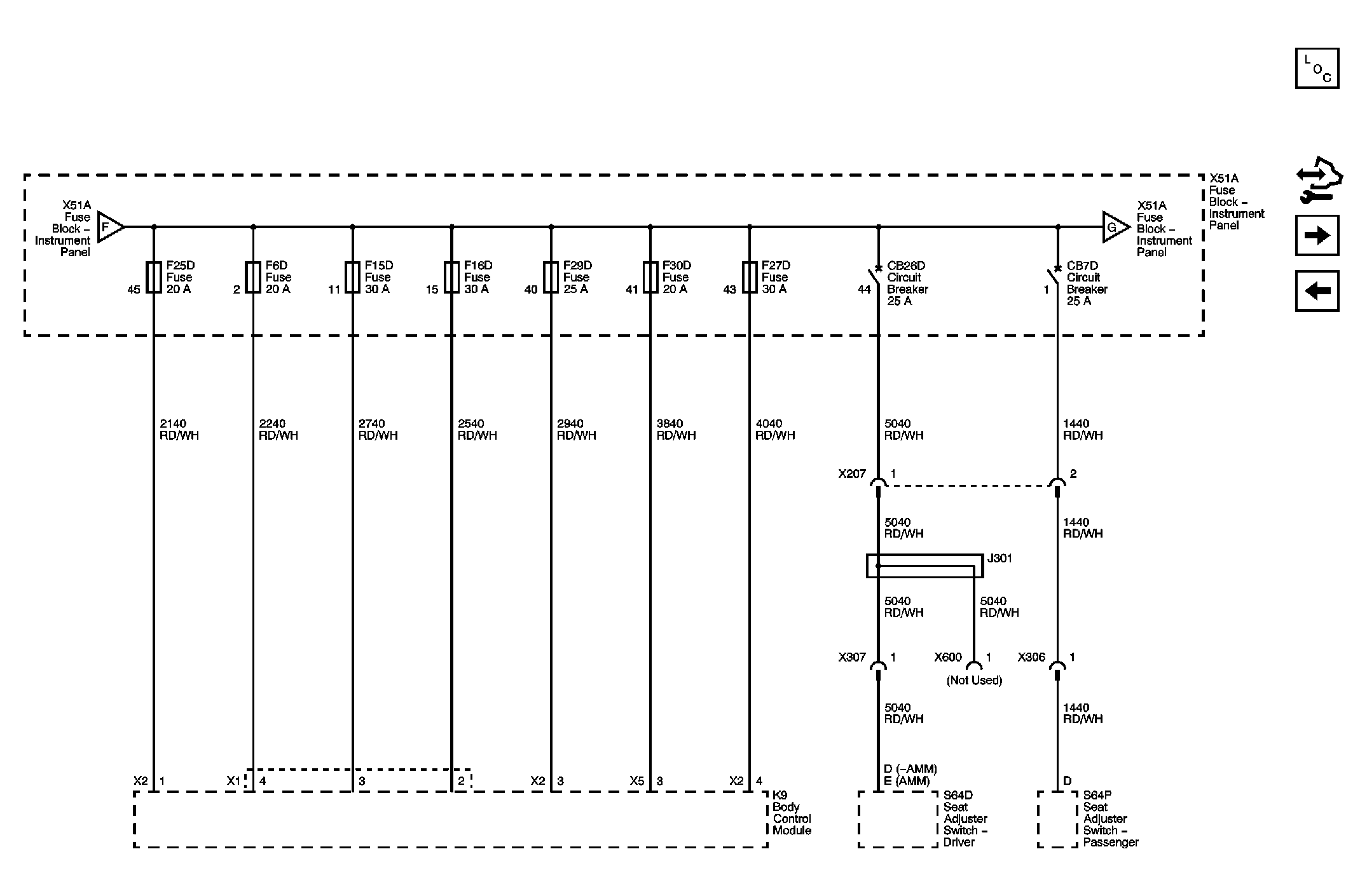

Fig 14: Fuse Block - I/P - BCM_1 Fuse 25, BCM_2 Fuse 6, BCM_3 Fuse 15, BCM_4 Fuse 16, BCM_5 Fuse 29, BCM_7 Fuse 30, BCM_8 Fuse 27, and LF_SEAT, RF_SEAT Circuit Breakers
GM2207586Courtesy of GENERAL MOTORS CORP.

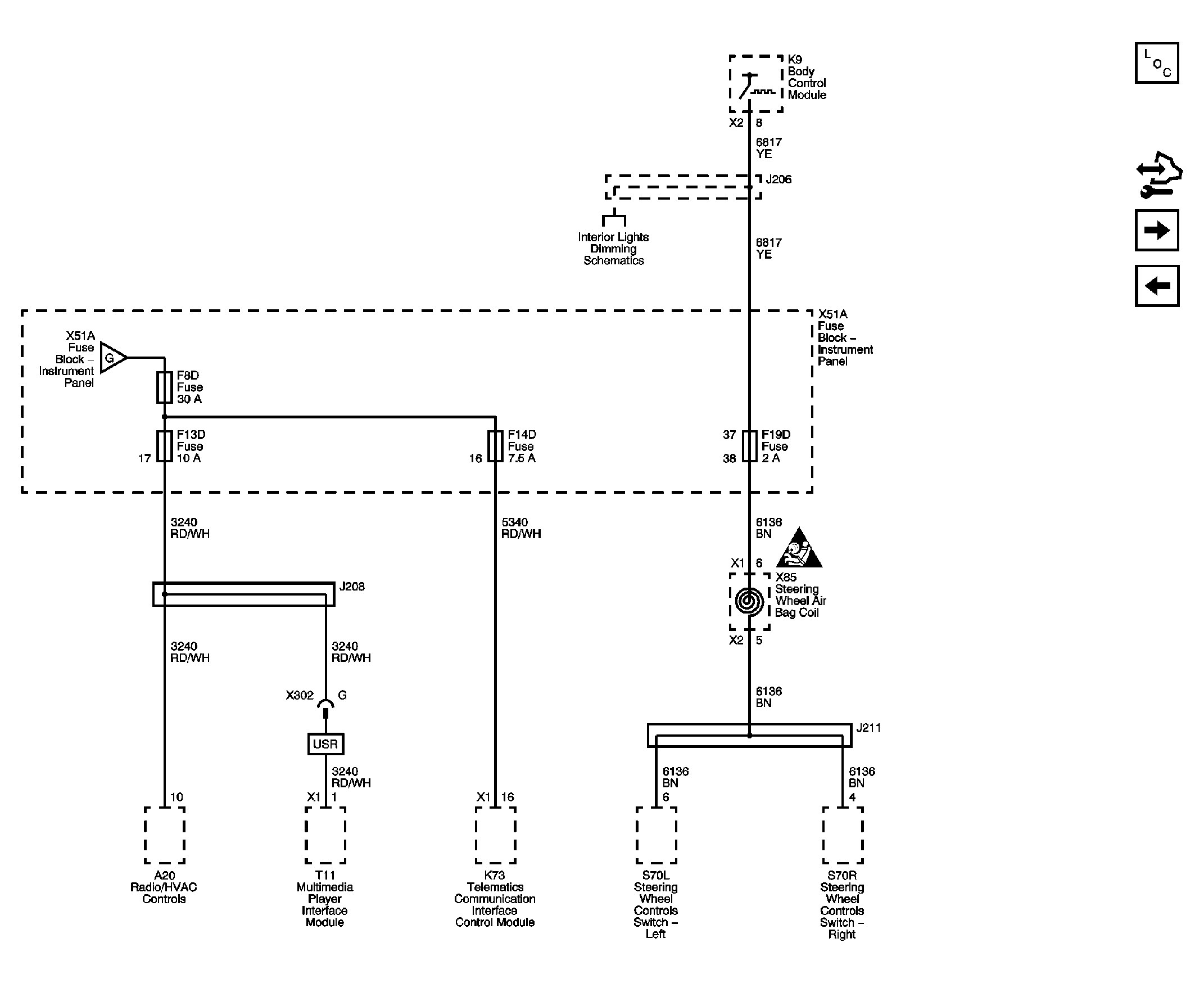

Fig 15: Fuse Block - I/P - LOGISTIC MODE Fuse 8, ONSTAR Fuse 14, and SWC BKUP Fuse 19
GM2207589Courtesy of GENERAL MOTORS CORP.

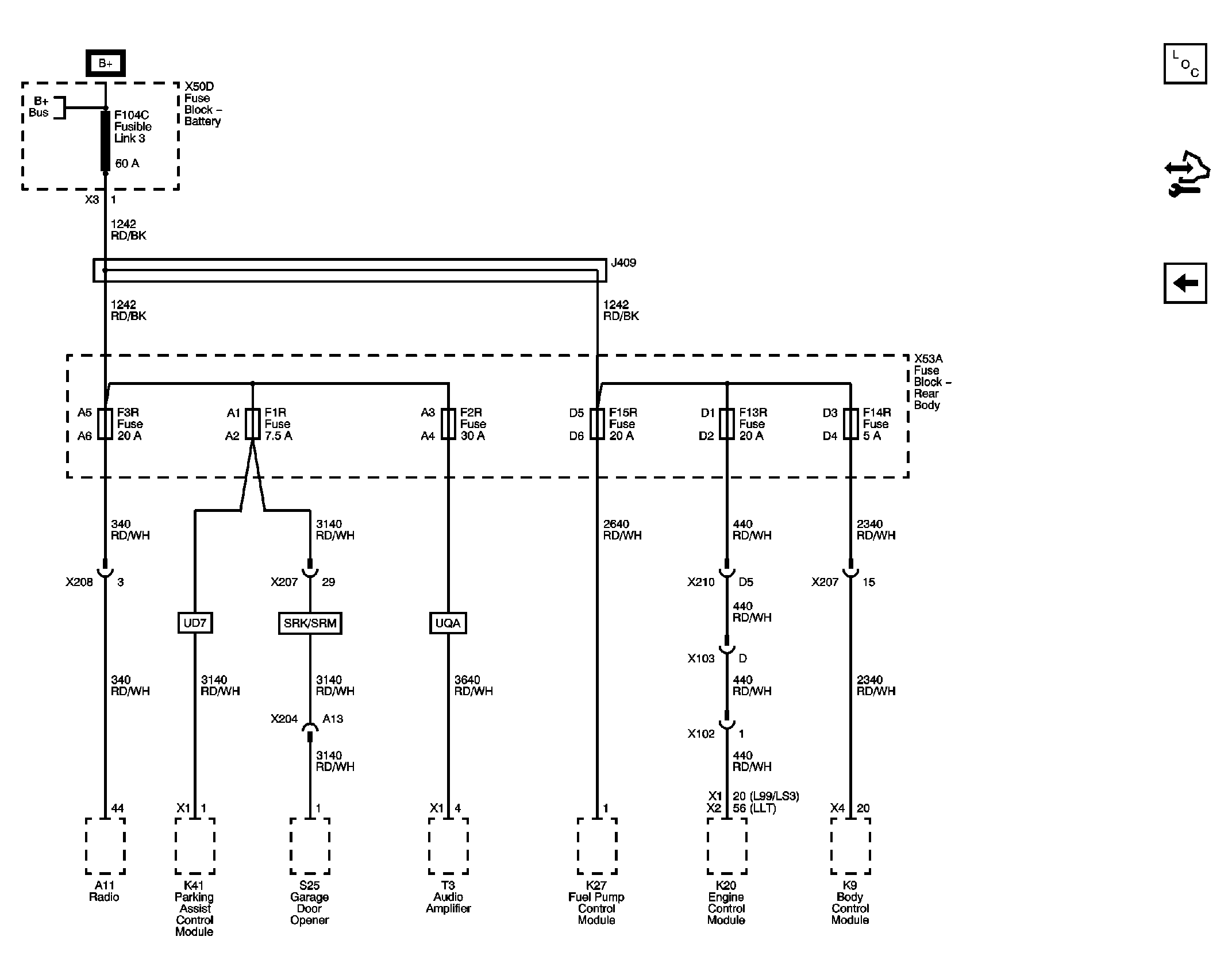

Fig 16: Fuse Block - Rear - UGDO/UPA Fuse 1, AMP Fuse 2, RADIO Fuse 3, ECM_BATTERY Fuse 13, BATTERY RVC Fuse 14, and CCM/FUEL PMP Fuse 15
GM2207590Courtesy of GENERAL MOTORS CORP.
