Harness Routing Views

Fig 1: Fog Lamp Harness Routing
GM2352040Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J102
2 J101

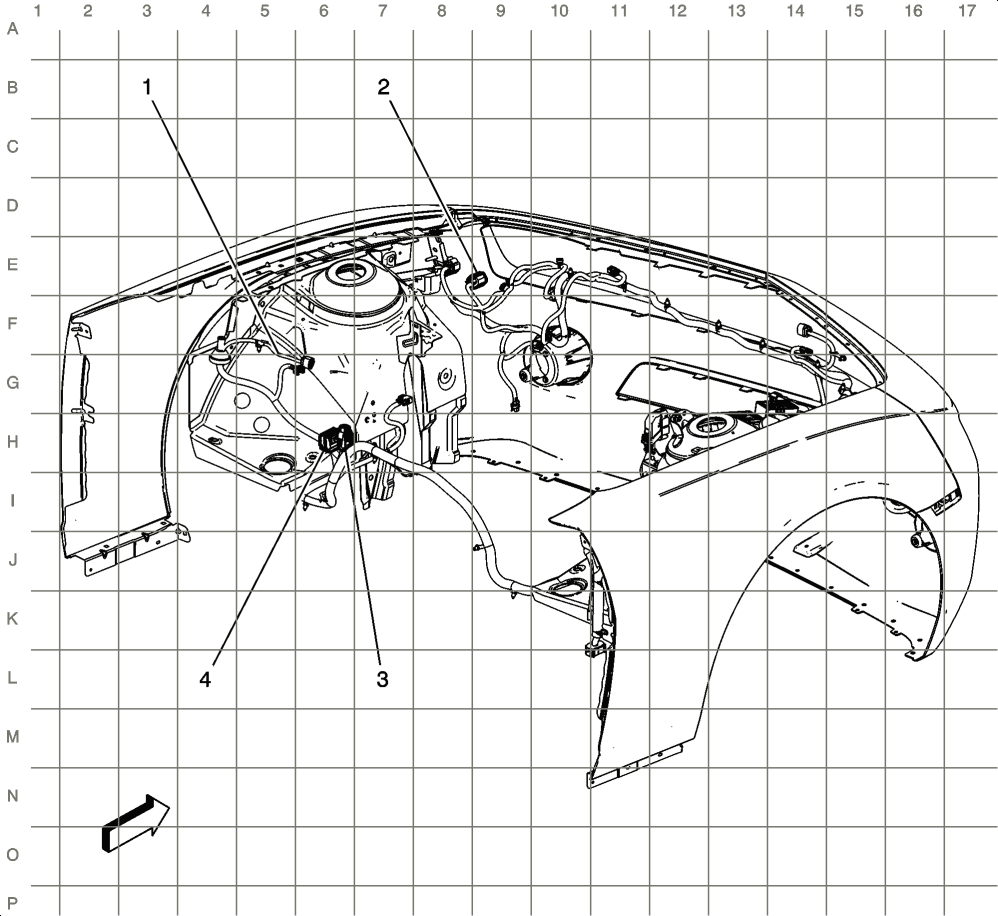

Fig 2: Forward Lamp Harness Routing - Left
GM2291052Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J107
2 X110 (T4F)
3 X105
4 X104

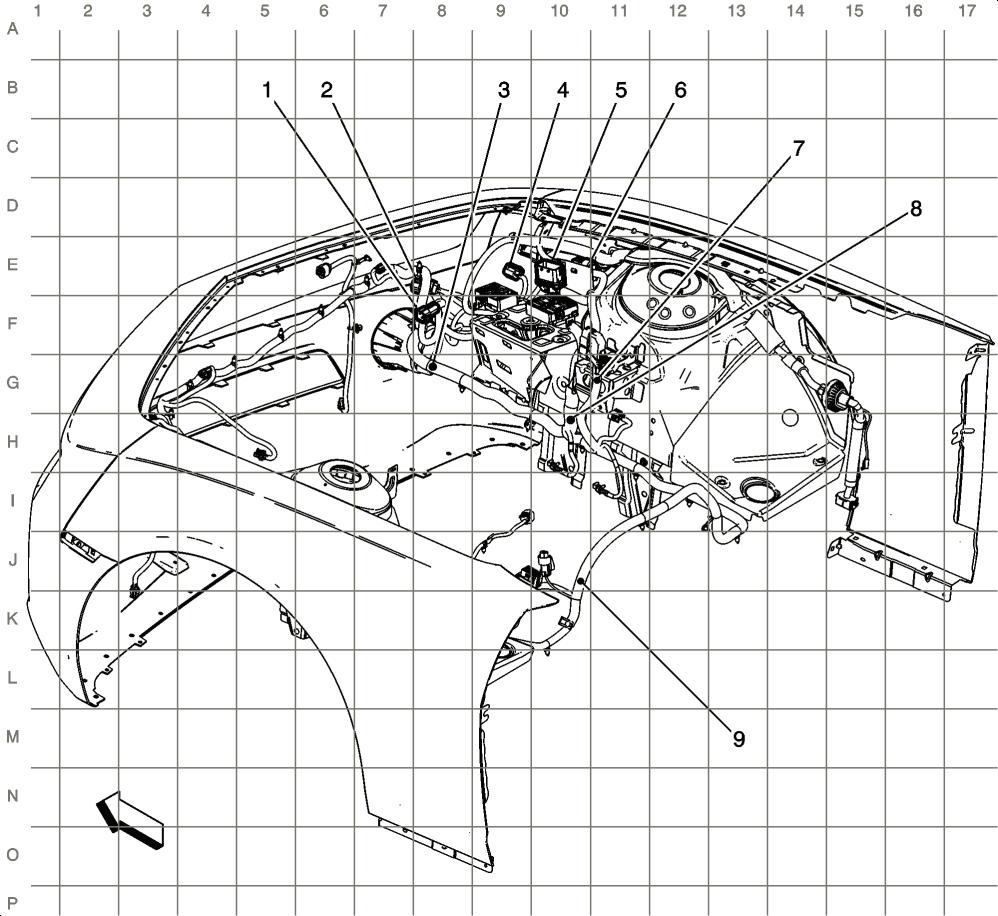

Fig 3: Forward Lamp Harness Routing - Right
GM2291051Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X162
2 X108
3 J103
4 X120 (T4F)
5 X102
6 X103
7 J104
8 J105
9 J106 (T4A)
Fig 4: Engine Harness Routing - Left Rear (LLT)
GM2292233Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J122
2 J123
3 J121
4 J120
5 J119
Fig 5: Engine Harness Routing - Left Rear (L99 or LS3)
GM2291117Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X113
2 J113
3 X109
Fig 6: Engine Harness Routing - Right Side (LLT)
GM2292230Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J116
2 J115
3 X161
4 X160
5 J114 (MV5)
6 J113
7 J112
8 X111
9 X102
10 J108 (MV5)
11 J109 (MV5)
12 J110
13 J111 (MYB)
Fig 7: Engine Harness Routing - Right Side (L99 or LS3)
GM2291116Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X112
2 J123
3 J129
4 X102
5 J111 (MYC)
6 J116
7 J126
Fig 8: Transmission Harness Routing - Right Rear (MYB)
GM2292316Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J118
2 J117
Fig 9: Transmission Harness Routing - Right Rear (MYC)
GM2292319Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J117
2 J118

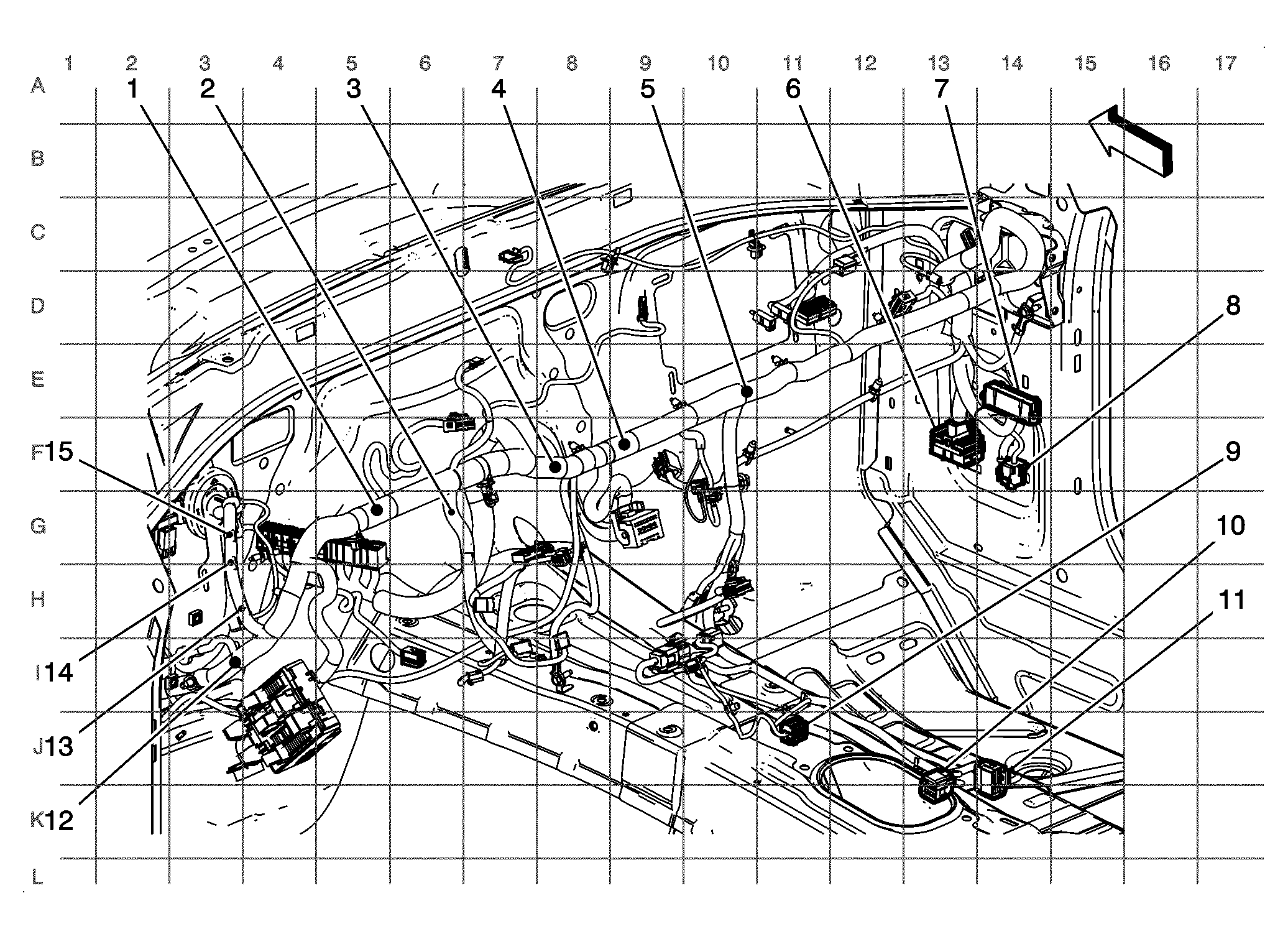

Fig 10: Instrument Panel Harness Routing - Top Left Overhead
GM2292338Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J205 (DBX)
2 J206
3 J207
4 J208
5 J209 (SRK or SRM)
6 X208
7 X204
8 X254
9 X211
10 X301 (MYB or MYC)
11 X302
12 J201
13 J202
14 J203
15 J204
Fig 11: Instrument Panel Harness Routing - Top Right Overhead
GM2292337Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X253
2 X206 (CF5)
3 X207
4 JX200

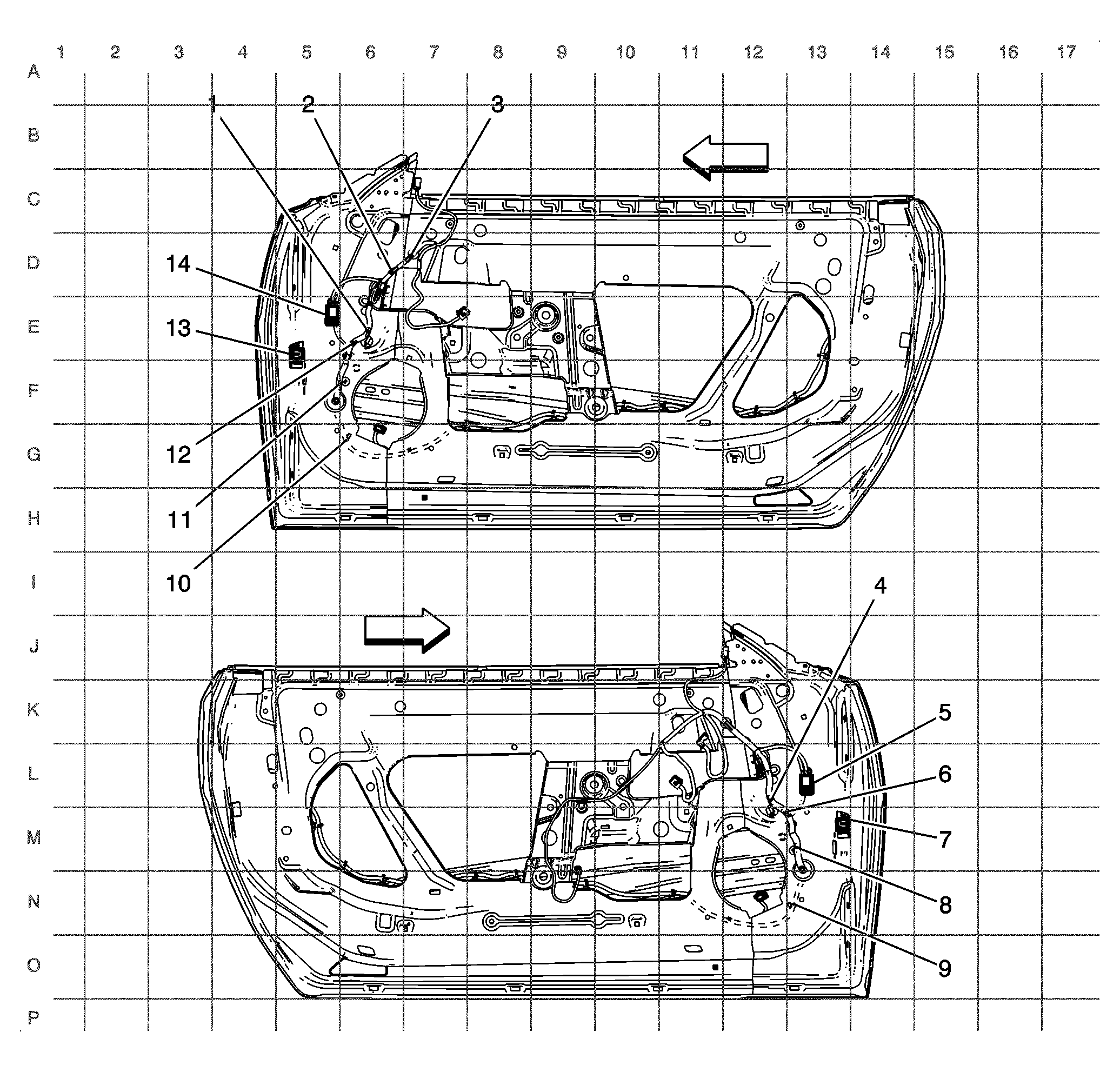

Fig 12: Doors Harness Routing
GM2292340Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J604
2 J605
3 J602
4 J503
5 X502
6 J502
7 X500
8 J501
9 J500
10 J600
11 J601
12 J603
13 X600
14 X602
Fig 13: Body Harness Routing - Left Passenger and Rear Compartments
GM2292330Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X400
2 X500
3 X253
4 X251
5 X207
6 J301
7 J302
8 J303
9 J304
10 X307
Fig 14: Body Harness Routing - Right Passenger Compartment
GM2292325Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X210
2 X209
3 X208
4 X256 (UE1 or U2K)
5 X254
6 X600
7 J305
8 X304
9 J310
10 J309
11 X306
12 J308
13 J307
14 J306
Fig 15: Body Harness Routing - Right Rear Compartment and Underbody
GM2292328Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X401
2 J409
3 X360
4 X350

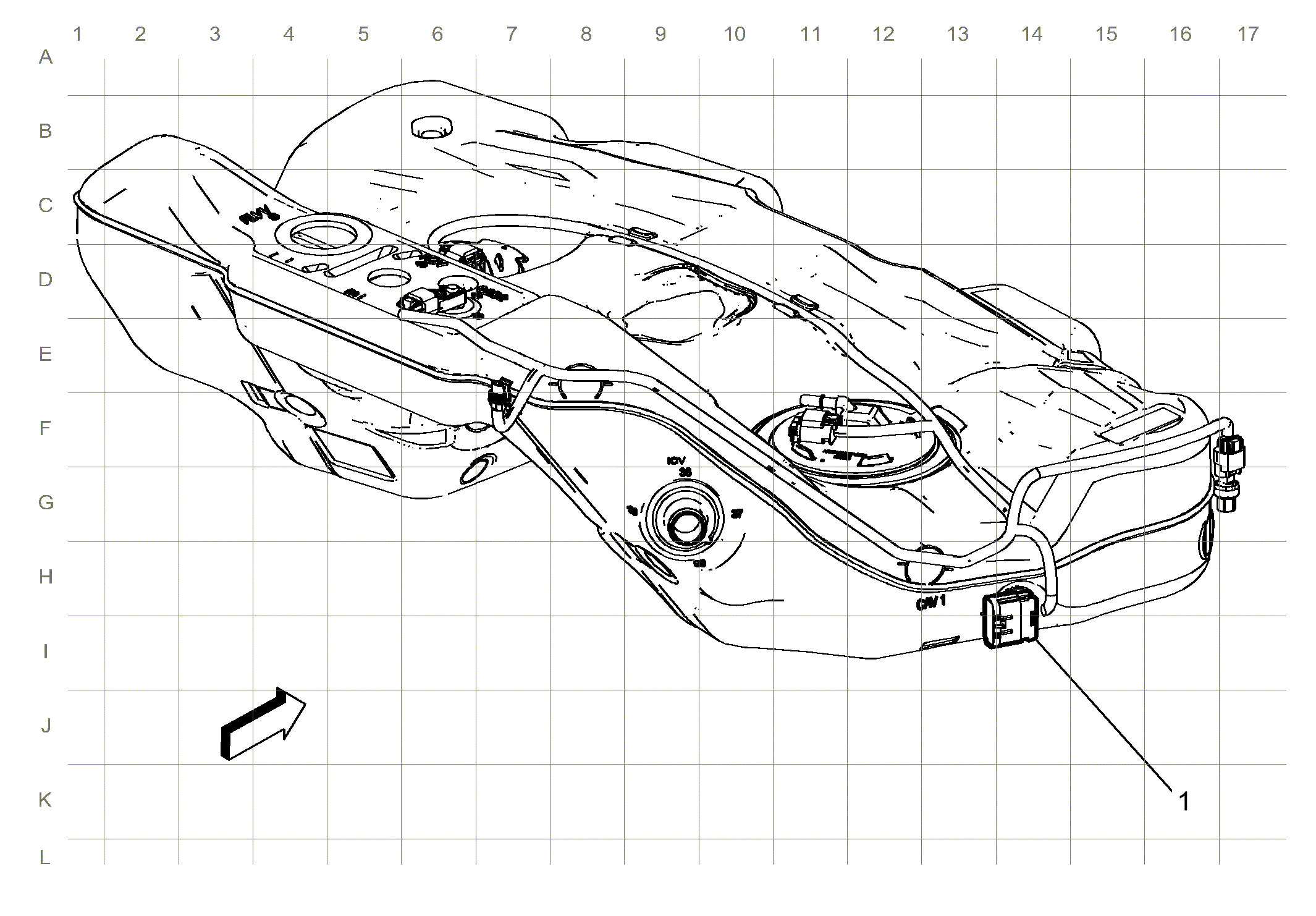

Fig 16: Fuel Tank Harness Routing
GM2292345Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X350
Fig 17: Rear Fascia Harness Routing
GM2292508Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X401
2 X402
3 X400
4 J400
5 J401
6 J402
7 J403
8 J404 (UD7)
9 J405 (UD7)
10 J406
11 J407
12 J408
