Instrument Cluster Schematics

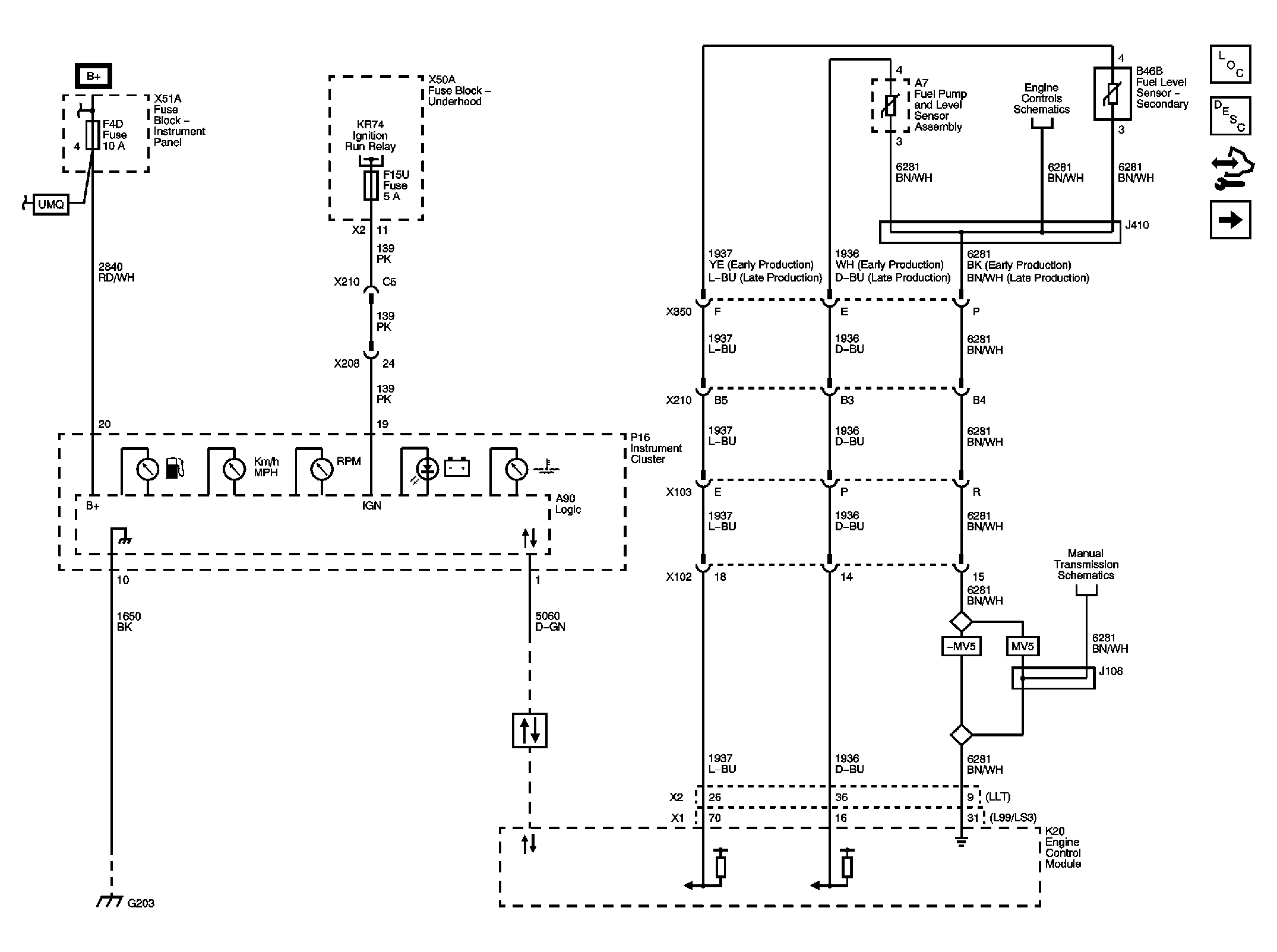

Fig 1: Gauges
GM2207112Courtesy of GENERAL MOTORS CORP.

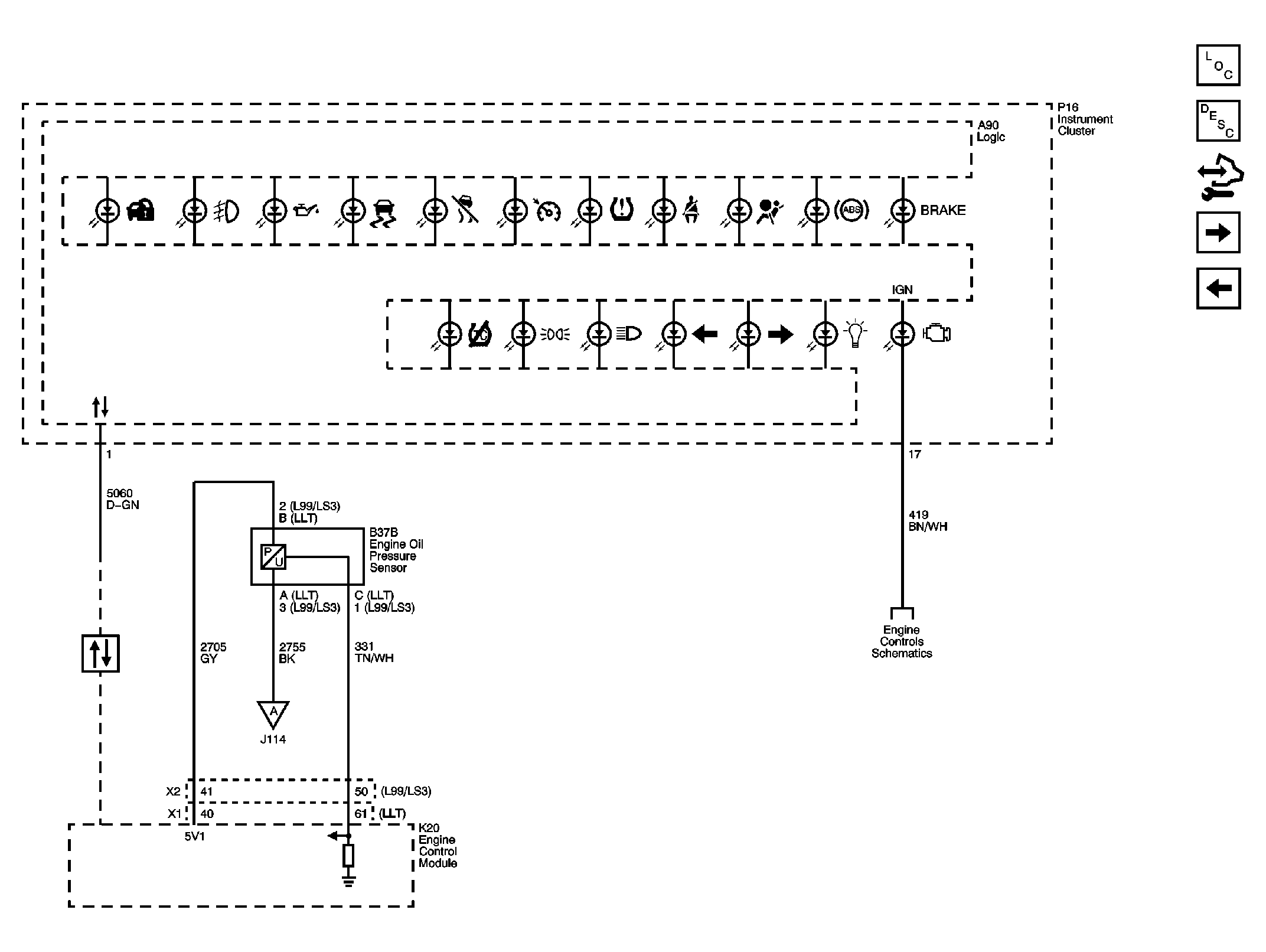

Fig 2: Indicators
GM2207114Courtesy of GENERAL MOTORS CORP.

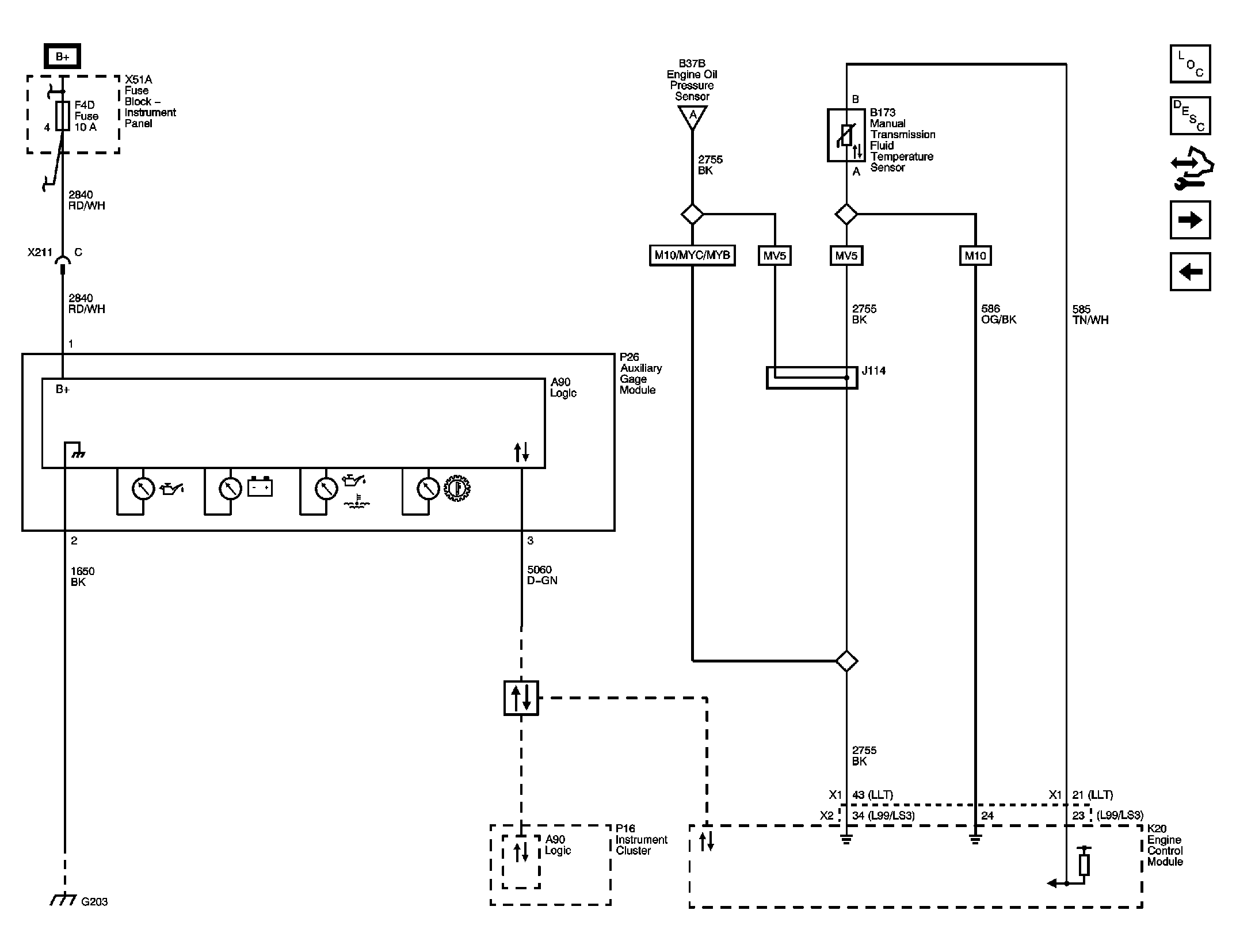

Fig 3: Auxiliary Gage Module
GM2207115Courtesy of GENERAL MOTORS CORP.
Fig 4: Driver Information Center
GM2207118Courtesy of GENERAL MOTORS CORP.
