Antilock Brake System Schematics

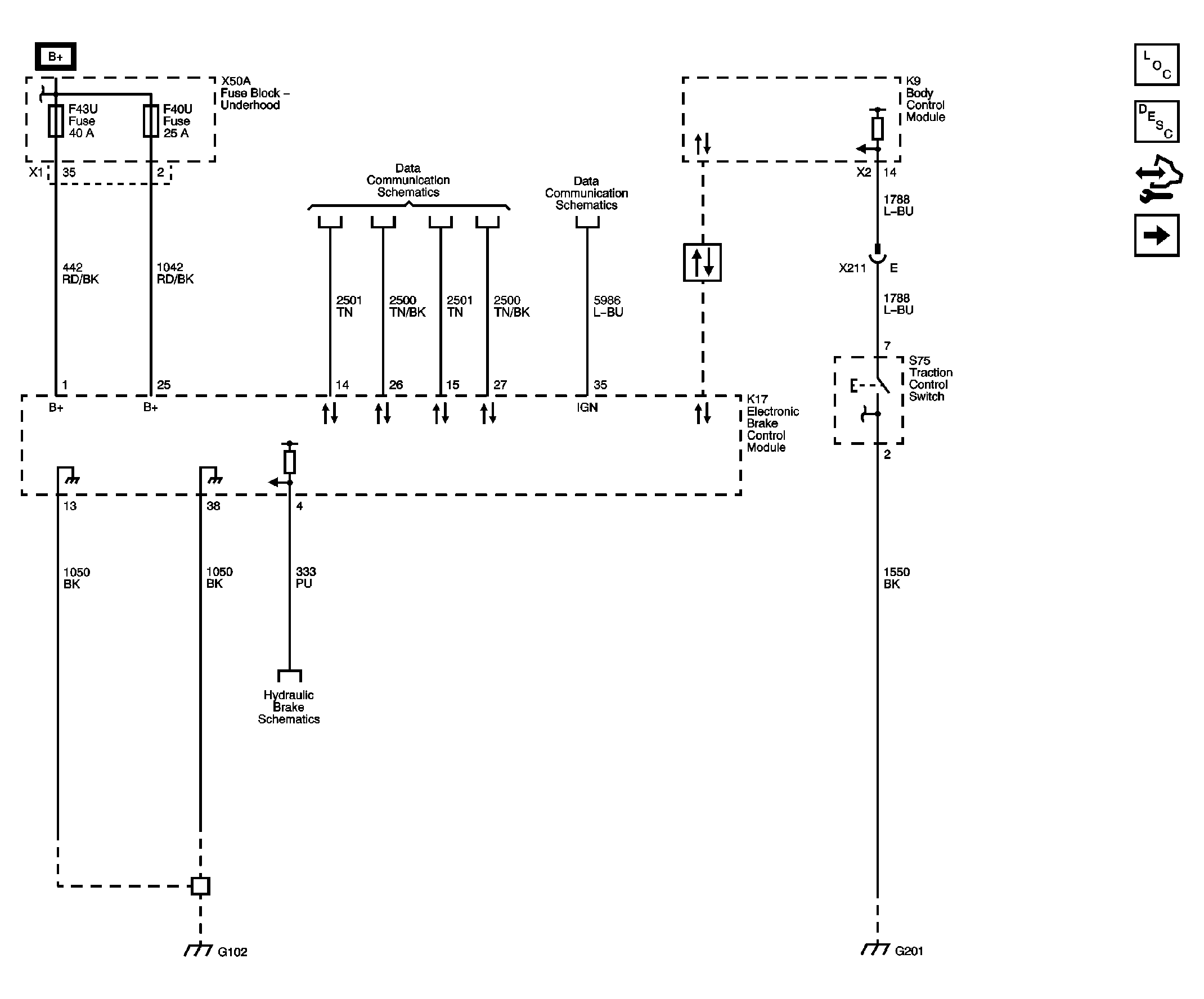

Fig 1: Power and Ground
GM2208214Courtesy of GENERAL MOTORS CORP.

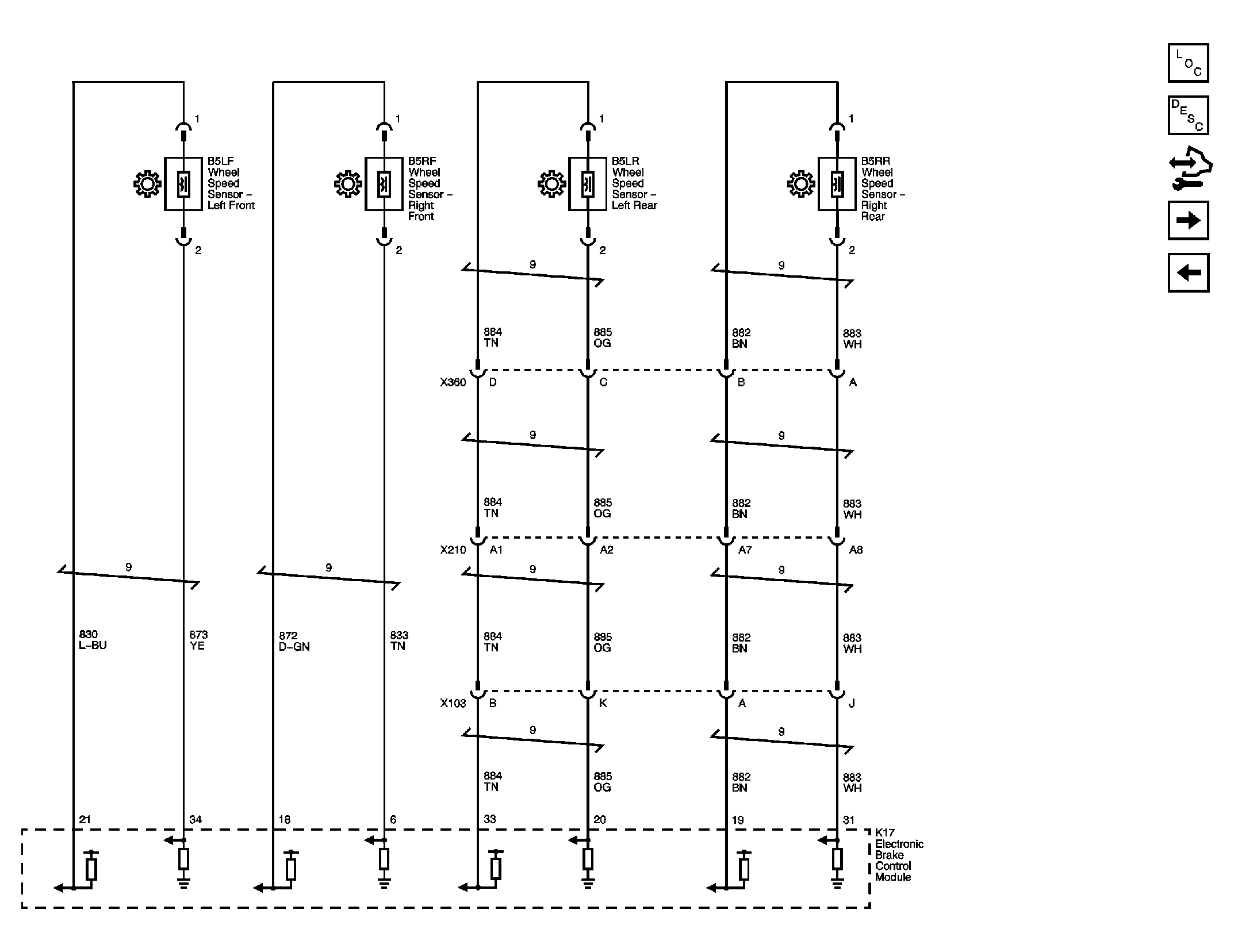

Fig 2: Sensors
GM2208215Courtesy of GENERAL MOTORS CORP.

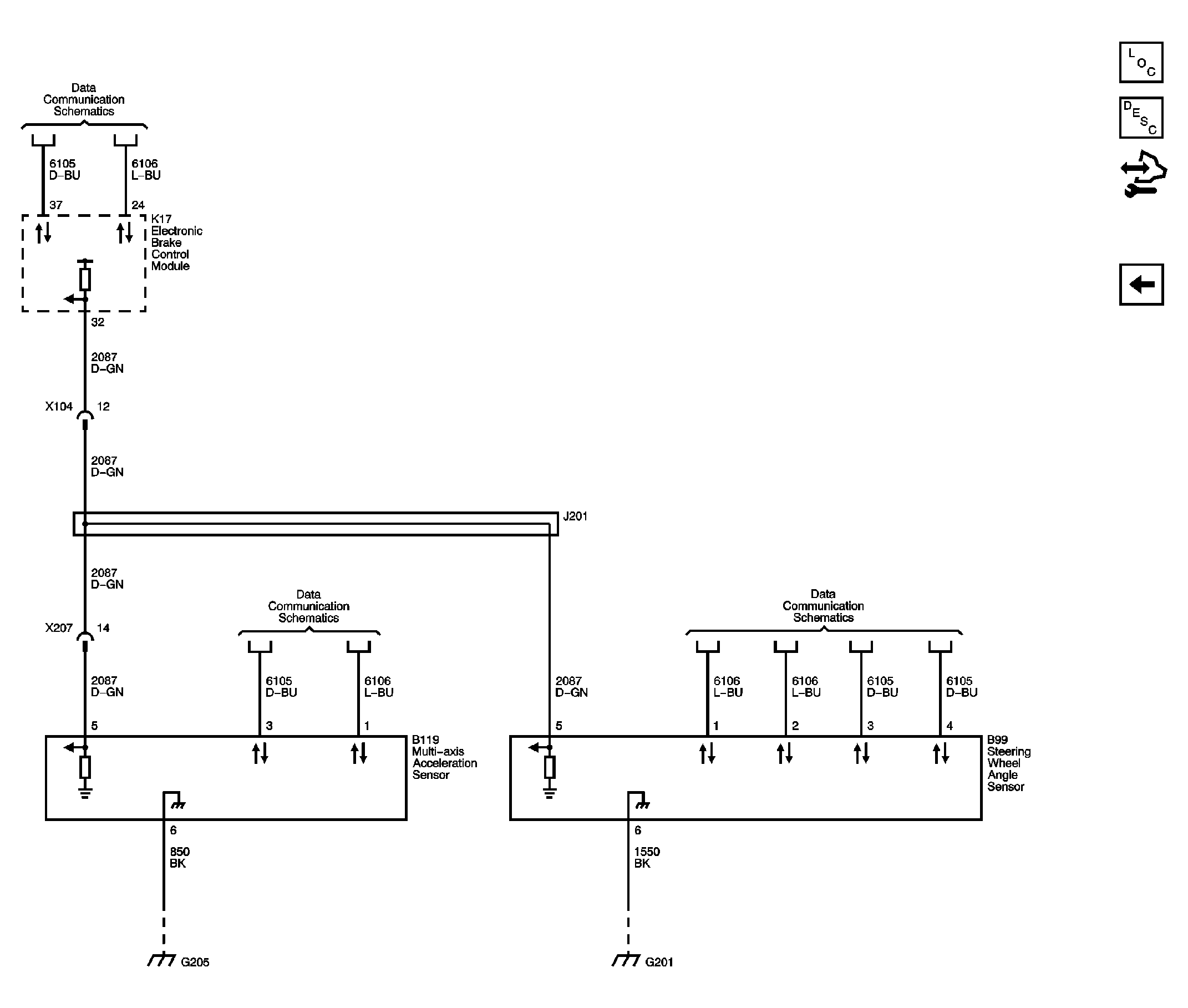

Fig 3: Yaw and Lateral Accelerometer Sensor and Steering Angle Sensor
GM2208216Courtesy of GENERAL MOTORS CORP.
