Rocker Panel Molding Replacement

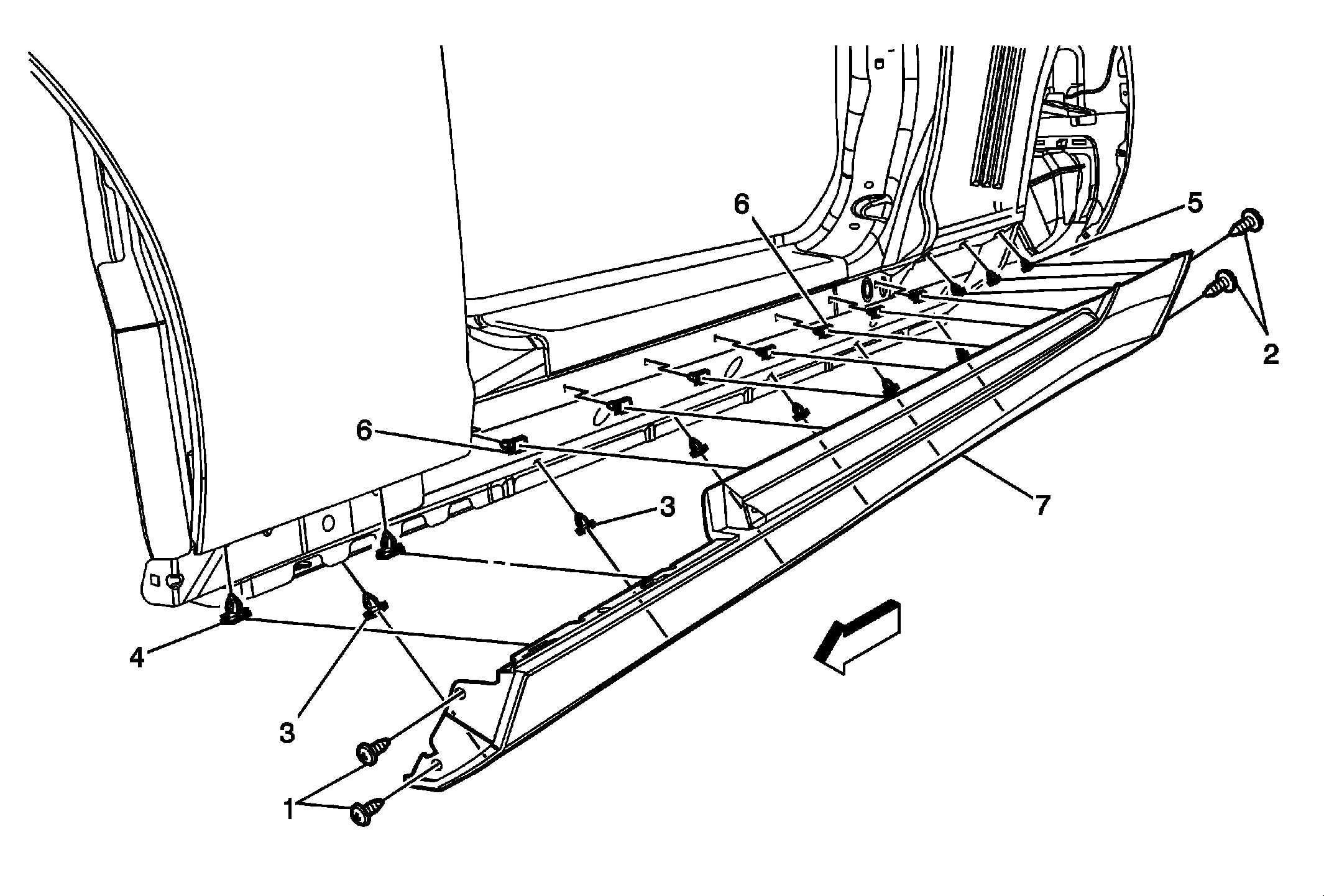

Fig 1: Rocker Panel Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the door on the side the lower rocker molding is being serviced. Remove the rear wheel and tire assembly on the side the lower rocker molding is being serviced. Refer to Tire and Wheel Removal and Installation .
1	Front Wheelhouse Panel Liner Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Rear Wheelhouse Panel Liner Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
3	Lower Rocker Molding W-Clip (Qty: 6) Tip: Use a trim-type release tool in order to disengage the w-clips from the lower body panel.
4	Front Fender Upper Flange W-Clip (Qty: 2)
5	Rear Bodyside Panel W-Clip (Qty: 3)
6	Door Opening Sil Panel W-Clip (Qty: 7)
7	Lower Rocker Molding Procedure Transfer the front side door lower auxiliary weatherstrip to the New rocker molding. Tip: A small trim type release tool is necessary for removal of the weatherstrip retainers. Install New w-clips if any are damaged or broken after the rocker molding has been removed.
