Front Side Door Weatherstrip Replacement - Body Side

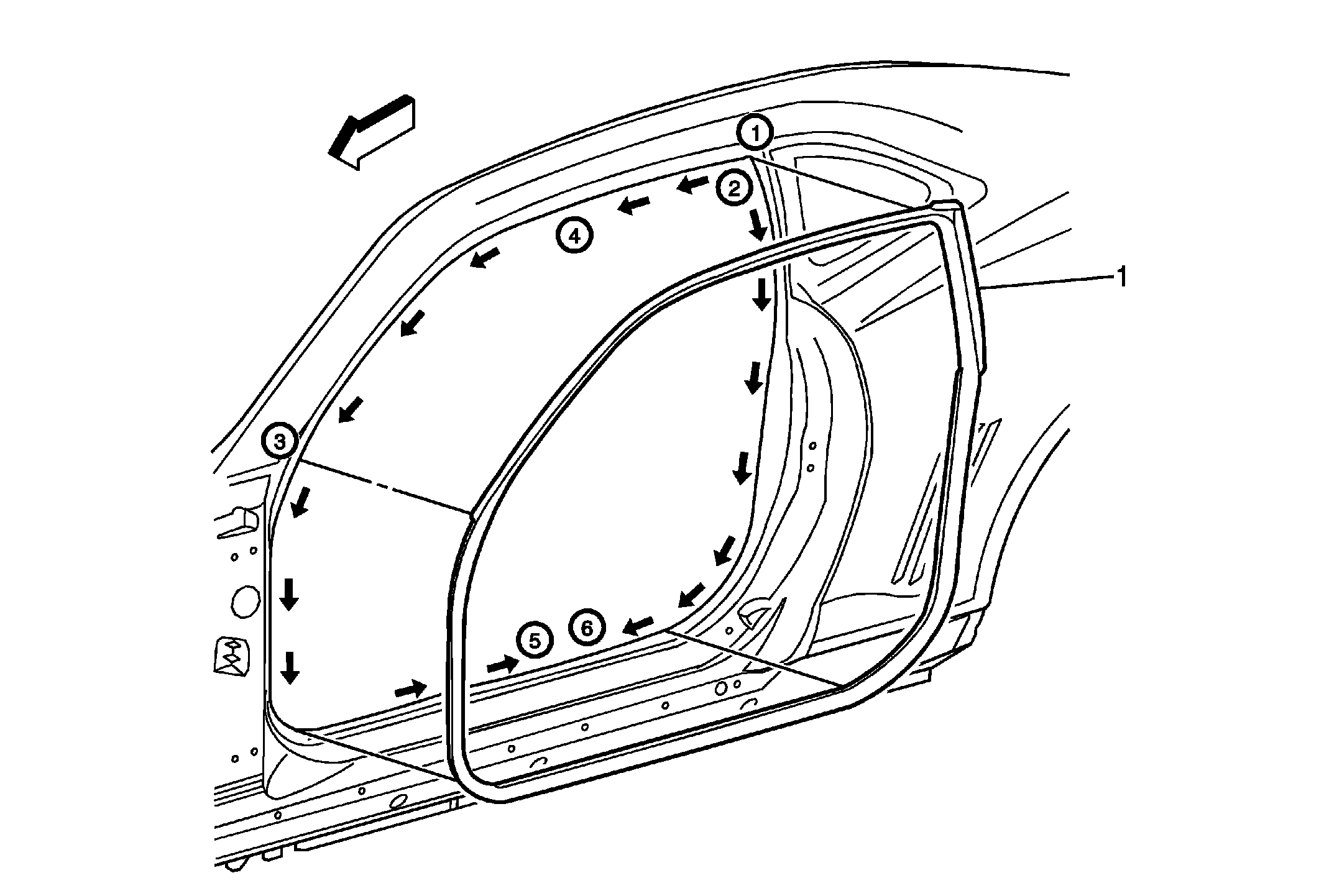

Fig 1: Front Side Door Weatherstrip - Body Side
GM2177966Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement
1 Front Side Door Weatherstrip
Procedure:
When installing the weatherstrip start in the right upper corner (1) working counter clockwise around the door ring.
