SIR Schematics

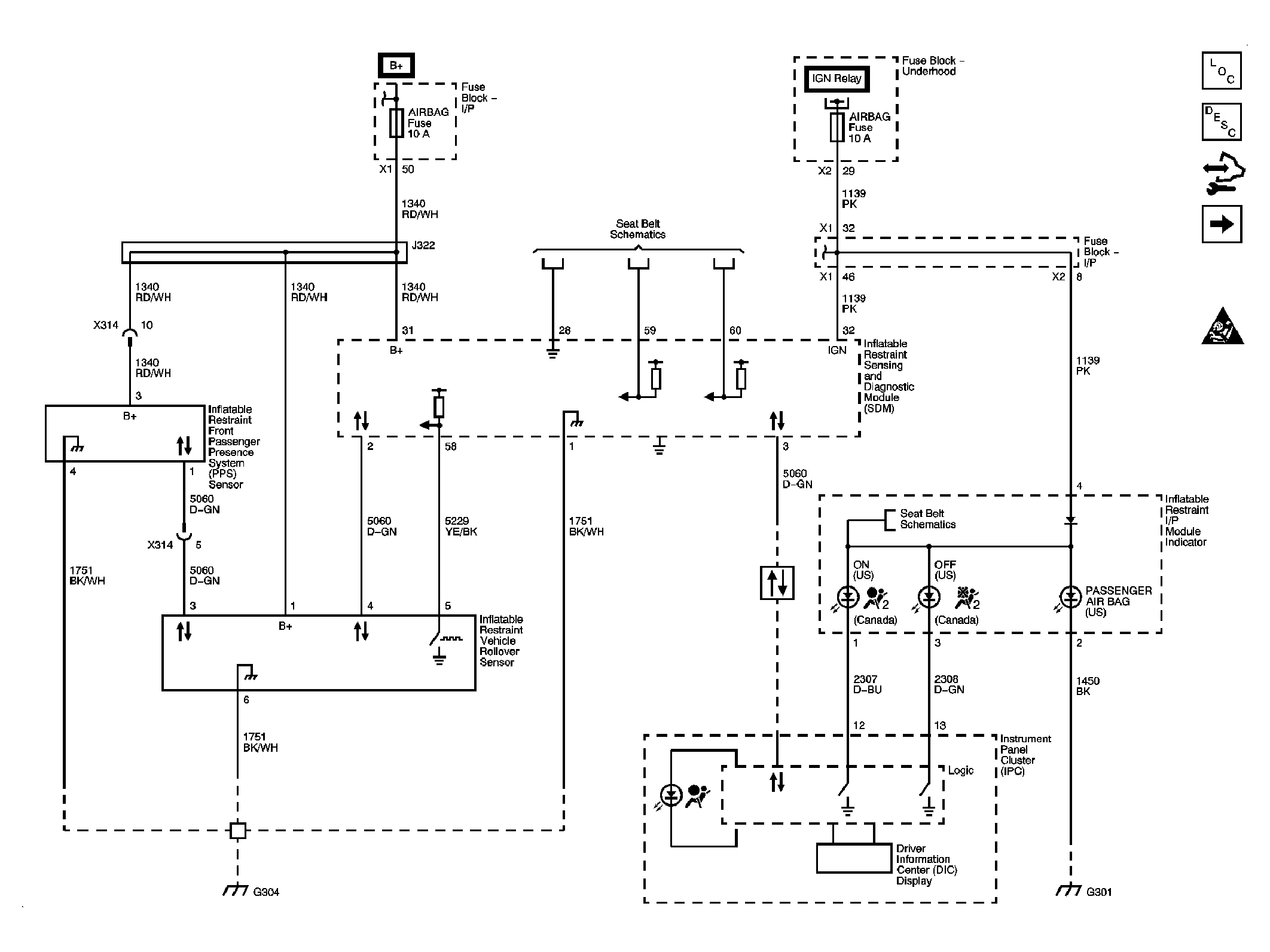

Fig 1: Module Power, Ground, Indicators, Rollover/Passenger Presence Sensors Circuit Schematic
GM2077993Courtesy of GENERAL MOTORS CORP.

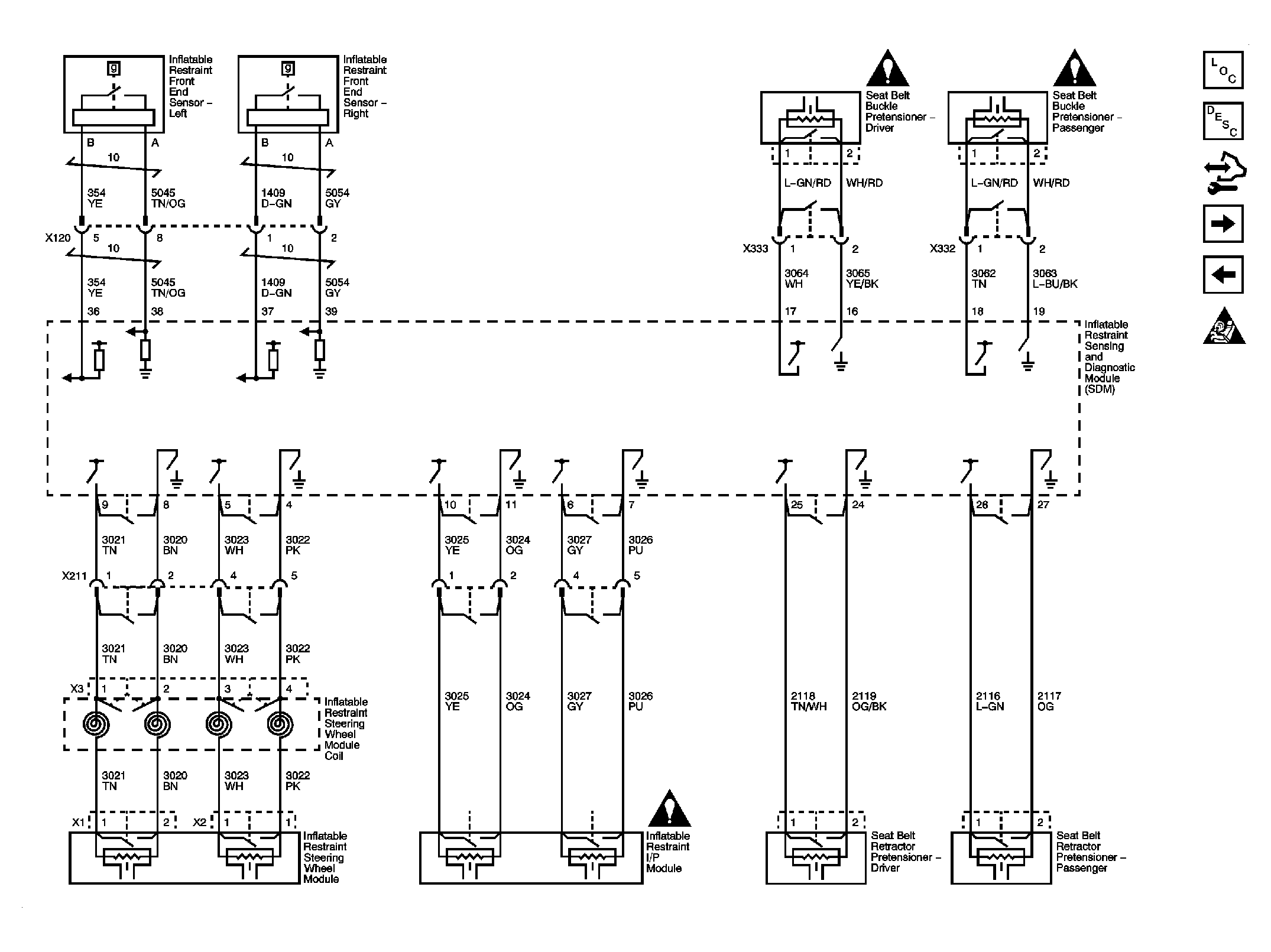

Fig 2: Front End Sensors, Seat Belt Pretensioners & Front Air Bags Circuit Schematic
GM2077996Courtesy of GENERAL MOTORS CORP.

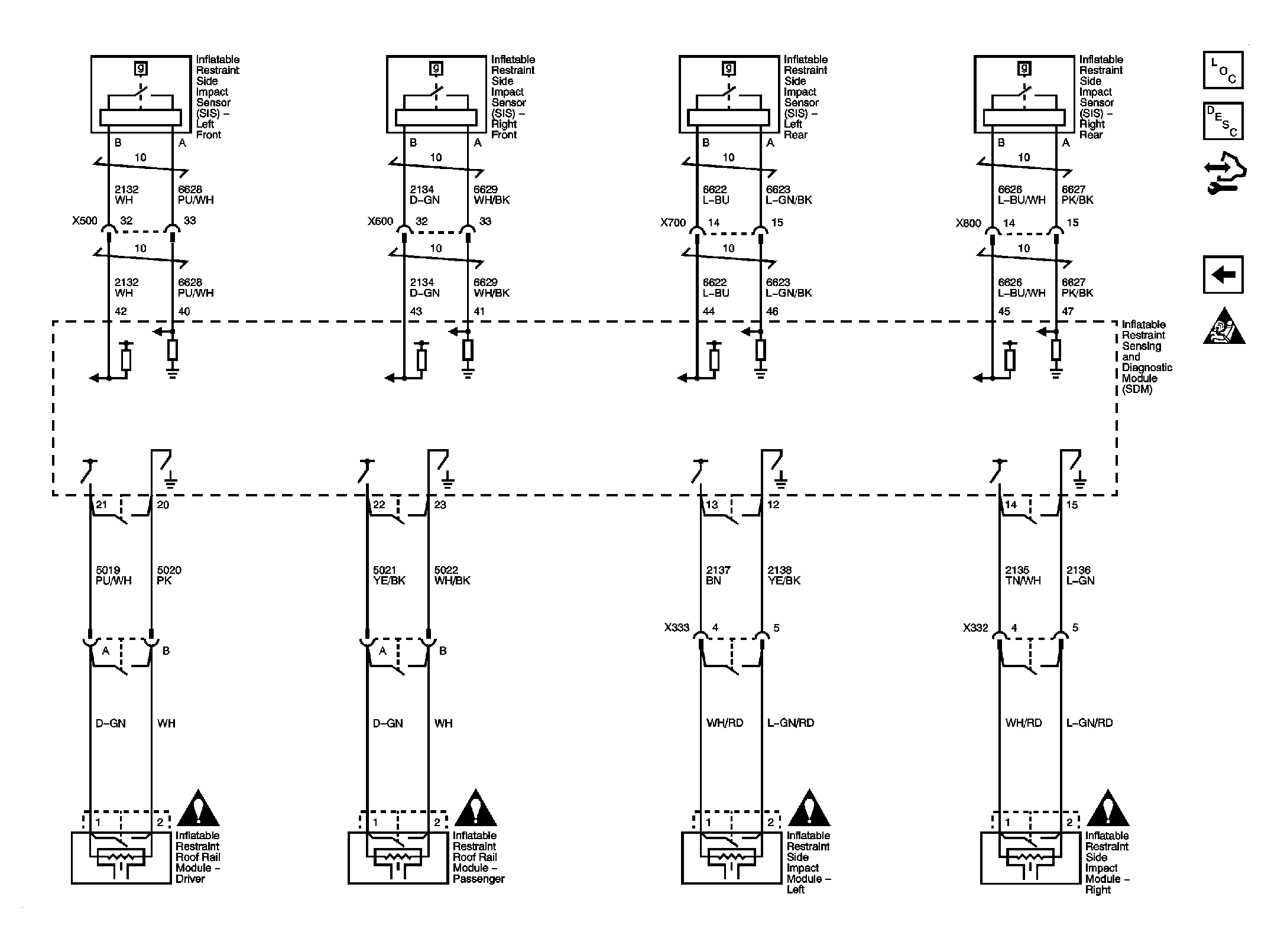

Fig 3: Side Impact Sensors & Roof Rail/Side Impact Air Bags Circuit Schematic
GM2078000Courtesy of GENERAL MOTORS CORP.
