HVAC Schematics

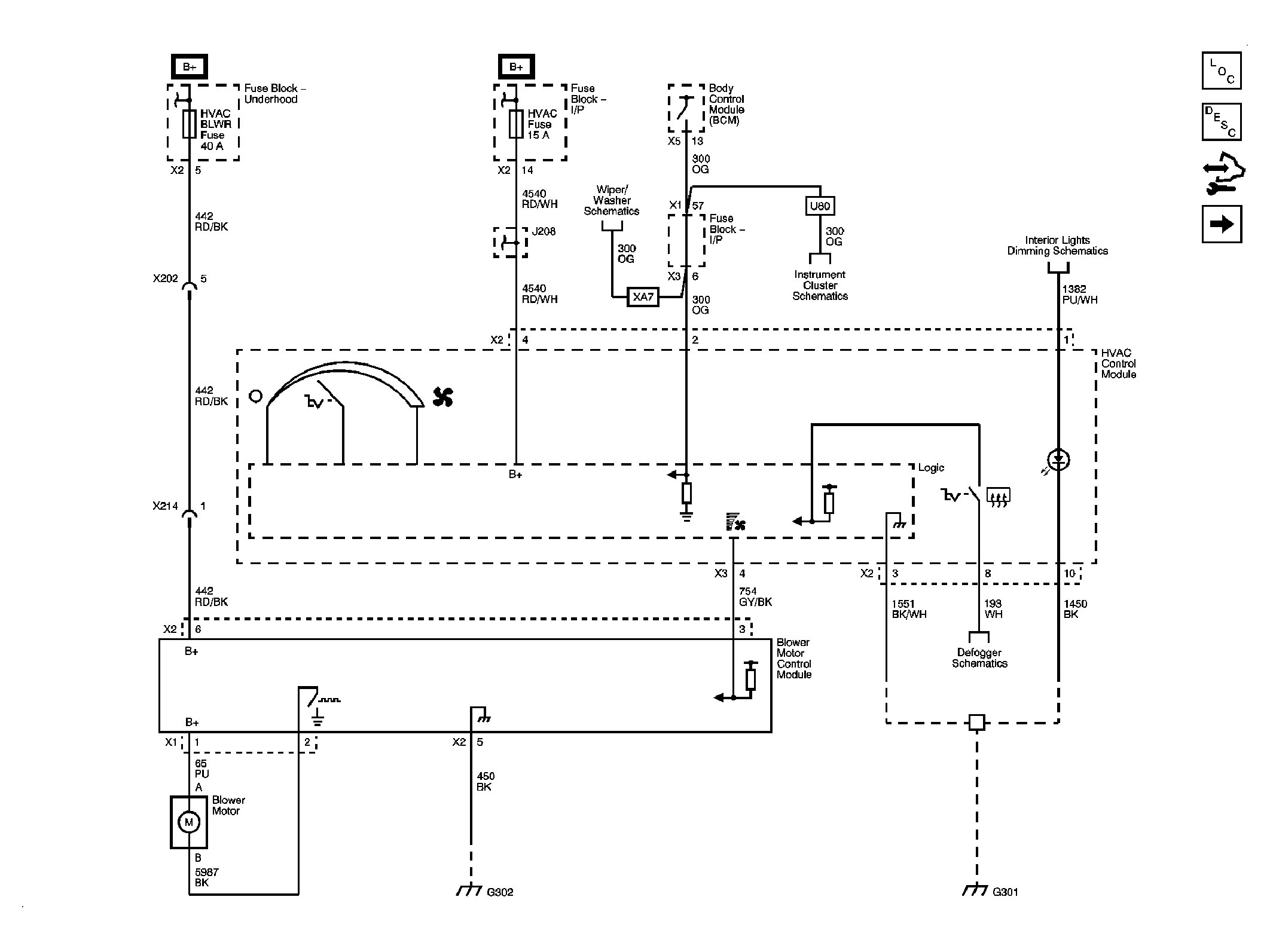

Fig 1: Module Power and Ground, Blower Control & Subsystem References Circuit Schematic
GM2077909Courtesy of GENERAL MOTORS CORP.

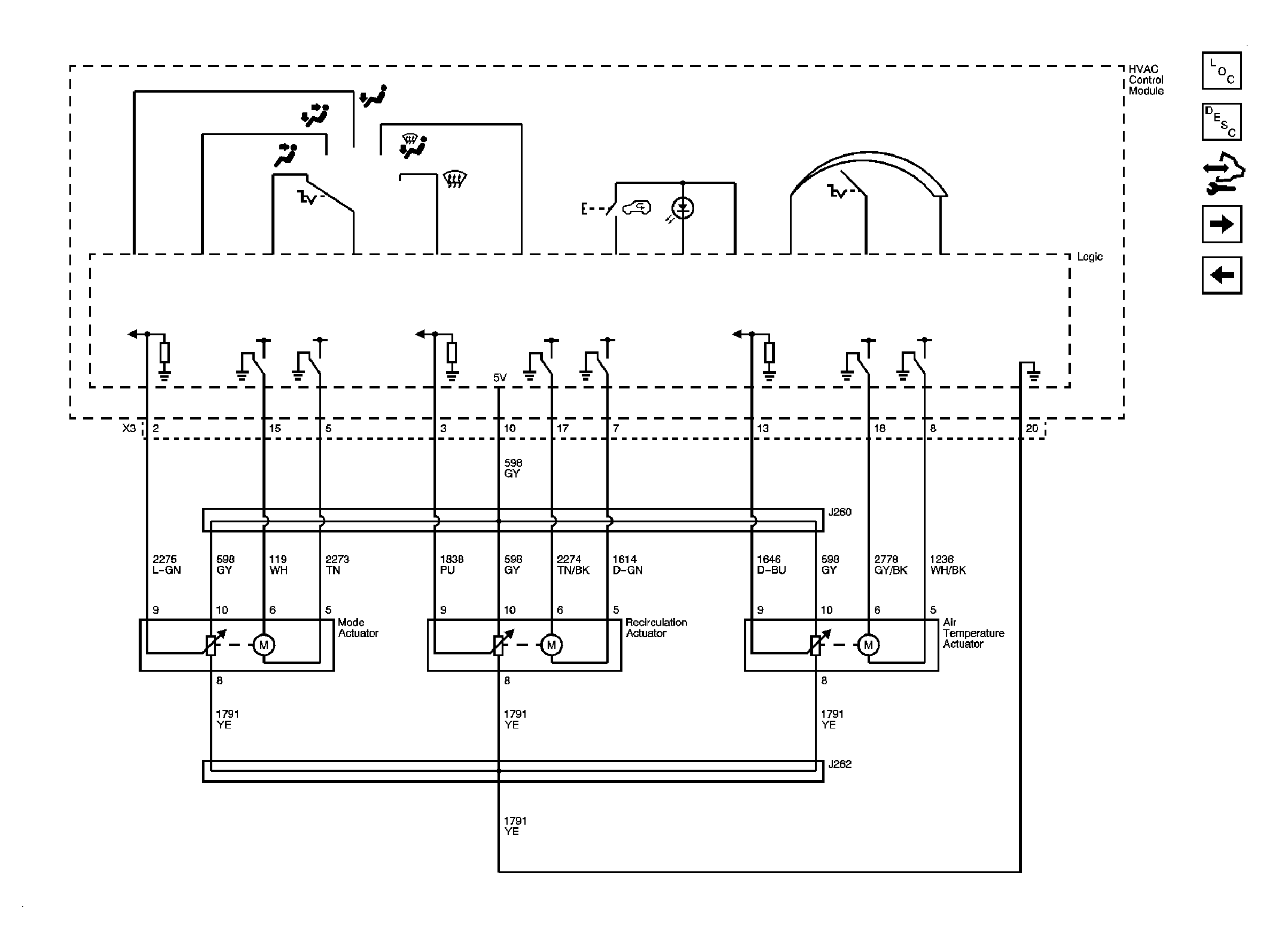

Fig 2: Actuators Circuit Schematic
GM2077912Courtesy of GENERAL MOTORS CORP.

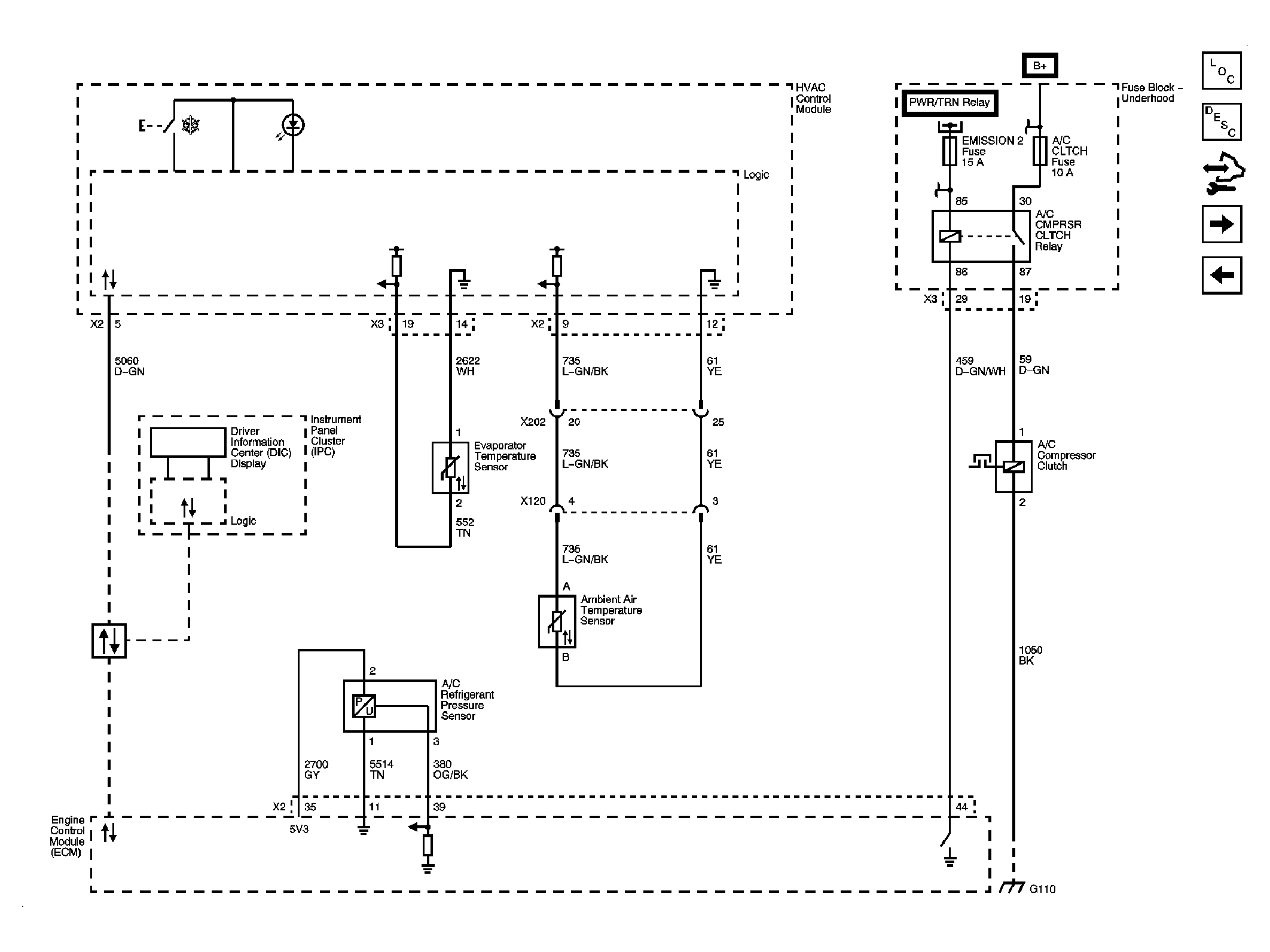

Fig 3: Compressor Controls Circuit Schematic
GM2077914Courtesy of GENERAL MOTORS CORP.

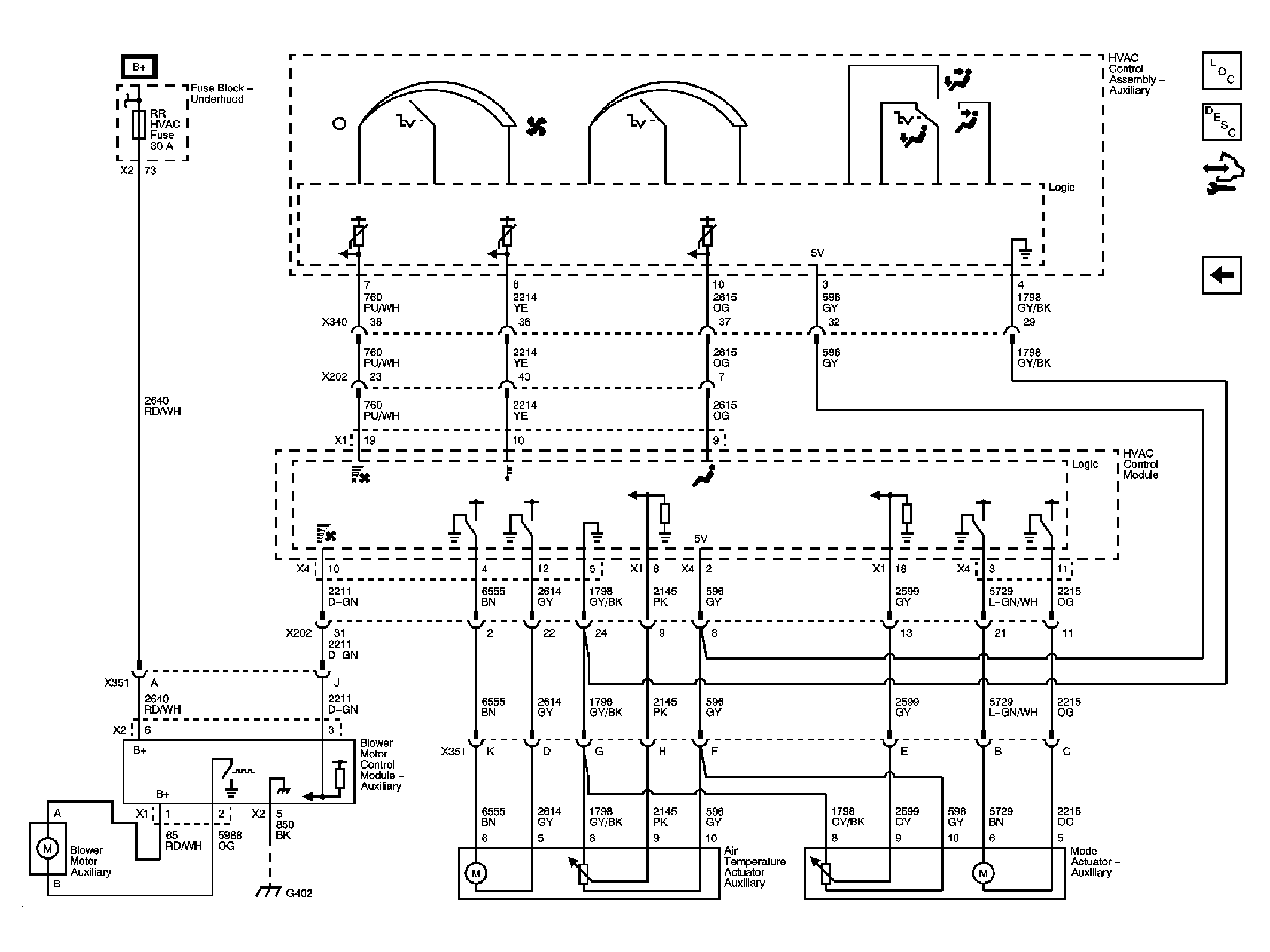

Fig 4: Rear HVAC Circuit Schematic
GM2077920Courtesy of GENERAL MOTORS CORP.
