HVAC Schematics

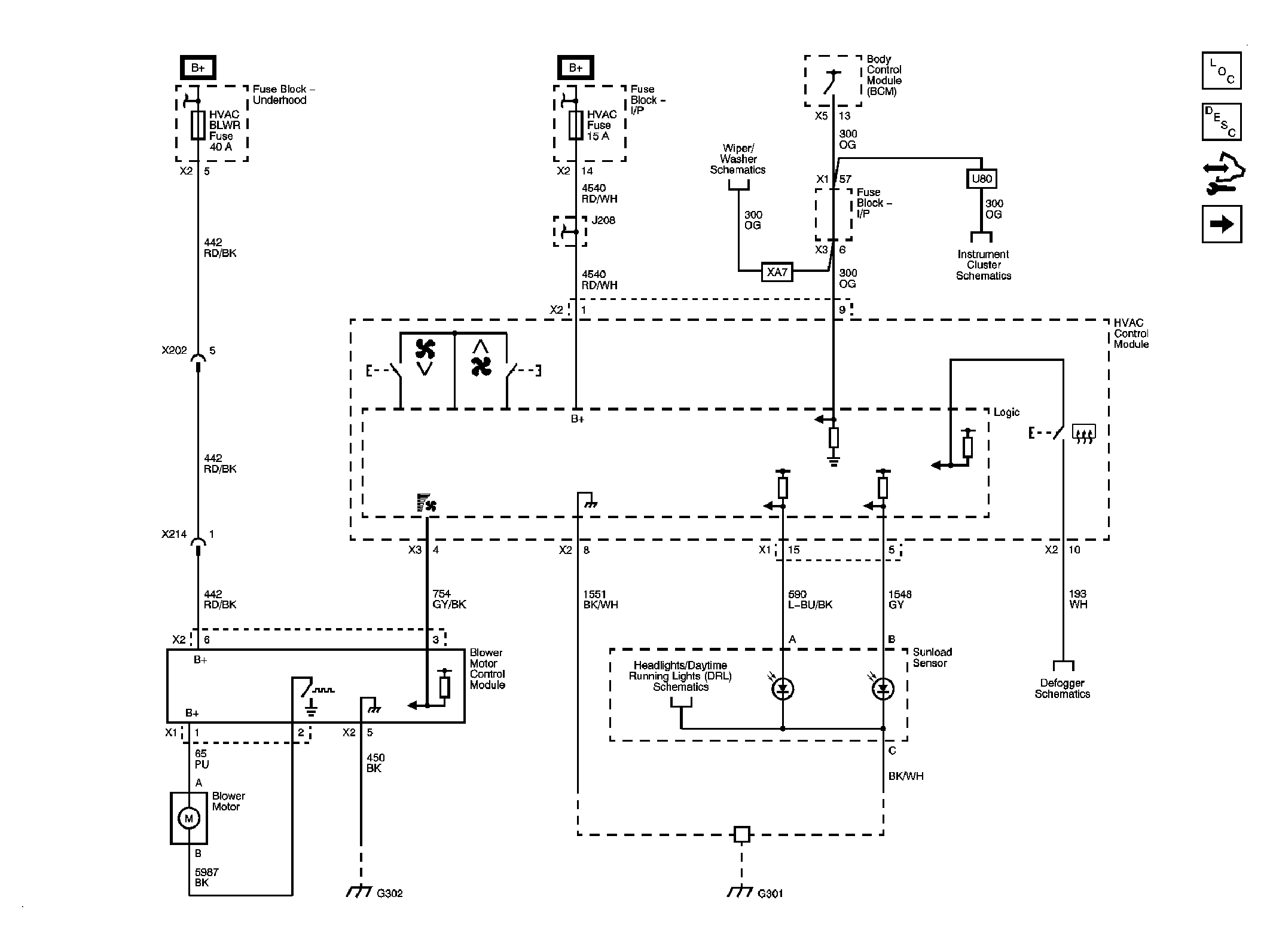

Fig 1: Module Power and Ground, Blower Control, Data Communication & Sunload Circuit Schematic
GM2077926Courtesy of GENERAL MOTORS CORP.

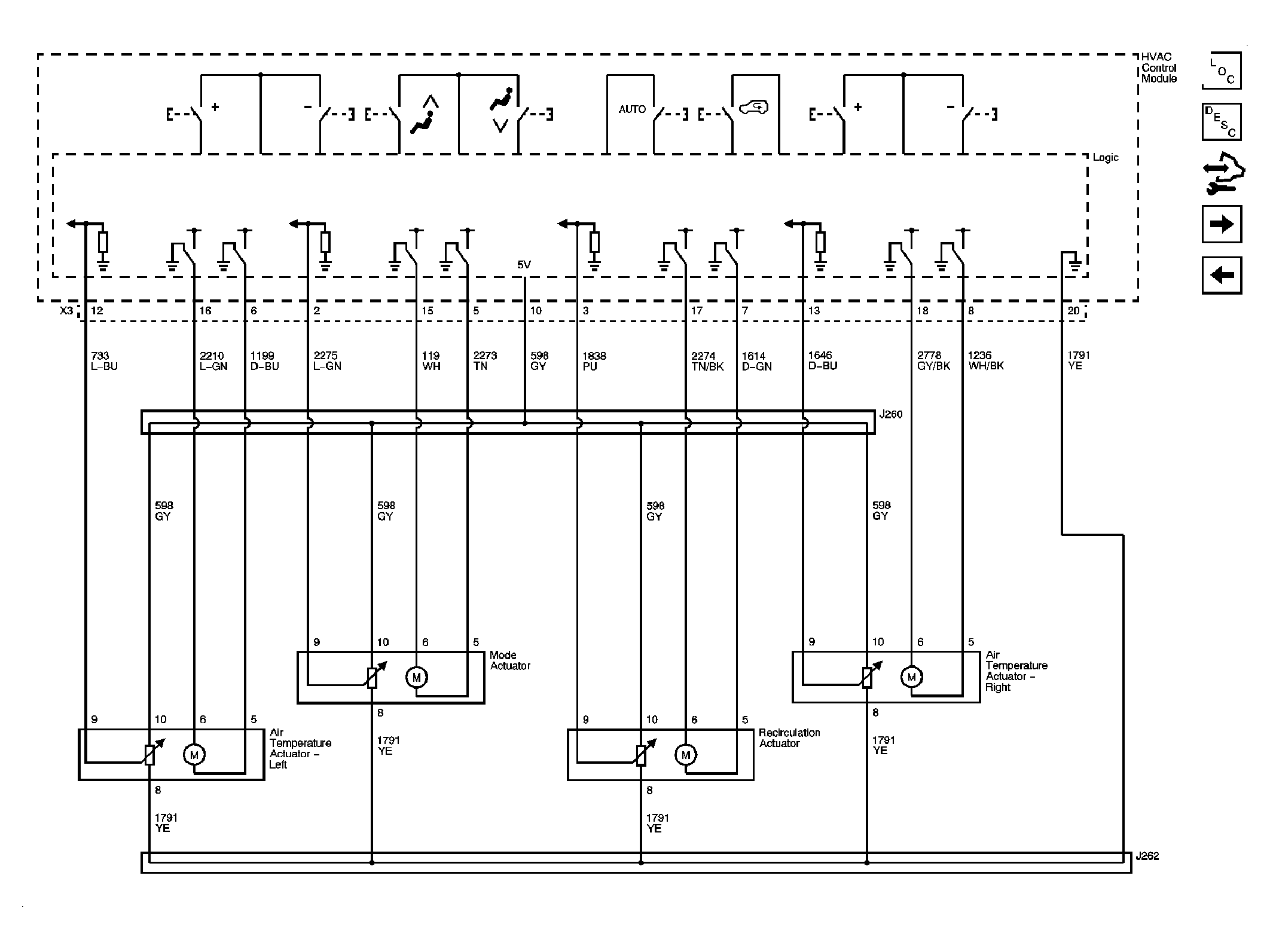

Fig 2: Actuators Circuit Schematic
GM2077931Courtesy of GENERAL MOTORS CORP.

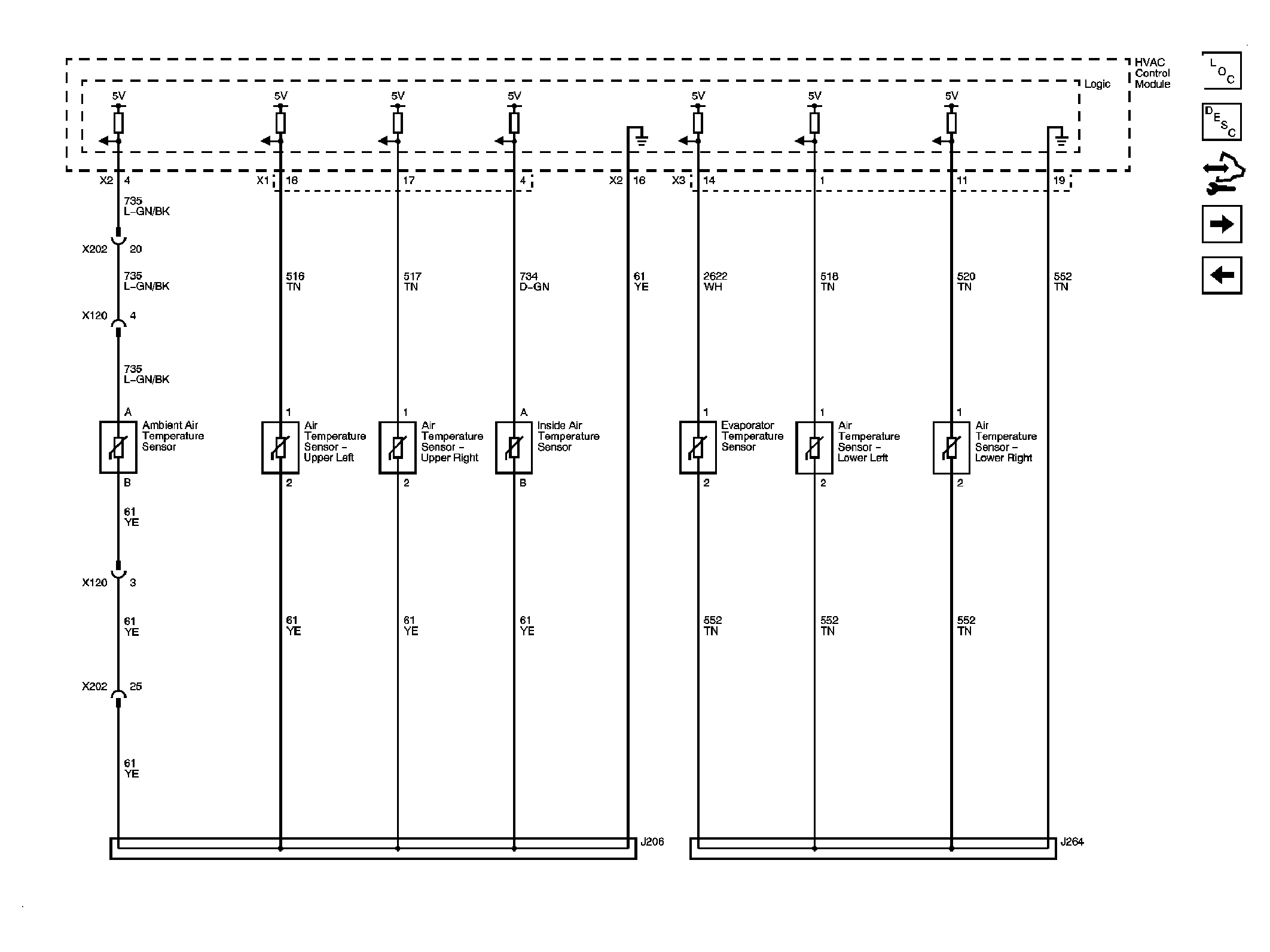

Fig 3: Sensors Circuit Schematic
GM2077936Courtesy of GENERAL MOTORS CORP.
Fig 4: Compressor Controls Circuit Schematic
GM2077938Courtesy of GENERAL MOTORS CORP.

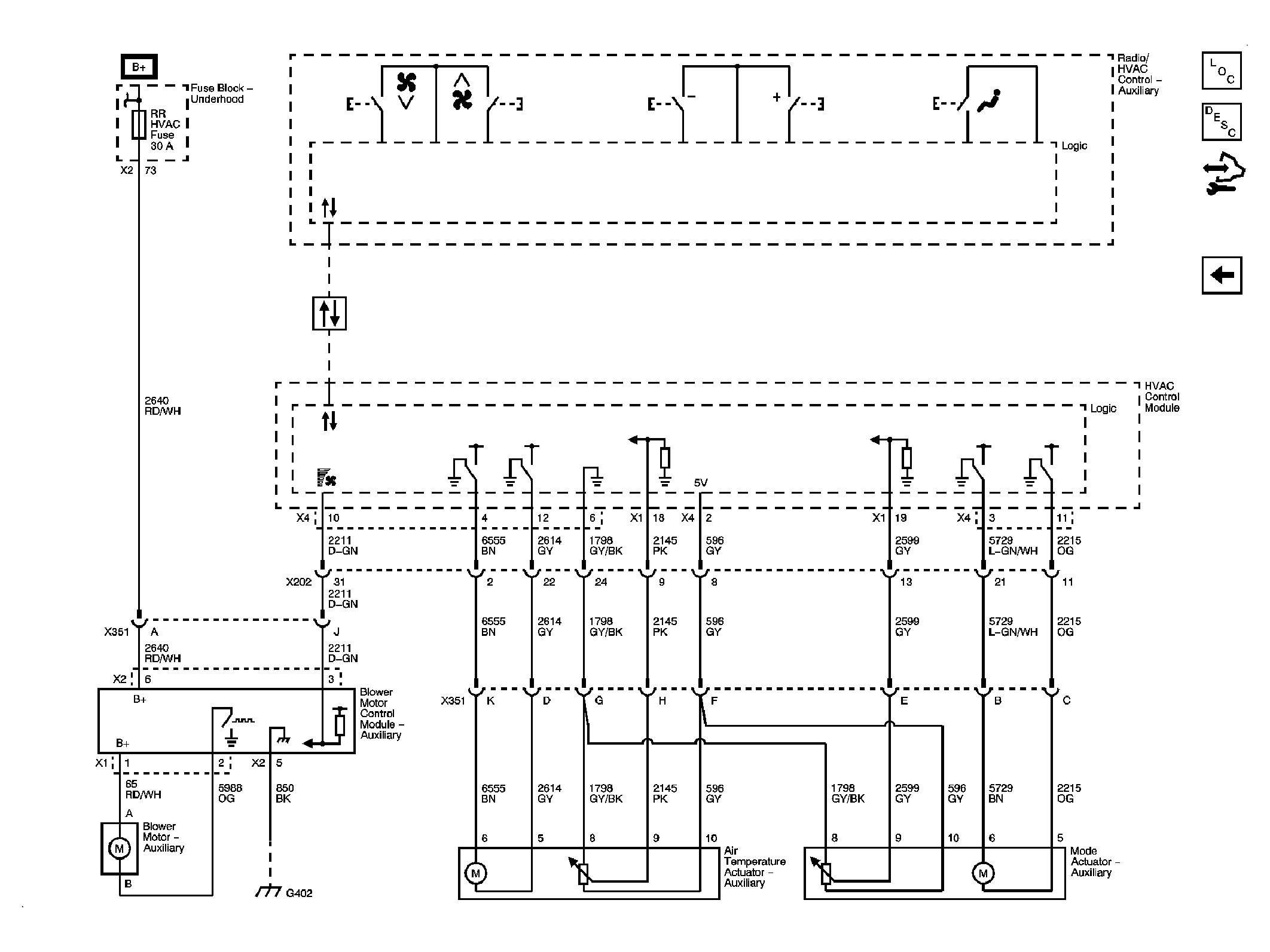

Fig 5: Rear HVAC Circuit Schematic
GM2077943Courtesy of GENERAL MOTORS CORP.
