Moveable Window Schematics (Except AXC or AXE)

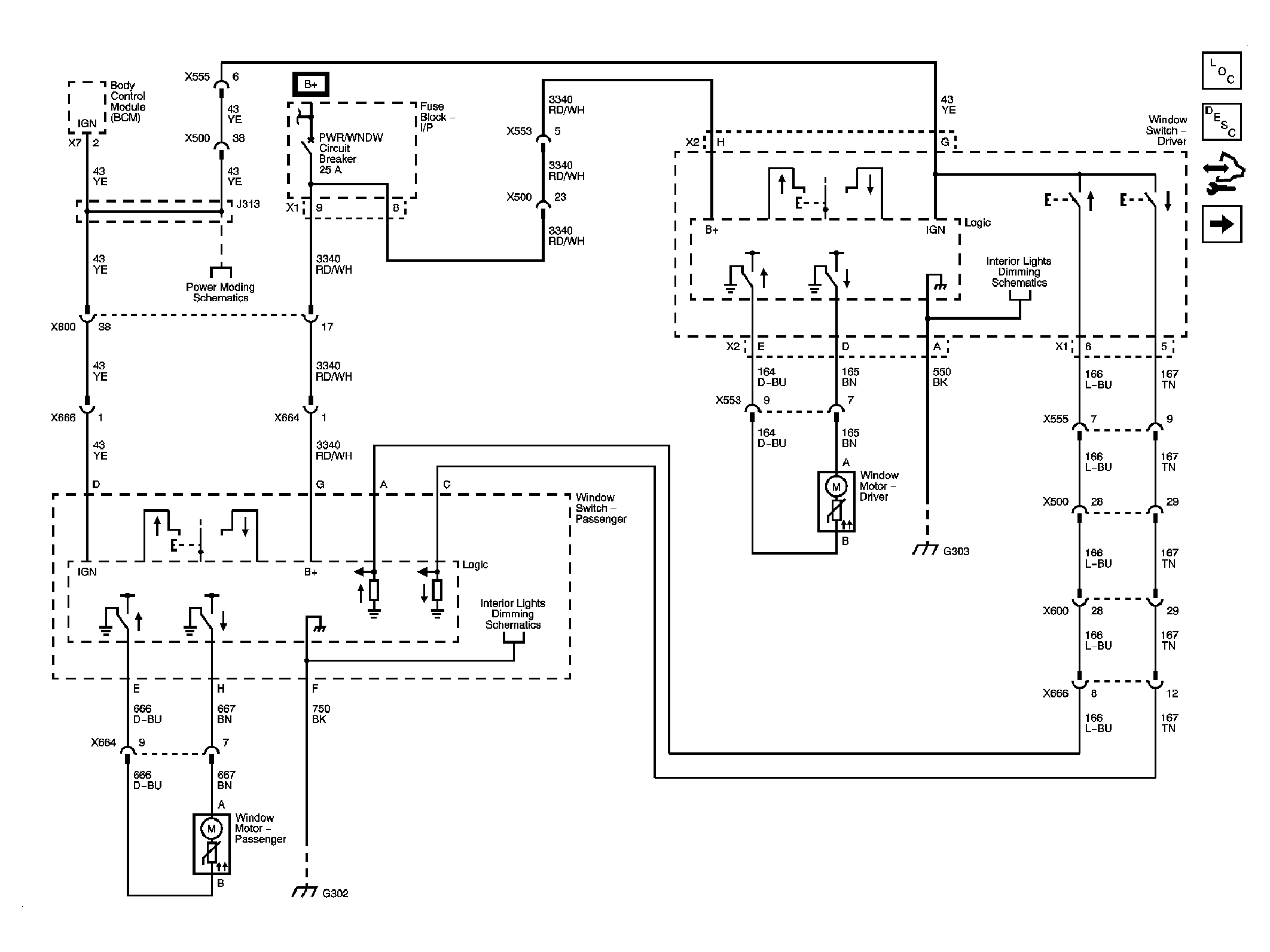

Fig 1: Moveable Window Circuit Schematic - Front (Except AXC or AXE)

Courtesy of GENERAL MOTORS CORP.

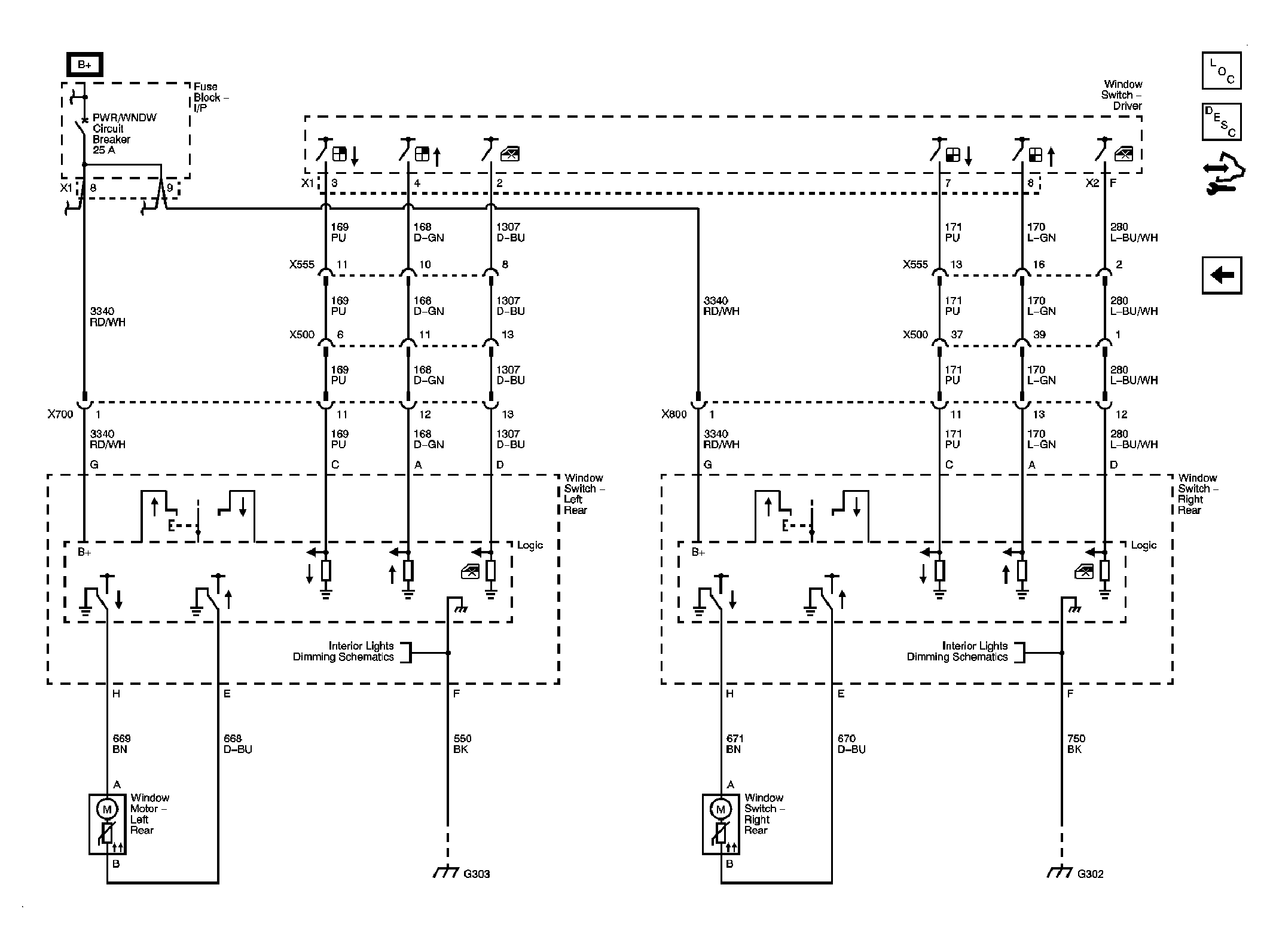

Fig 2: Moveable Window Circuit Schematic - Rear (Except AXC or AXE)

Courtesy of GENERAL MOTORS CORP.
