Sunroof Schematics

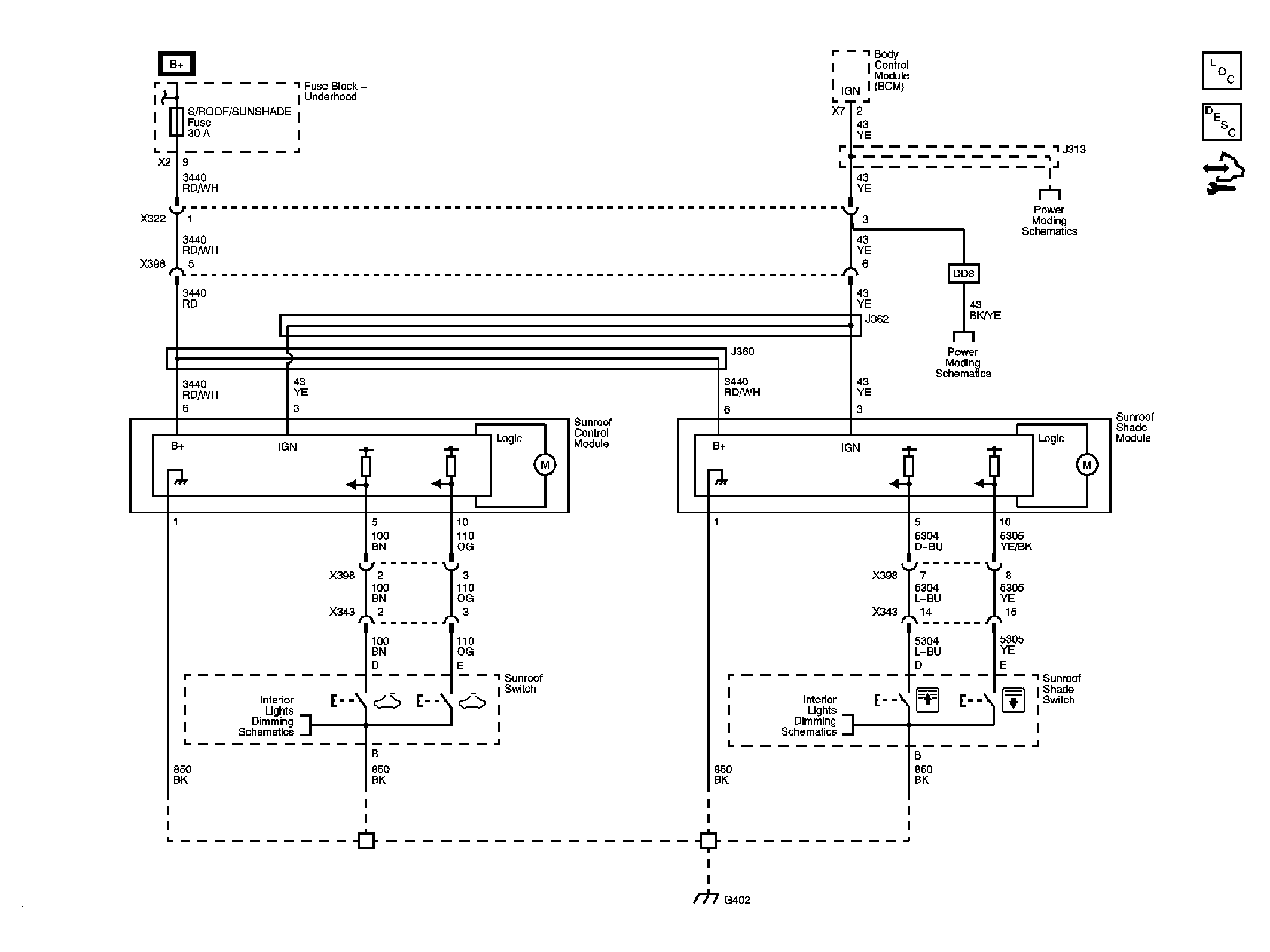

Fig 1: Sunroof Circuit Schematic - C3U

GM2078178

Courtesy of GENERAL MOTORS CORP.
