Heated/Cooled Seat Schematics (Except A45)

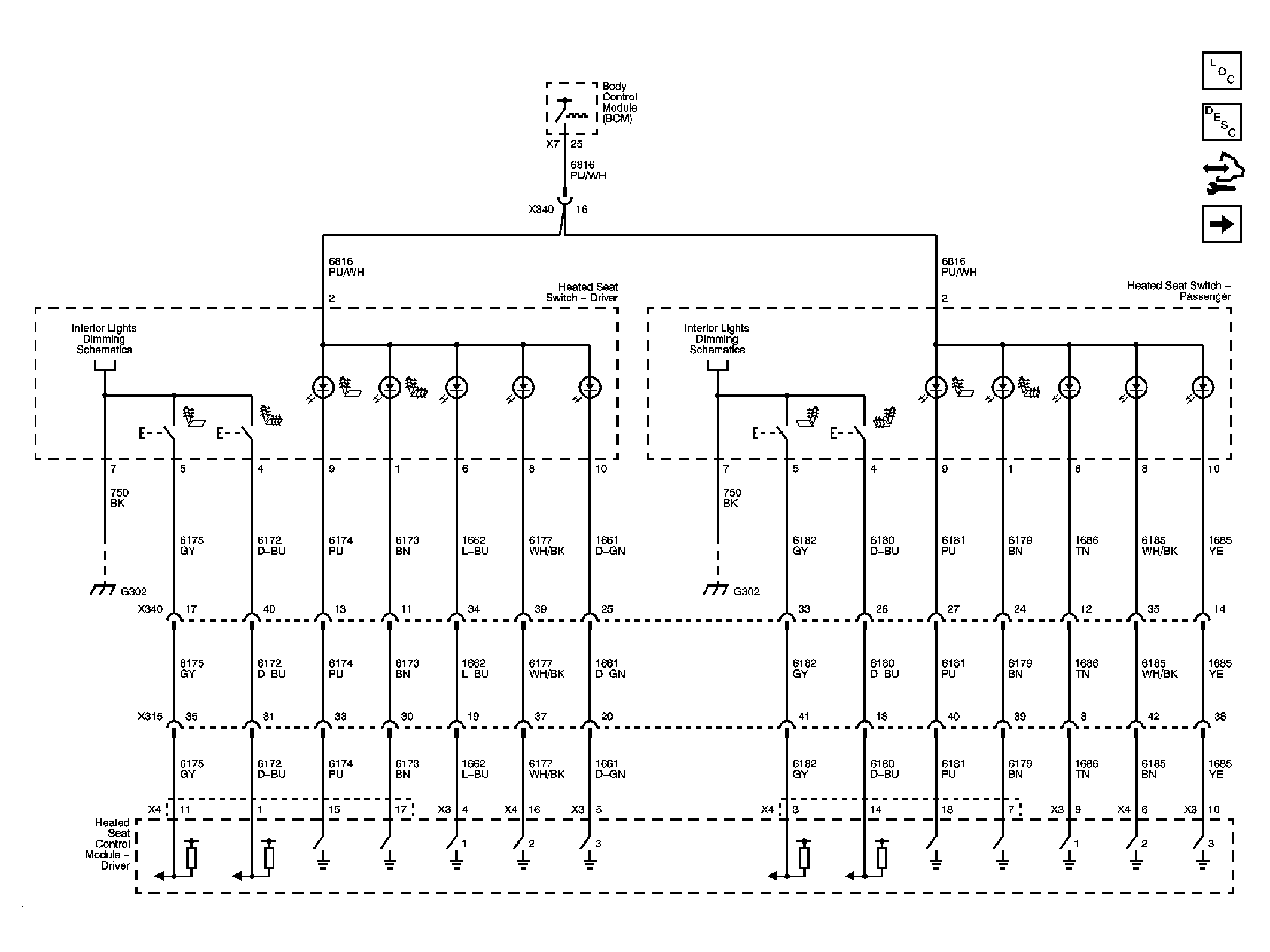

Fig 1: Indicators & Switches Circuit Schematic

GM2078114

Courtesy of GENERAL MOTORS CORP.

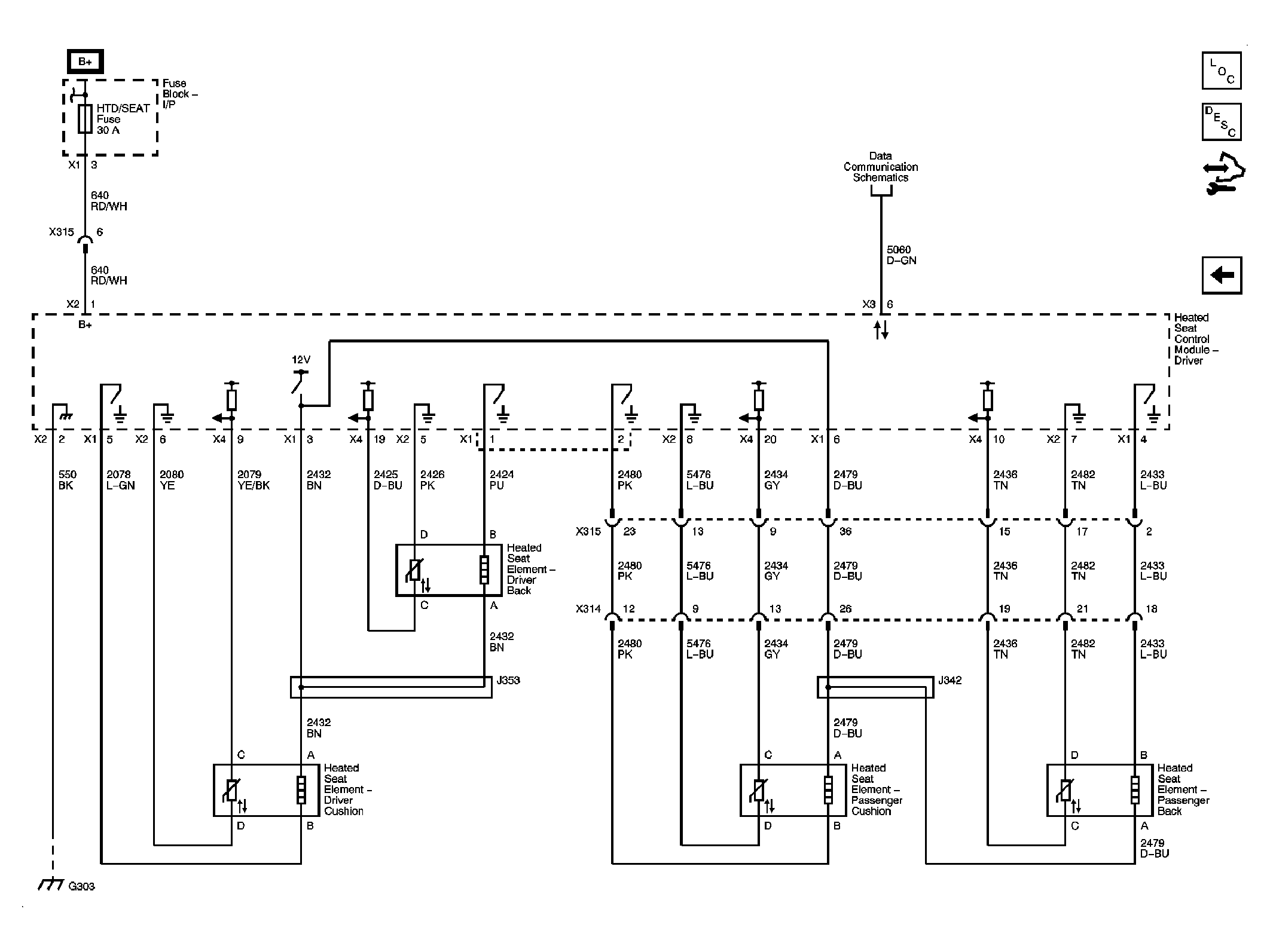

Fig 2: Heating Elements Circuit Schematic

GM2078116

Courtesy of GENERAL MOTORS CORP.
