Heated/Cooled Seat Schematics (A45 with KB6)

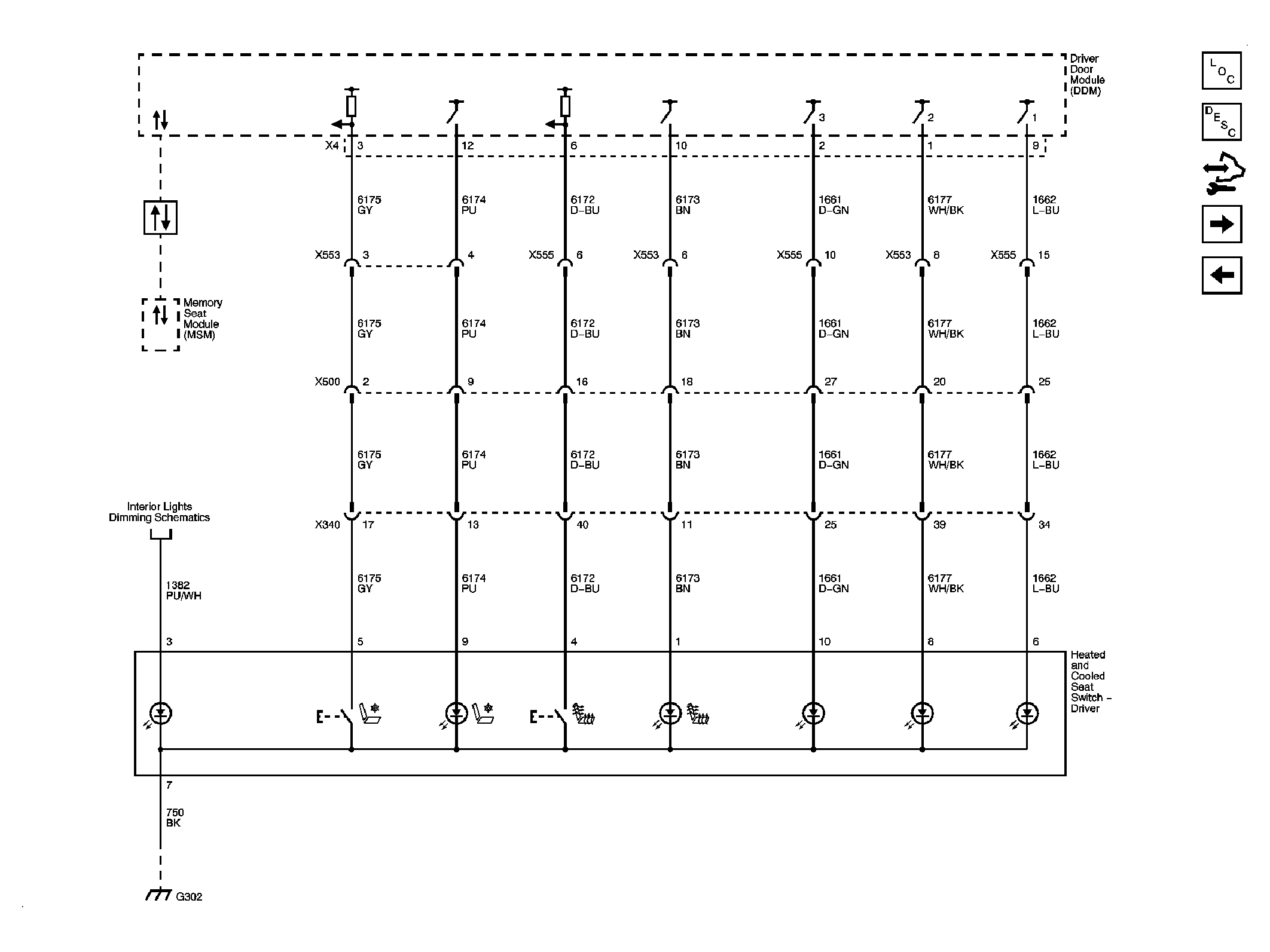

Fig 1: Driver Switch Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

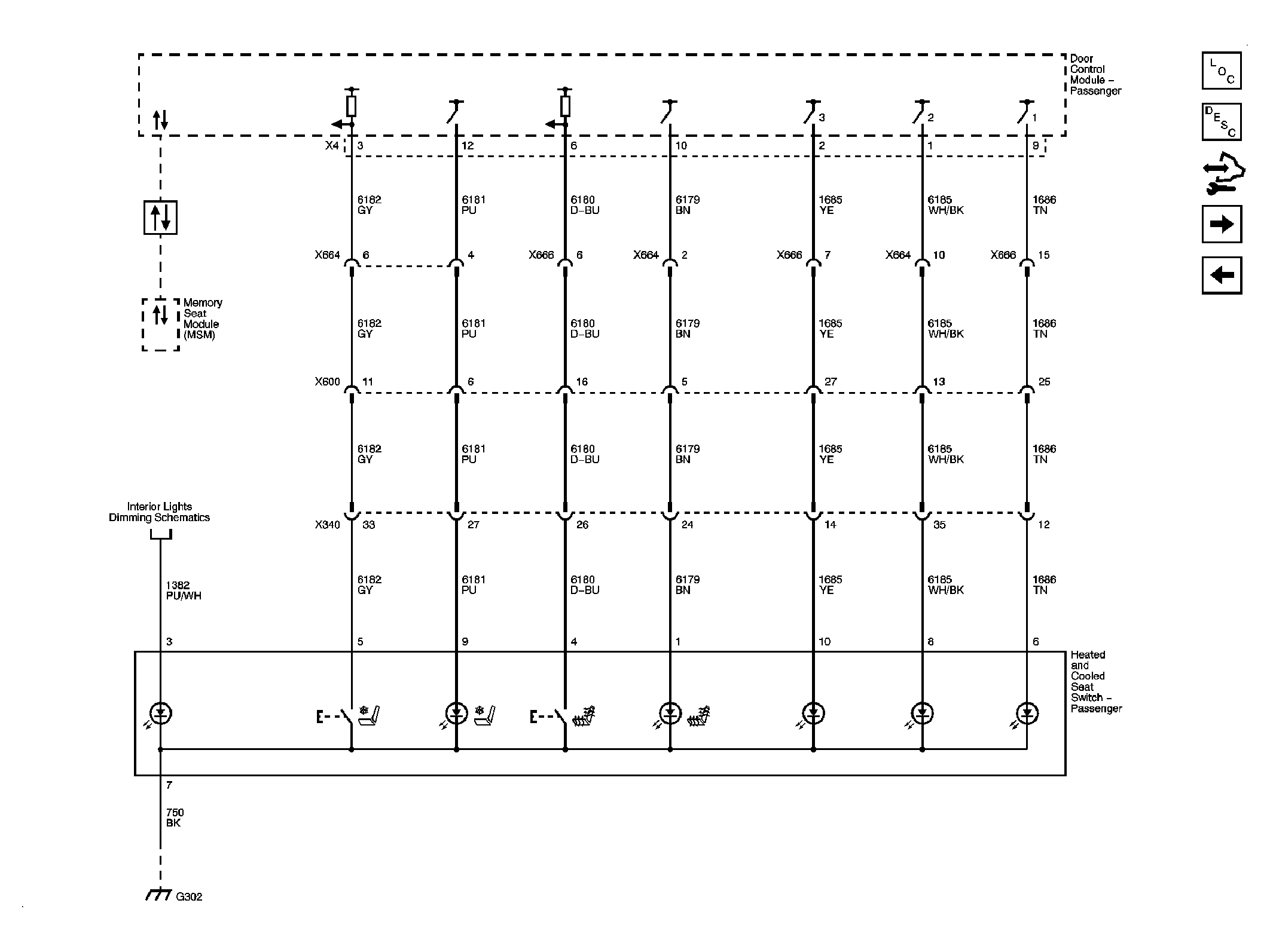

Fig 2: Passenger Switch Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

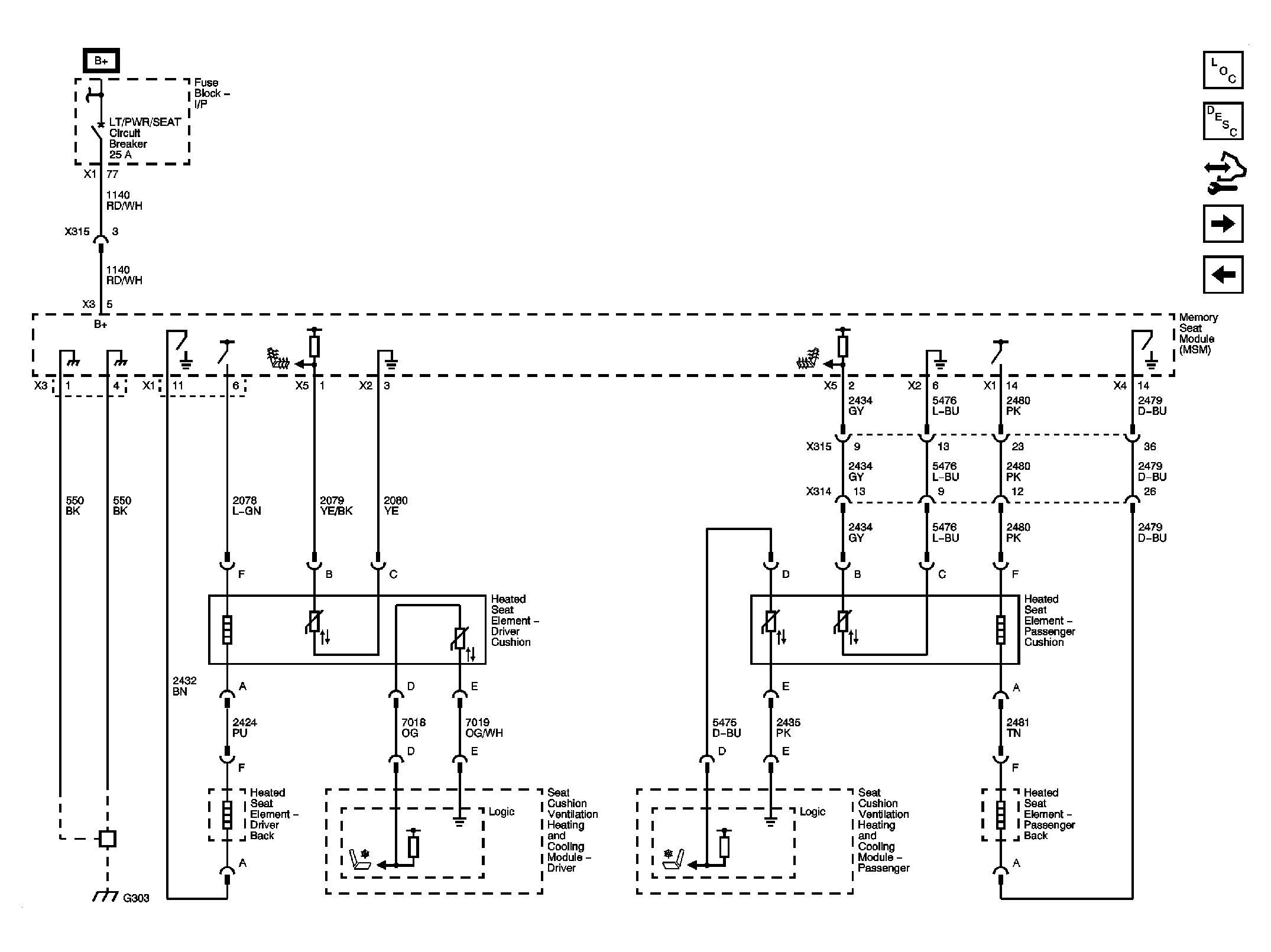

Fig 3: Cushion Temp Sensors & Heating Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

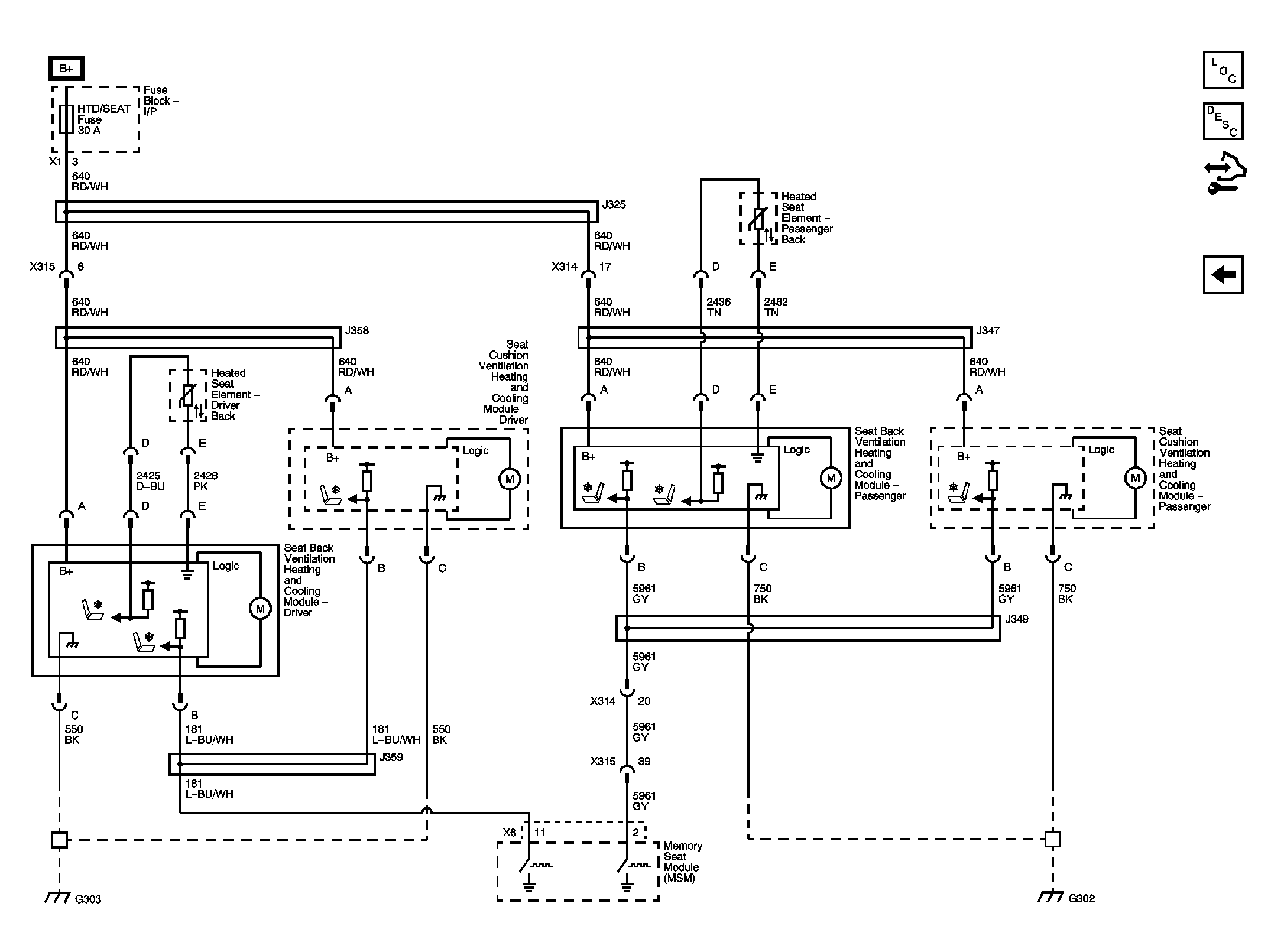

Fig 4: Back Temp Sensors & Cooling Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
