Heated/Cooled Seat Schematics (A45 with KA1)

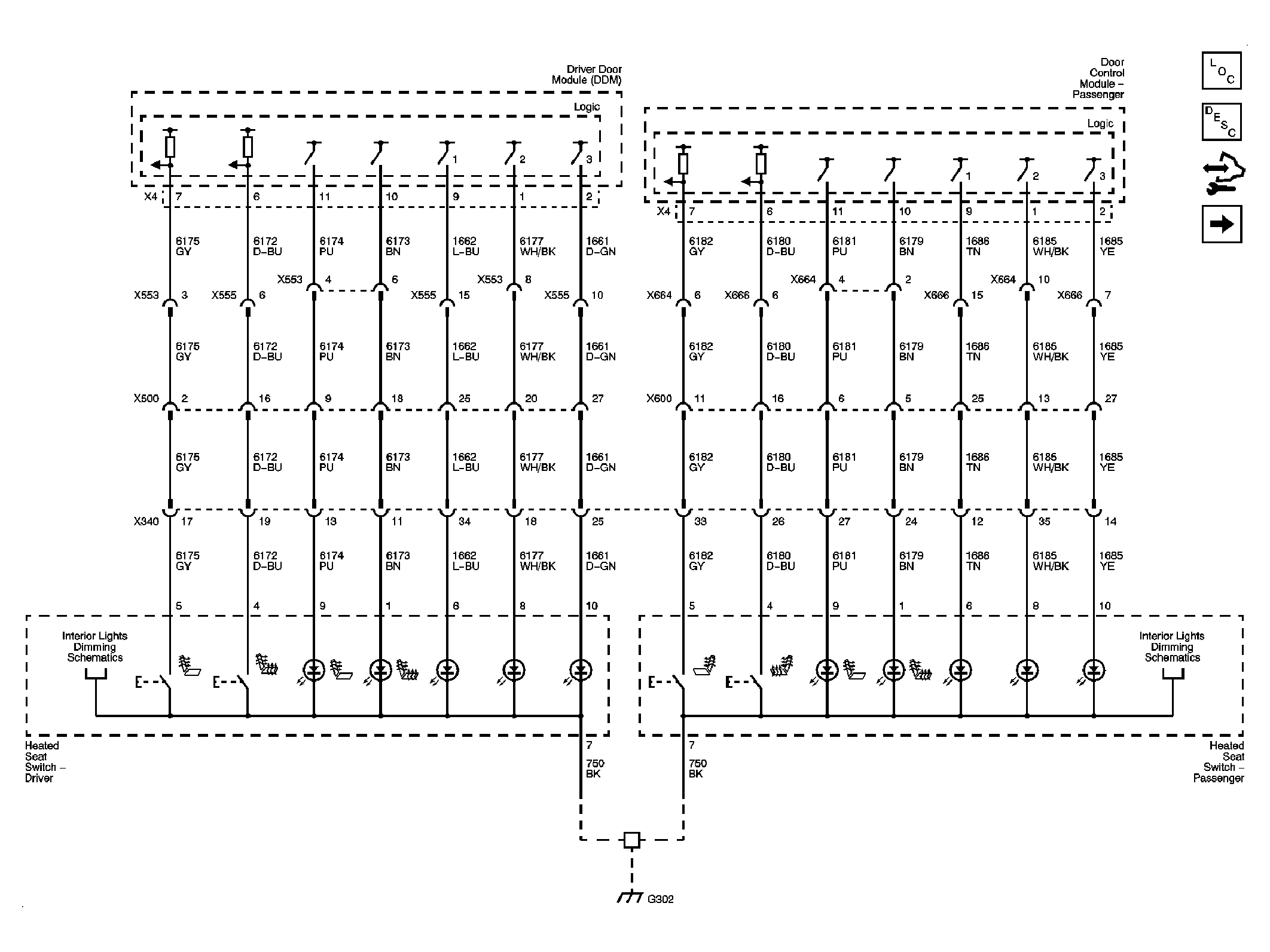

Fig 1: Indicators & Switches Circuit Schematic

GM2078118

Courtesy of GENERAL MOTORS CORP.

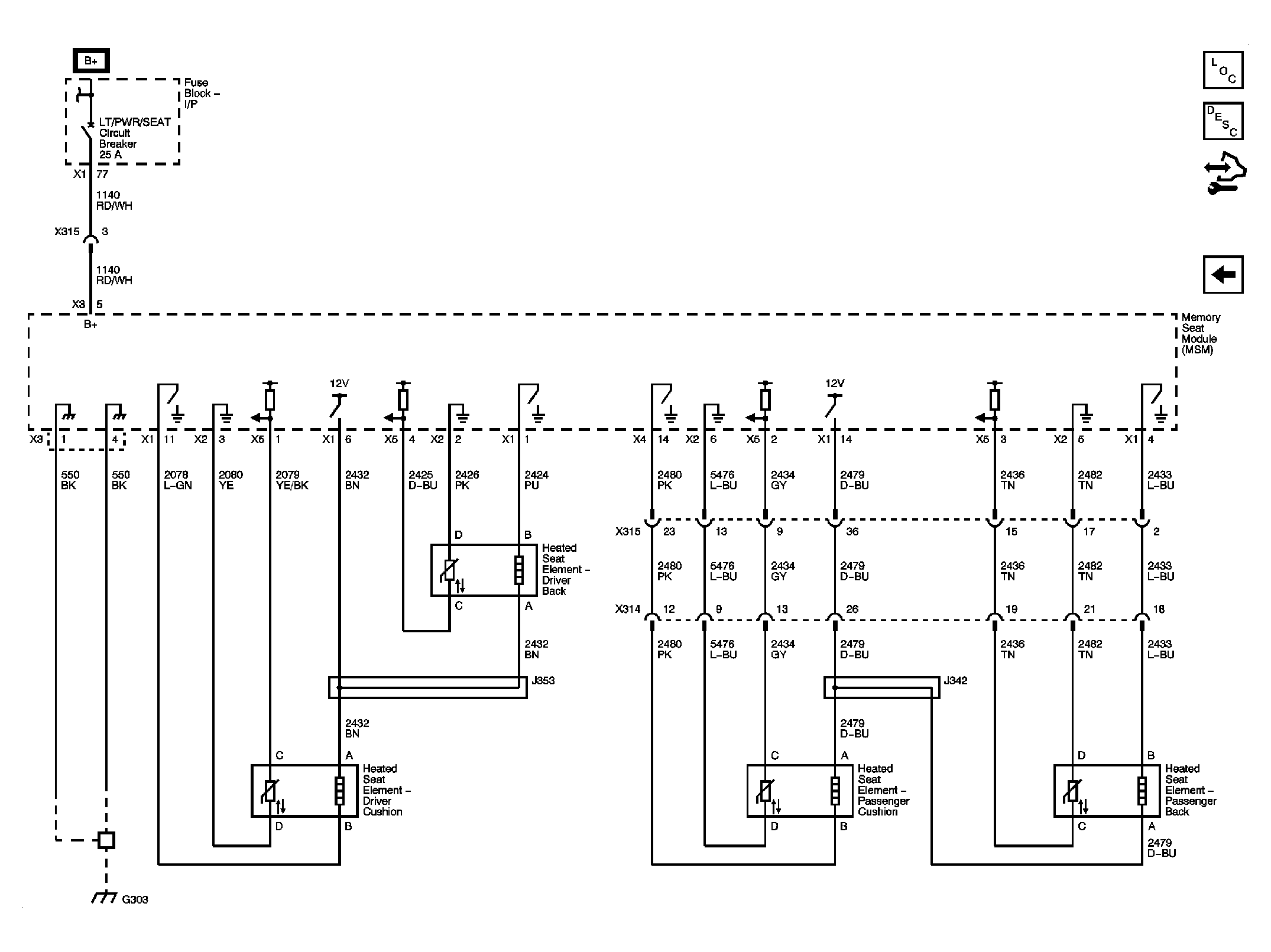

Fig 2: Heating Elements Circuit Schematic

GM2078120

Courtesy of GENERAL MOTORS CORP.
