Driver Seat Schematics

Fig 1: Driver Seat Circuit Schematic (AG1)
GM2078104Courtesy of GENERAL MOTORS CORP.

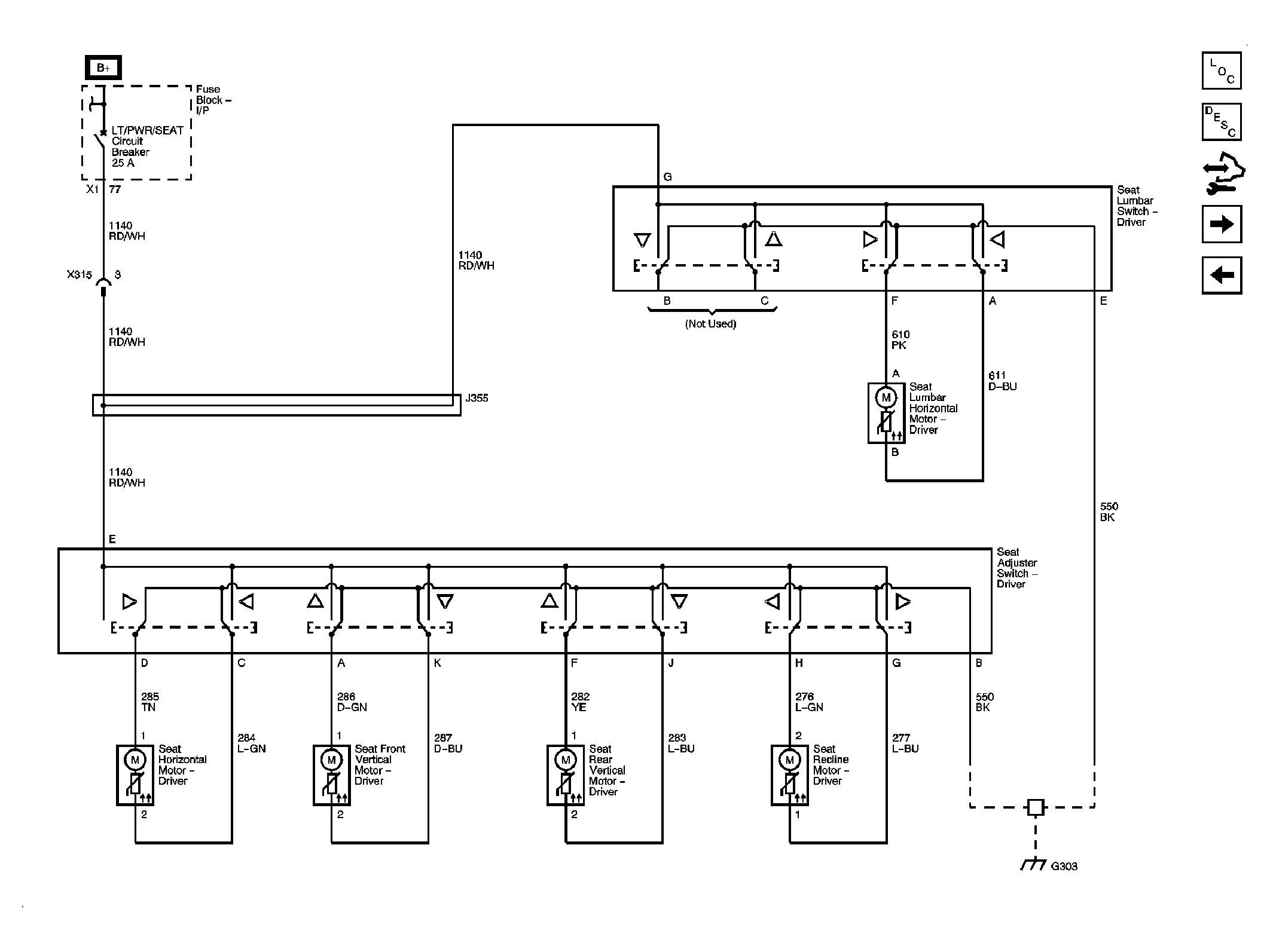

Fig 2: Driver Seat Circuit Schematic (AH5)
GM2078105Courtesy of GENERAL MOTORS CORP.

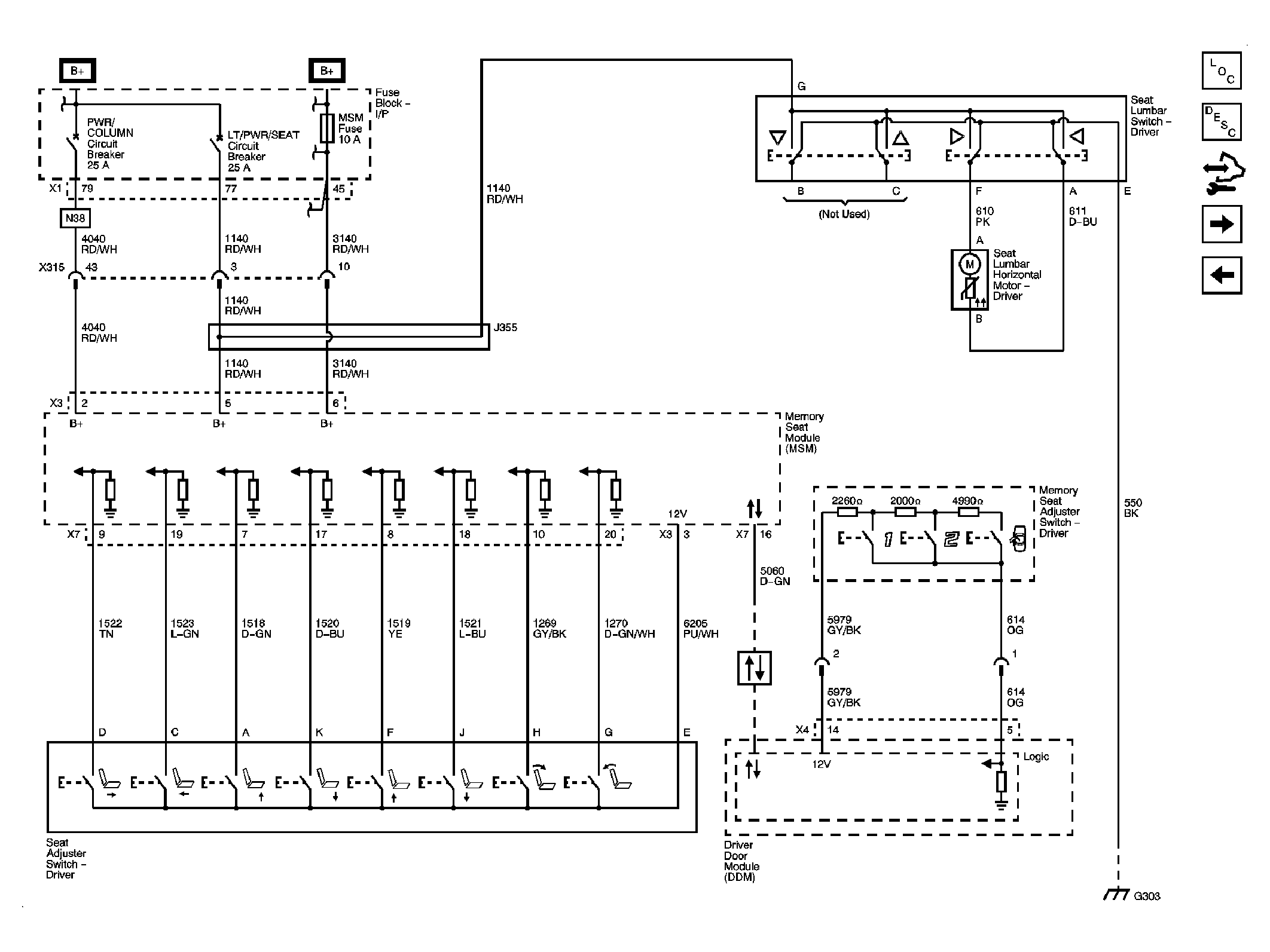

Fig 3: AG3 Module Power and Data Communication, Driver Switches and Lumbar Circuit Schematic
GM2078107Courtesy of GENERAL MOTORS CORP.
Fig 4: AG3 Position Sensors Circuit Schematic
GM2078108Courtesy of GENERAL MOTORS CORP.
Fig 5: AG3 Module Ground, Recline, Horizontal & Vertical Motors Circuit Schematic
GM2078110Courtesy of GENERAL MOTORS CORP.
