Traverse LTZ, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
Mirror System
>>
Schematic and Routing Diagrams
>>
Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics

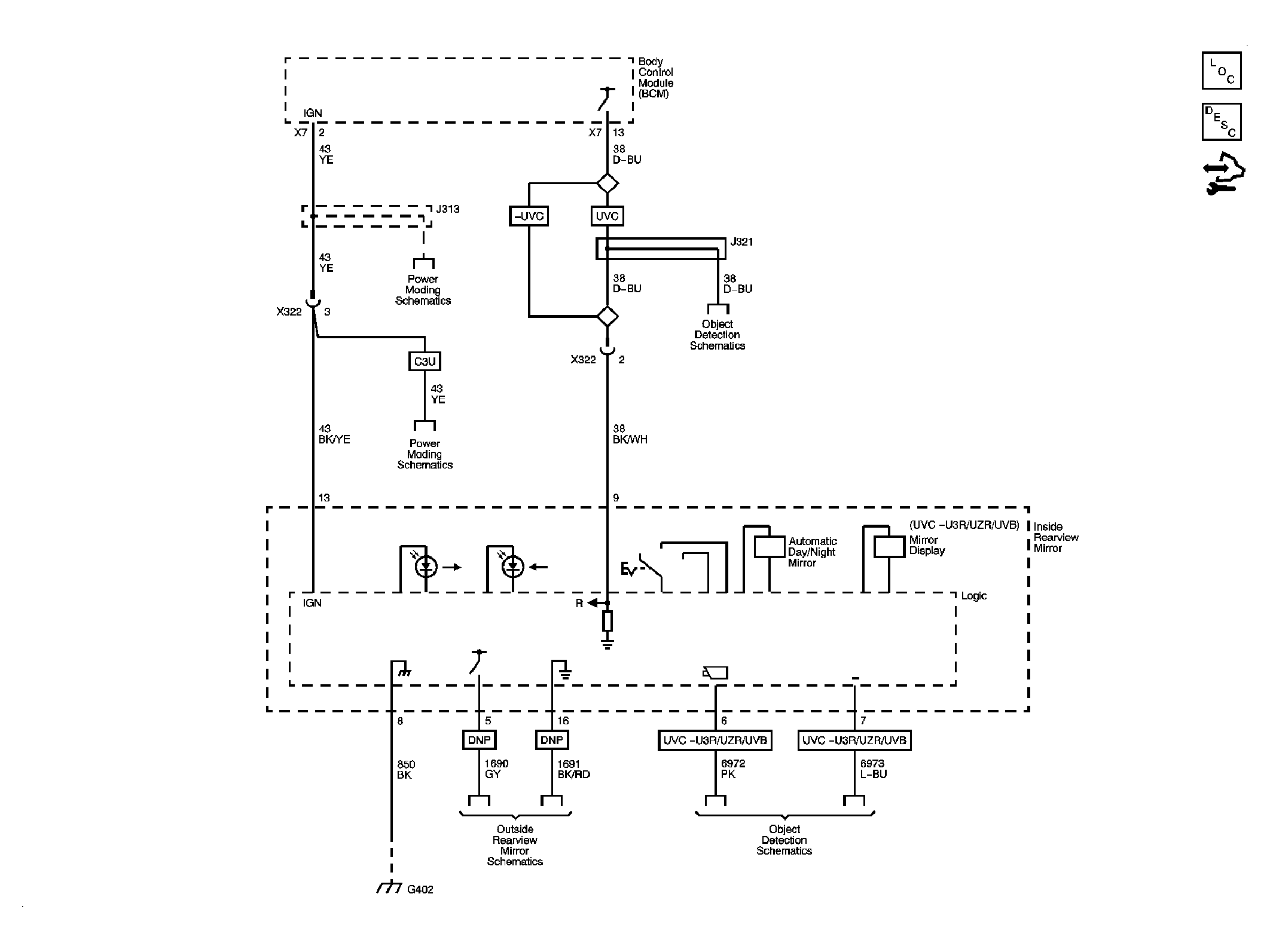

Fig 1: Inside Rearview Mirror Circuit Schematic (DD8)
