Front Wheelhouse Rear Liner Replacement (Outlook)

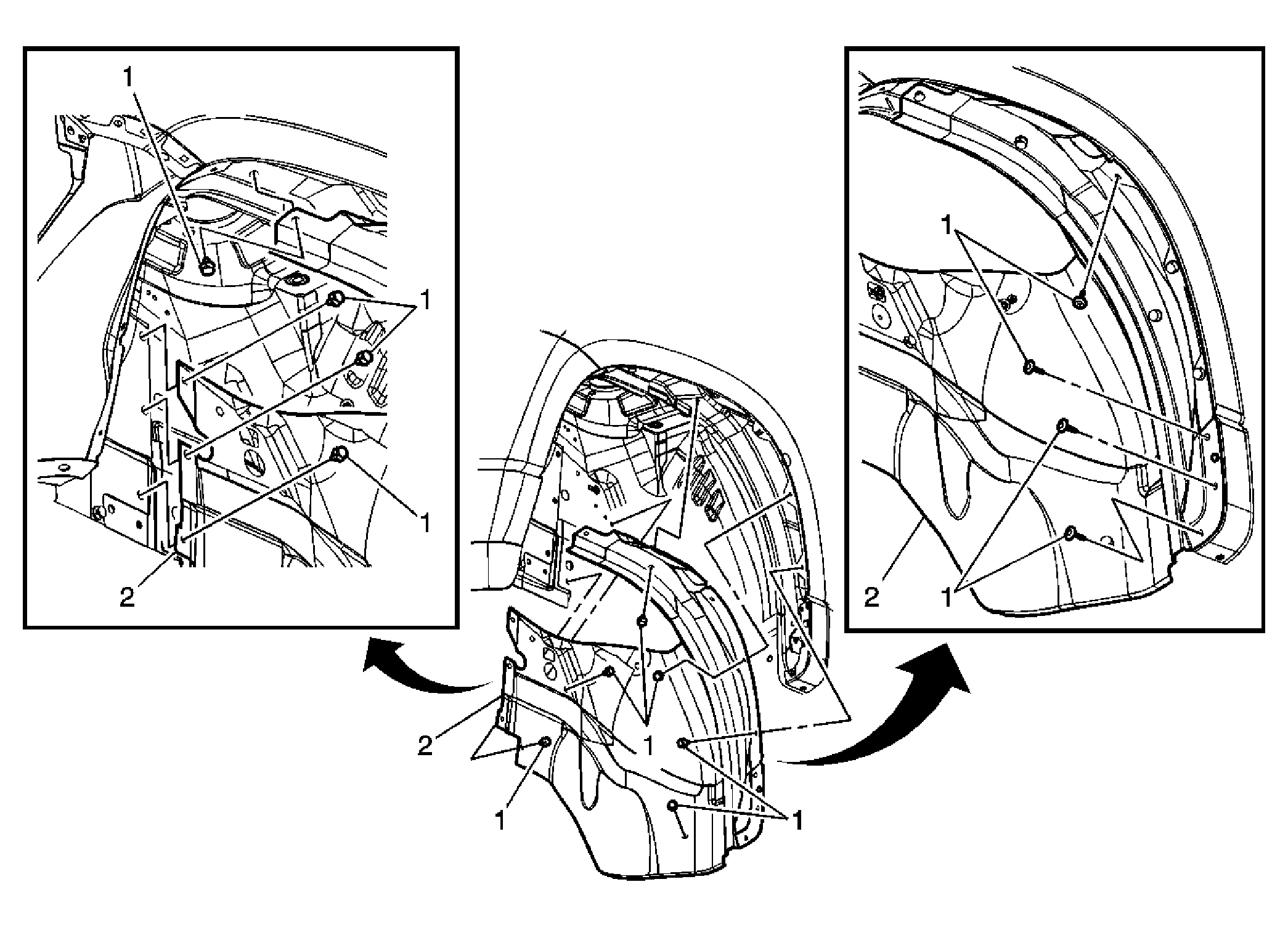

Fig 1: View Of Front Wheelhouse Rear Liner (Outlook)
GM2080551Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1 Front Wheelhouse Panel Rear Plastic Retainer (Qty: 14)
2 Front Wheelhouse Panel Rear
