Liftgate Schematics

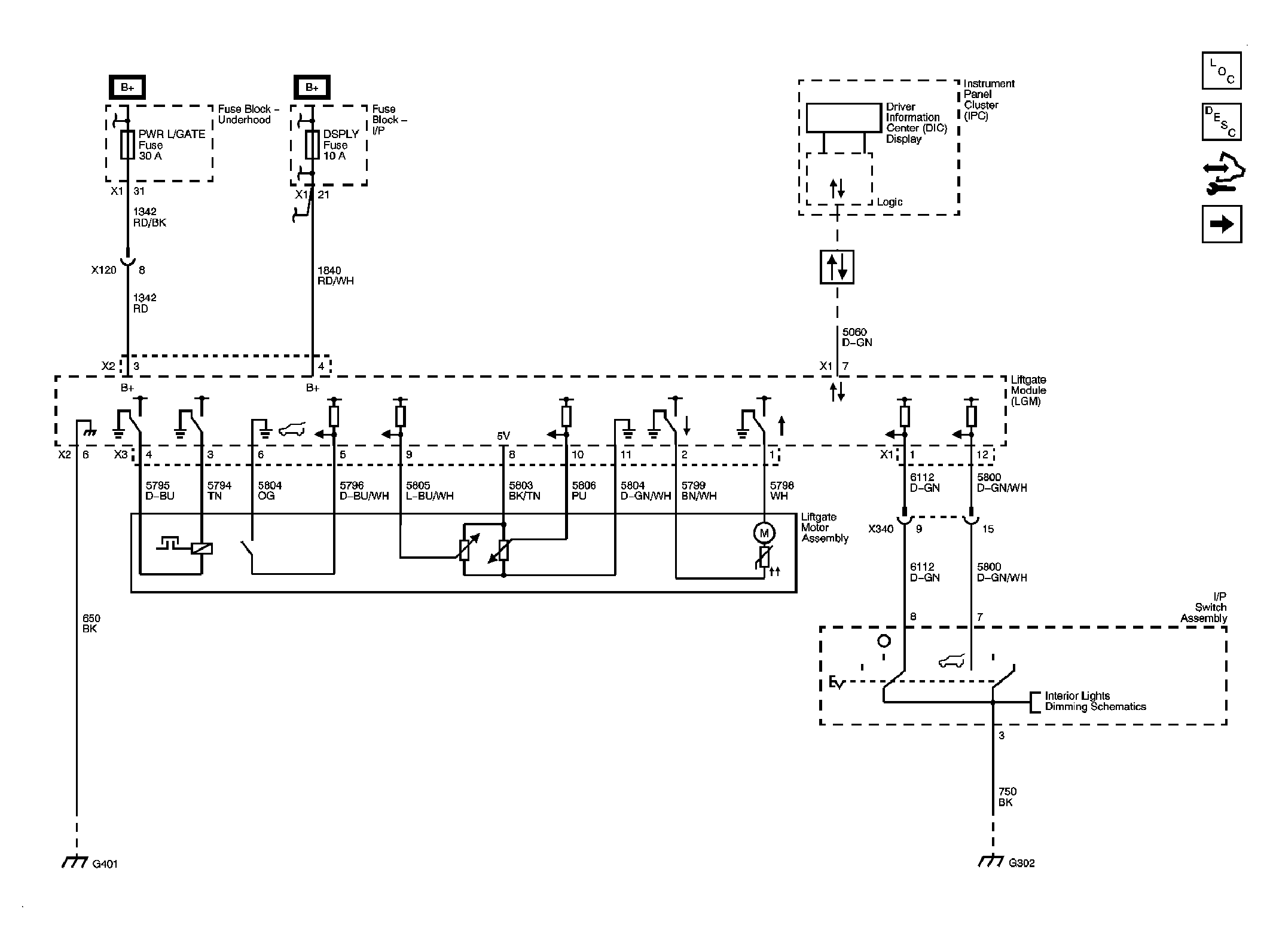

Fig 1: Module Power, Ground, Data Communication, Indicator, I/P Switch & Liftgate Motor Circuit Schematic
GM2078099Courtesy of GENERAL MOTORS CORP.

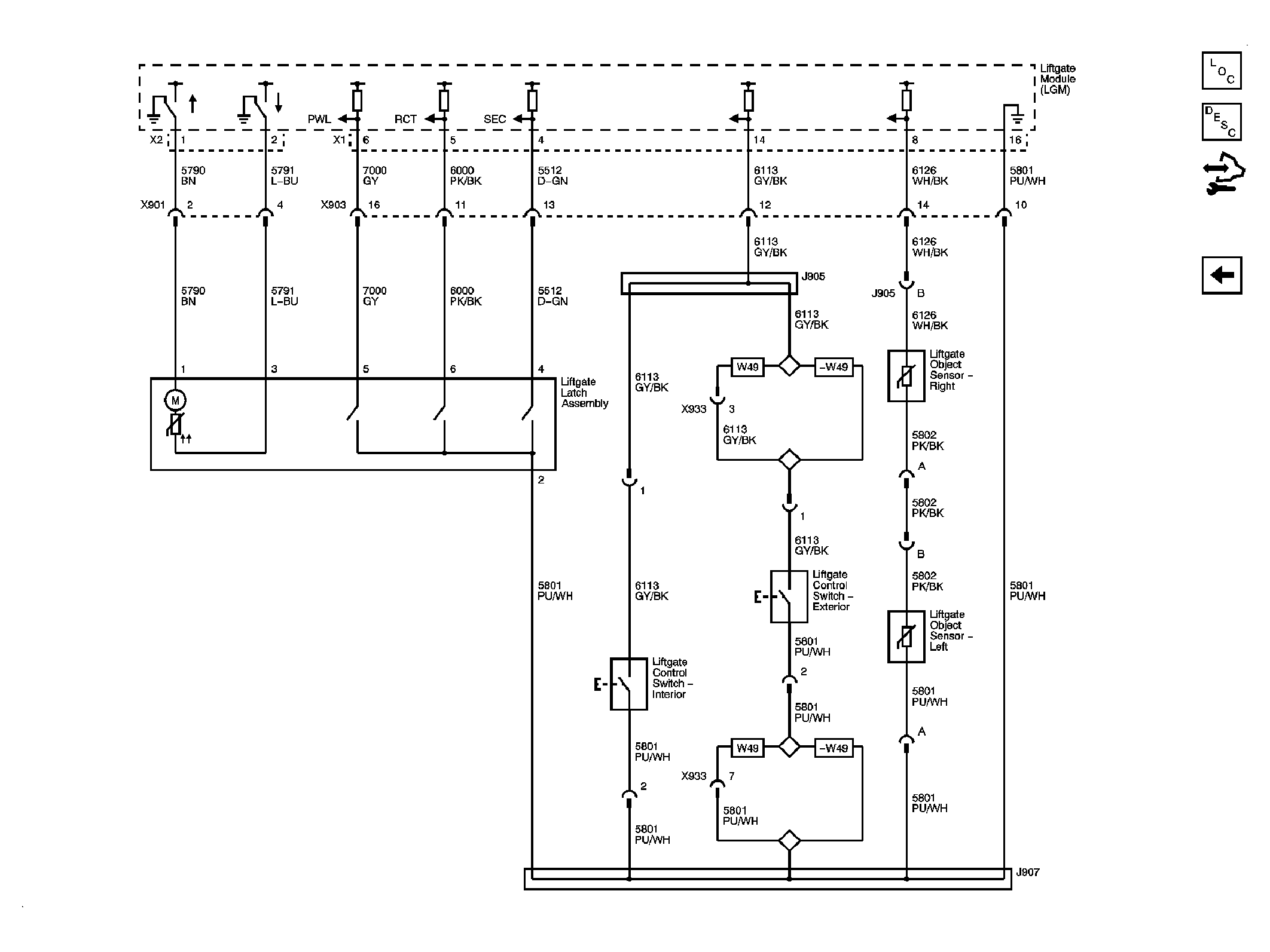

Fig 2: Latch, Object Sensors & Switches Circuit Schematic
GM2078100Courtesy of GENERAL MOTORS CORP.
