Headlights/Daytime Running Lights (DRL) Schematics

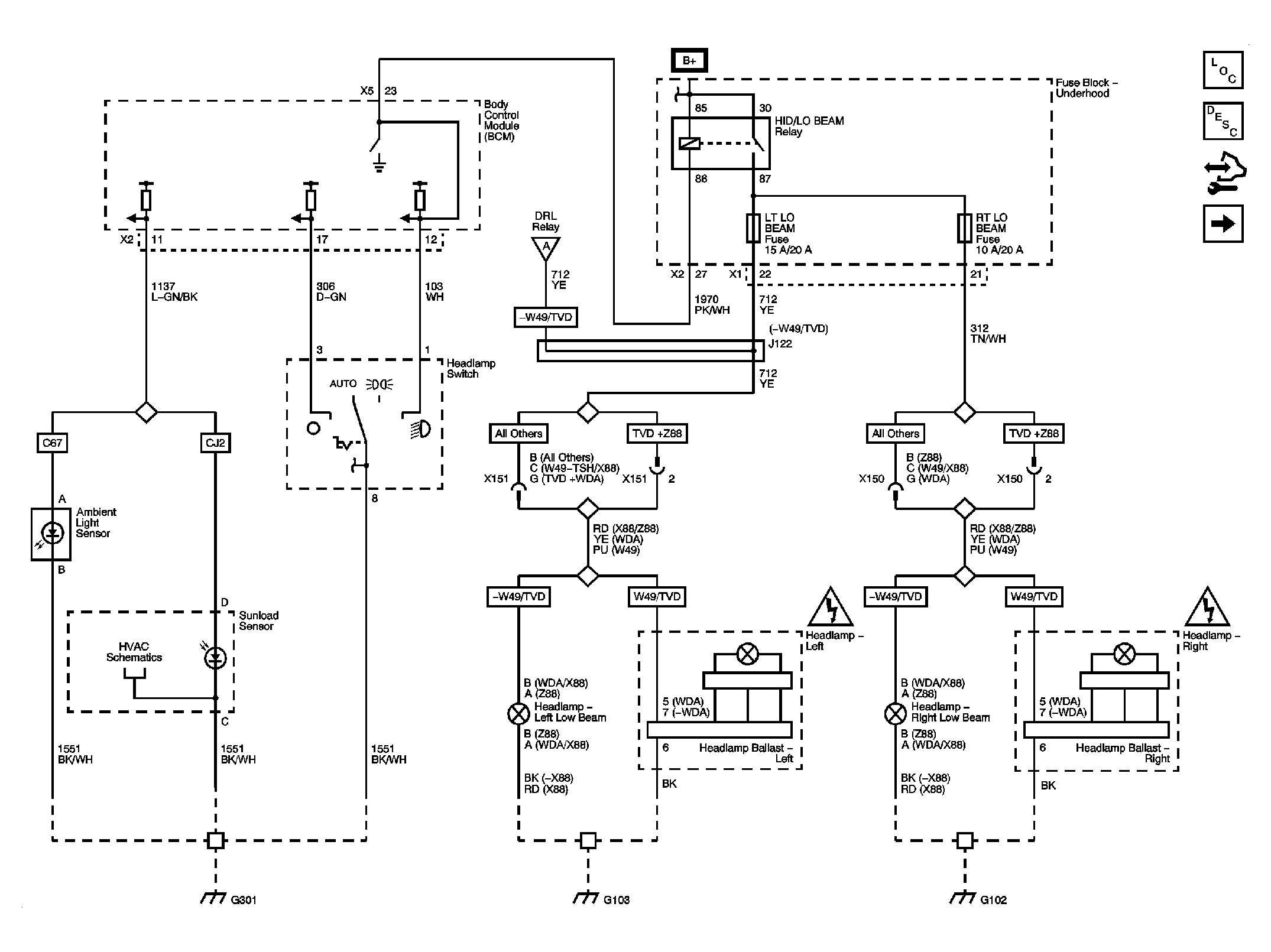

Fig 1: Low Beams Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

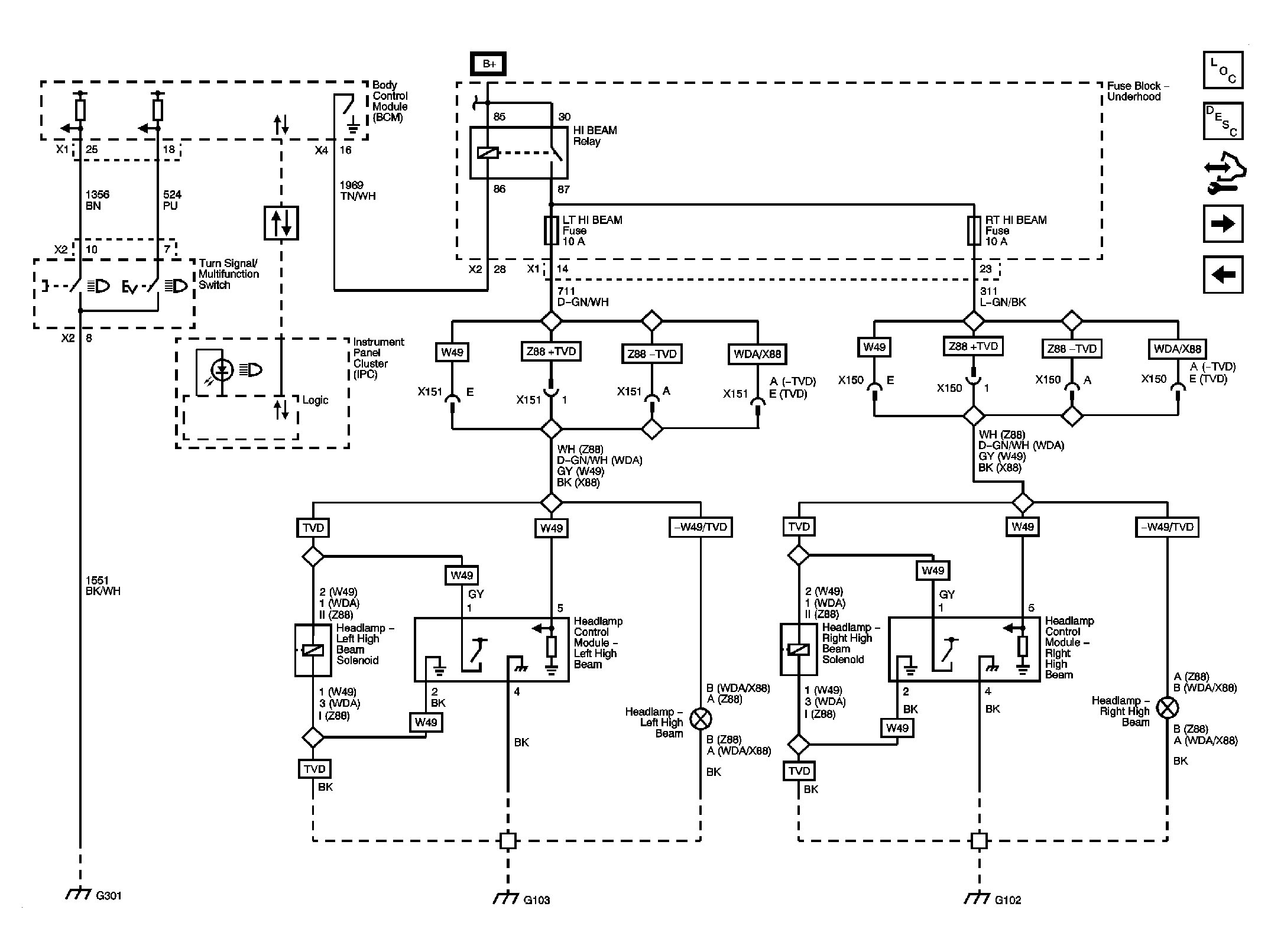

Fig 2: High Beams Circuit Schematic - Except TSH

Courtesy of GENERAL MOTORS CORP.

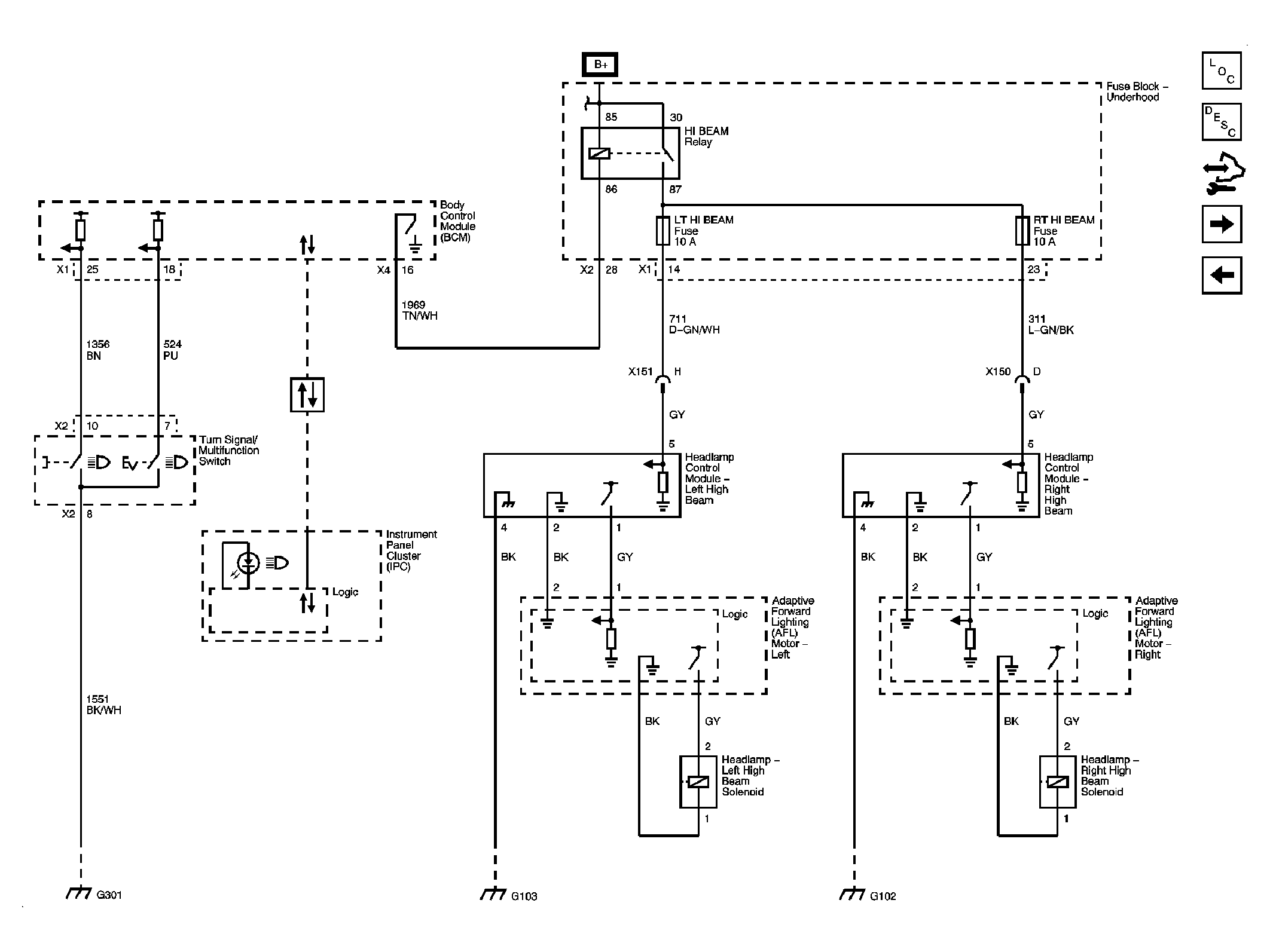

Fig 3: High Beams Circuit Schematic - TSH

Courtesy of GENERAL MOTORS CORP.

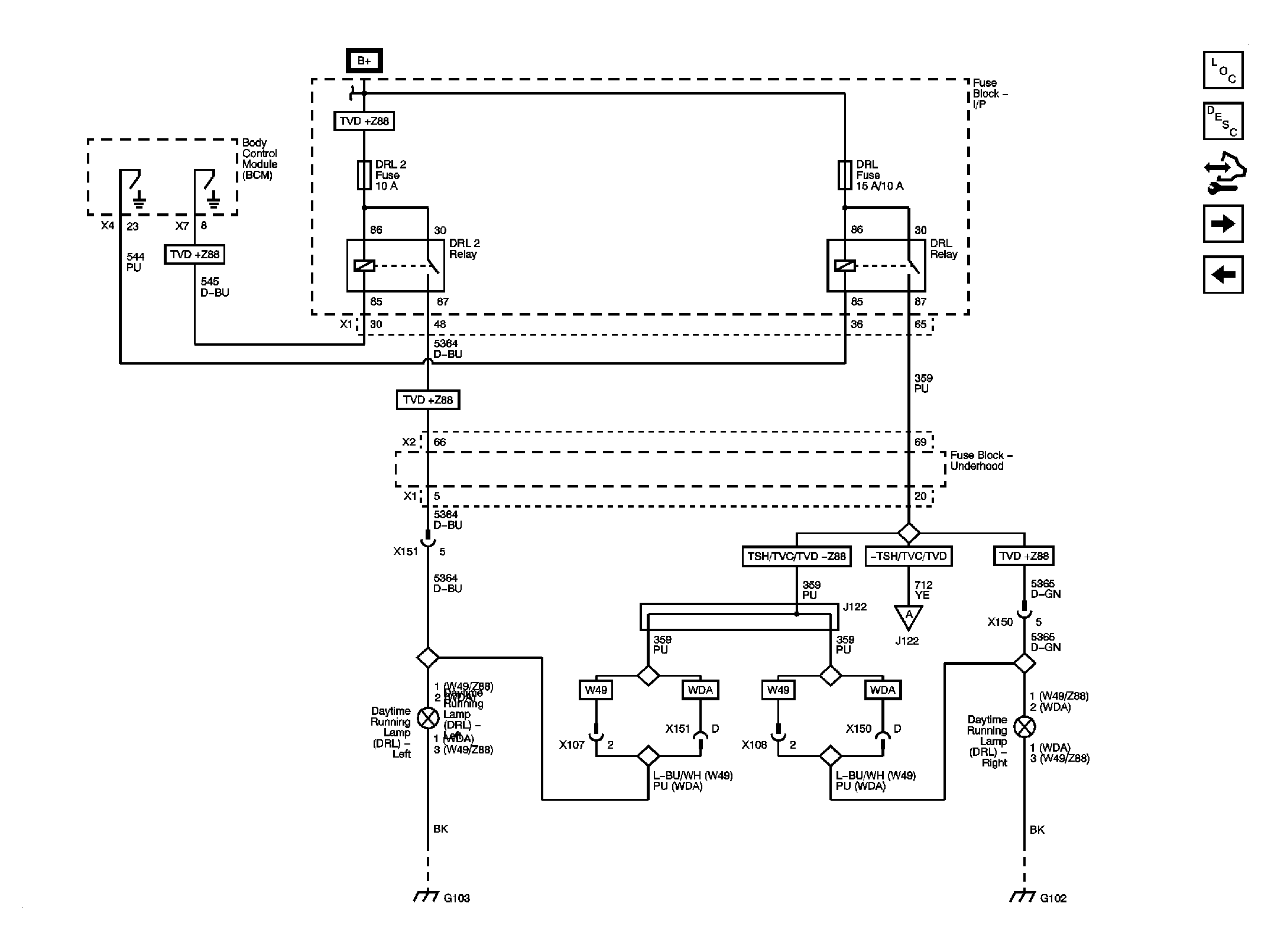

Fig 4: Daytime Running Lights Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

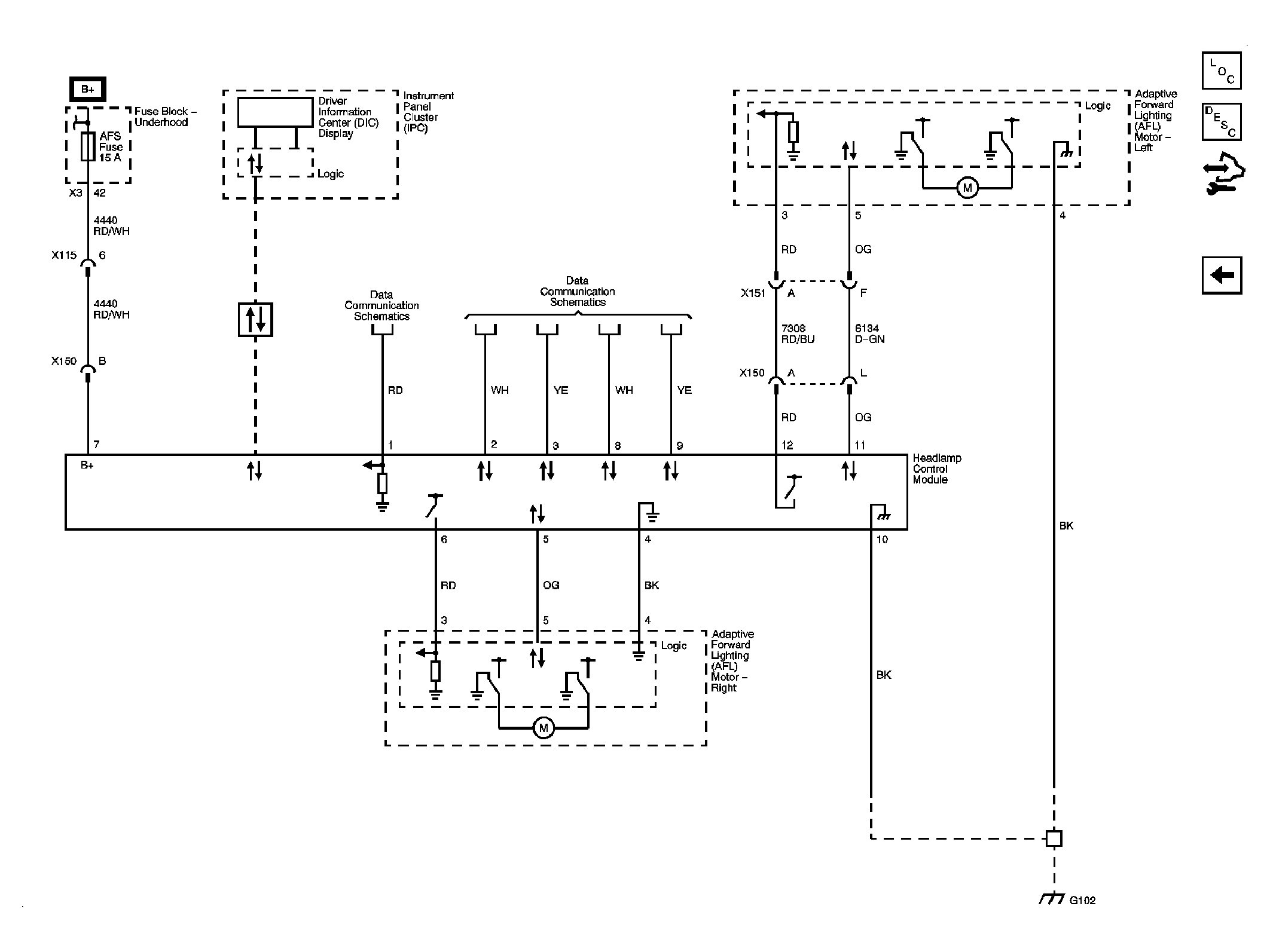

Fig 5: Adaptive Forward Lighting System Circuit Schematic - TSH

Courtesy of GENERAL MOTORS CORP.
