Starting and Charging Schematics

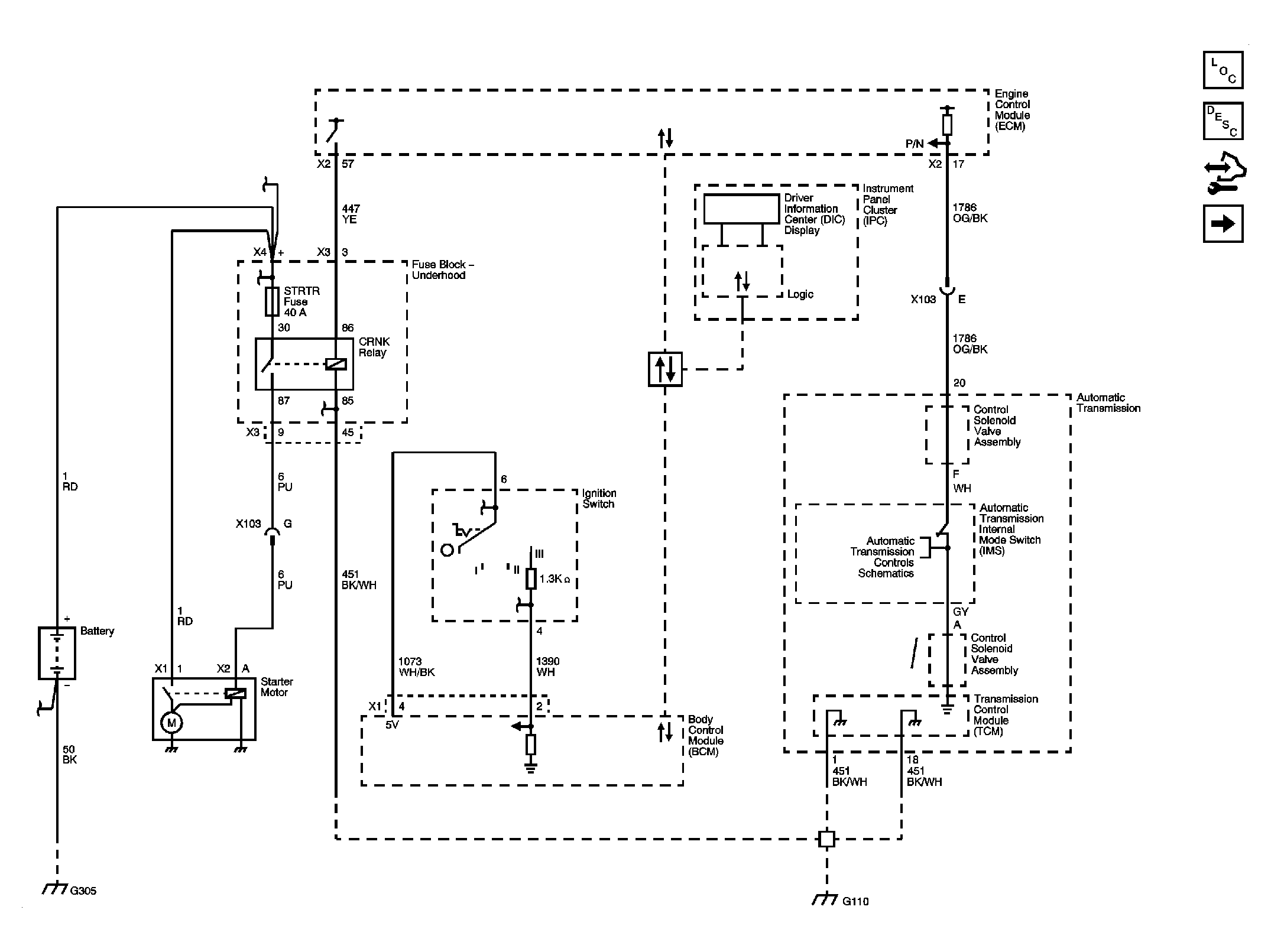

Fig 1: Starting Circuit Schematic

GM2077839

Courtesy of GENERAL MOTORS CORP.

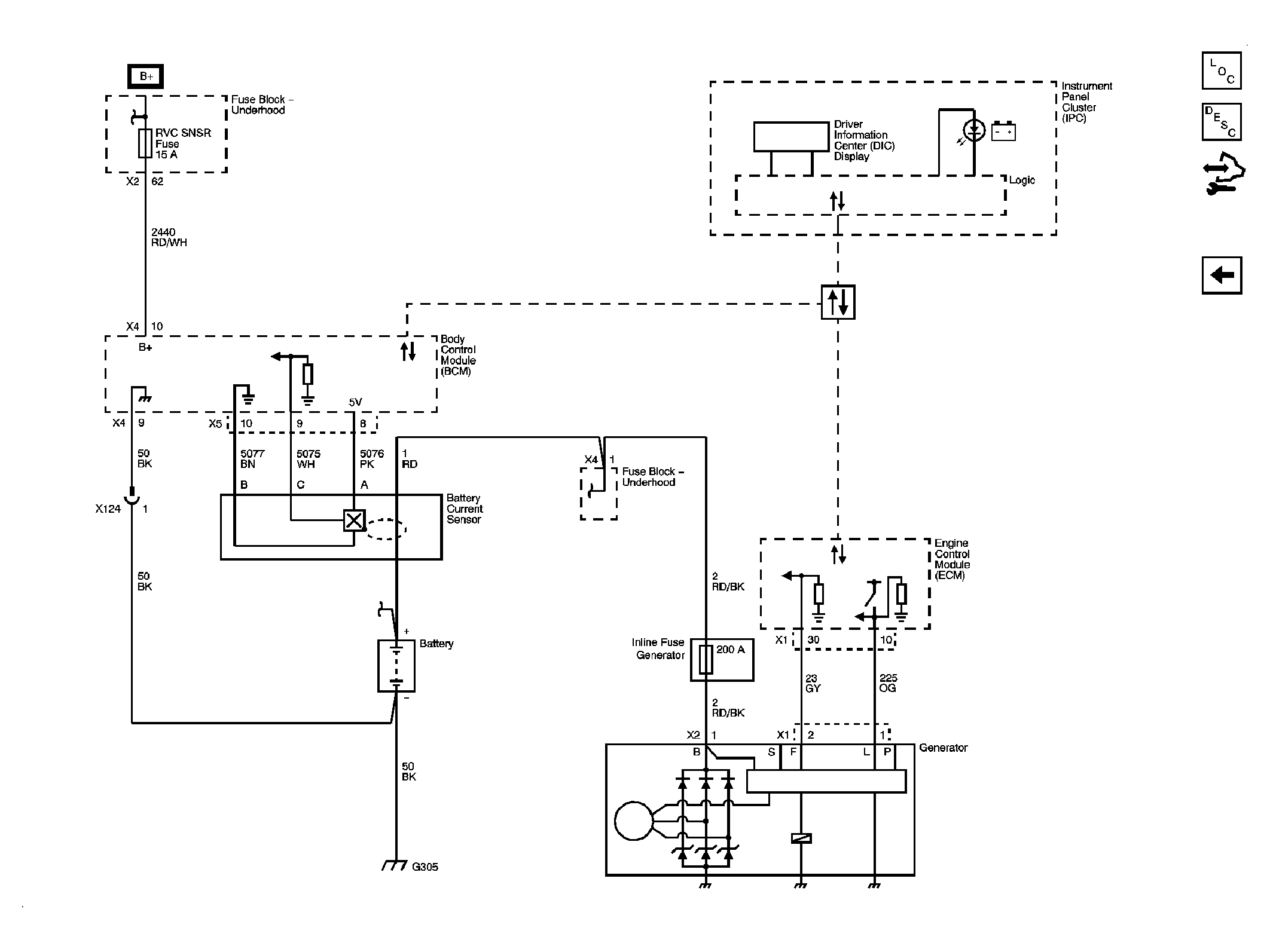

Fig 2: Charging Circuit Schematic

GM2077842

Courtesy of GENERAL MOTORS CORP.
