Driver Knee Bolster Replacement (Traverse)

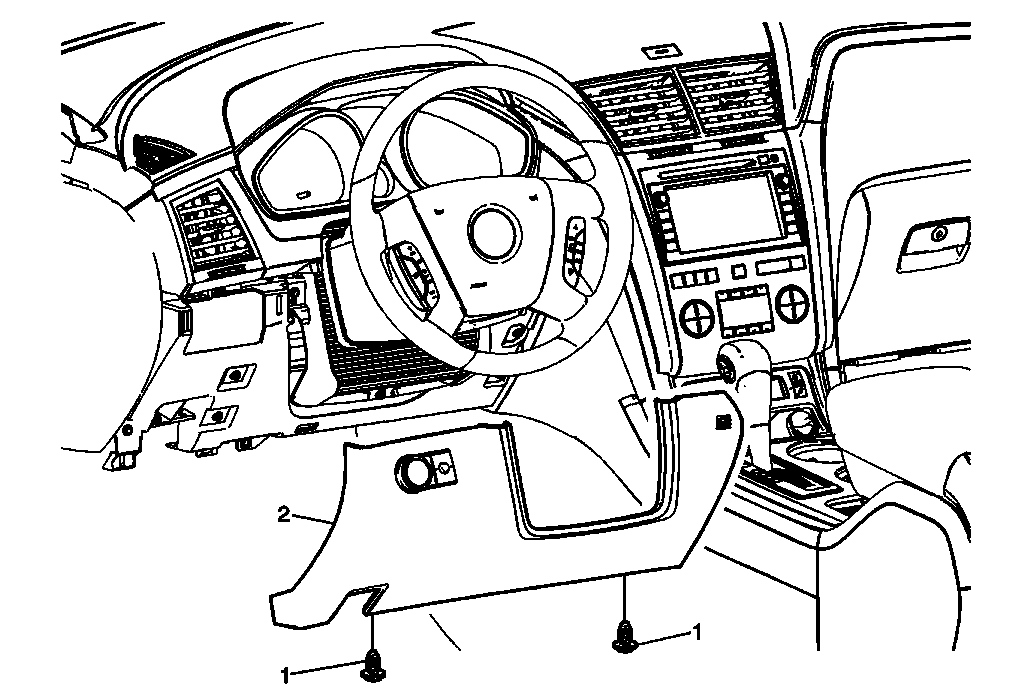

Fig 1: View Of Driver Knee Bolster (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the hood latch release handle assembly. Refer to Hood Primary Latch Release Cable Handle Replacement .
1	Driver Knee Bolster Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m ((22 lb in)
2	Driver Knee Bolster Assembly Procedures Disconnect the electrical connections. When replacing the knee bolster, transfer all necessary components.

Callout

Component Name

Preliminary Procedure:
Remove the hood latch release handle assembly. Refer to Hood Primary Latch Release Cable Handle Replacement .

Driver Knee Bolster Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m ((22 lb in)

Driver Knee Bolster Assembly

Procedures
