JX400 - JX499

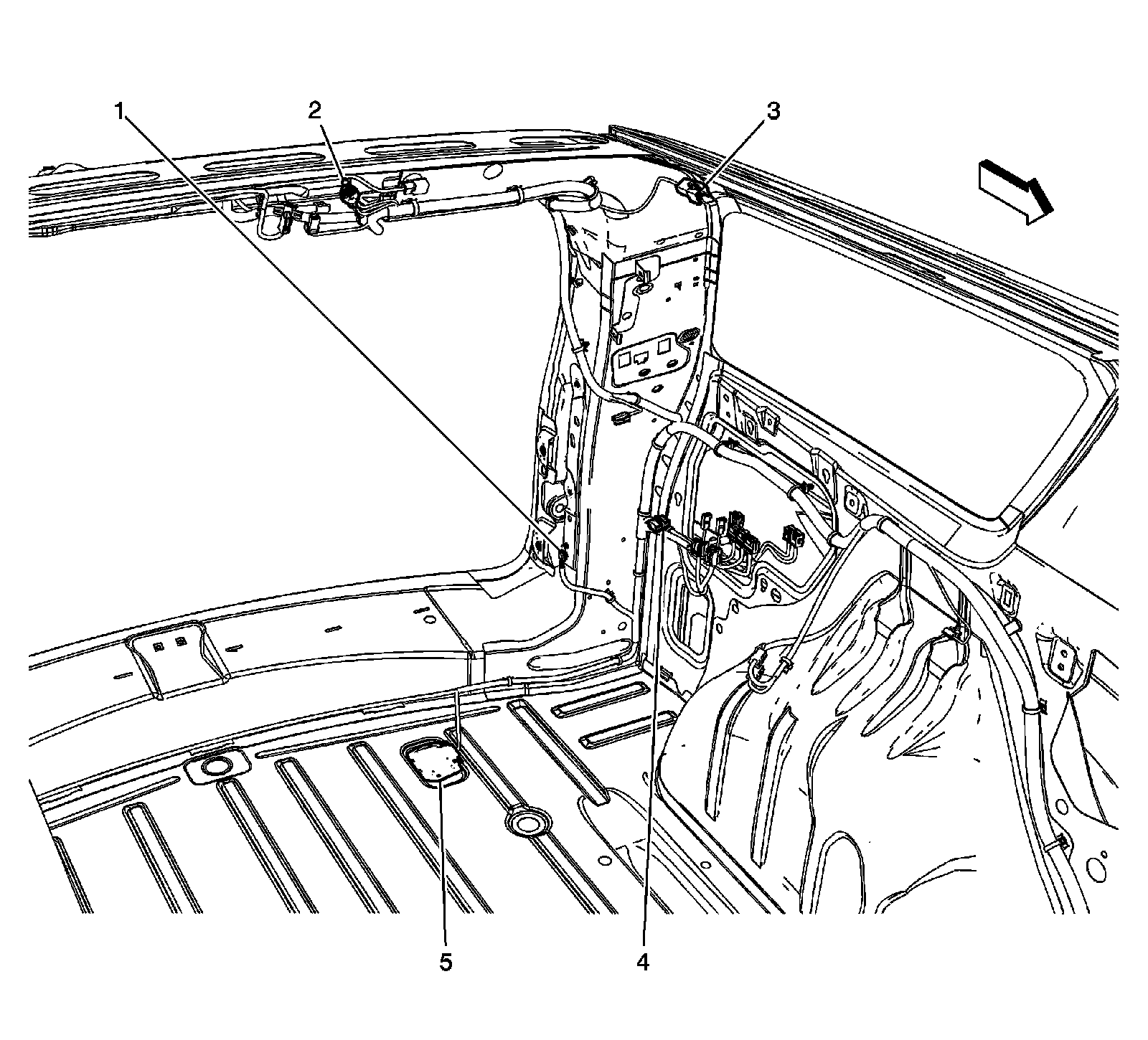

Harness Routing Views

Body Harness - Left Rear Passenger Compartment

1 - G401
2 - Radio Antenna X1
3 - Inflatable Restraint Roof Rail Module - Driver Connector
4 - JX405
5 - X405
