Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Left

SECONDARY CAMSHAFT INTERMEDIATE DRIVE CHAIN TENSIONER REPLACEMENT - LEFT

Removal Procedure
1. Remove the engine front cover. Service and Repair

2. Remove the spark plugs in order to ease crankshaft/engine rotation. Service and Repair

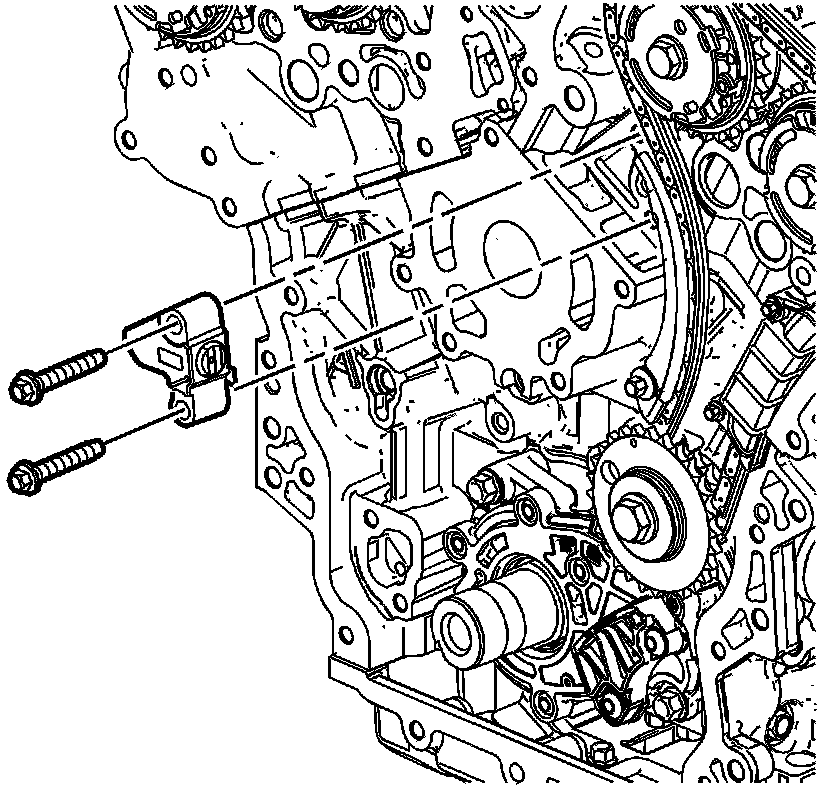

3. Remove the left bank secondary camshaft drive chain tensioner. 25. Secondary Camshaft Drive Chain Tensioner Removal - Left Side

Installation Procedure






1. Install the left bank secondary camshaft drive chain tensioner. 116. Secondary Camshaft Drive Chain Tensioner Installation - Left Side

2. Install the spark plugs. Service and Repair

3. Install the engine front cover. Service and Repair
