Valve Rocker Arm Replacement - Right Side

Valve Rocker Arm Replacement - Right Side

Removal Procedure

1. Remove the applicable camshaft(s). Refer to Camshaft Replacement - Right Side (Camshaft Replacement - Right Side).

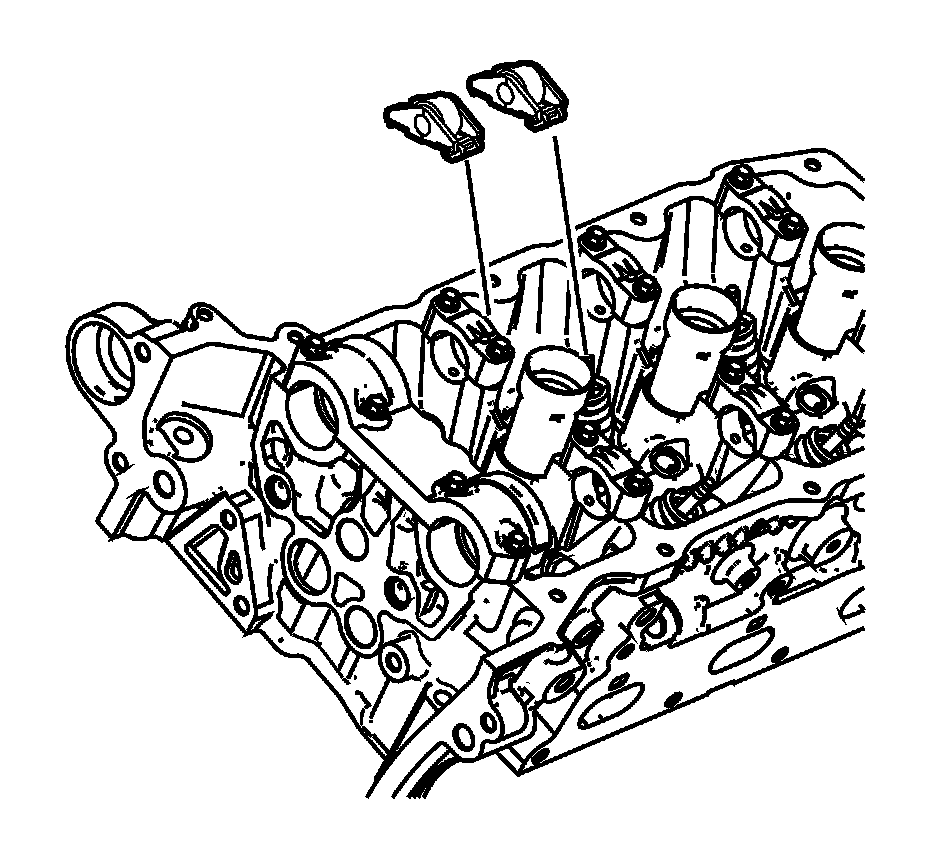

2. Remove the rocker arms. Refer to Valve Rocker Arm Removal - Right Side (Overhaul).
3. Clean and inspect the camshaft(s) and the rocker arm(s). Repair or replace as necessary. Refer to Camshaft Cleaning and Inspection () and Valve Rocker Arm Cleaning and Inspection (Overhaul).

Installation Procedure




1. Install the rocker arms.
2. Install the applicable camshaft(s). Refer to Valve Rocker Arm Installation - Right Side (Overhaul).
