Valve Rocker Arm Replacement - Left Side




Valve Rocker Arm Replacement - Left Side

Removal Procedure

1. Remove the applicable camshaft(s). Refer to Camshaft Replacement - Left Side (Camshaft Replacement - Left Side).

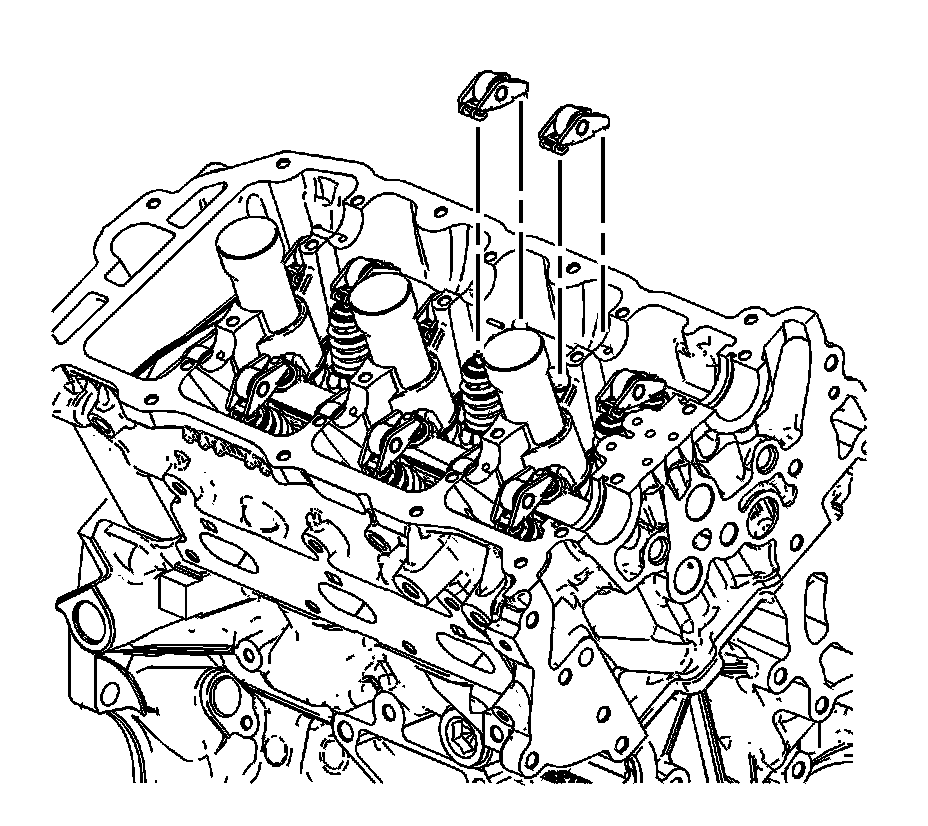

2. Remove the rocker arms. Refer to Valve Rocker Arm Removal - Left Side (LLT) (Overhaul).
3. Clean and inspect the camshaft(s) and the rocker arm(s). Repair or replace as necessary. Refer to Camshaft Cleaning and Inspection () and Valve Rocker Arm Cleaning and Inspection (Overhaul).

Installation Procedure




1. Install the rocker arms. Refer to Valve Rocker Arm Installation - Left Side (LLT) (Overhaul).
2. Install the applicable camshaft(s). Refer to Camshaft Replacement - Left Side (Camshaft Replacement - Left Side).
