Fuel Delivery and Air Induction

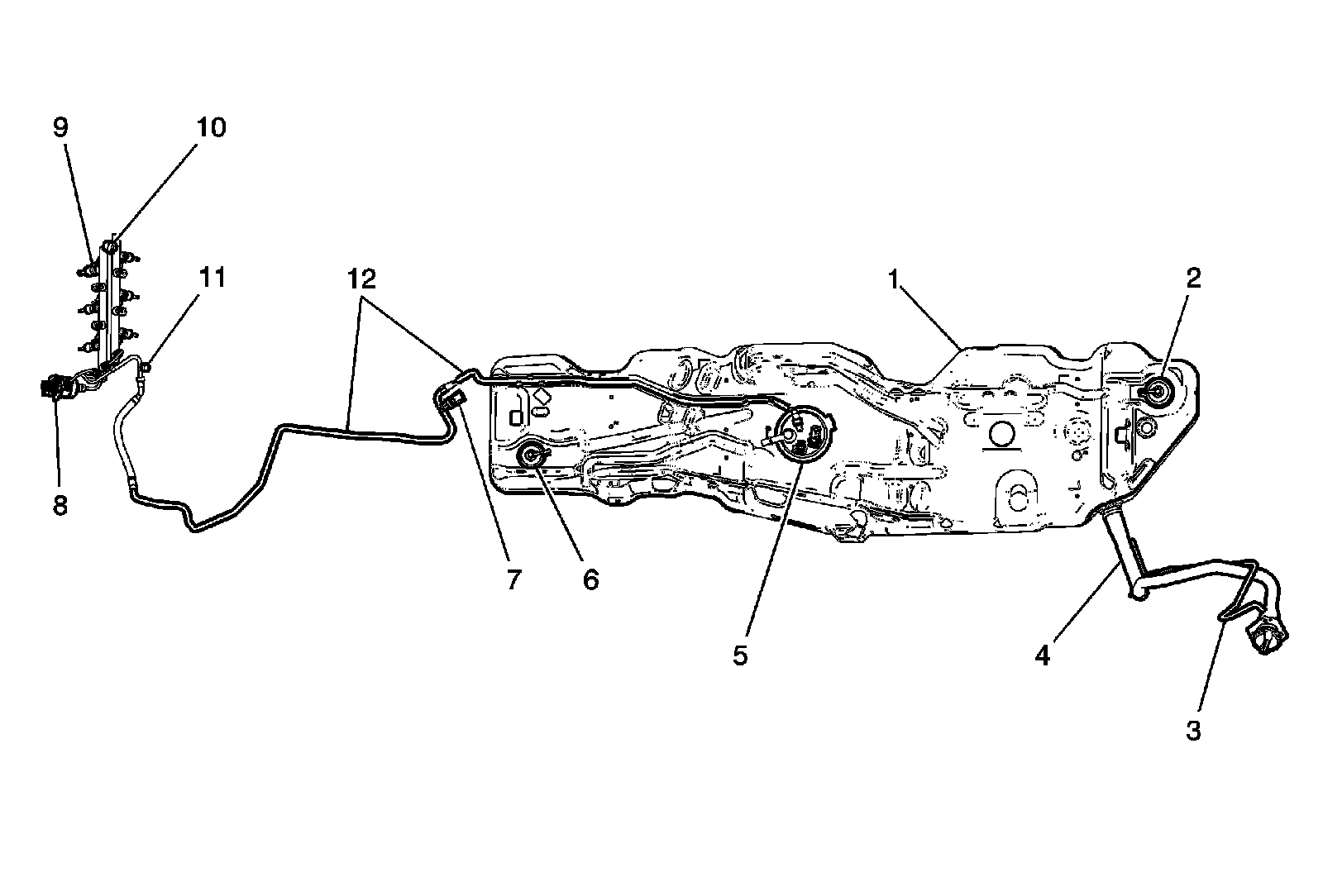

Fuel Hose/Pipes Routing Diagram




1 - Fuel Tank
2 - Fuel Tank Rollover Vent Valve
3 - Fuel Fill Tube Vapor Recirculation Hose/Pipe
4 - Fuel Fill Tube
5 - Fuel Tank Module
6 - Fuel Tank Rollover Vent Valve
7 - Fuel Feed Pressure Sensor
8 - Fuel Rail Pressure (FRP) Regulator/High Pressure Fuel Pump
9 - Fuel Rail and Fuel Injectors
10 - FRP Sensor
11 - Fuel Pressure Test Connection
12 - Fuel Feed Hose/Pipe
