Moveable Window Schematics (Except AXC or AXE)
Moveable Window Schematics (Except AXC or AXE)
Moveable Window Schematics (Except AXC or AXE)

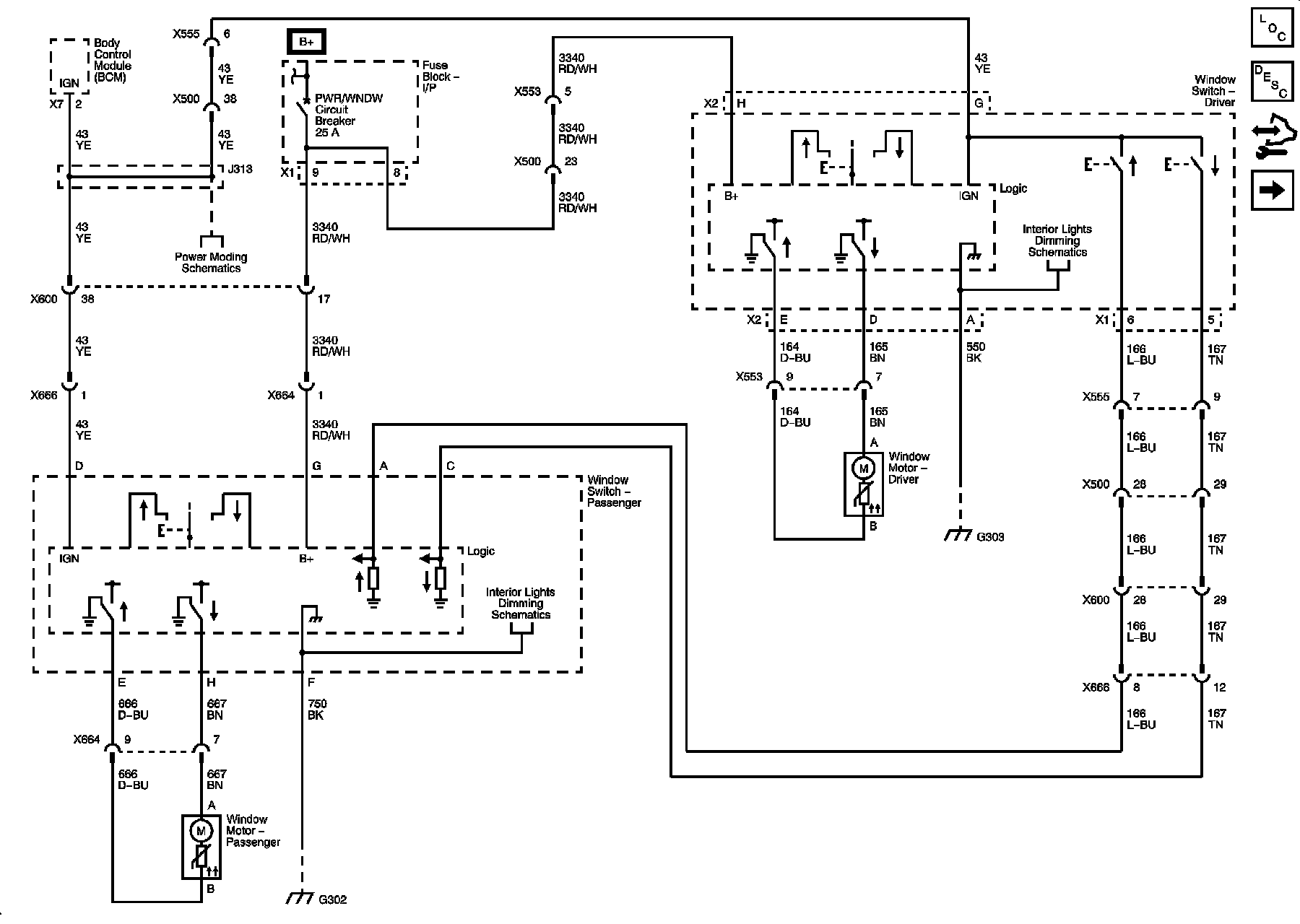

Front

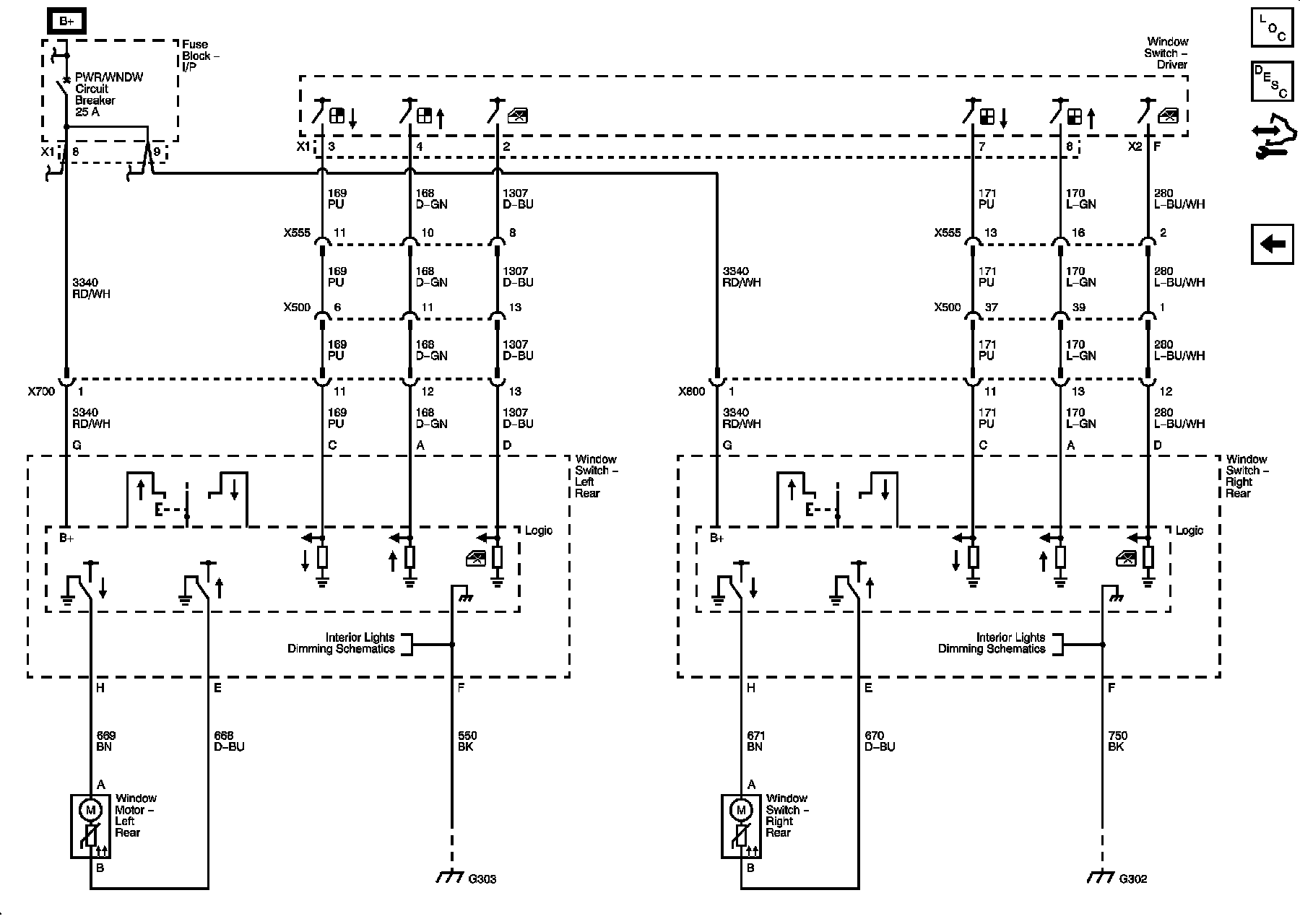

Rear
