Outside Rearview Mirror Schematics




Outside Rearview Mirror Schematics

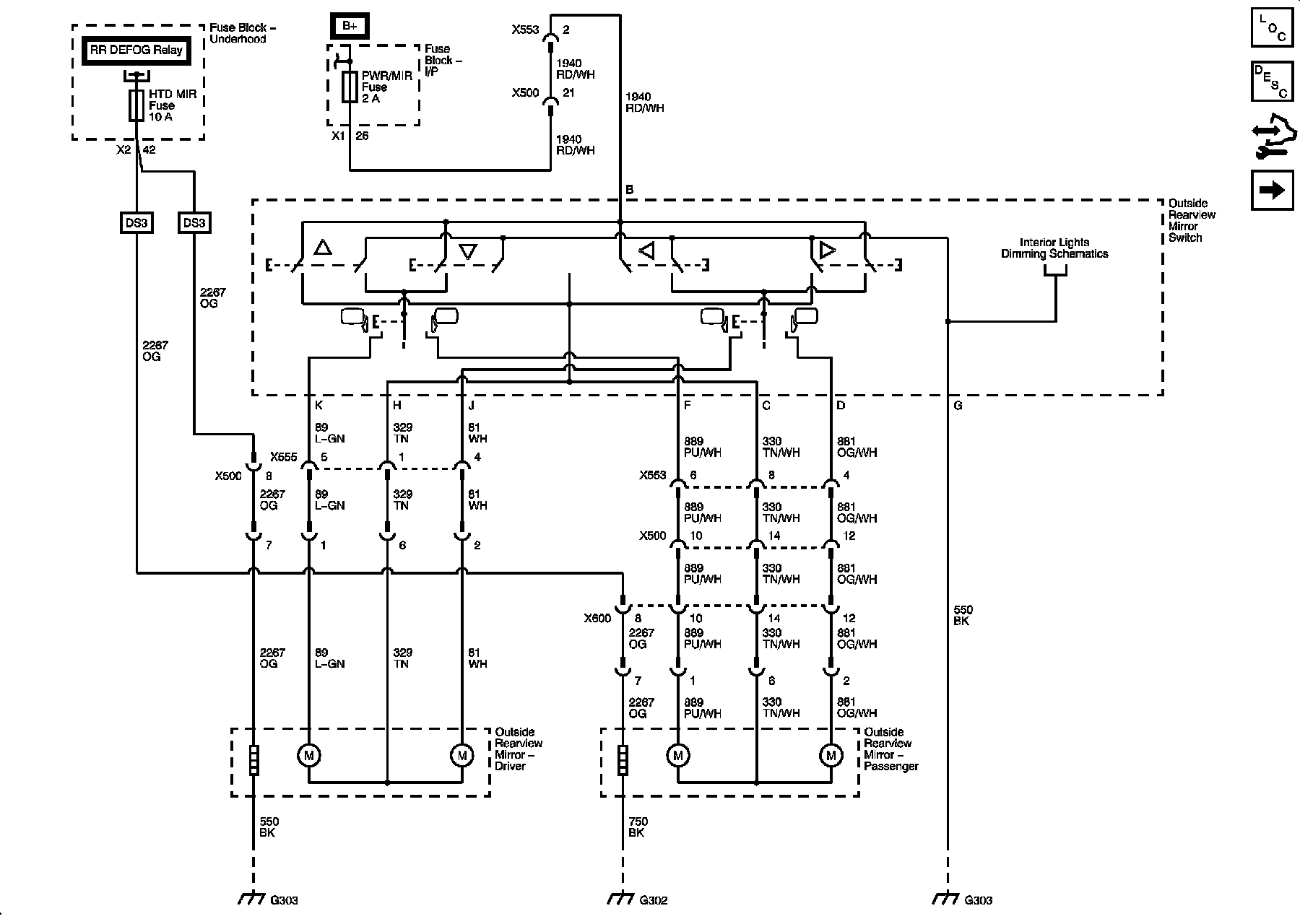

DL6 or DS3

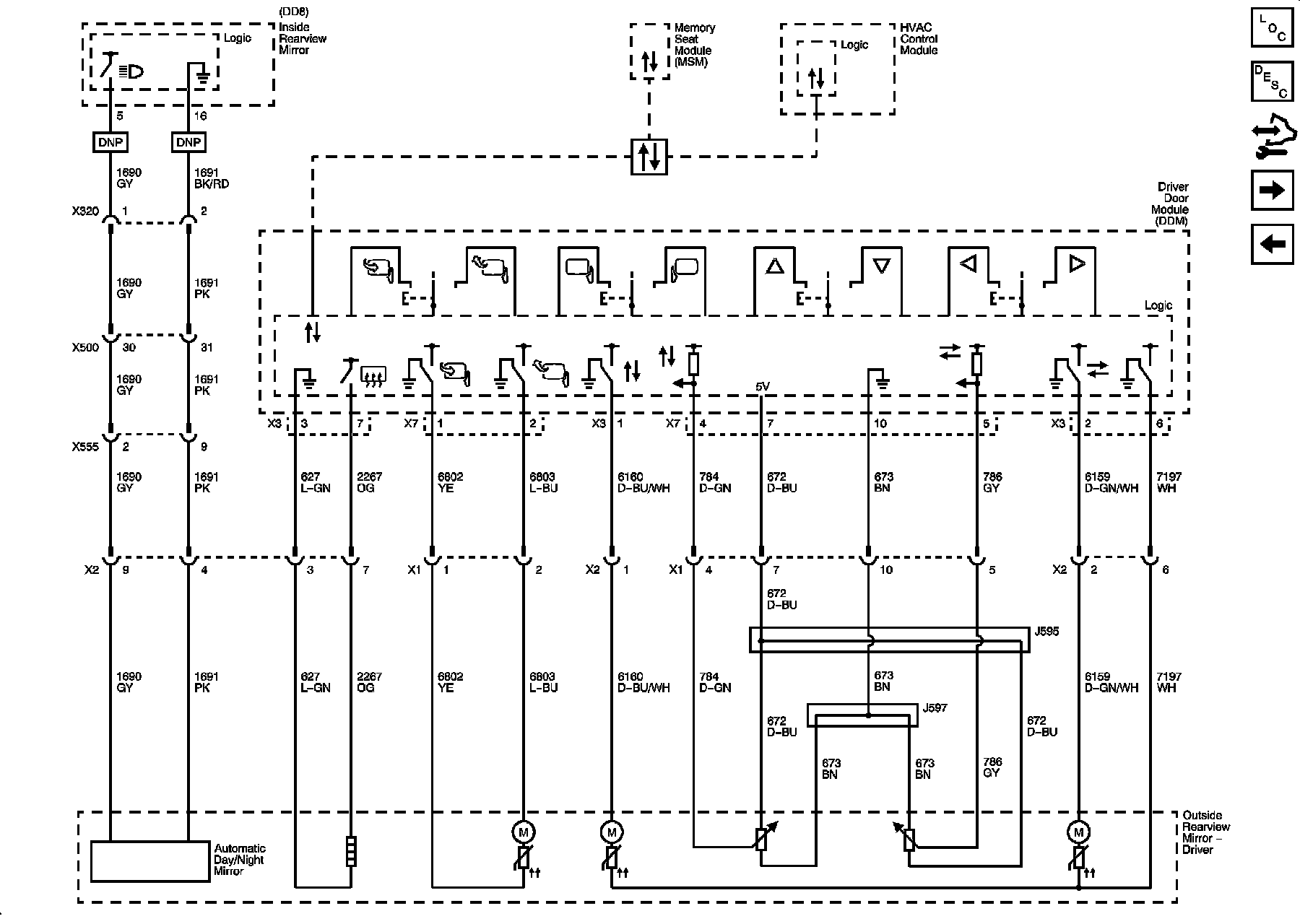

Driver - DNP or DNT

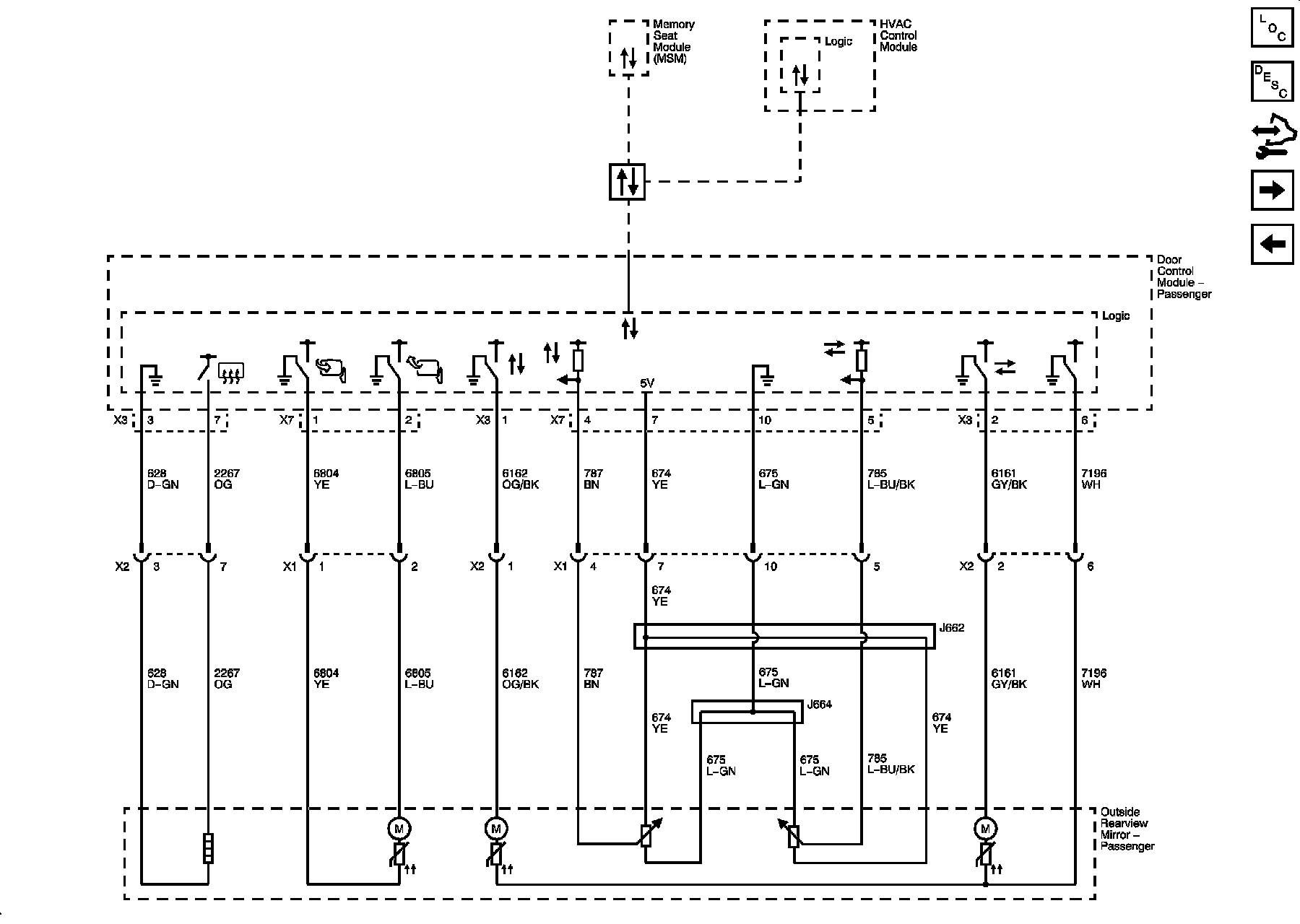

Passenger - DNP or DNT





W49 without DNP
