Liftgate Schematics




Liftgate Schematics

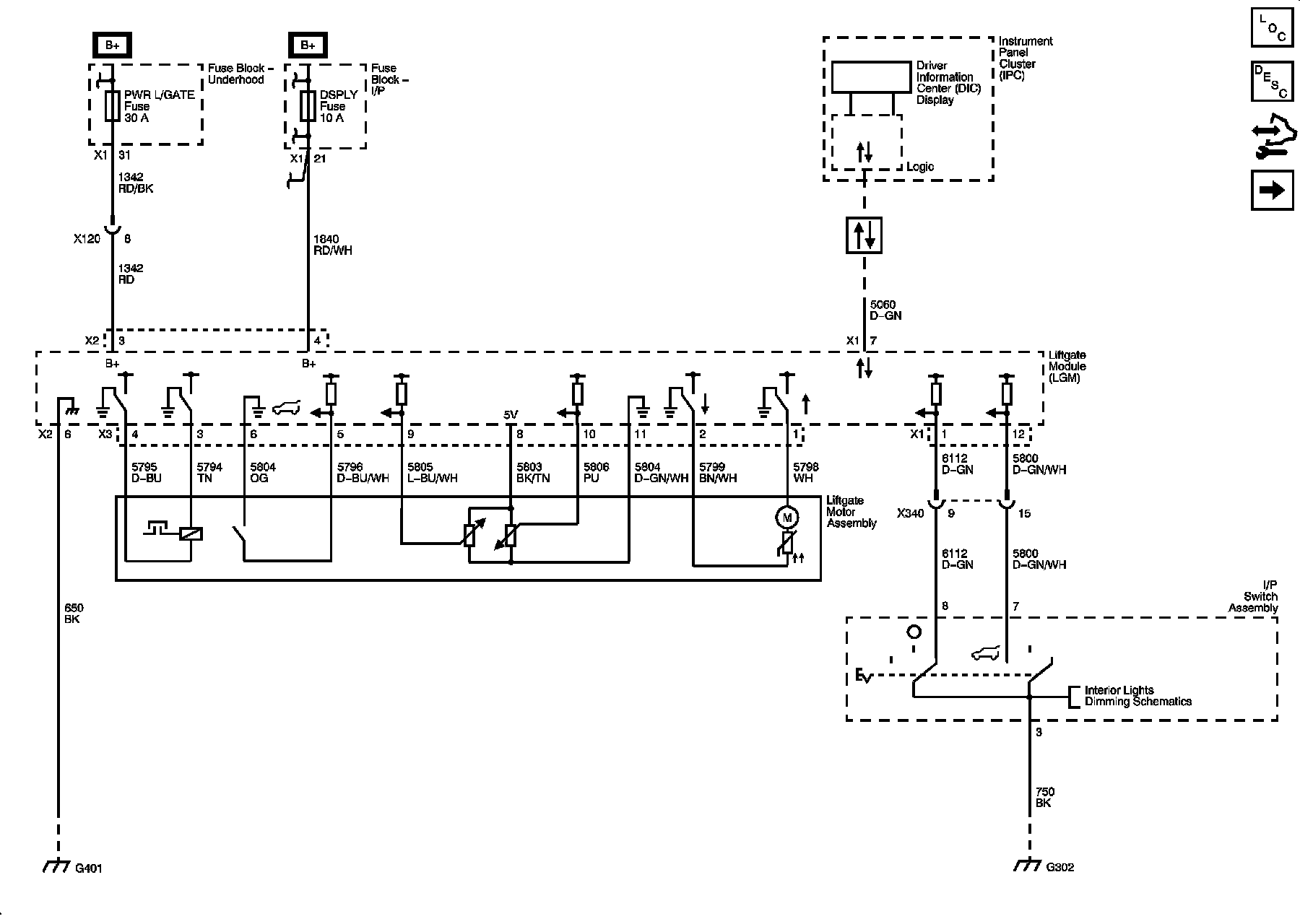

Module Power, Ground, Data Communication, Indicator, I/P Switch, and Liftgate Motor

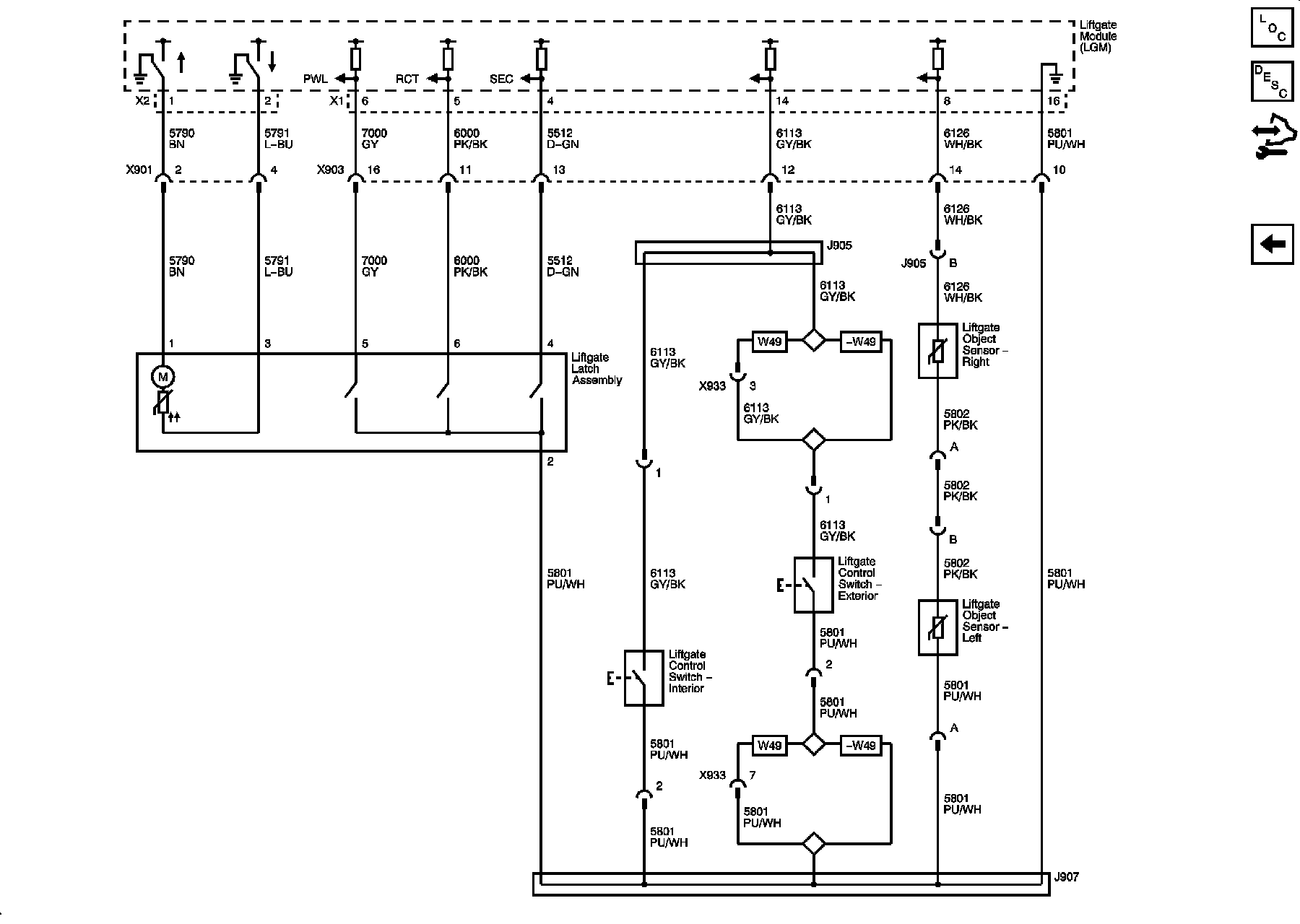

Latch, Object Sensors, and Switches
