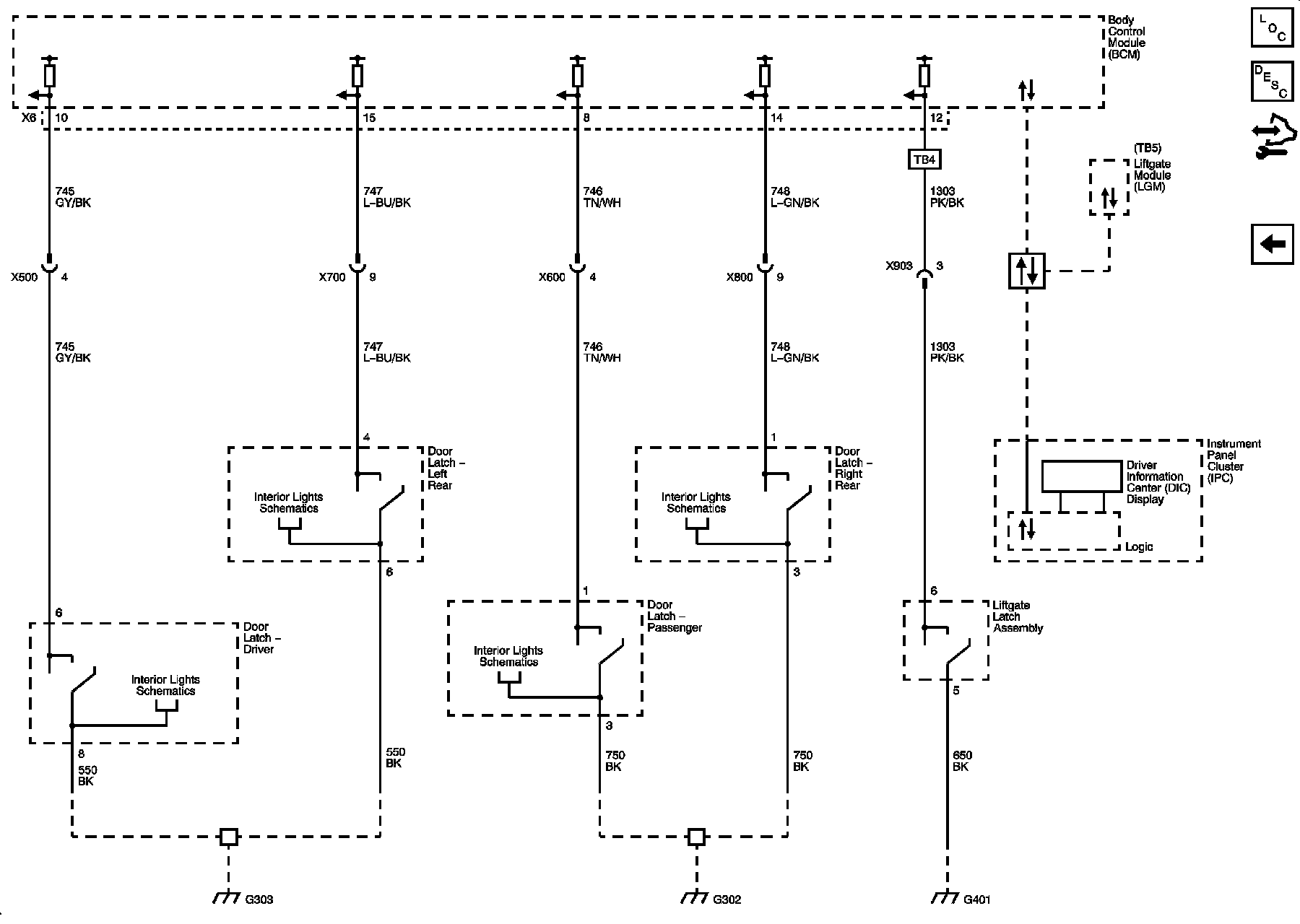

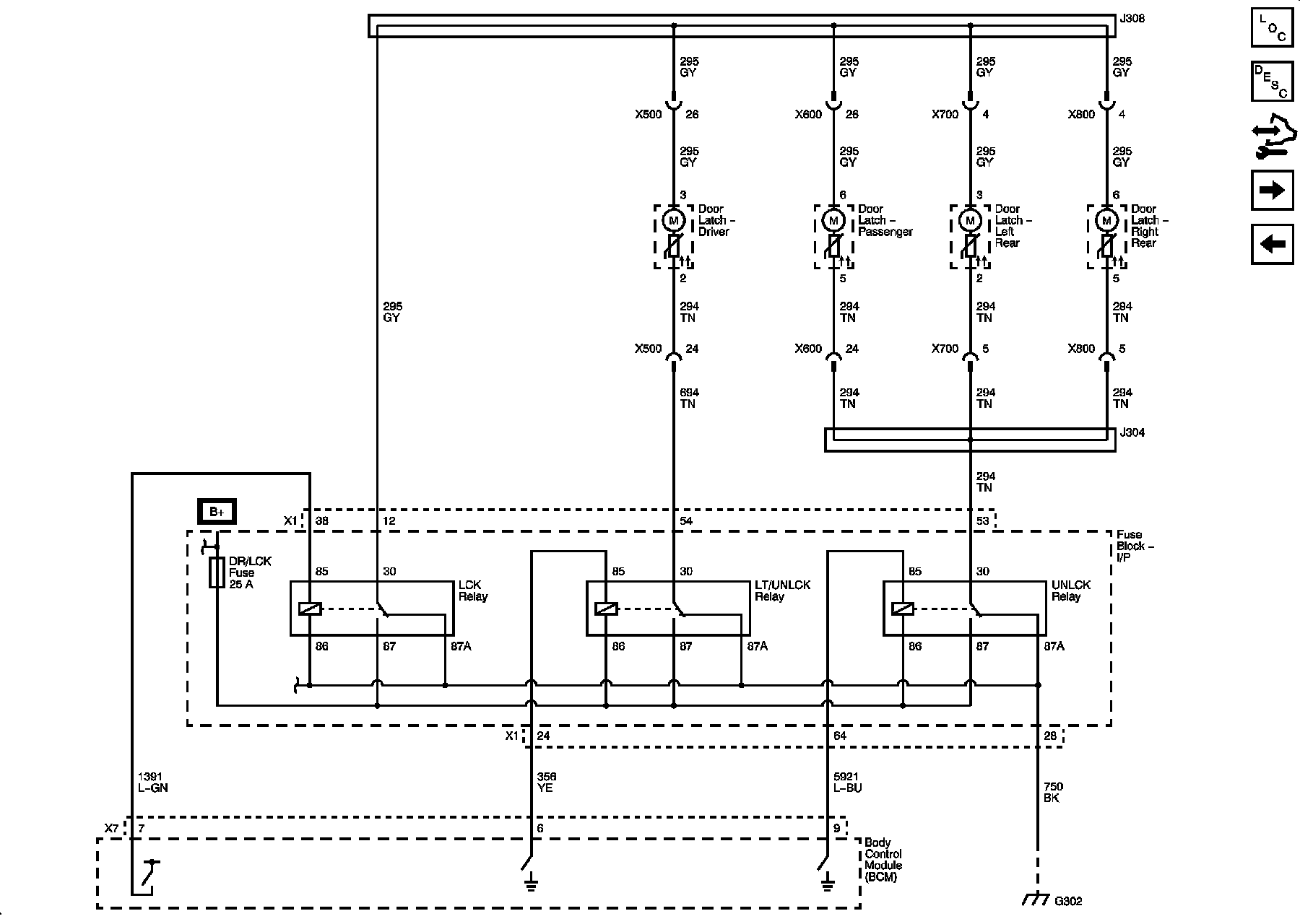

Door Lock/Indicator Schematics (Except AXC or AXE)

Door Lock/Indicator Schematics (Except AXC or AXE)

Switches

Actuators

Indicators
