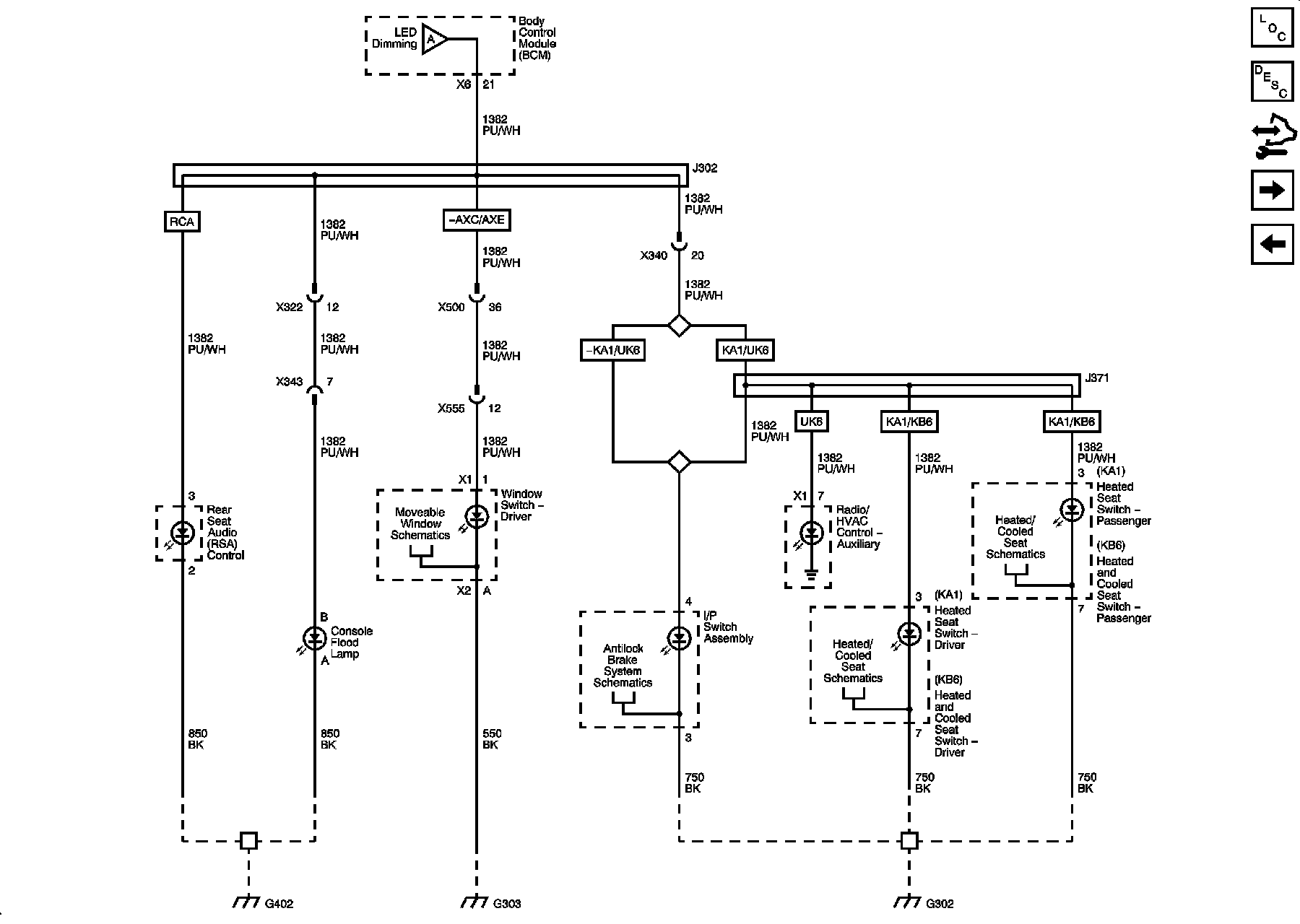

Home >> Chevrolet >> 2009 >> Traverse FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Dimming Schematics >> Interior Lights Dimming Schematic 2
