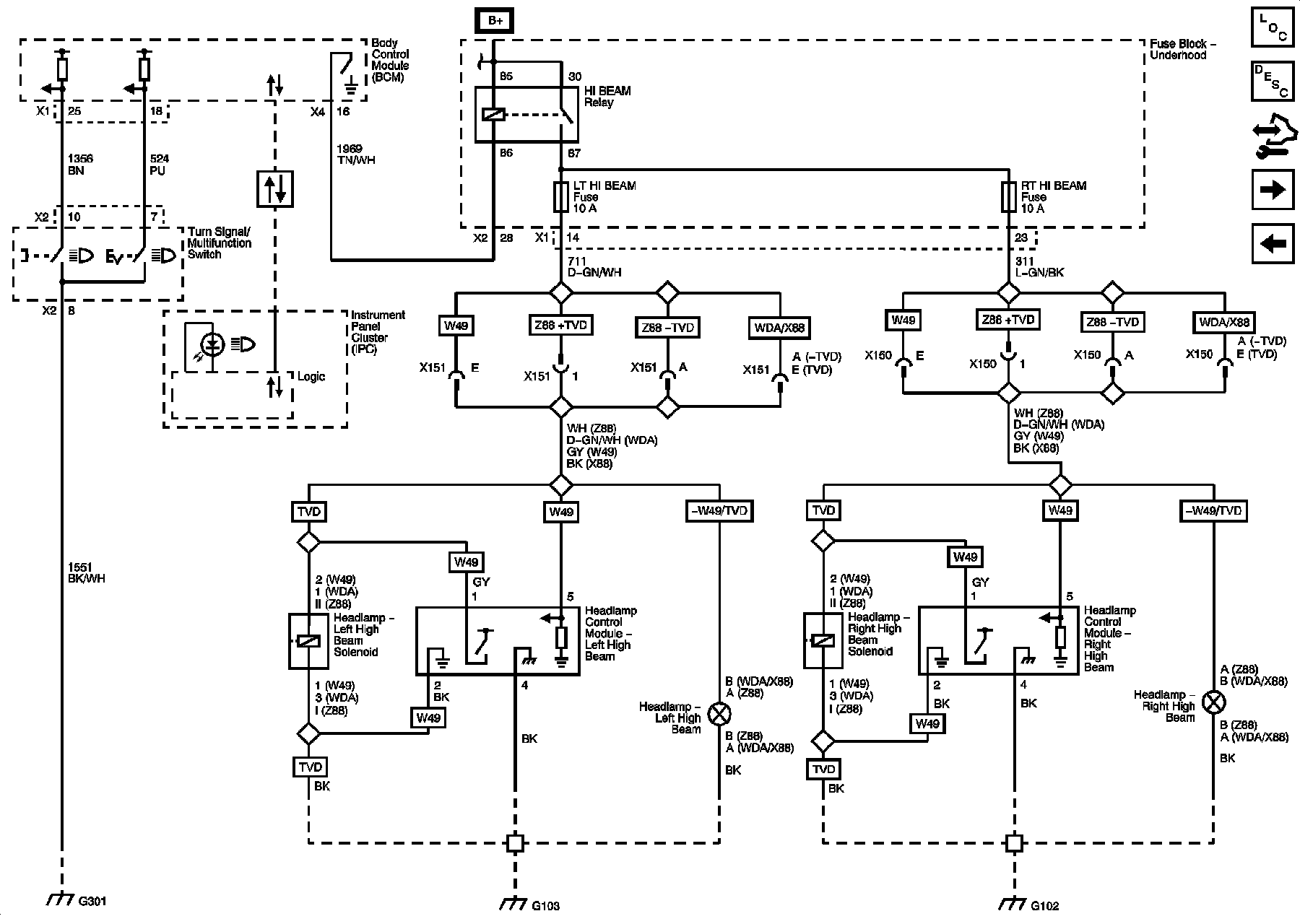

Headlights/Daytime Running Lights (DRL) Schematic 2




Headlights/Daytime Running Lights (DRL) Schematics

High Beams - Except TSH
