Antilock Brakes / Traction Control Systems




Antilock Brake System Schematics

Module Power and Ground, Subsystem References

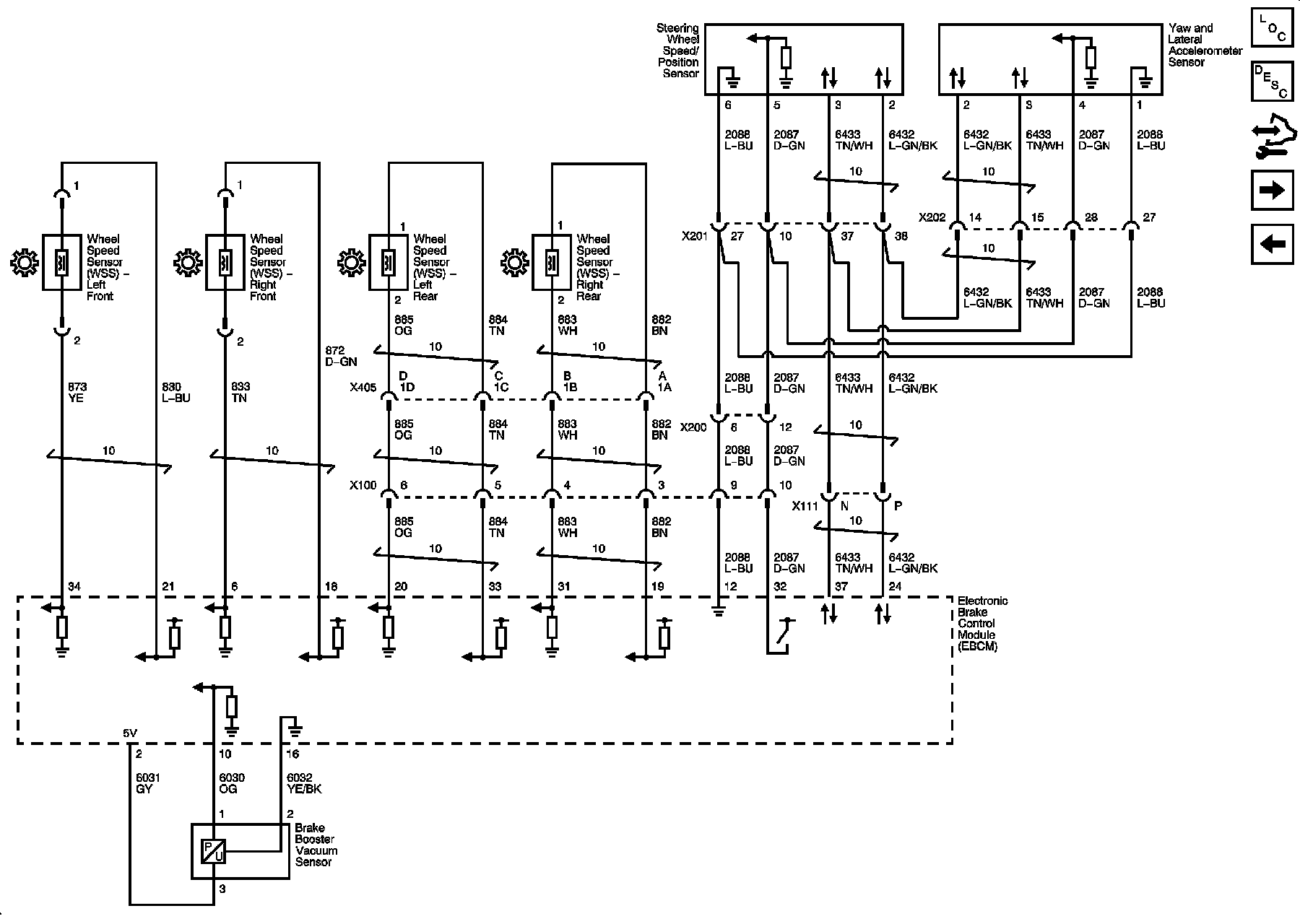

Sensors





TCS Control and Indicators
