Collision Avoidance and Parking Assist Systems




Object Detection Schematics

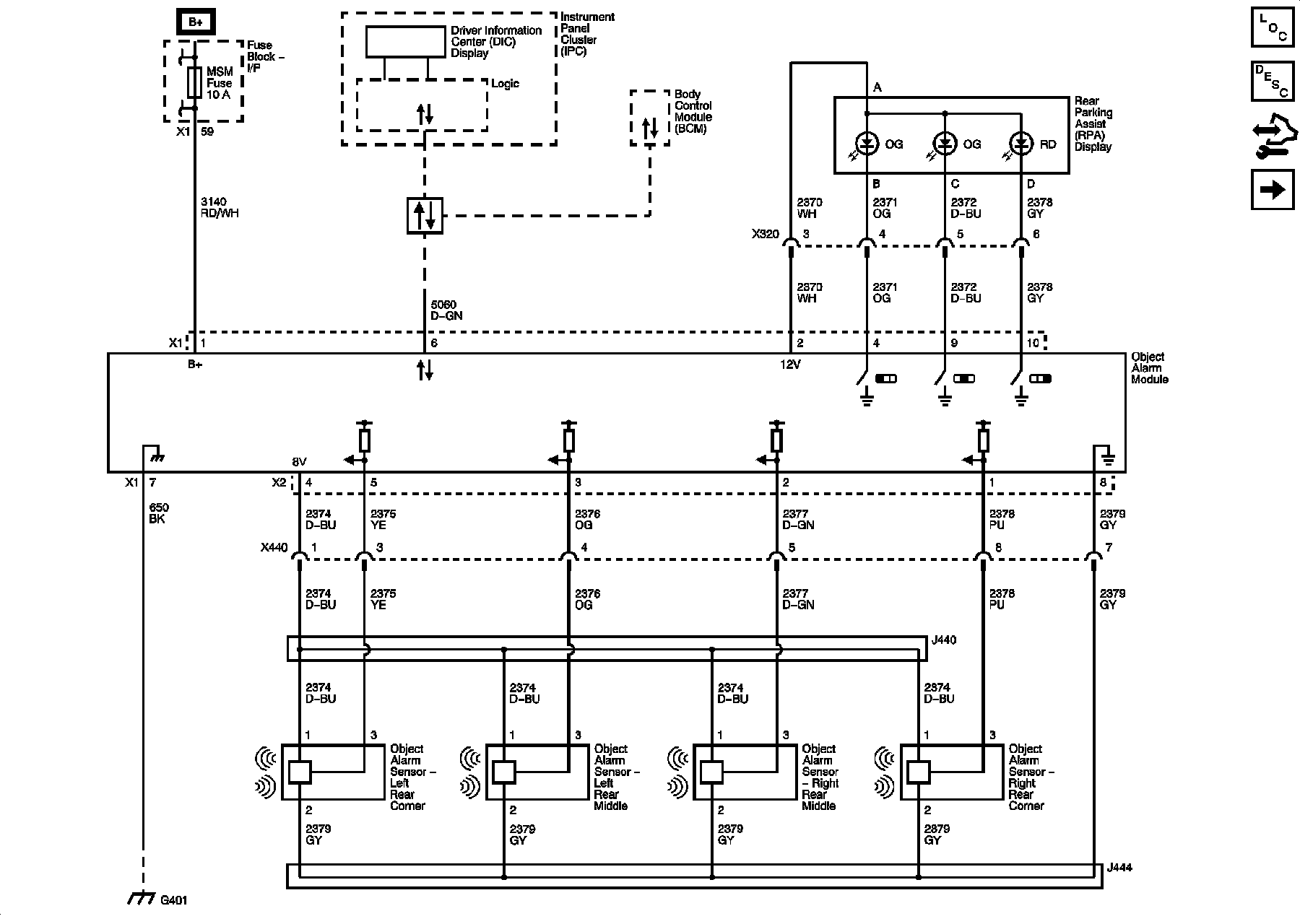

Rear Park Assist - UD7

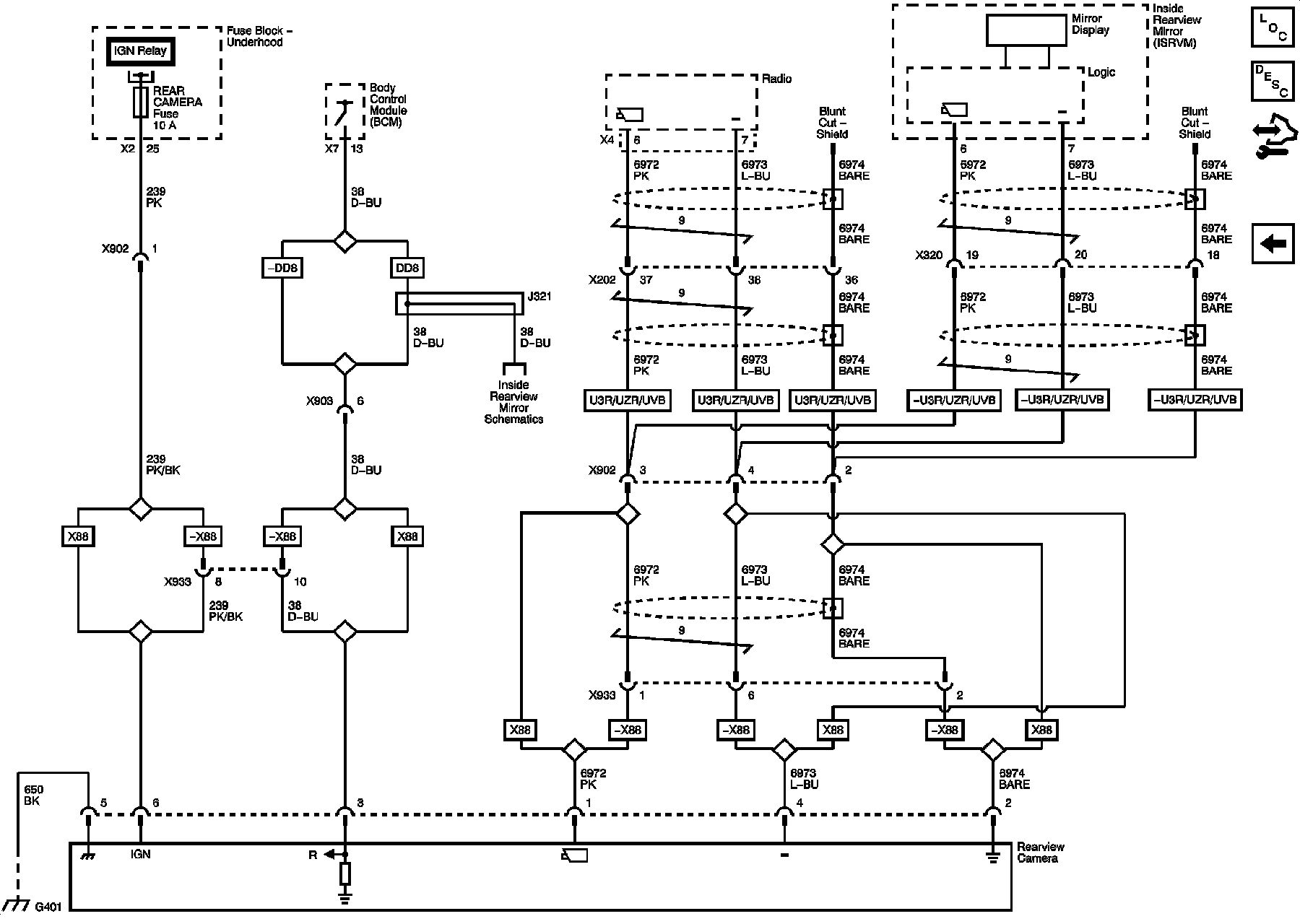

Rear Vision Camera - UVC
