Seat Belt Tensioner




Component Connector End Views

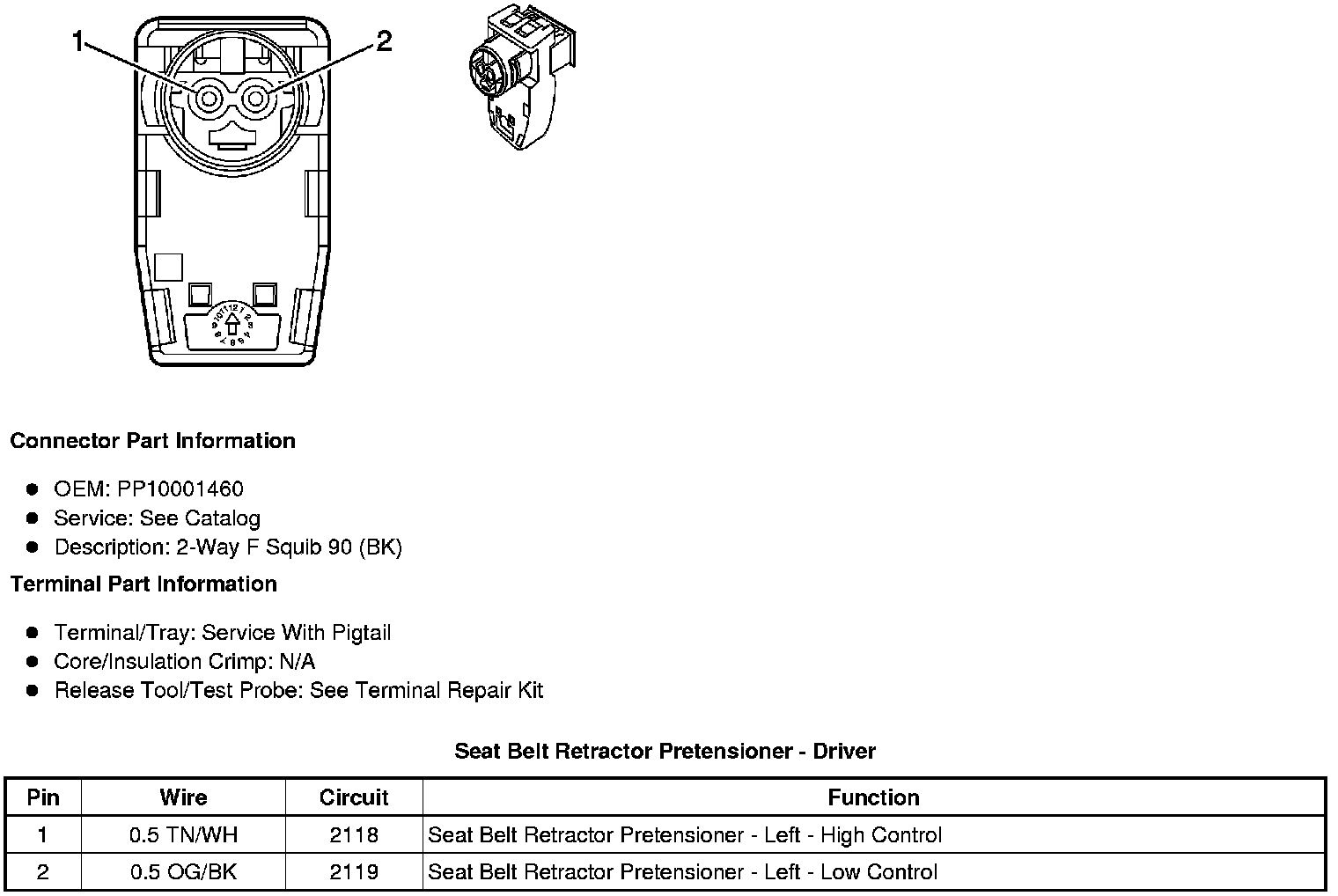

Seat Belt Retractor Pretensioner - Driver

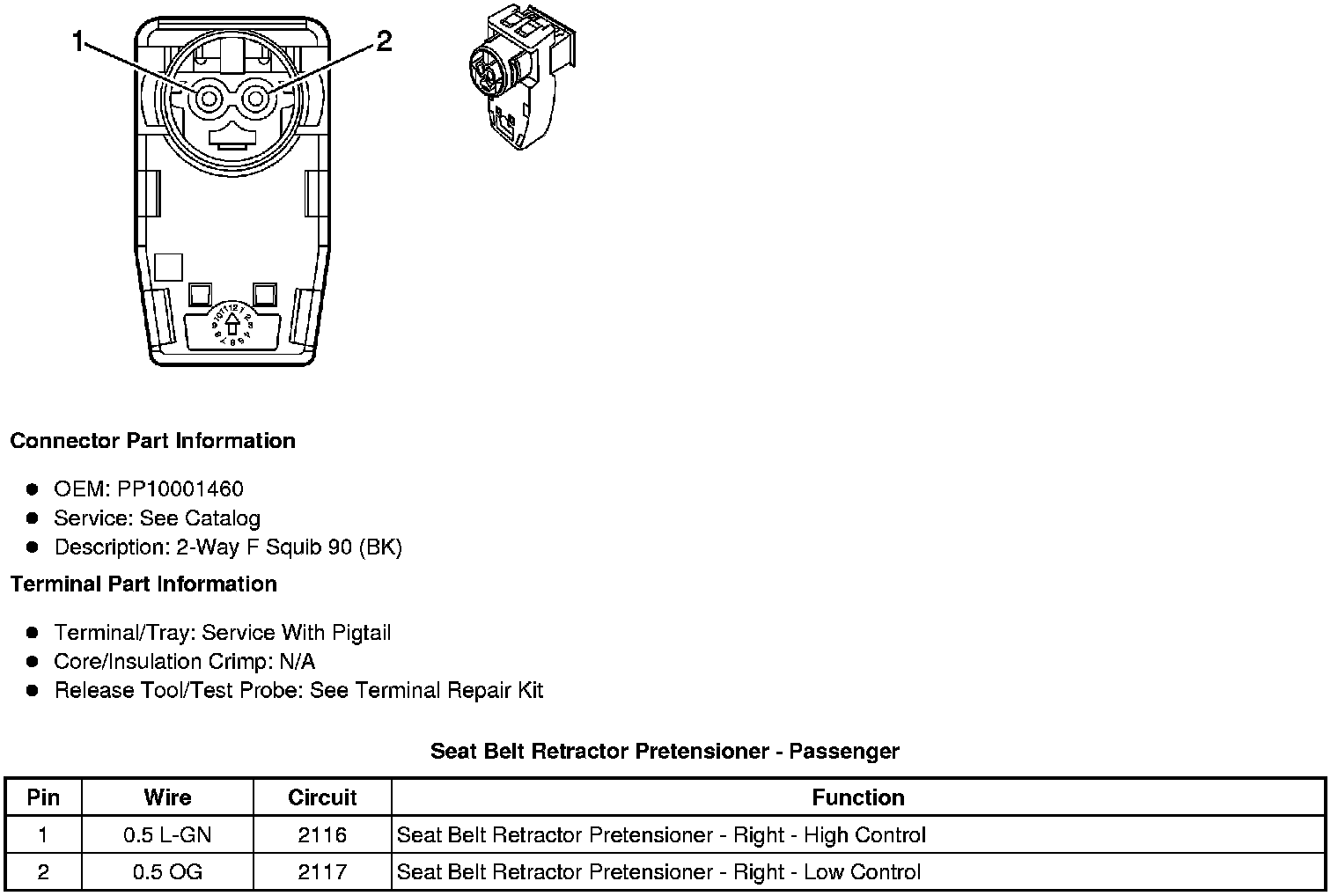

Seat Belt Retractor Pretensioner - Passenger

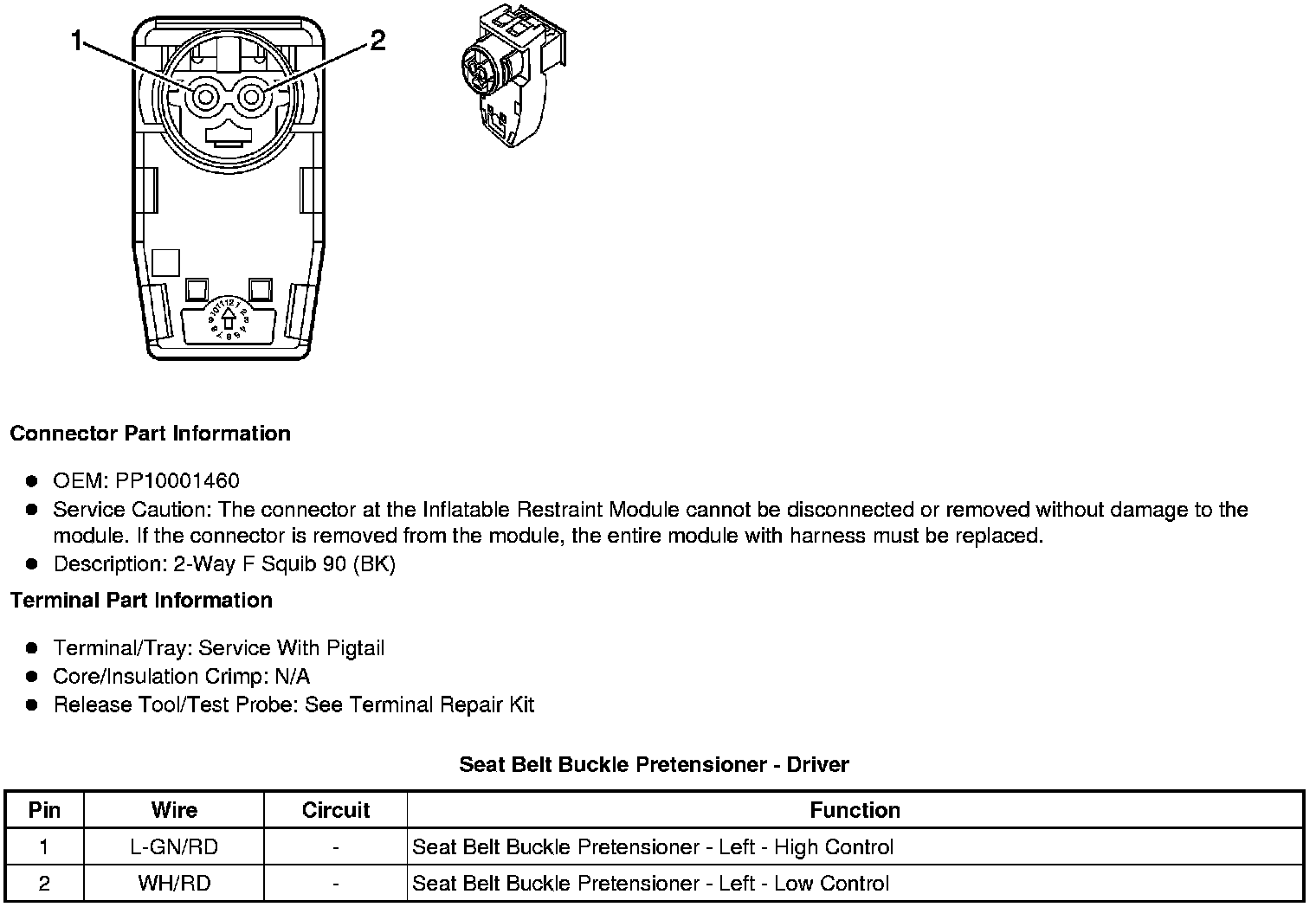

Seat Belt Buckle Pretensioner - Driver

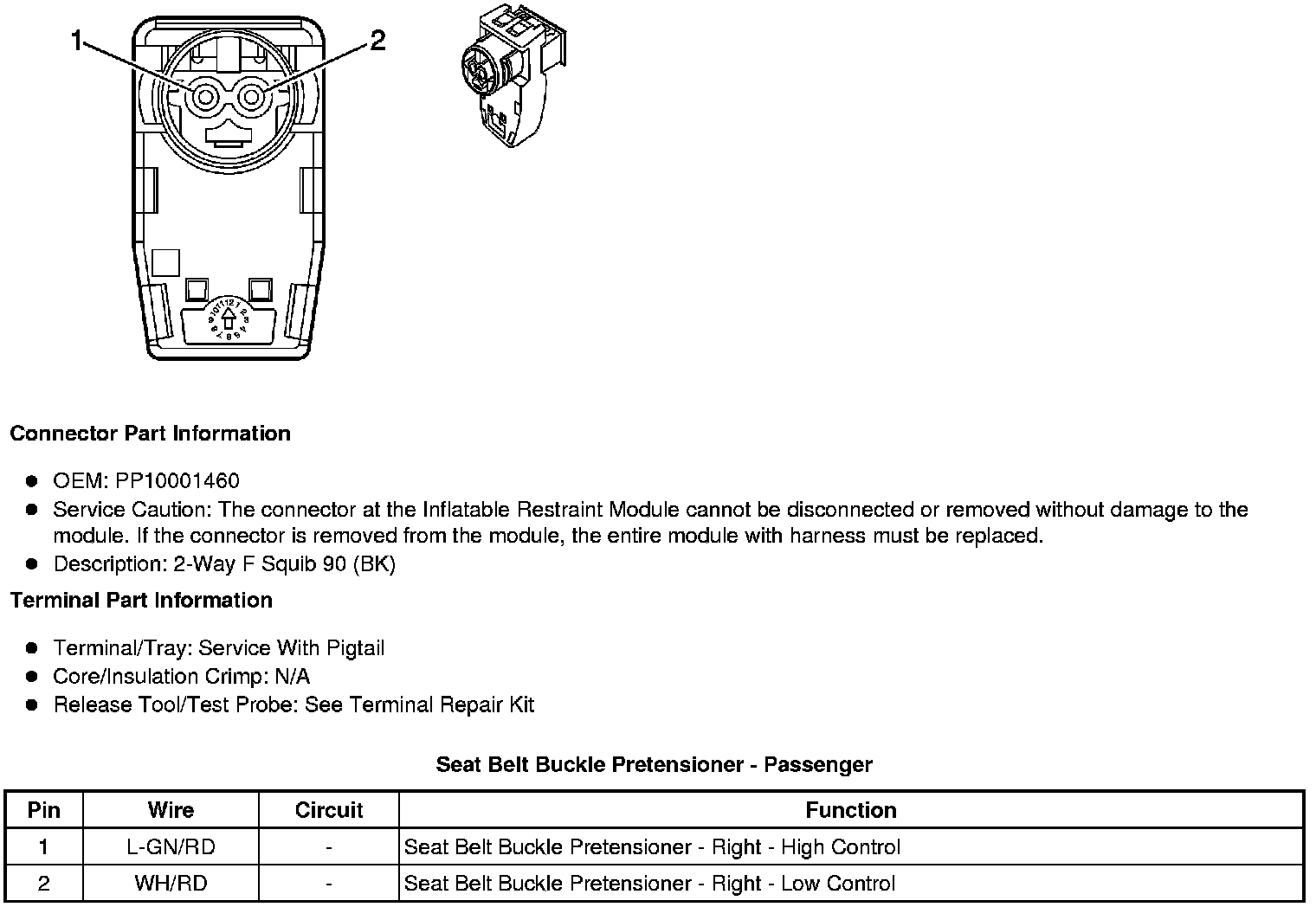

Seat Belt Buckle Pretensioner - Passenger
