X553
X553
Inline Harness Connector End Views

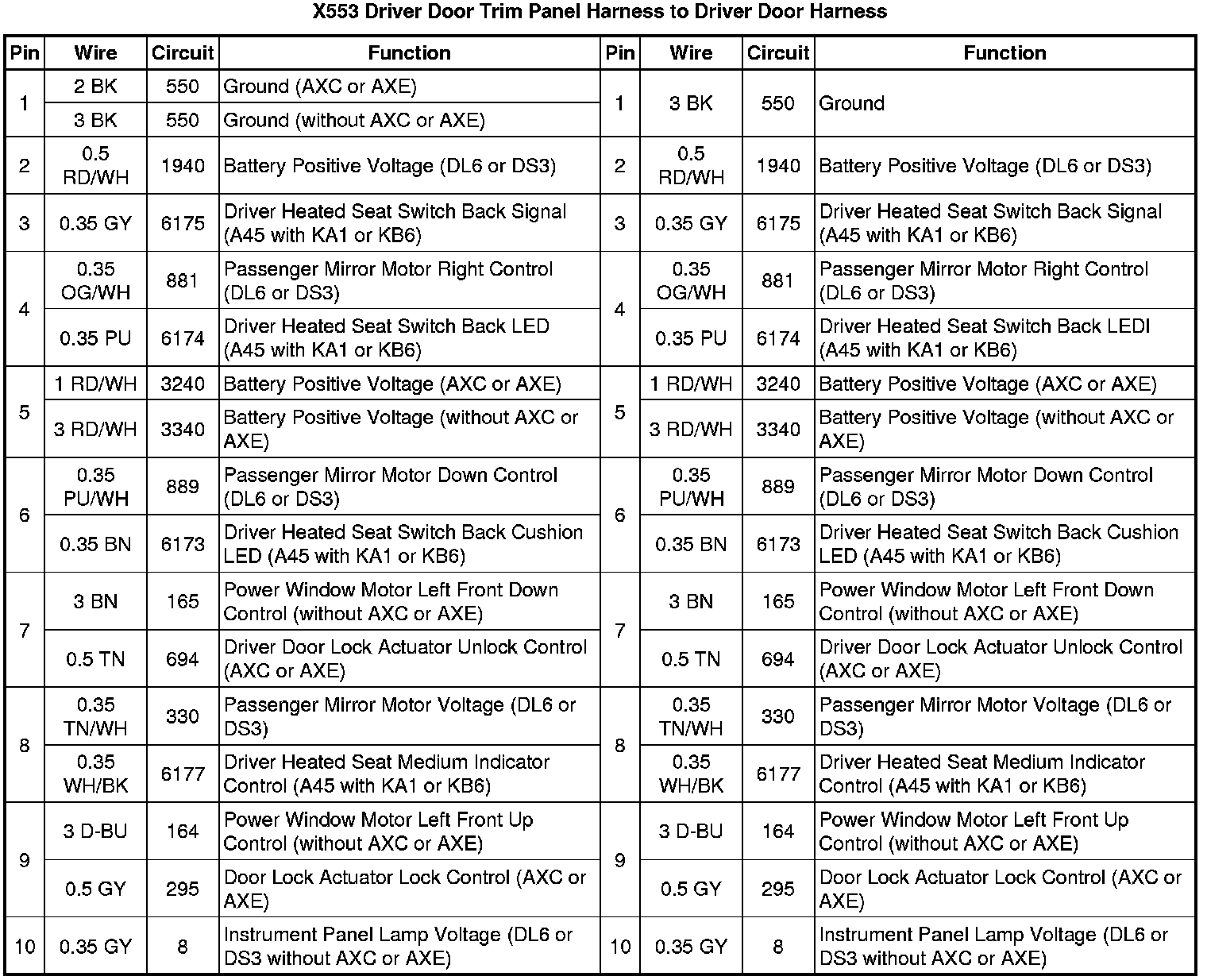

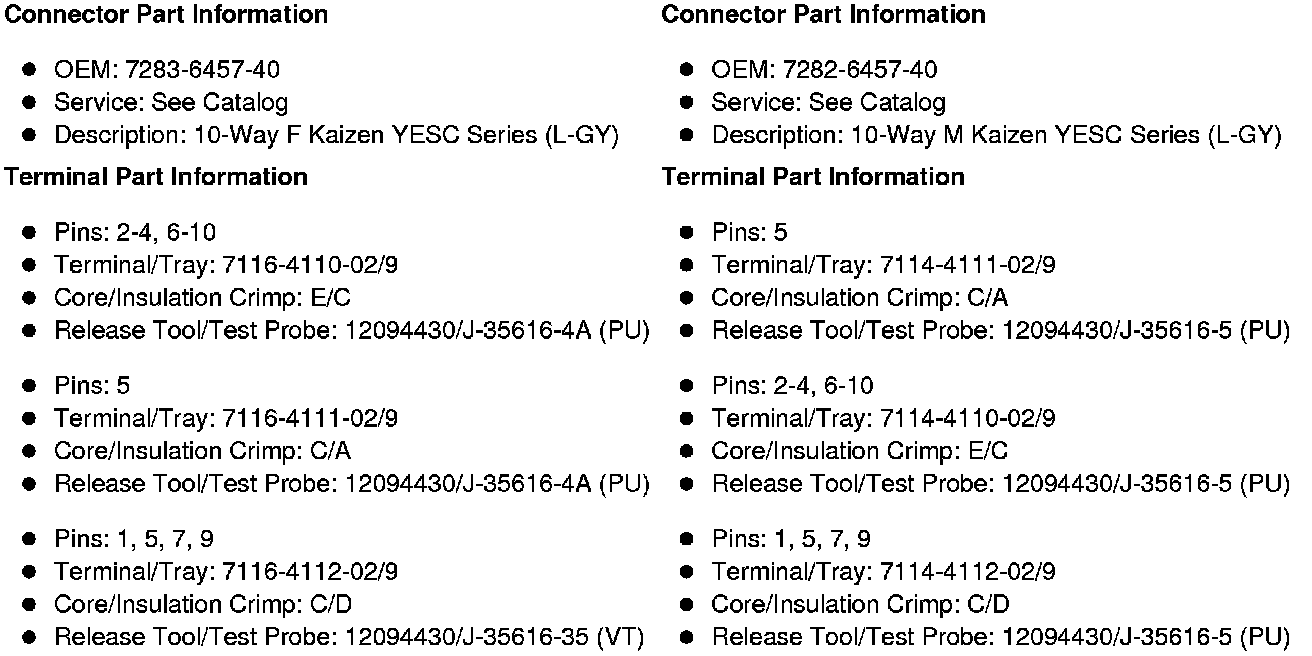

X553 Driver Door Trim Panel Harness to Driver Door Harness
